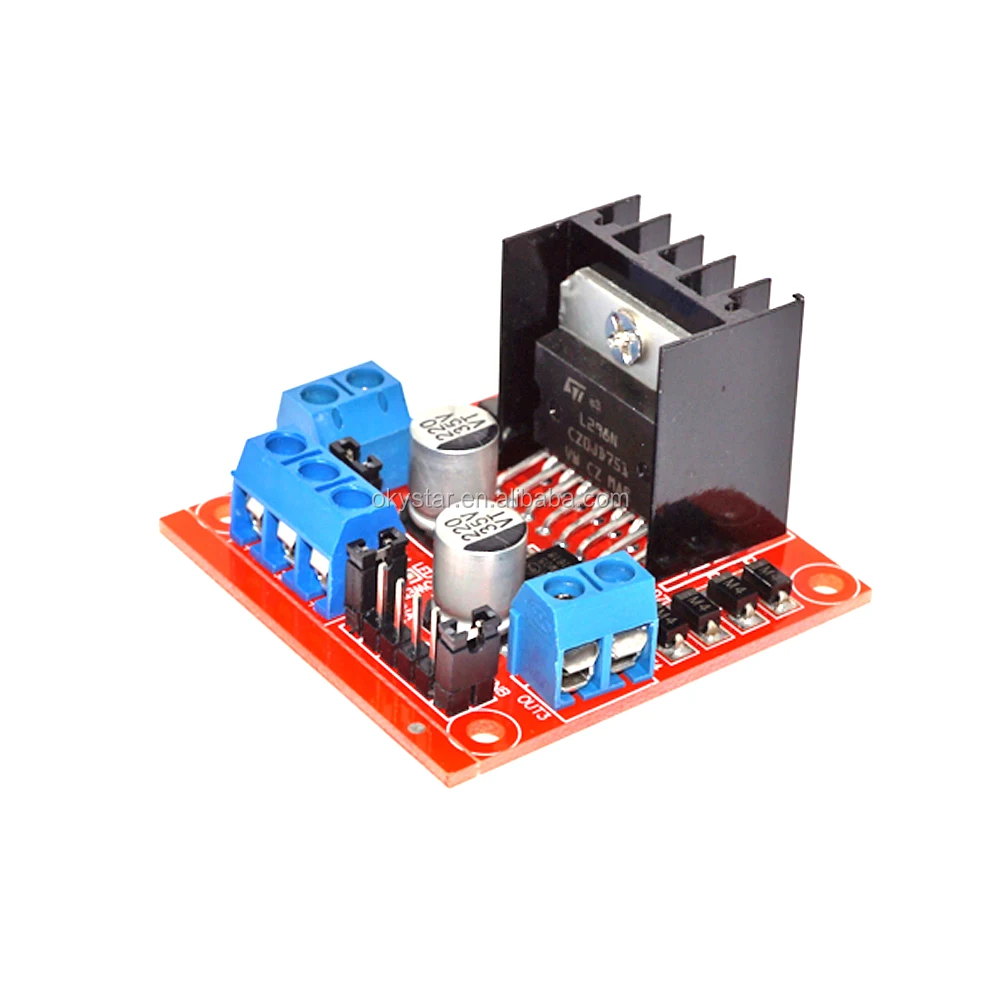

New Dual H Bridge DC Controller Board Stepper Motor Drive Module L298N

Share on:

Price:$1.13 - $1.20
Price in USD:Details


Product Overview


1. Logical voltage : 5V
2. Drive voltage : 5v-35V
3. Logical current : 0mA-36mA
4. Driving current : 2A(MAX single bridge)
5. Storage temperature : - 20 ℃ to + 135 ℃
6. Maximum power: 25W
7. Size: 55mm * 60mm * 30mm

1. Application: To avoid damage the voltage stabilizing chip, please use an
external 5V logic supply when using more than 12V driving voltage
2. Good performance: Use large-capacity filter capacitors and diode with
freewheeling protection function, increasing reliability

Warm tips:
1. When you are driving voltage (above logo for the 12 v input, can actually
accept input range is 7 to 12 v) for 7 v to 12 v, can make to on board power
supply 5 v logic, when using the on board after 5 v power supply, interface of + 5 v
2. The power supply does not input voltage, but can yield 5V voltage for
external use.
3. When the driving voltage is higher than 12V, it is less than or equal to 24V
(the chip manual proposes to support 35V, but according to the book
4. When the maximum voltage is applied to the maximum voltage of 298
conservative applications to 24V, for example, the motor with a rated voltage
of 18V shall be driven.
5. You must first remove the board 5V output to enable the jumper cap. Then
5V is accessed outside the 5V output port
6. The 5V enables the power to be a control signal with a level of 5V. When the
signal input is valid, and when the power supply is normal in the motor drive
module, the motor drive module outputs the current. Otherwise, even if the
power supply is normal, there is no current on the motor.

Package List:
1 * L298N Stepper Motor Driver Board Module

Product packaging
