16/24 Channels digital IRD FTA Full HD Digital DVB S/S2/T/T2 Annex B DVBC Tuner to IP Converter

Overview:

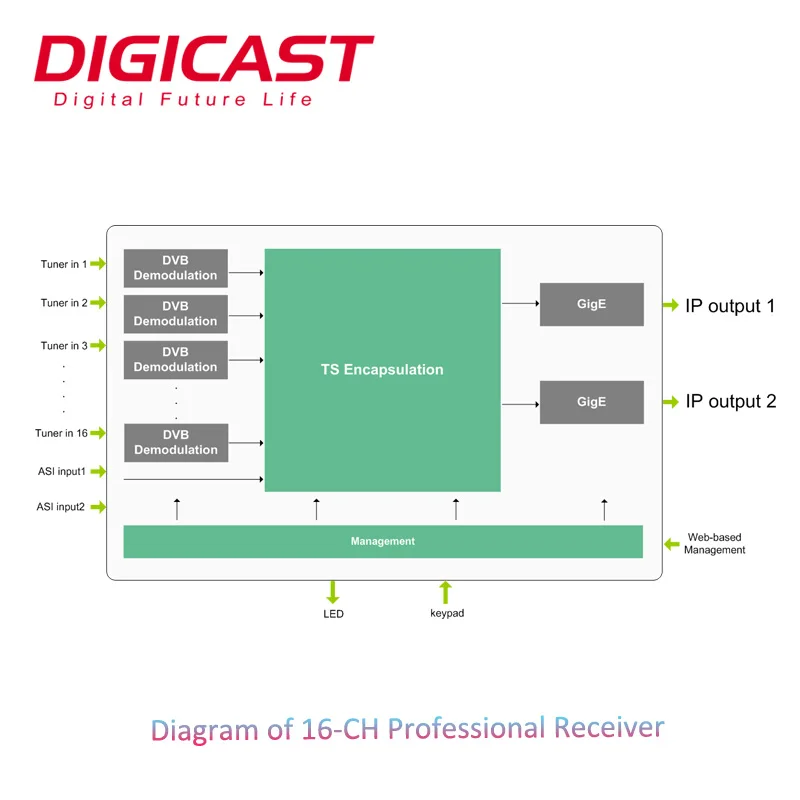

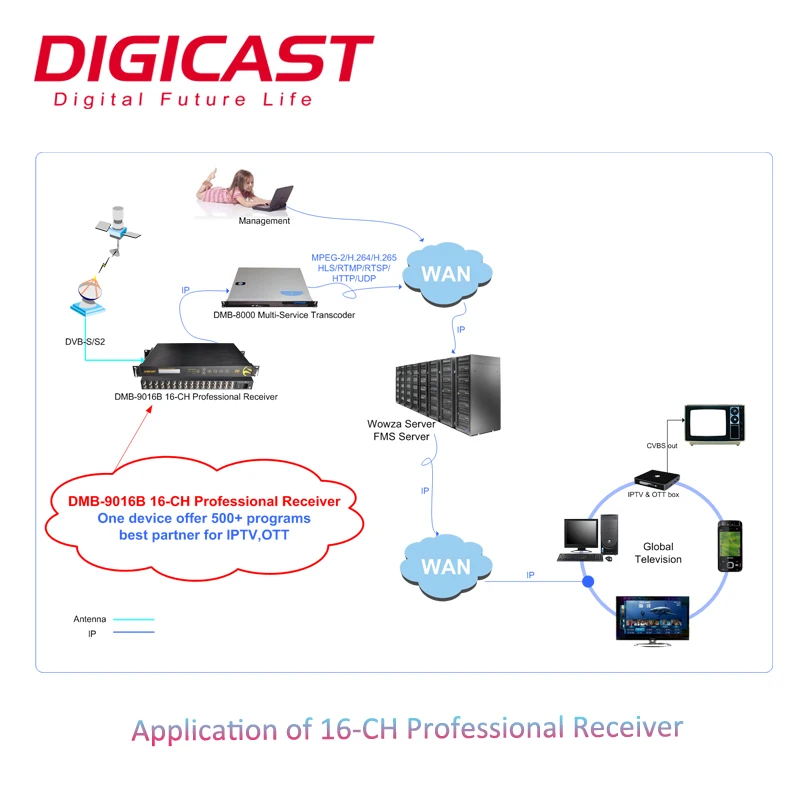

DMB-9016B 16 Channel professional Receiver works with TS over IP technology. De-modulate the Tuner signals to DVB-ASI signals, encapsulating TS over IP signals for transmission via Internet. Meanwhile capable of multiplexing, BISS descrambling, DisEqc. This Multi-Channel Professional Receiver accept 16*Tuners (DVB-S/S2/T/T2/C/ISDB-T optional) input, DE-modulate to 2*ASI(independent) output and encapsulate to IP packet. It supports 16 MPTS or 512 SPTS output over UDP and RTP/RTSP protocol through different IP address and ports.

FEATURES:

Tuner inputs support DVBS/S2,DVBT/T2,DVBC,ISDBT/Tb for option
Three input version option :
Optional 1:16 tuners input +2 ASI input---SPTS output
Optional 2:14 tuners input +2 ASI input --- MPTS output
Optional 3:16 tuners input --- MPTS output
* Tuner inputs support DVB-S/S2,DVB-T/T2,DVB-C,ISDB-T/Tb/ATSC for option

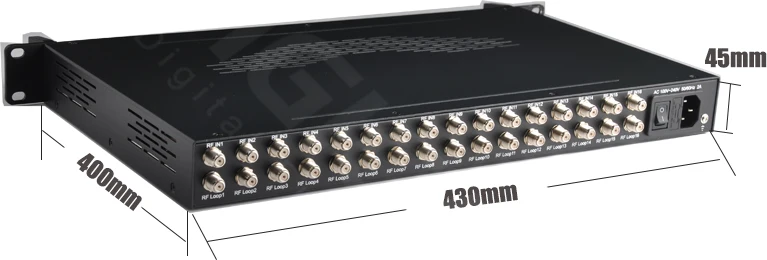

* Each Tuner input with loop out interface, for the convenience of next device
* Up to 512*SPTS or 16*MPTS output over IP addresses or ports via GigE
* IP transmission follows UDP, RTP, ARP, ICMP, IGMP protocol
*Capable of BISS decryption.
* Realize optimum transmission performance in low latency
* Easy and convenient operation, with keyboard on front panel and LCD display
* Web-based management
* 16 MPTS or 512 SPTS output option
* 2 GE mirrored output, up to 850Mbps---SPTS
* 2 independent GE output port, GE1 + GE2---MPTS
* Support PID filtering, re-mapping (Only for SPTS output)
* Support "Null PKT Filter" function (For MPTS for output)
* Support Web operation
