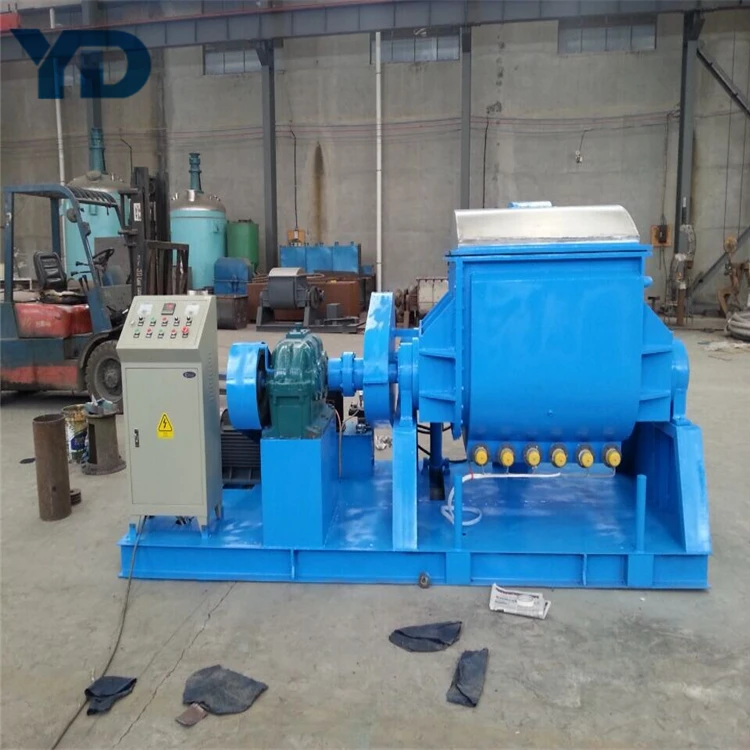

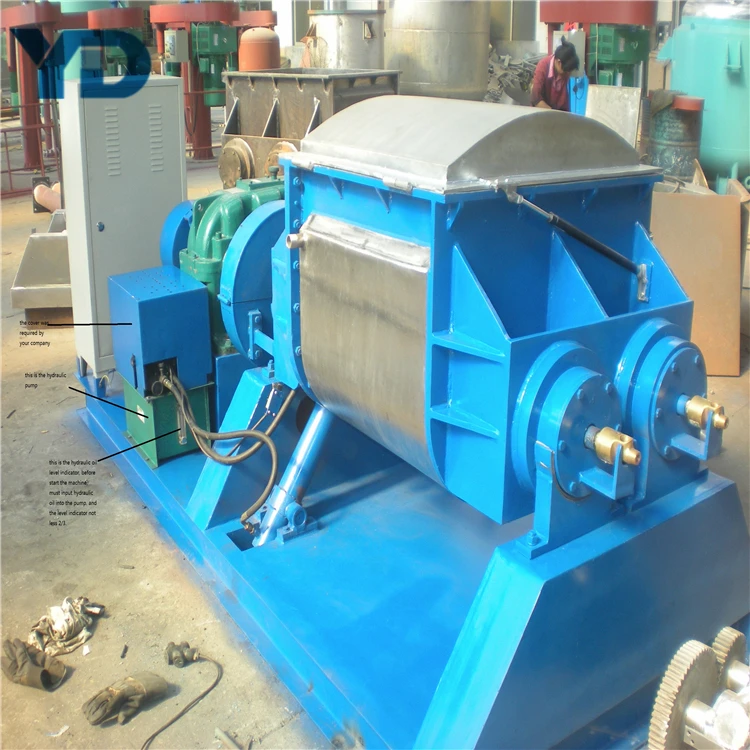

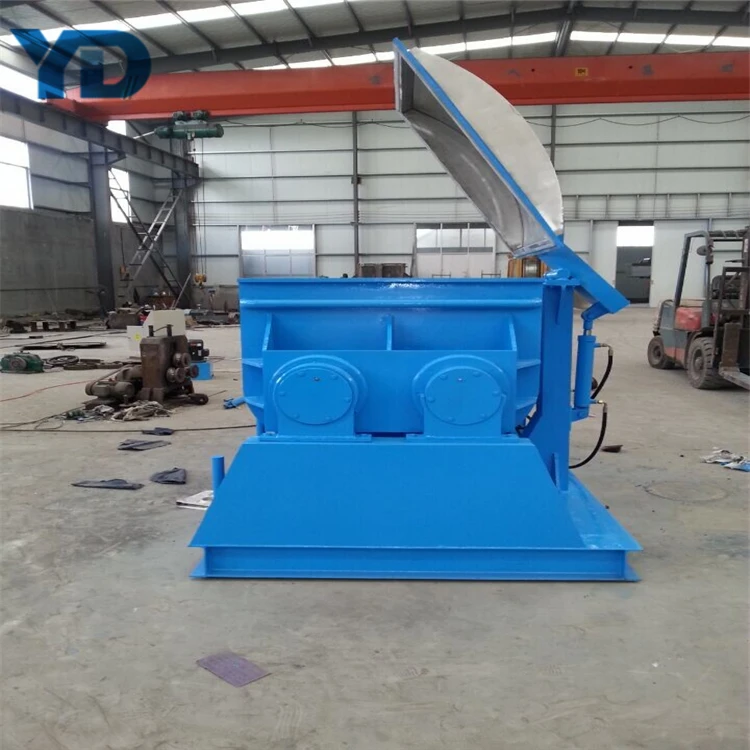

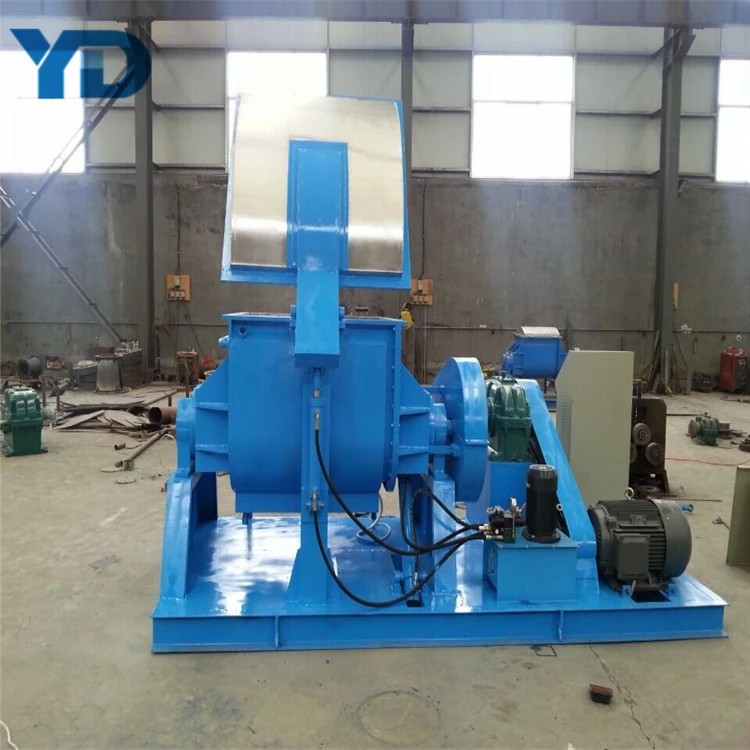

This machine is Mesa Structure,horizontal and double blades type,(Sigma “Z” blade),with jacket which can be added water for cooling.
All the Material which contact the product is SS304
The Kneading Pot through grinding and polishing near to the Mirror,Polish degree is 0.8
It is special equipment to mix,knead,crush,disperse,polyermerzing high viscosity material,with uniform mixing,without dead angle,high kneading efficiency feature.
1)It can be widely used in BMC/DMC,High viscosity Silicone Sealant,Silastic,GlassCement,Chewinggum,Cellulose,Battery,Printing-ink,Dye,Resin,Plastic,Cosmetic,Pigment,Medicine Industry etc.
2)Material is mainly Stainless Steel or Carbon Steel.
3)Heating way with Steam Heating,Oil heating Electric heating.Water cooling system.
4)Discharging way is mainly Hydraulic Dumping valve,Ball Valve Discharge,Screw Extruder Discharge.
5)Three Main Type:Ordinary,Pressure Type,Vacuum Type.
6) different capacity :from Laboratory Scale to Mass Production.(2L-8000L)
Model
NH-5
NH-40
NH-100
NH-300
NH-500
NH-1000
NH-1500
NH-2000
Volume(L)
5
40
100
300
500
1000
1500
2000
PaddleAgitator(rpm)
33,23
45,23
35,22
37,21
37,21
35,25
30,16
45,30
Major motor power(kw)
0.75
2.2
4,5.5
7.5,11
15,18.5
22,30,37,45
22,30,37
45
Form of heating
Steam:Pressure(MPa)
0.3
Electric heating:Power(kw)
1
4
4
6
16.2
25
32.4
40
Degree of vacuum(MPa)
0.094(vacuum kneader)
Pressure(MPa)
0.45(pressure kneader)
0.35(pressure kneader)
Weight(kg)
300
560
1250
1600
3000
4500
5800
6500
