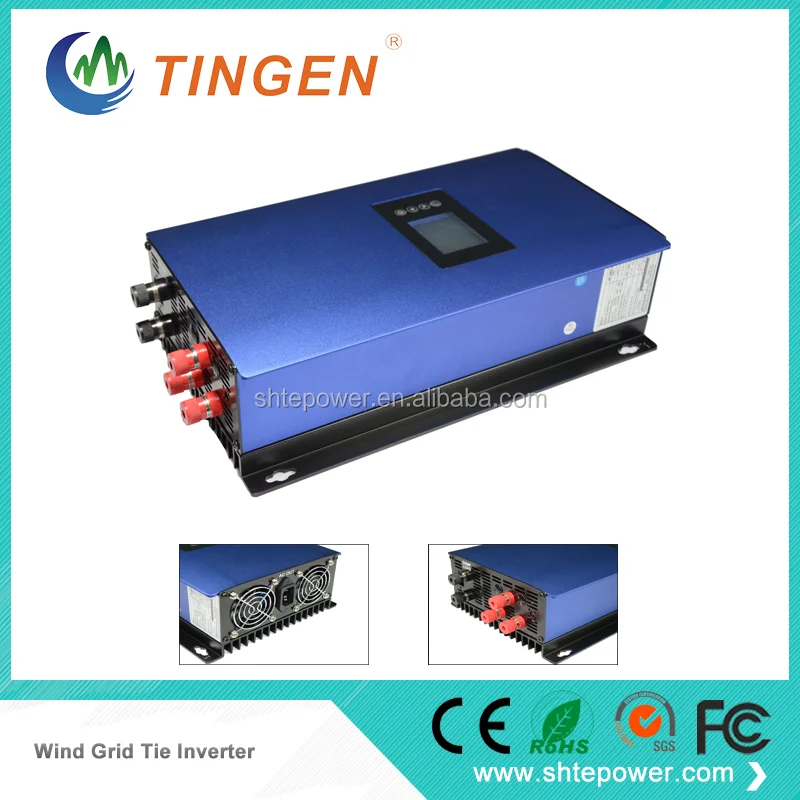

MPPT Wind Power Inverter 48V 2000W On Grid Tie Inverter With Limiter
- Category: >>>
- Supplier: Shanghai Tingen Electric Co. Ltd.
Share on (60711191473):
Product Overview
Description
NEW 1000W Wind Power Grid Tie Inverter With Limiter
Max Efficiency:>92% MPPT Efficiency:99%
1. Low cost and easy installation
2. Directly connect to three phase wind turbine
3. Much better output waveform compare with similiar GTI
4. Improving the efficiency of the entire solar power system Overload protection ,Anti-island protection Short-circuit protection/Reverse polarity protection
5. AC output voltage and current THD<5%,PF>99%
This model grid tie has designed for wind turbines that put out 3 phases AC voltage. It can maintain the rotating speed of the wind turbine and keep the voltage from the wind turbine always at the range of the rated range of the grid tie inverter. It also has a high voltage protection function, when the wind is too big, and the dump load controlling system can’t keep the output voltage from the wind turbine, the controller will disconnect itself from the wind turbine, so it is very safe to be used.
Product Description
Technical Data
This is the 2nd generation GTIL. The first generation GTIL must be used with an additional limiter module,we also add an switch button to enable the inverter either can work
at limit mode or at normal grid tie mode. With the 2nd generation GTIL,we integrated the limit function inside the GTI-We call this internal limiter.In this way, NO additional limiter module is needed, reduced customer’s cost, much easier for installation. But in case customer install inverter far away from the main circuit breaker,we also enable the 2nd GTIL work with stand-alone limiter,we call this-external limiter.For sure,the inverter can work under normal Grid tie-no limit mode, just set on the nice LCD and save your setting.
| Model | TEG-2000GTIL-WAL |
| Max. Power Output | 2000W |
| Input AC/DC Voltage Range | 45V ~ 90V |
| AC Output Voltage Range | 185V ~ 265VAC(Auto Detect) |
| Output Frequency | 46Hz~65Hz |
| Standby Power Consumption | <1.2W |
| Total Harmonic Distortion | <5% |
| Peak Inverter Efficiency | 92% |
| Power Factor | 0.99 |
| Output Wave Form | Pure Sine Wave |
| MPPT Efficiency | 99% |
| Over Current Protection | Yes |
| Over Temperature Protection | Yes |
| Reverse Polarity Protection | Yes |
| Anti-Island Protection | Yes |
| Stackable | Yes |
| Weight ( Kg) | 5 kg |
| Dimensions (W x H x D) | 460 x 196 x 88 mm |

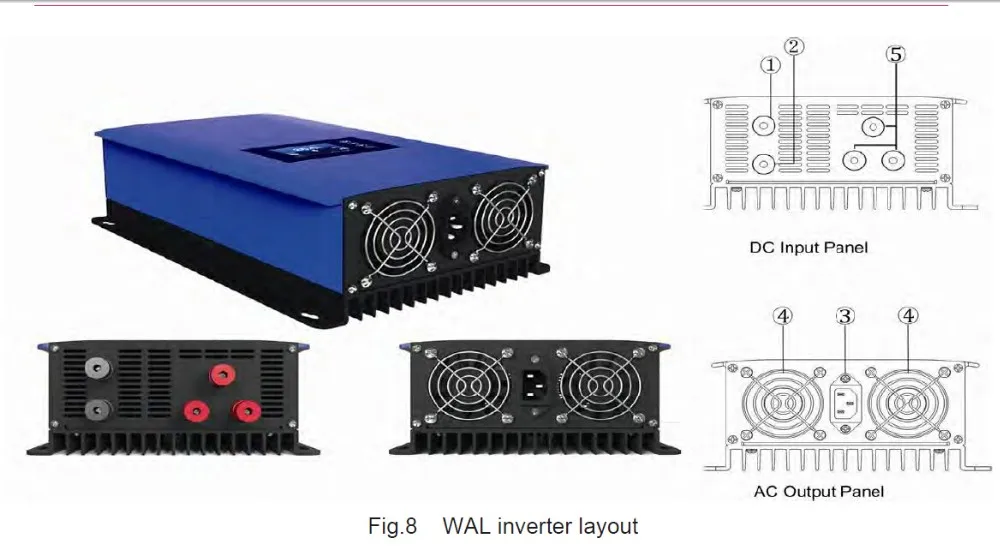

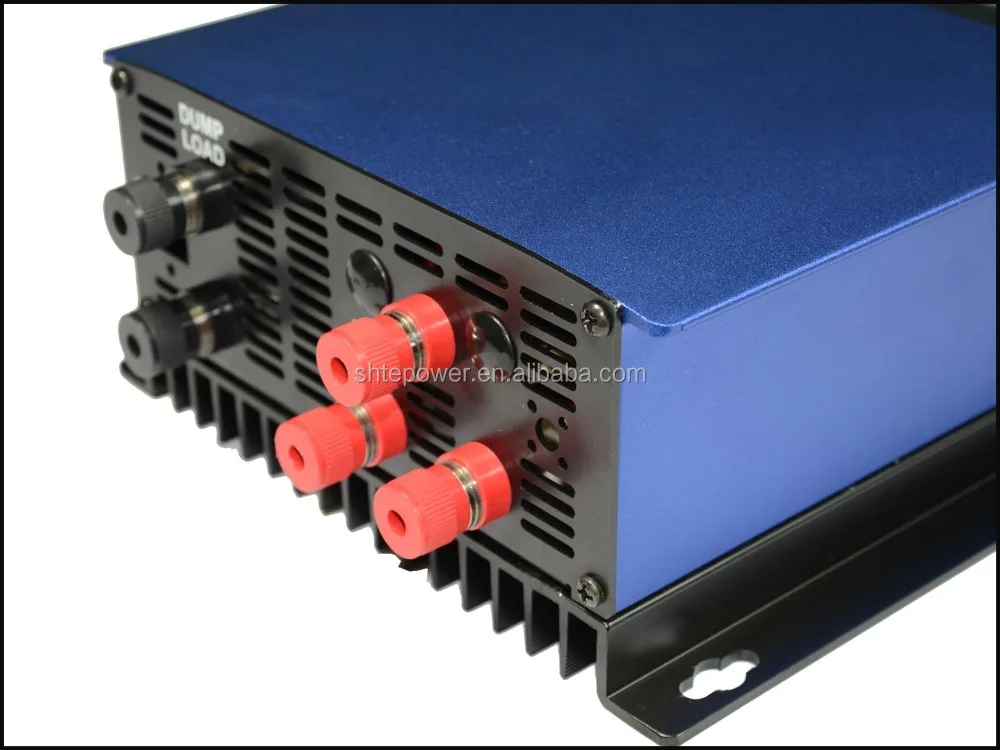

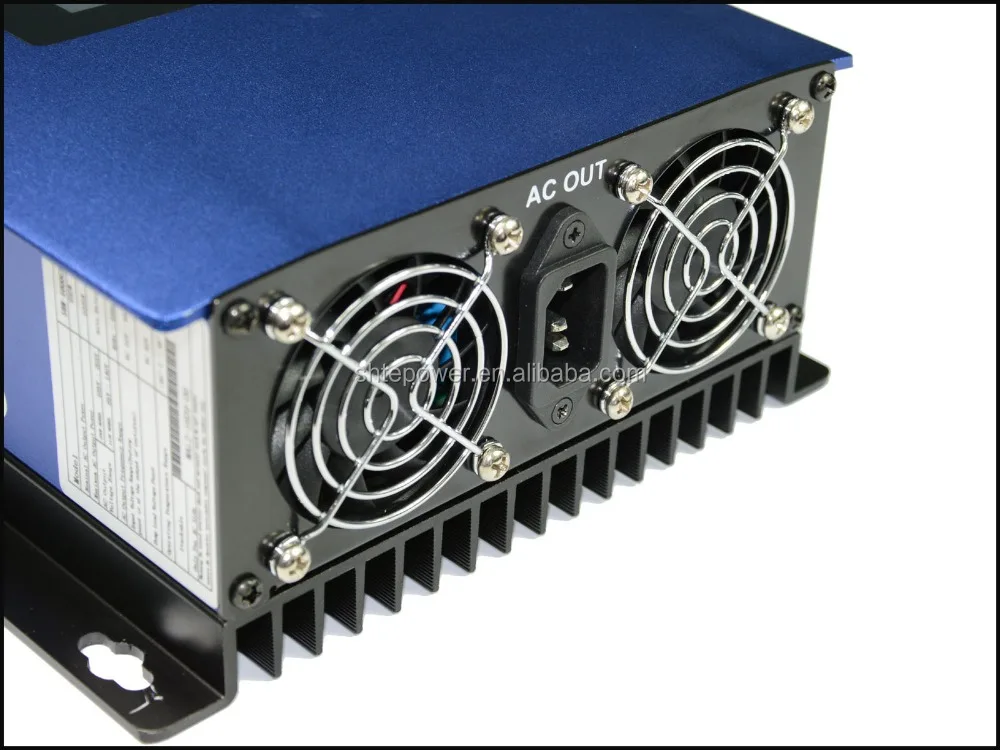

(1) (2) Dump load resistor connection Terminal. This terminals will connect to the dump load resistor
(3) AC socket,This socket will connect the inverter to the public grid via the AC cable.
(4) Cooling fans.
(5) Input Terminals. This terminals will connect to the wind turbine.

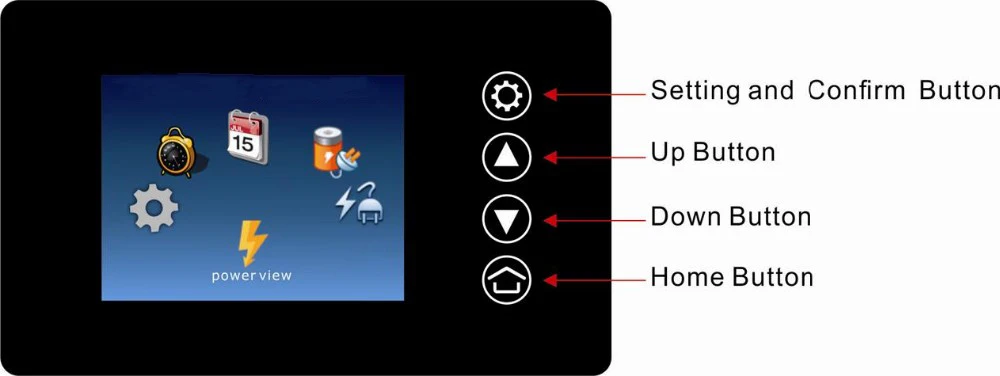

Inverter Display Instruction
The Inverter display can show many information,The main interface of the display and the icons explainations are show above.
Set Menu:Choose the set menu icon on the main screen interface,click the confirm button to enter into the interface show below,In this interface,can set the LCD backlight always on or auto turn off backlight after 3 minutes no action.

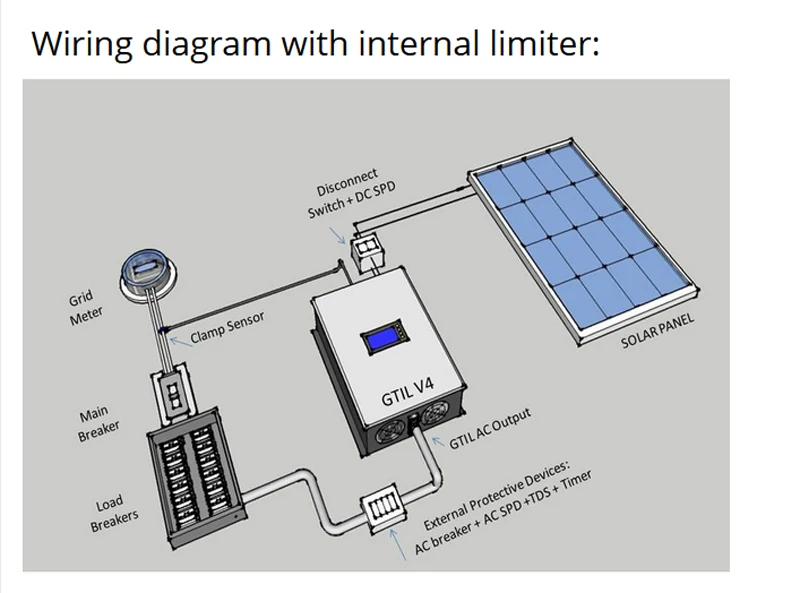

The inverter also integrate with internal limiter and external limiter function which can prevent excess power from going to the public grid.Select the internal limiter mode,inverter will work under limiter mode,output power of the inverter will be determined by load power.Select the external limiter mode,inverter need a external limiter module working with it.For more details about the limiter function,pls contact supplier. ( this function only useful with limiter type inverter. )

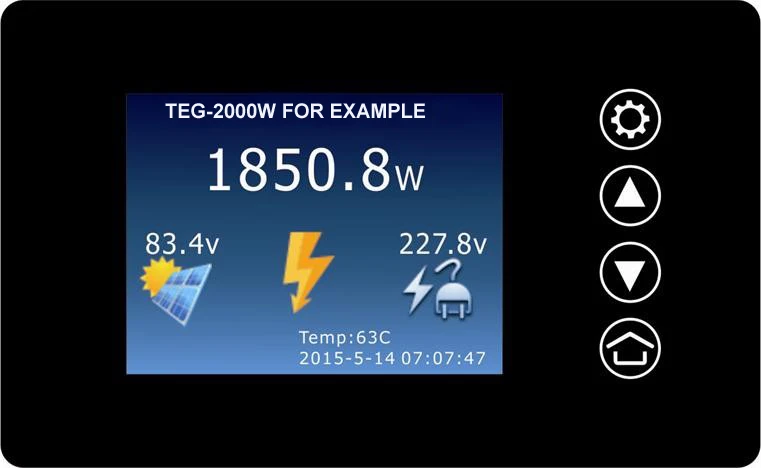

Power View:

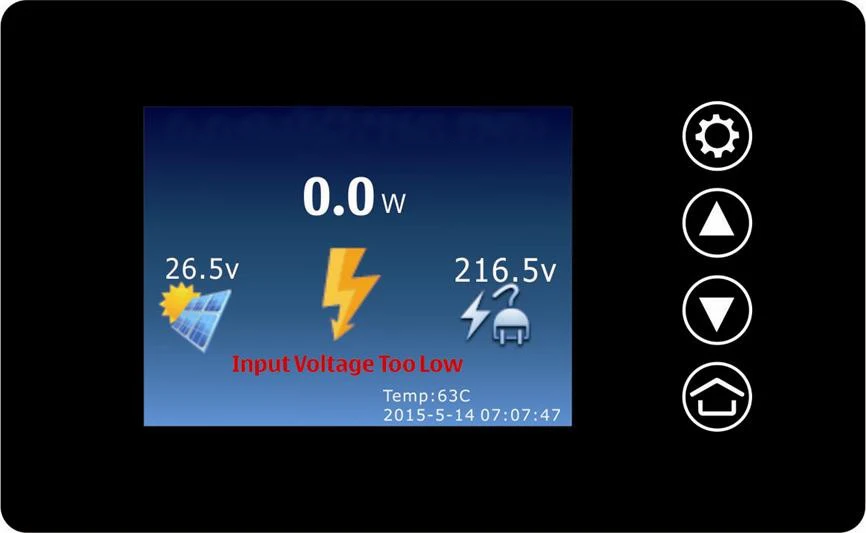

In this interface,the display shows real time power,PV input voltage, inside temperature,date and time.

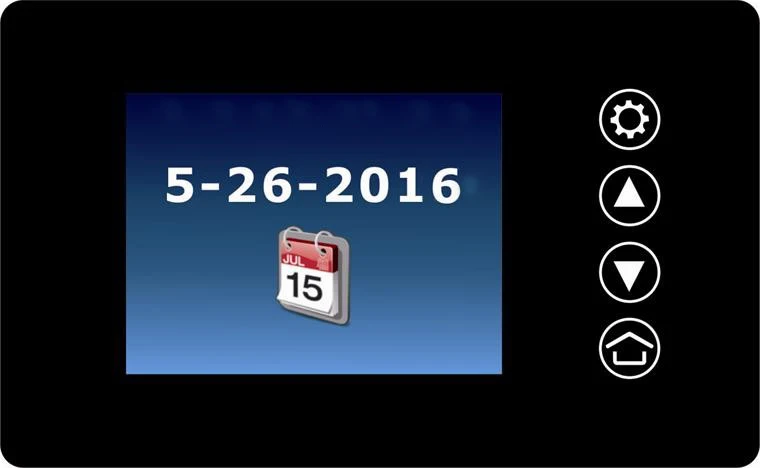

Clock And Date Setting:
Set the clock and date in this page,save the setting before exit.
Notes: Save the setting after you reconfigurate the working mode or backlight setting.Notes: Battery Discharge Current Mode And Battery Discharge Power Mode are not developed yet.

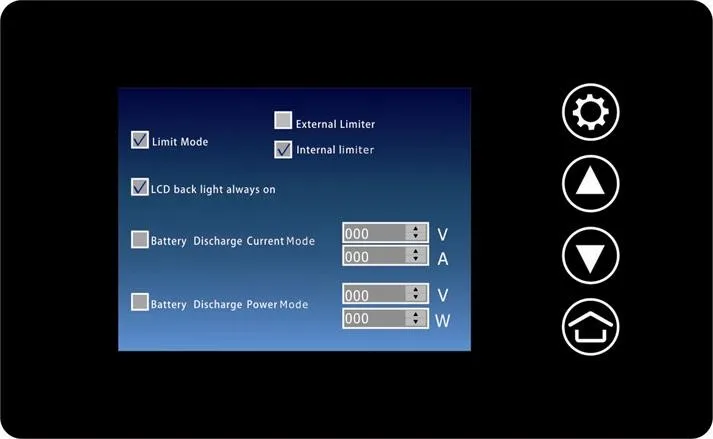

Setting:The inverter integrate limiter function:internal limiter and external limiter,pls make your setting before use the unit.Also the battery discharge current mode and battery discharge power mode are not available now,only LCD light is settable.

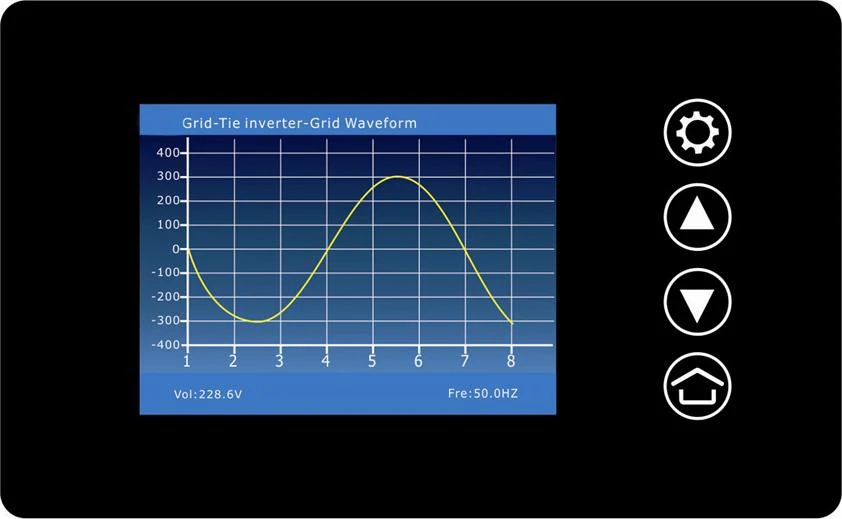

Grid Waveform:
This interface will show the real time grid waveform.The grid voltage and frequency also will show in this interface.
Energy Menu:
The energy interface will show the power generation curve everyday. Today KWH and Total KWH are also show in this page.

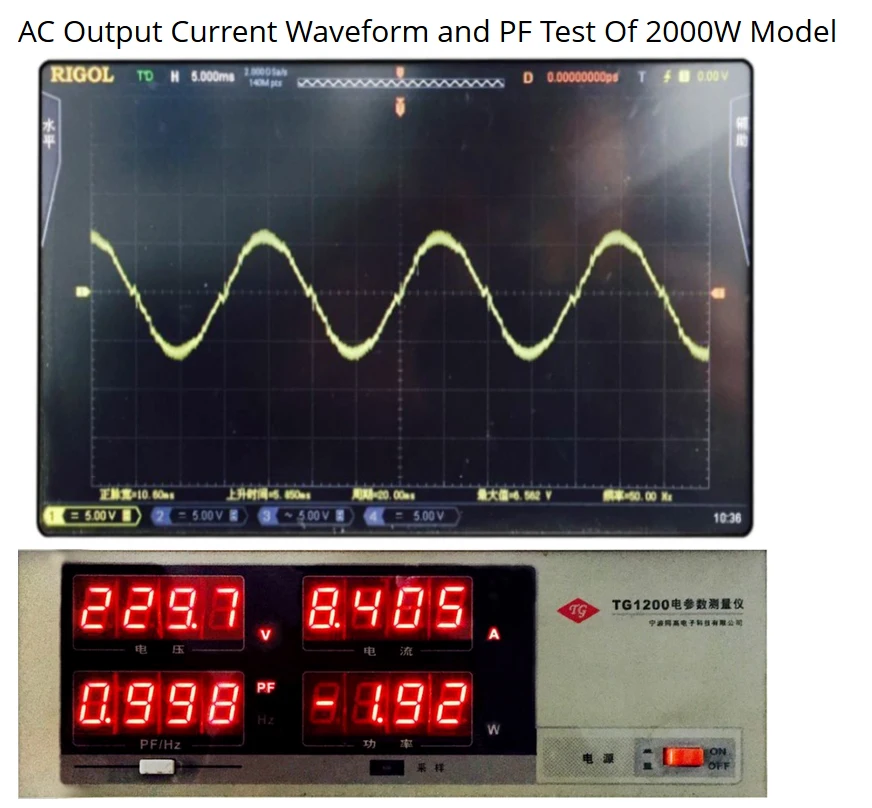

Tested 2000W model at nearly full load,Output current waveform shows good pure sine wave in oscilloscope,PF value also shows in good result,99.8% PF value.
