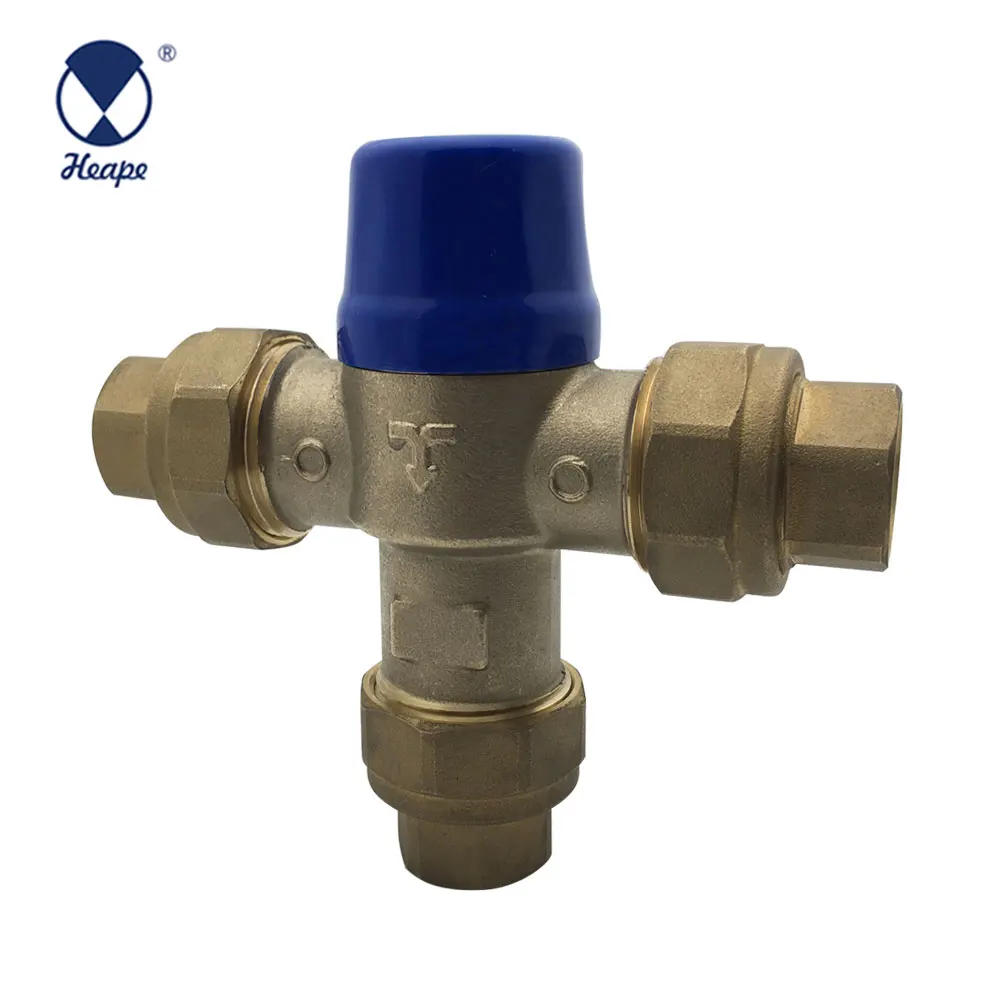

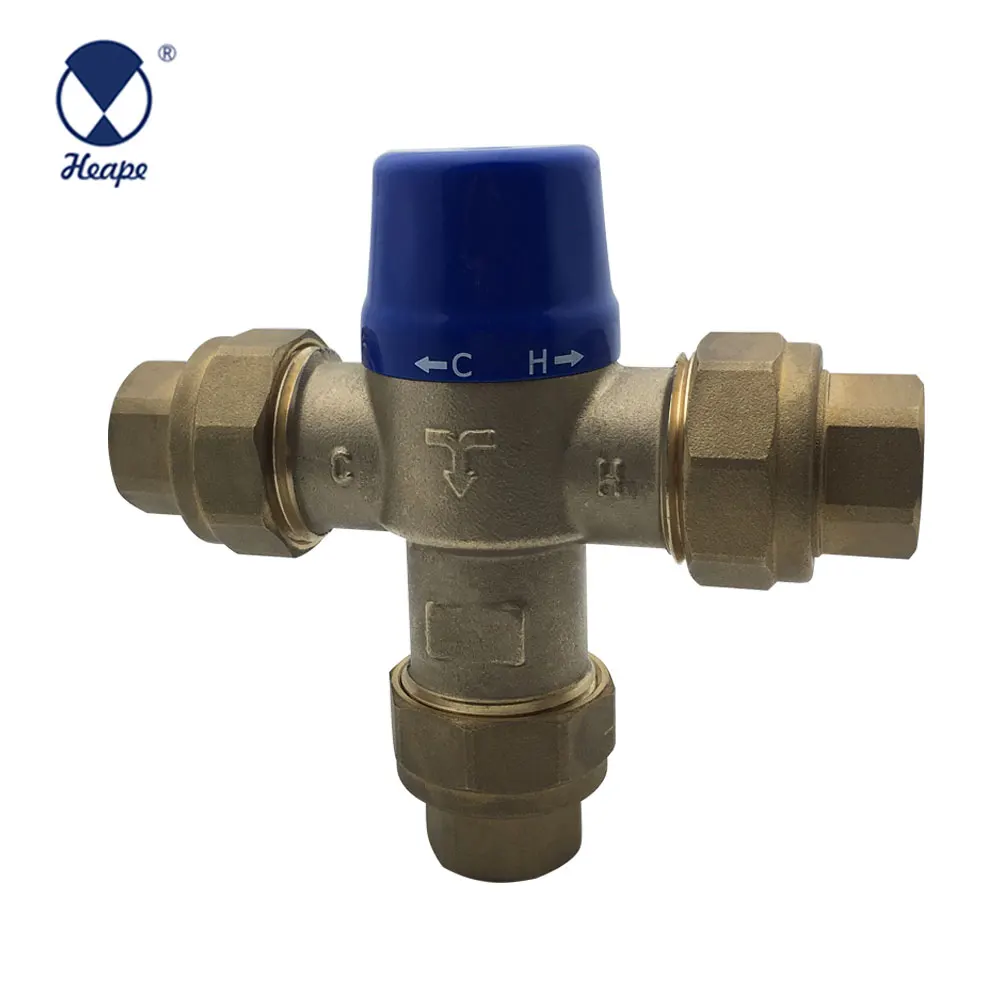

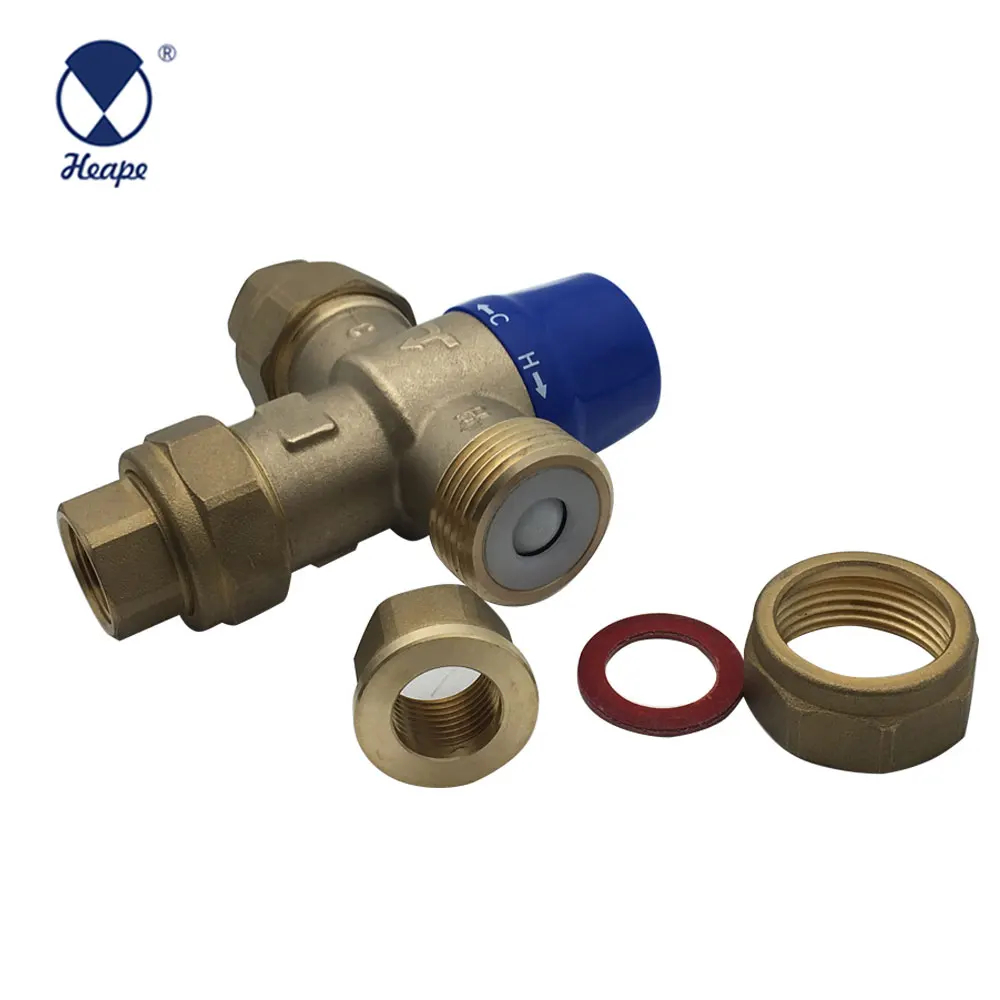

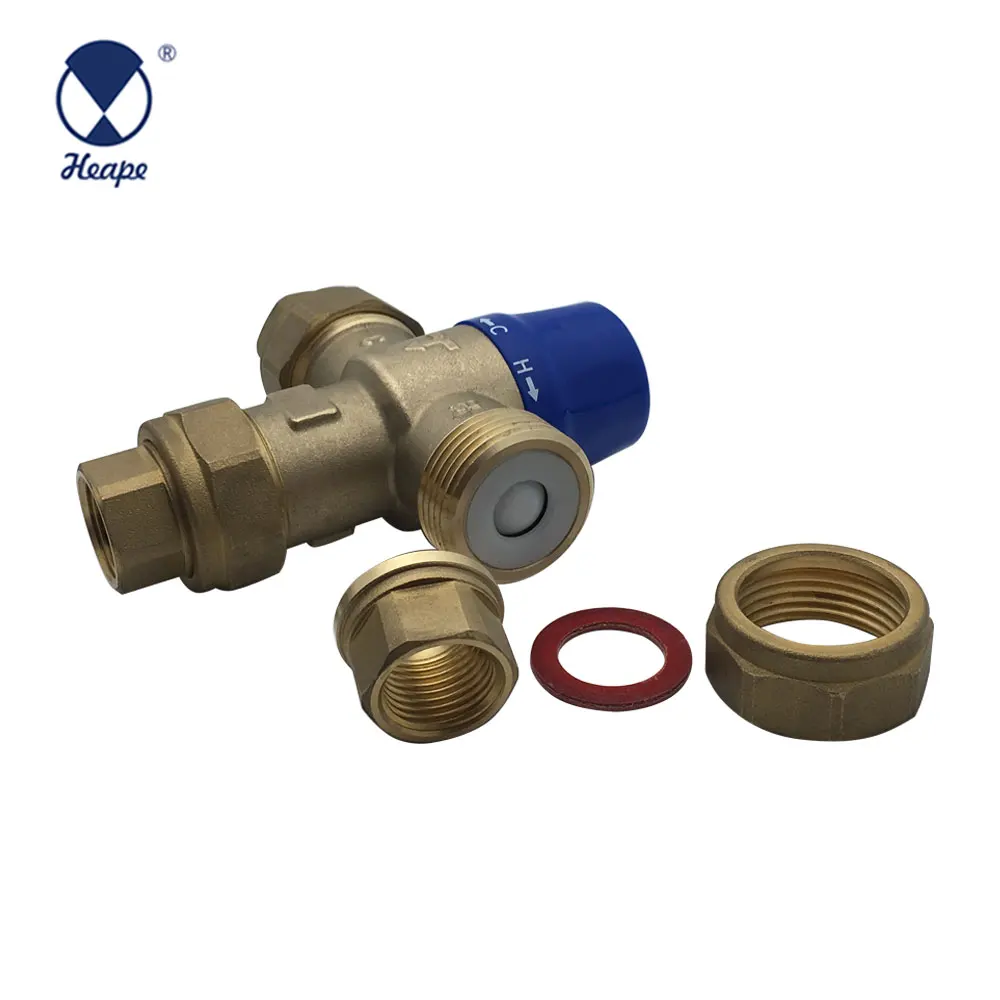

HEAPE 1/2' Lead Free Thermostatic Mixing Valve Standard 40℃ 60℃thermostatic Mixing Valve Water Brass,lead Free Brass Safety
HEAPE 1/2' Lead Free Thermostatic Mixing Valve Standard 40℃ - 60℃thermostatic Mixing Valve Water Brass,lead Free Brass Safety
HEAPE 1/2' Lead Free Thermostatic Mixing Valve Standard 40℃ - 60℃thermostatic Mixing Valve Water Brass,lead Free Brass Safety
HEAPE 1/2' Lead Free Thermostatic Mixing Valve Standard 40℃ - 60℃thermostatic Mixing Valve Water Brass,lead Free Brass Safety
HEAPE 1/2' Lead Free Thermostatic Mixing Valve Standard 40℃ - 60℃thermostatic Mixing Valve Water Brass,lead Free Brass Safety
HEAPE 1/2' Lead Free Thermostatic Mixing Valve Standard 40℃ - 60℃thermostatic Mixing Valve Water Brass,lead Free Brass Safety

HEAPE 1/2' Lead Free Thermostatic Mixing Valve Standard 40℃ 60℃thermostatic Mixing Valve Water Brass,lead Free Brass Safety

Share on (60711192495):


Price:

Quantity:


Product Overview

Description


Technical specifications

MaterialLead Free
ObturatorPSU
SpringStainless Steel
Seal ComponentsEPDM
Control KnobABS
PerformanceAdjustment range40–60℃
Accuracy±2℃
Max. working pressure (static)10 Bar
Max. working pressure (dynamic)5 Bar
Max. inlet temperature100℃
Max. inlet pressure ratio (H/C or C/H)2:1
Min. flow rate for stable operation3.7 l/min
Performance to standards                   EN1111,EN 1287
Connections1/2”
Minimumtemperature difference between the inlet hot water and the outlet mixed water to ensure anti-scald performance10°C
