custom made 2.0mm PMMA cover lens film film 4.3 inch 4 wire resistive touch screen panel
- Category: >>>
- Supplier: Etouch Technology Co. Limited
Share on (60711202684):
Product Overview
Description
Product Description
Specification: | ||
Item | Resistive Touch Screen Panel | |
Dimensions | From 2'' to 23.6''(Customized) | |
Thickness | 1.8mm or customize | |
Conductive Glass Thickness | ITO 0.7mm, 1.1mm or 1.8mm, 2.0mm | |
Conductive Film | 188 μm | |
Structure | Conductive film, ITO film | |
Insulation Distance | 3 * 3mm | |
Connector | FPC, flexible printed circuit | |
Electrical Performance | ||
Loop Resistance | 50~300Ω | |
Linearity | ≤1.5% | |
Insulation Resistance | ≥10MΩ, @25V (DC) | |
Maximum Operation Voltage | 5V (DC), 1mA | |
Chattering Time | ≤15ms | |
Response Time | ≤20ms (from the touch moment to response) | |
Mechanical Behavior | ||
Input Method | Pen or Finger | |
Operation Force | OD 2mm pen within 60g~150g pressure | |
Surface Hardness | 3H | |
Transparency | 83 ± 3% @550nm wave length | |
Environmental | ||
Operation Temp | -10~60°C | |
Storage Temp | -20~70°C | |
Resistive Lifetime for Single Point | > 1,000,000 times | |
Etouch's 4wire/5 wire Resistive Touch Screen Panel
Etouch can produce 4 wire touch panel / 4 wire touch screen/ 4 wire resistive touch screen, 4 wire resistive touch panel in different szie:4, 4.5, 4.7, 5, 6, 6.5, 7, 8, 8.4, 8.9,9.7,10,10.1,10.2,10.4,13.3, 14.1 ,15, 15.1, 15.3, 15.6 , 17, 17.1 , 18.5, 19, 19.1, 20 , 20.1, 21.5, 22, 23.6 inch.
Product Description:
5 Wire Resistive touch screen are generally built with two layers of electrically conductive materials (ITO Indium Tin Oxide or ATO Antimony Tin Oxide) separated by insulated dots. When an object touches the device, the two layers come into contact. The contact produces a change in electrical current and is registered as an analog touch event signal. The signal is then sent through the circuit to be converted into a digital signal by the controller for the device to compute the exact location of the touch event.
4 Wire Resitive touchscreen is an outstanding high quality product, suitable for low cost solution. It is inherently of many advantages such as high accuracy, quick response, drift-free, stable and long durability for a life time of 1,000,000 times finger touches. Etouch 4 wire Resistive touchscreen featured contamination-resistant and waterproof, is designed for the harshest environment such as dust is prevalent or liquid spills, splashes and wash down. It can be touched by finger, gloved finger, leather or stylus pen.

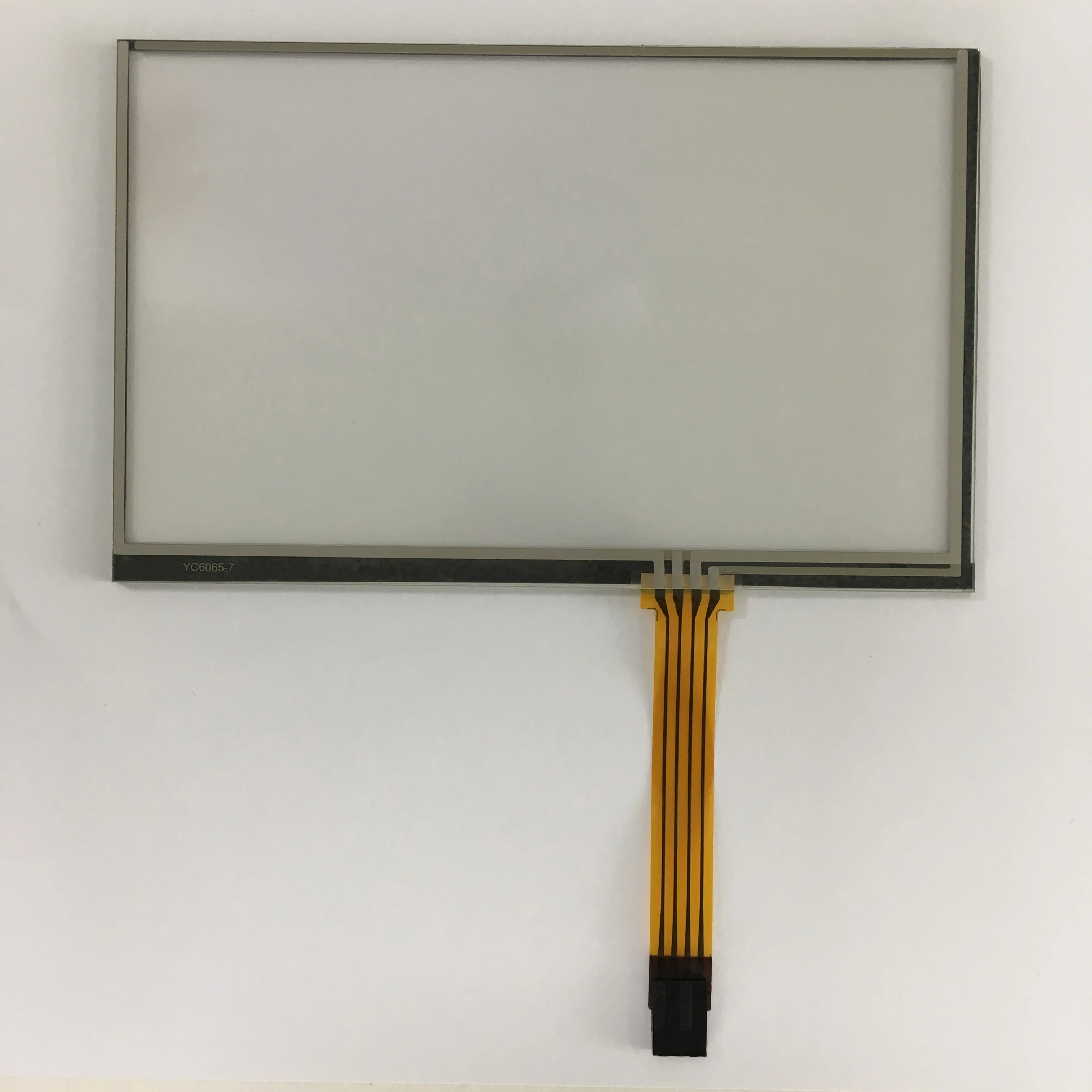

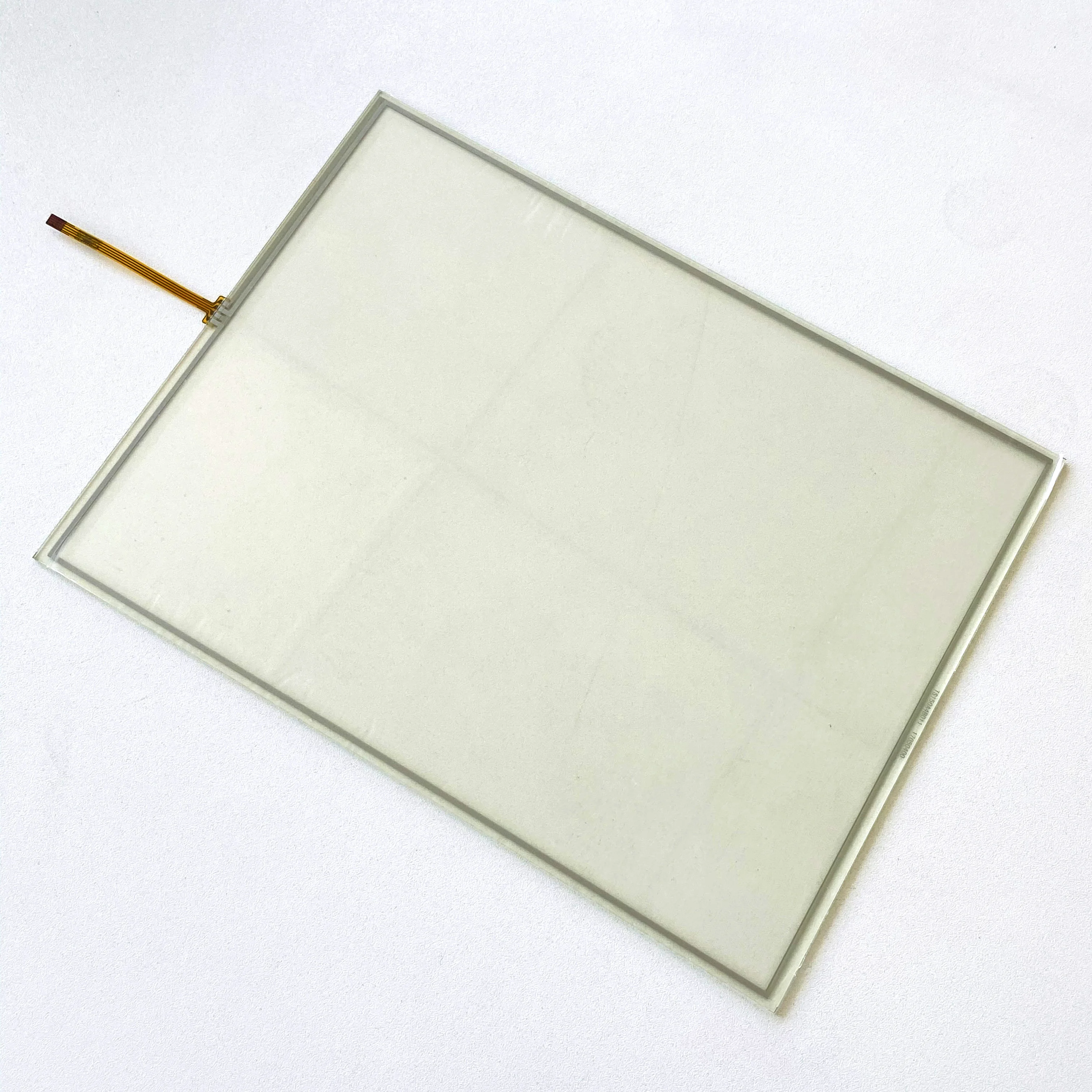

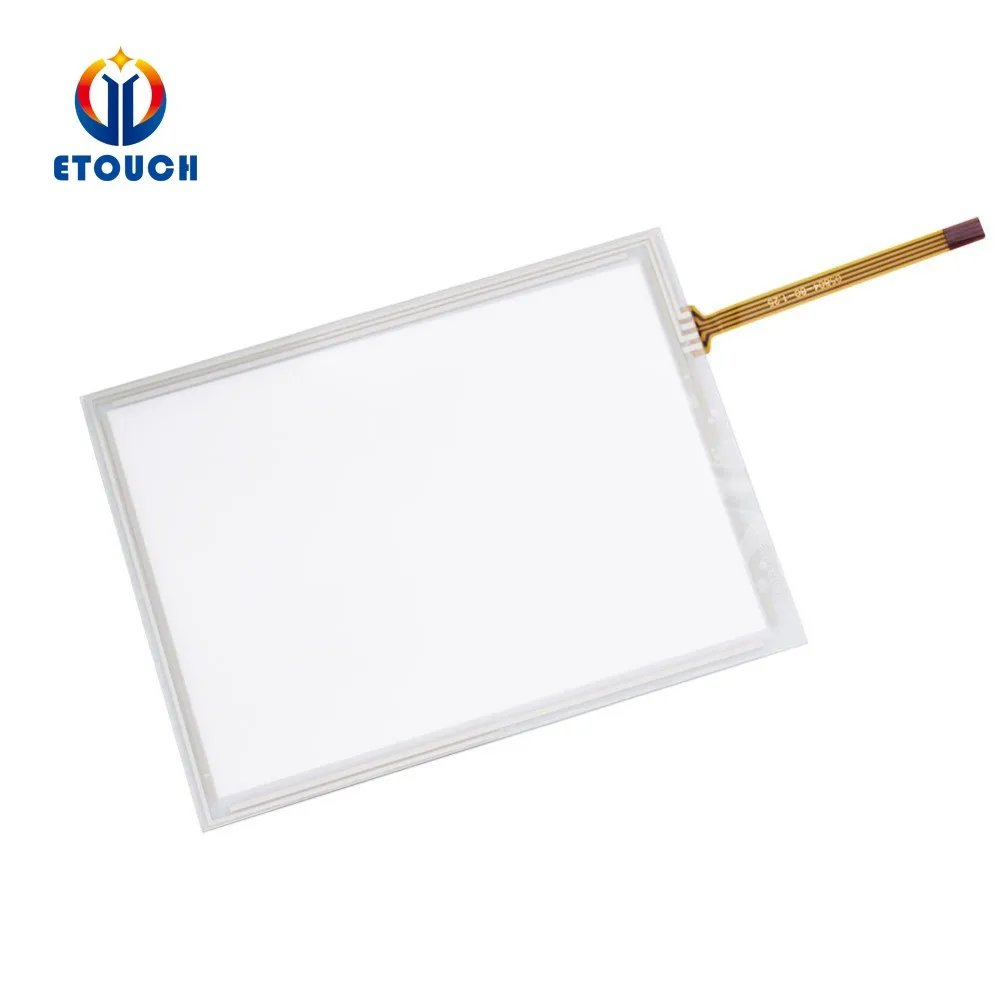

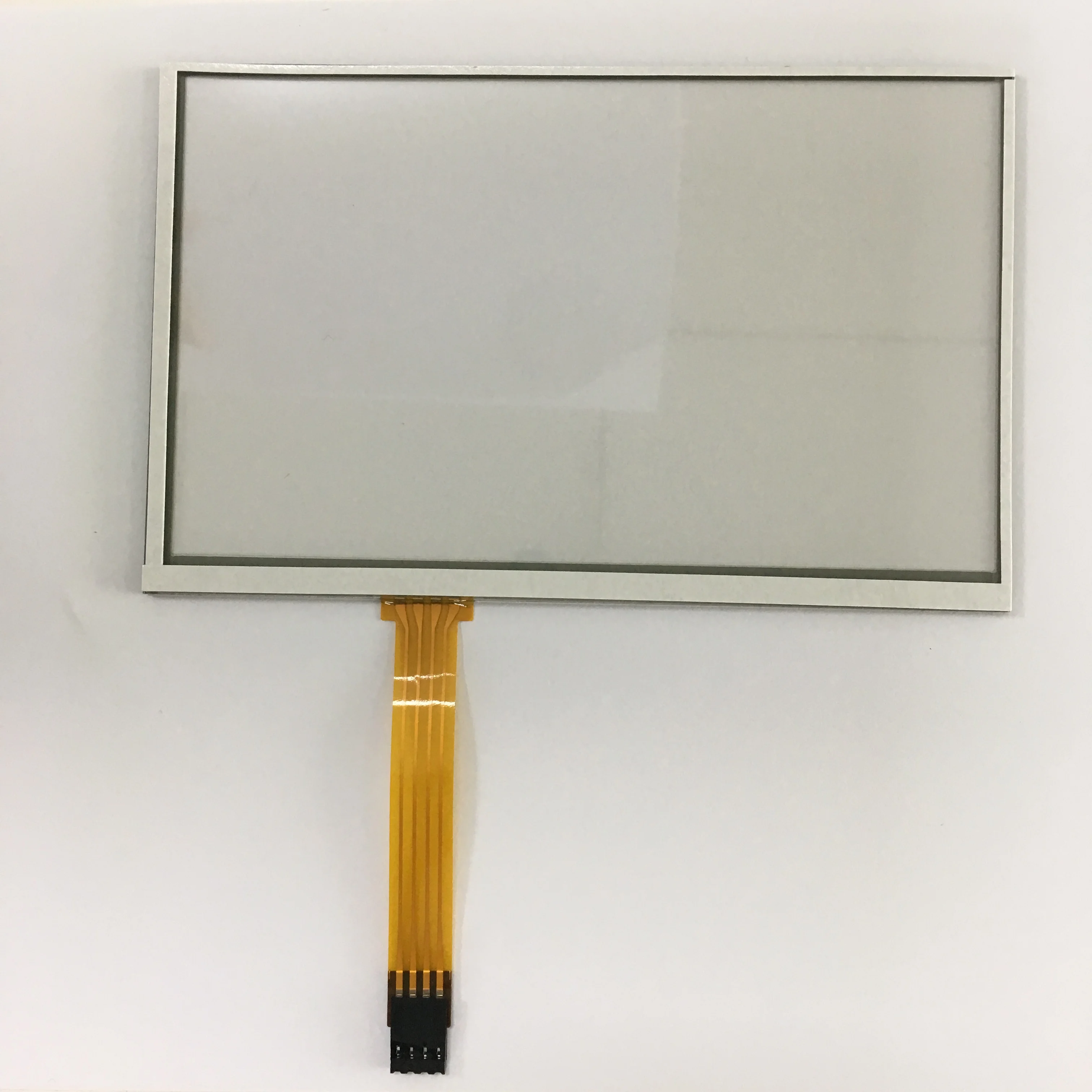

2.0mm PMMA cover lens+ film+film 4.3 inch 4 wire resistive touch screen panel
Other Information
1) MOQ:200pcs(you can also buy some sample for testing first)
2) Lead Time:samples(1-3days),large order(3-25days)
Customer Feedback
Customer Feedback Applications
1.Intercom systems: Video door phone, video peephole viewer, phone etc.
2.Safety and Security: Monitors, touch PCs
3.Consumer Electrics: Advertising players, TVs, ATMs etc.
4.Telecommunication Devices: Telephone, Interphone, watch, radio, etc.
5.Home Appliances: Washing Machine, Refrigerator, Home Integrator ,digital photo frame
6.Industrial Control: Homostadial Numerically-controlled machine tool
7.Instrument and Apparatus: Tester, Medical instruments
8.Vehicle-mounted Digital: MP3, MP4 and vehicle-mounted air conditioner
9.Mining: Mine's lamp charger, gas tester
10.Marine: Salinity tester
Our Company
ETouch Technology Co., Ltd (ETouch) was established in 2008, is a professional manufacturer on design, production and sales of capacitive and resistive touch screen , LCD lamination, membrane switch, PCB keypad, rubber keypad, FPC keypad, acrylic lens, overlays and other technology products . We mainly for industrial control, car navigation, household appliances, medical equipment , human-machine-Interface system, POS , bank system, gaming, etc . Our factory is near by the beautiful scenery of the Songshan Lake, and the existing plant area is more over 7000 square meters.
We have two factories, have office in Shenzhen and HK , because of the business growing, we are ready to build a new big factory in Yunnan province, it is about 17000 square meters for touch screens. ETouch make determined efforts to improve quality by developing new products and technologies , so that to win the domestic and foreign customer’s trust and praise.
We have two factories, have office in Shenzhen and HK , because of the business growing, we are ready to build a new big factory in Yunnan province, it is about 17000 square meters for touch screens. ETouch make determined efforts to improve quality by developing new products and technologies , so that to win the domestic and foreign customer’s trust and praise.
Main Products
LCD&LCM Display: Design, Manufacturing LCD&LCM (TN, STN, CSTN, TFT); OEM Service for COG, TAB & COB LCD Modules.
Electronic & Mechanical Design : MCU Software & Hardware Design and Manufacturing ; Mechanical Parts Design & Manufacturing , Molding, Plastic Injection; FPC/PCB Design & Manufacturing , Product Development
IC Stocking : Supply Brand Name IC; Specialized on Supply Obsolete, Hard to find, Shortage, Military, Industrial, Commercial IC; Connectors and Various Electronic Components.

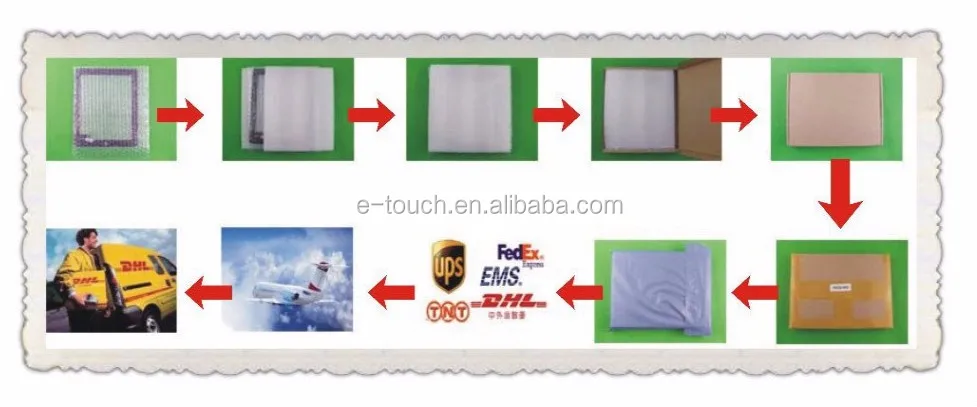

Packing & Delivery
