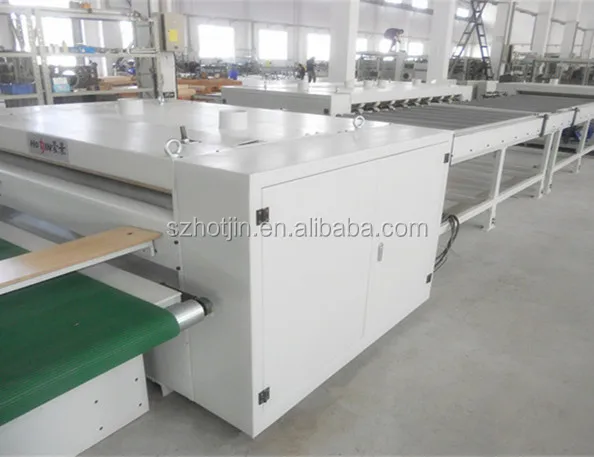

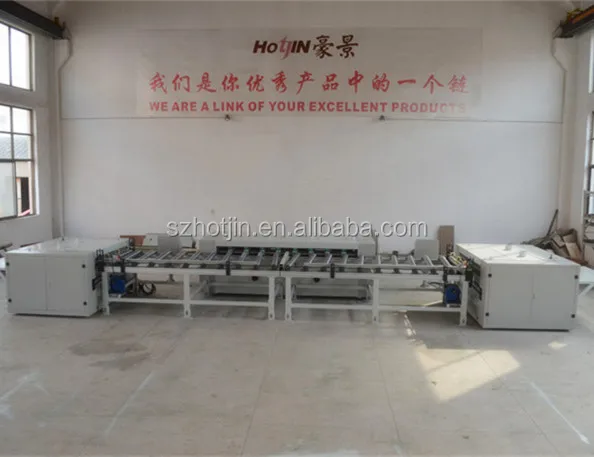

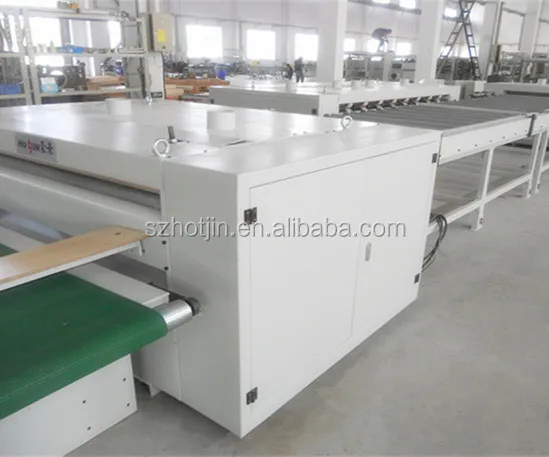

Multi rip saw/cutting line use for spc floor

Cut big board into some small boards, this saw easy to operation and safe reliability. High efficiency, high precision and low noise.

A．Big board size：6-25×1220×800-3000mm
      Small board size:Width：120, 135, 150, 175, 200mm and so on

                                    Thickness：6-20mm
B．Speed of production line：20-40 m/min
      Working standard board size 1220mm×200mm×8mm Max.16pcs big board/min
C．electric control：Working voltage: 380V，50Hz
                                    Control voltage: 220V，50Hz &24V (DC)
D．Equipment’s color：Main body： RAL7035 greyish white
                                          Lines of body： RAL5012 light blue
                                          Warning color： RAL1016 LY.yellow

E．Capacity count：

Function：Through one spindle install many pieces saw blade to cut board which you need width.

Basic configuration：

1.One spindle, install under working table；
2.Four sets steel feeding roller；
3.Spindle and motor separately, connect by belt;
4.Upper press rubber roller up and down the whole adjust to change feeding board’s thickness;
5.Upper press feeding in use chain connect;

6.The machine cover hermetically, reduce noise;
7.Single electric control operation desk;

1. Annex layout drawing.

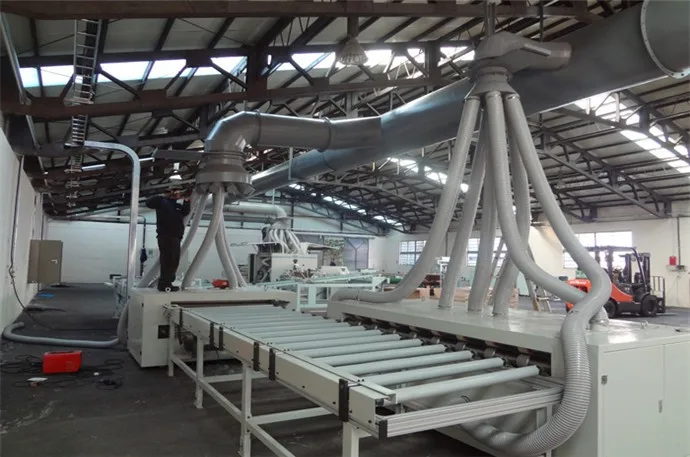

2．High speed production line need dust extraction system winds up to 30 m/s for good.
3．The max. feeding speed is according to 8.2mm standard board, the thick board need to accord cutting output to reduce feeding speed.
4．Some parameters can be change under the customer's request.
5．Delivery Time:60 working days.
6.The other service: We will send one or two engineers to buyer’s factory to installation and debugging machine.
7. Time of warranty: one year.
8.Quote: FOB Shanghai（available for six months）
