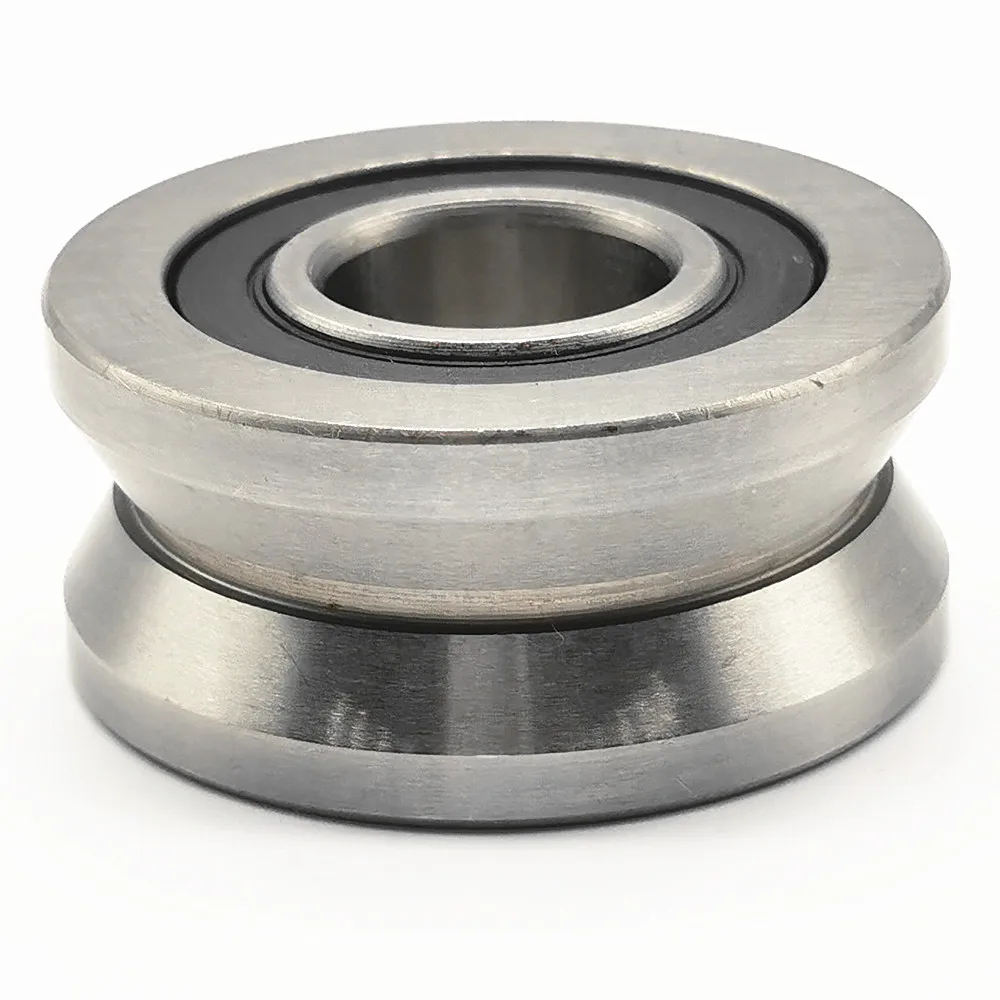

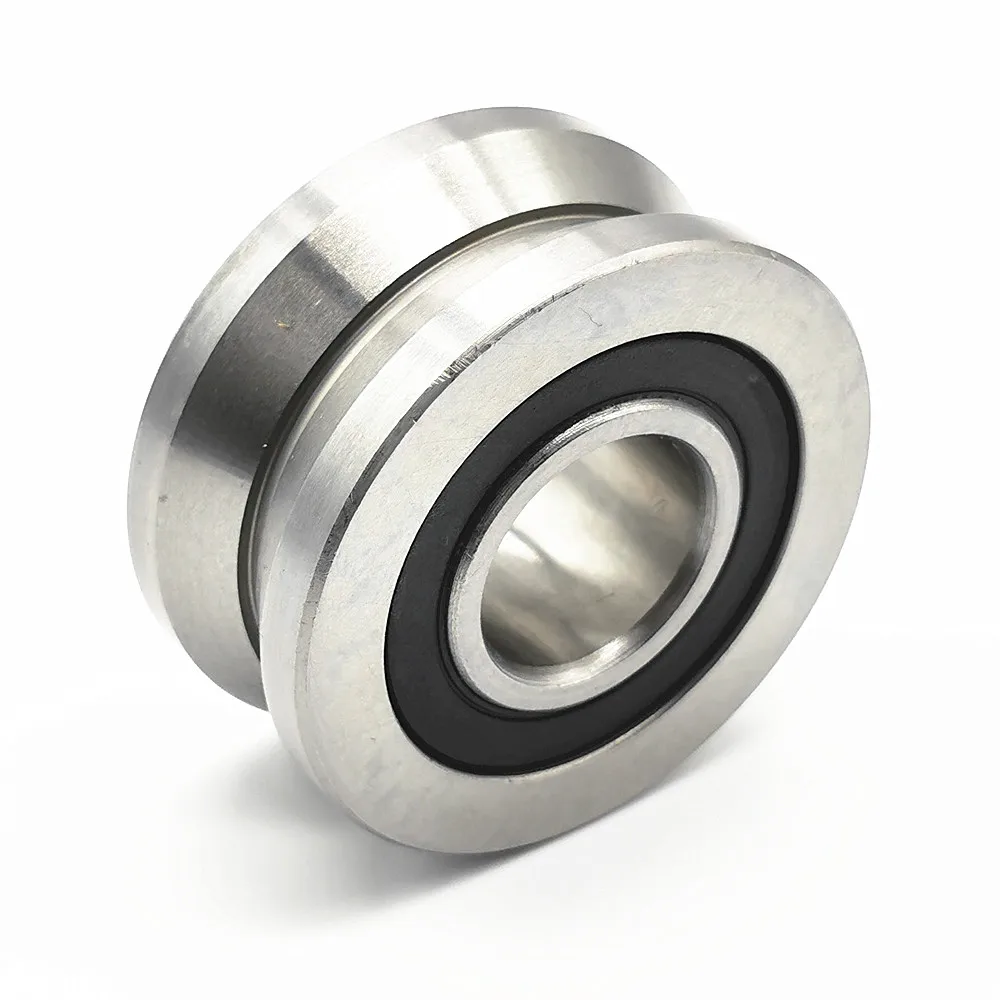

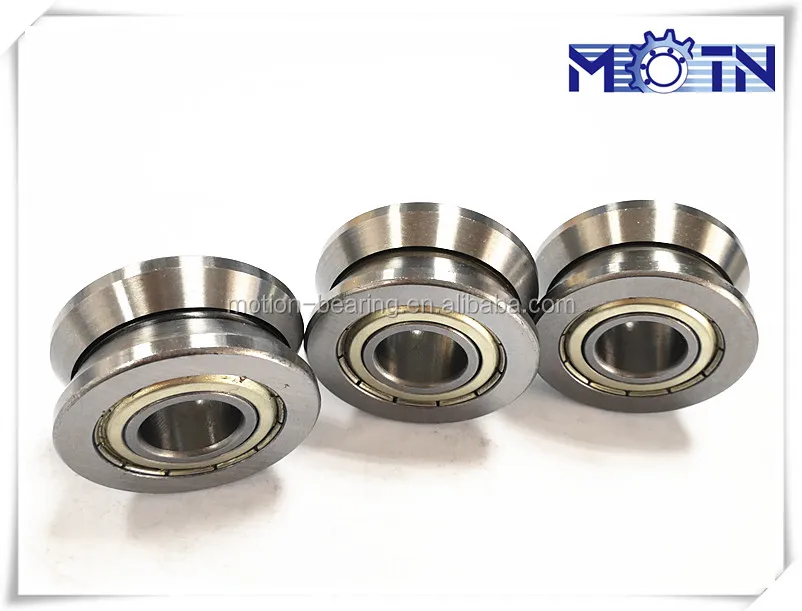

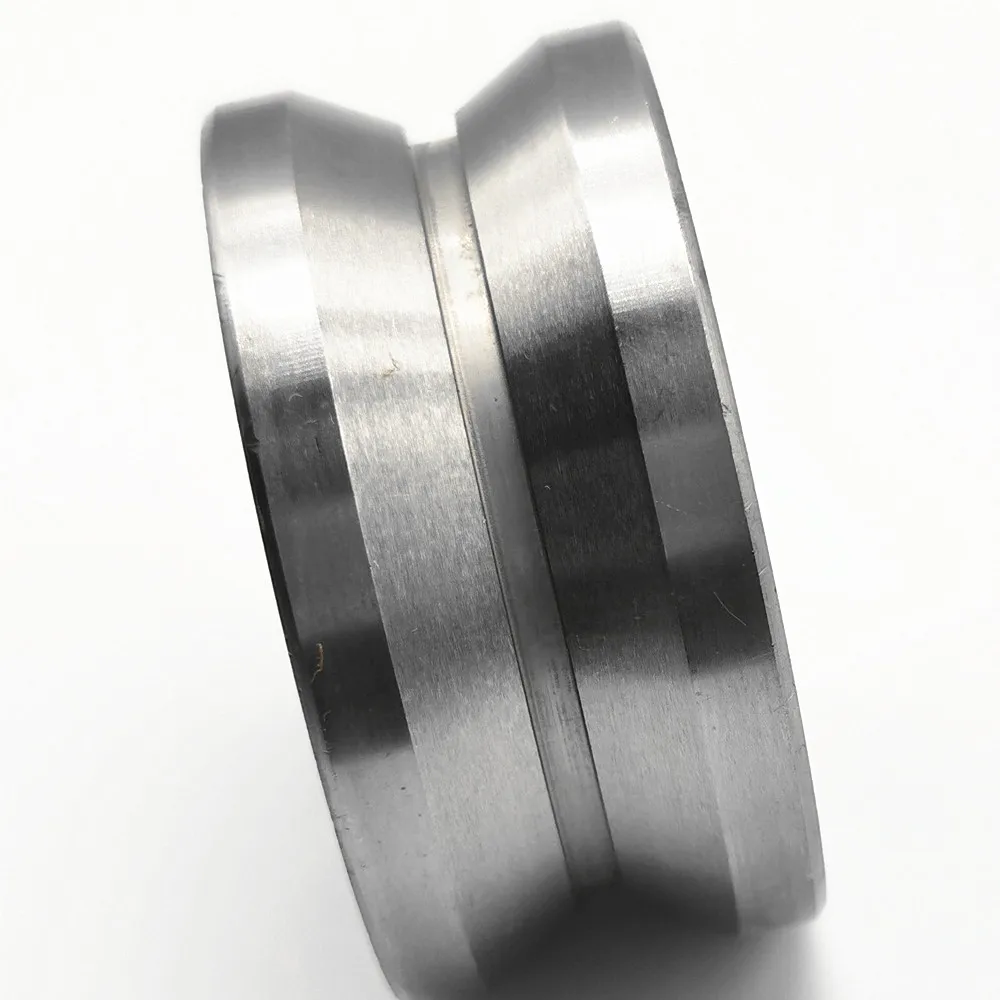

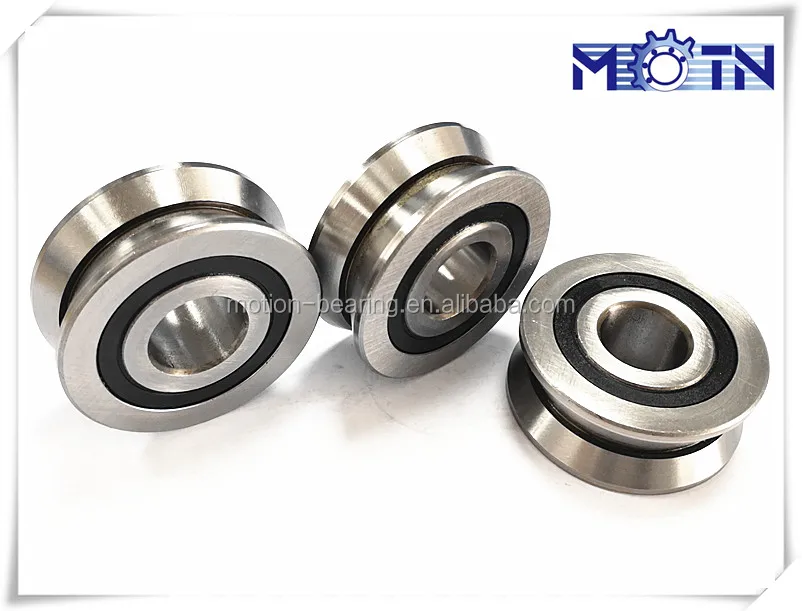

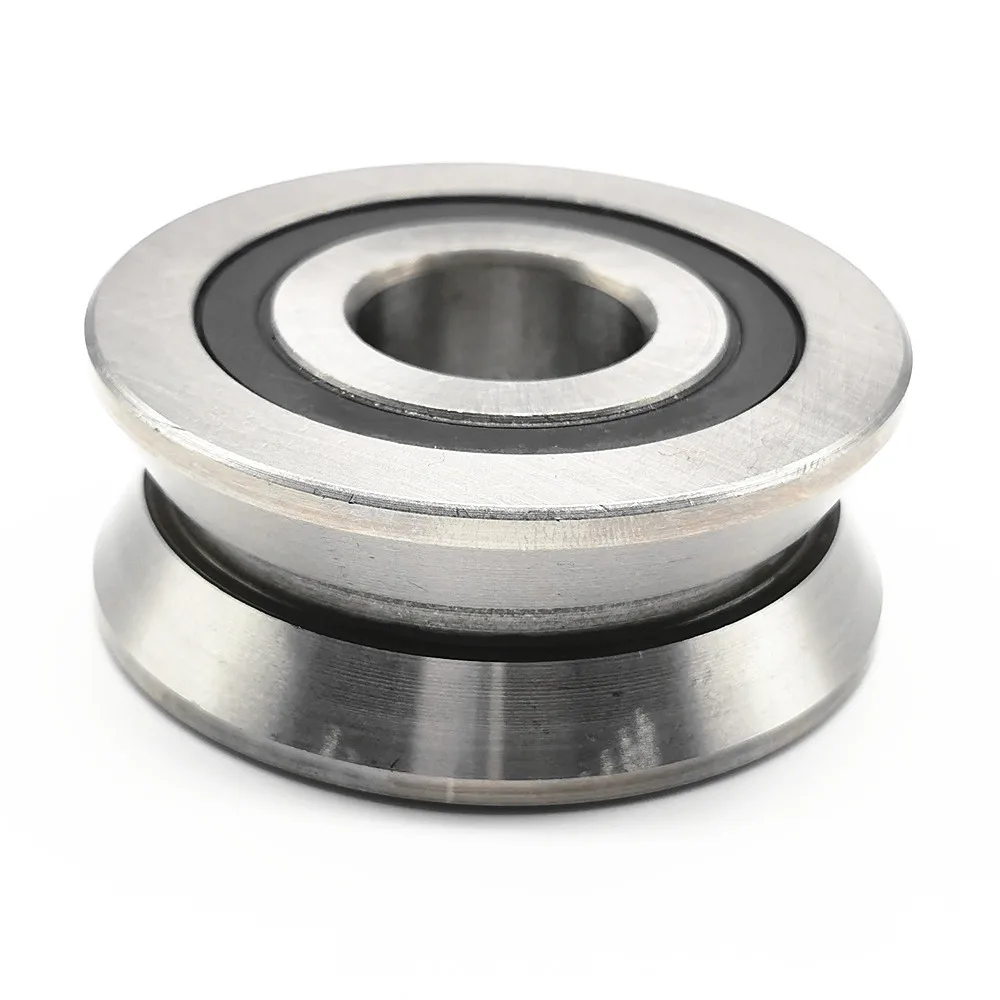

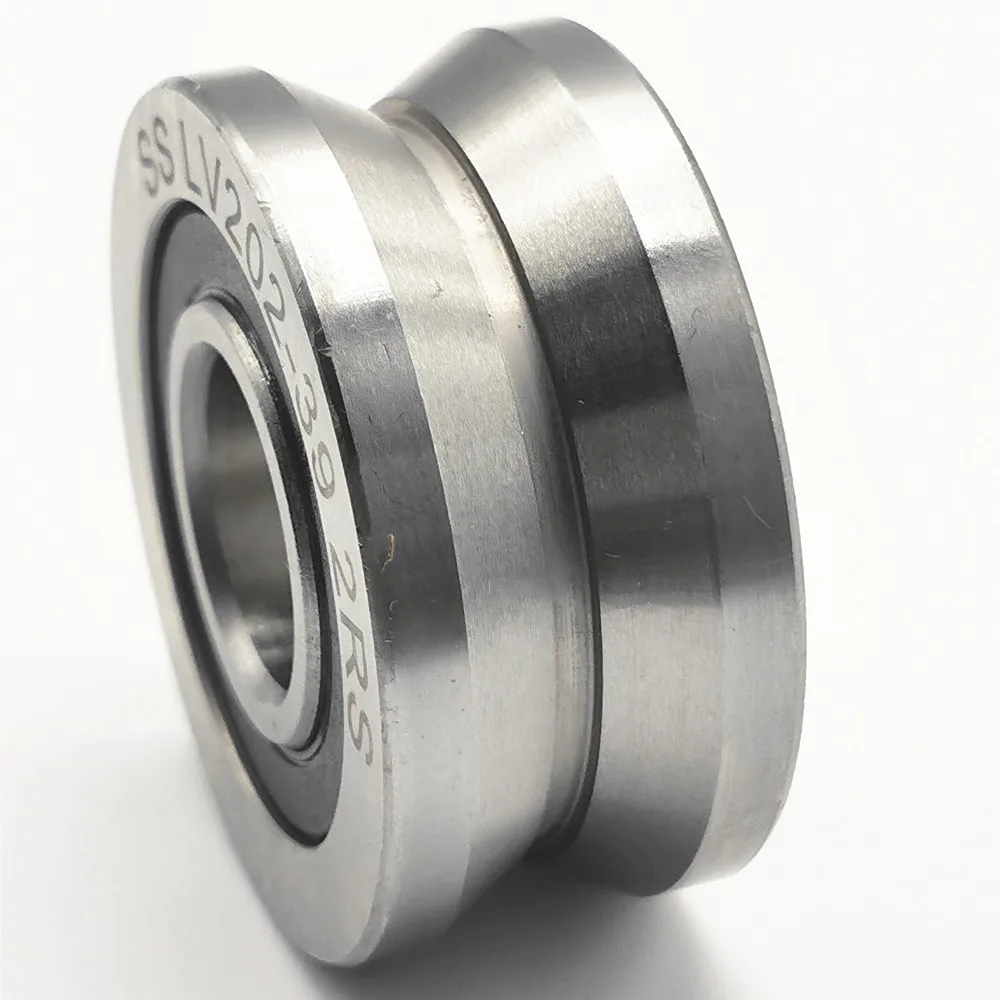

LV202 40ZZ 15mmx40mmx18mm V grooved track roller wheel bearings for linear guide rail

LV202-40ZZ  15mmx40mmx18mm  track roller

Descriptions:

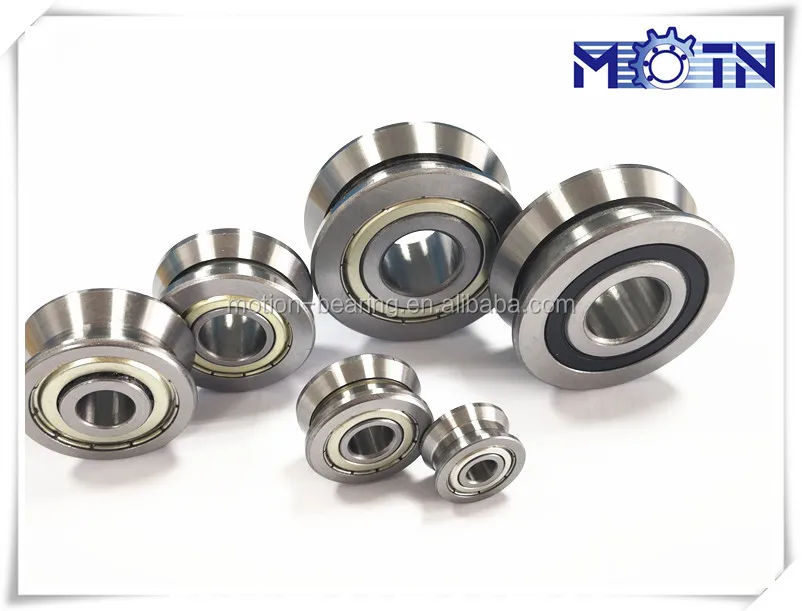

Series LV track roller  can be widely used in the cylindrical track or " V " profile track with an angle of 120 degrees. Different from the series LFR bearings, series LV bearings are more adaptable to the different track sizes. Each type can be applied with a larger range of track diameters. They are widely used for the heavy-duty track, mobile equipment, wire straightening machine and so on.
• Bearings take the internal structure design of double row angular contact ball bearings and have a thick-walled outer ring, so the bearings can accommodate higher loads.
• Bearings are made of the high-quality chrome steel, processed by heat treatment and precision grind, and are filled with a long service life, high-grade and multi-purposes grease. Bearings take the metal shield to prevent the dust.

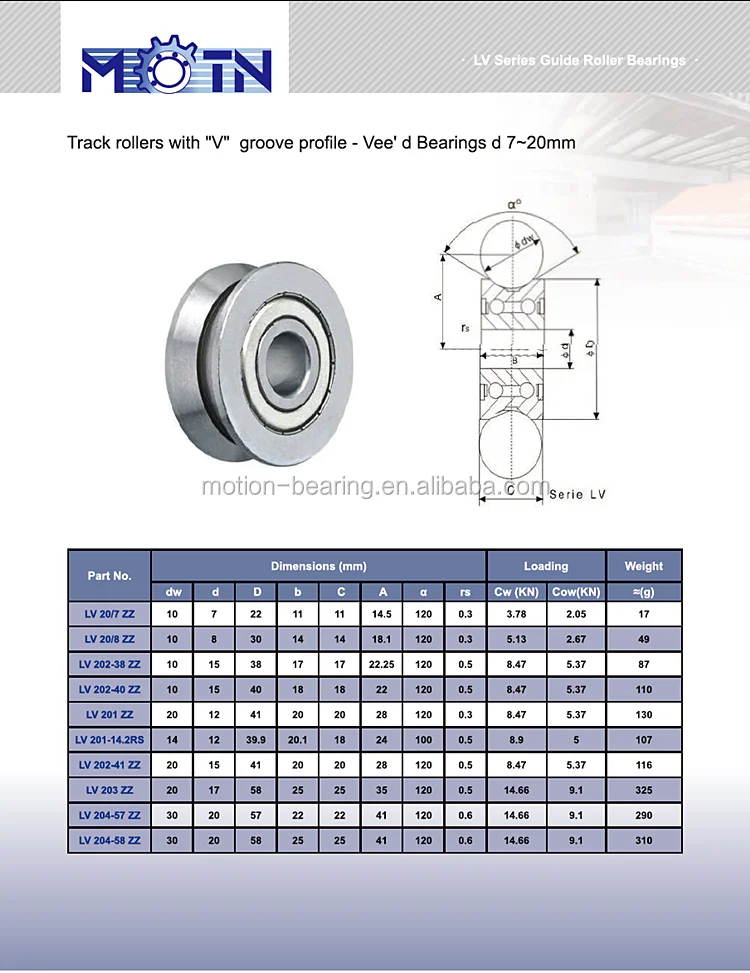

 Properties: LV202-40ZZ  15mmx40mmx18mm  track roller

1. Low resistance, long service life, widely-uses
The roughness of the " V " profile surface can be reached to Ra0.32 processed by precision grind. The bearings have well parallelism between the "V" profile groove and the mount planes of inner ring relatively. When bearings working, the stresses between the bearing and cylindrical track is in equality and the friction resistance is low.

2. Easy installation
After bearing assembled the concentric or eccentric pivot, installation will be convenient. To adjust the eccentric one's eccentricity, the bearing can get the fitting preload.

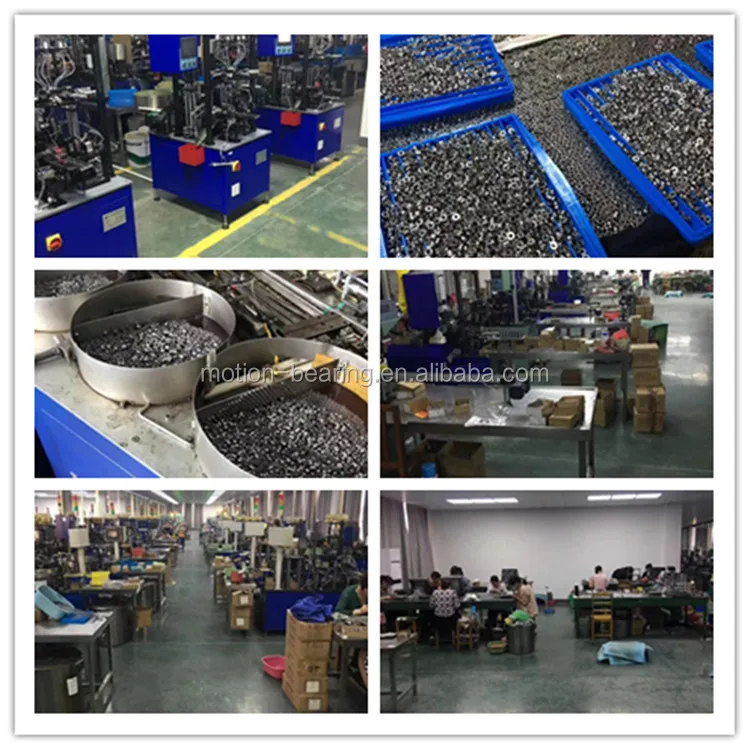

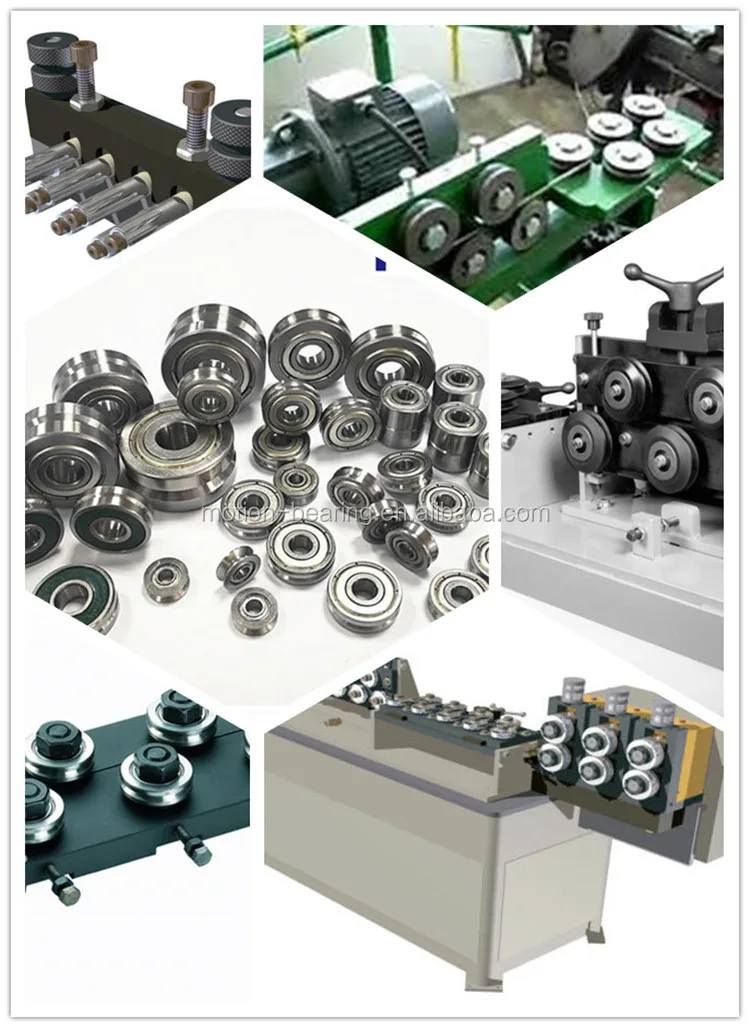

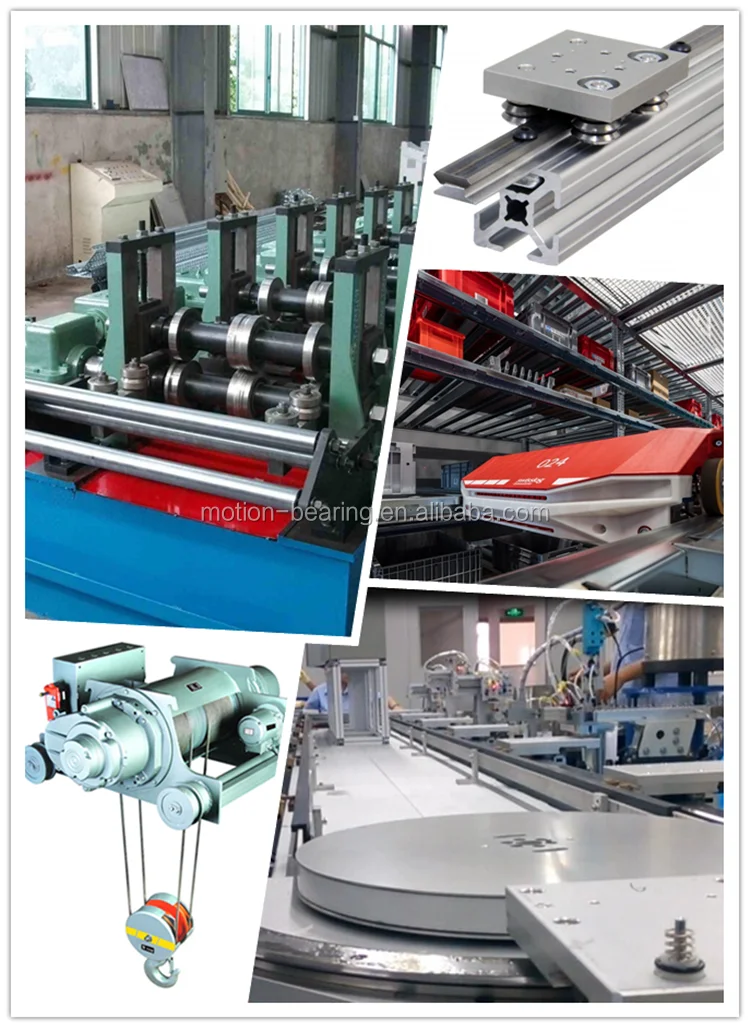

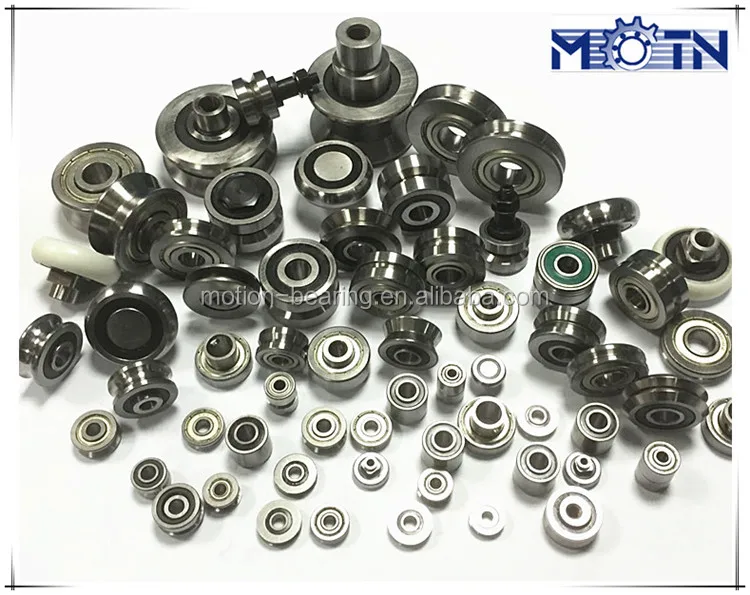

Motion(Shanghai) Industrial Development Co.Ltd (registered trade mark “MOTN”) focuses on bearings and transmission products. We are dedicated to the production and the trading of the “Linear rail guide track roller bearings” & “Wire straightening Roller Bearings” mainly including the series LR, LFR, LV, SG, SG, SS, W AND non-standard type V or U grooved bearings; They are widely used in the field of wire processing machinery, shuttle storage and transport system (shuttle module); Automation linear systems, precision production line, automation conveyor systems; Chrome steel and stainless steel are both available

Besides the above track roller bearings we can also provide anti-rust or corrosion products stainless steel ball bearing, stainless steel pillow blocks, plastic ball bearing, ceramic ball bearing, fishing reel one way clutch bearing; zinc alloy bearings and thermoplastic housing ect

Now we have our products sold to more than 30 countries and 80% if them to the European market; Thanks to the efforts of our professional staffs and the big supports of our clients we can get that we are today

Welcome to join us !
