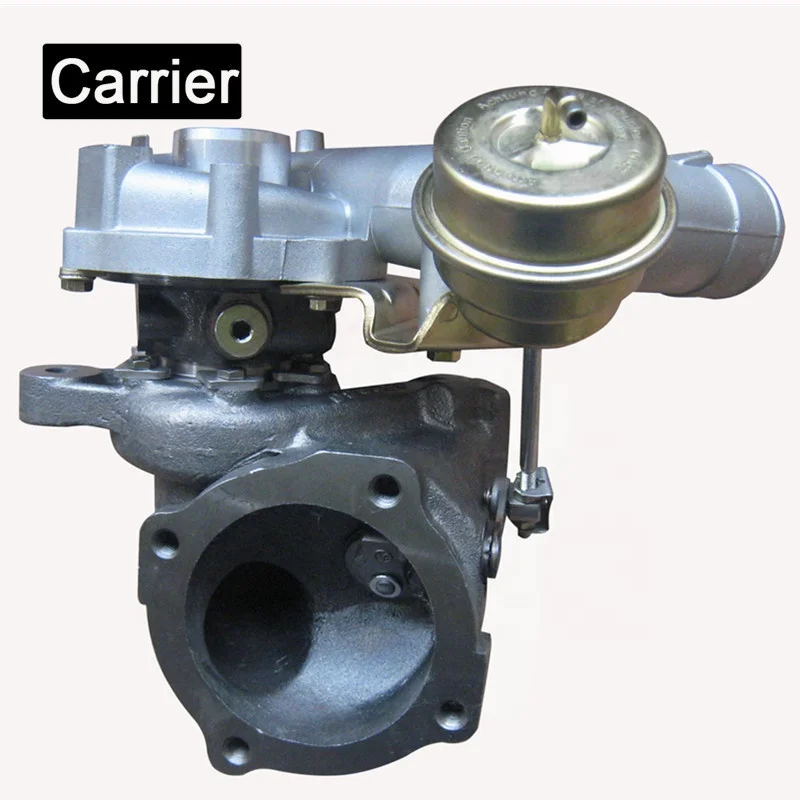

KO4 TURBO 53049500001 WITH 1.8L 5V transverse ENGINE

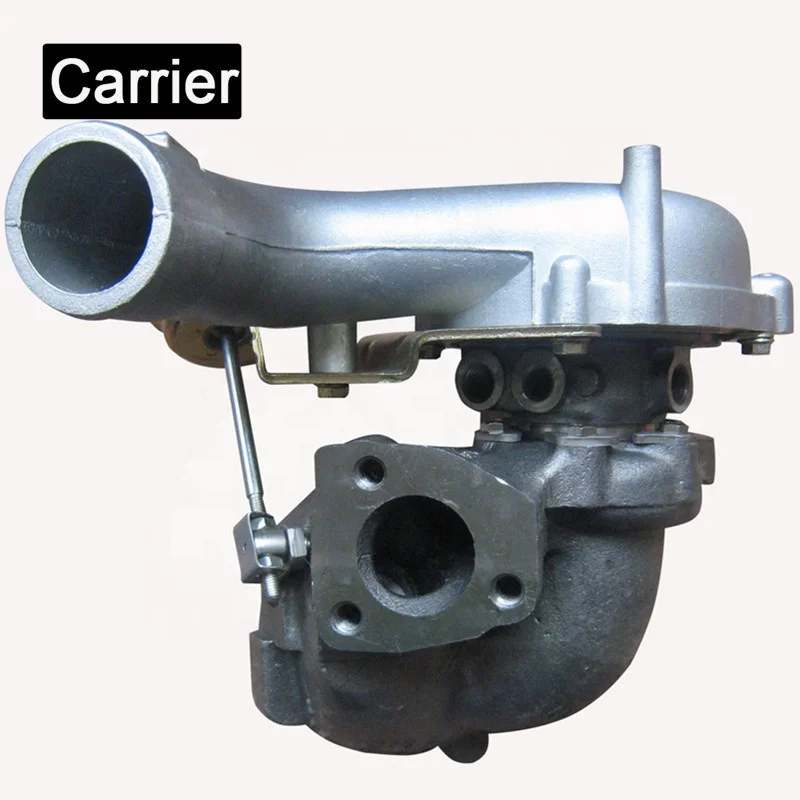

KO4 TURBO 53049500001 WITH 1.8L-5V transverse ENGINE
KO4 TURBO 53049500001 WITH 1.8L-5V transverse ENGINE
KO4 TURBO 53049500001 WITH 1.8L-5V transverse ENGINE

KO4 TURBO 53049500001 WITH 1.8L 5V transverse ENGINE

Share on (60711348162):


Price:RUB 15,059.52

Quantity:


Product Overview

Description



Product Description


Part Number53049500001
Previous Version53049880001, 5304-988-0001, 5304-950-0001, 5304 950 0001
Year1996-09
DescriptionAudi A3, TT Upgrade
ApplicationA3/TT Upgraded
Manufacturer Part Number53049700001, 5304-970-0001
CHRA53047100500 (5304-710-0500) (1302004900)  NEW IN STOCK
Turbo ModelKO4-001, K04-2075EAC5.82KCAXK
Displacement1.8L, 1800 ccm
KW162/220 HP
FuelGasoline
Engine1.8L-5V transverse, 1.8L -5V quer/transversal
Engine CodeAJQ, APP, AUM, AUQ, ARY
Comparison Number1113104, 1057139, 914F6K682AG, 914F6K682AF, 914F6K682AB, 6611235
Angle α (compressor housing)299°
Angle β (turbine housing)220°
Bearing Housing53041500003/53041500004/53041500010 (1302004450, 1302004451)  NEW IN STOCK
Turbine Wheel53041205008/53041500010/53041500011/53041500014/53041202100 (Ind. 42. mm, Exd. 50. mm, 12 Blades)(1302004436)  NEW IN STOCK
Comp. Wheel53041232005/53041235010/53041015331/53041015009 (Ind. 34.9 mm, Exd. 49.96 mm, 6+6 Blades)(1302003408)  NEW IN STOCK
Back plate53041515702/53041515700/53041232005 (1302003302)  NEW IN STOCK
Heat shield Number53041652000/53031652000 (1302003341, 1302003340)  NEW IN STOCK
Repair Kit53037110000 (1302003752)  NEW IN STOCK
Turbine Housing53041009022
Compressor Cover53041015010
Turbine Housing AR5
Actuator58251104026
Gasket (turbine inlet)210229 (Steel)
Gasket (turbine outlet)210331 (Stainless Steel)
Gasket (oil outlet)210317 (Paper)
Fitting oil inlet430066-0001
