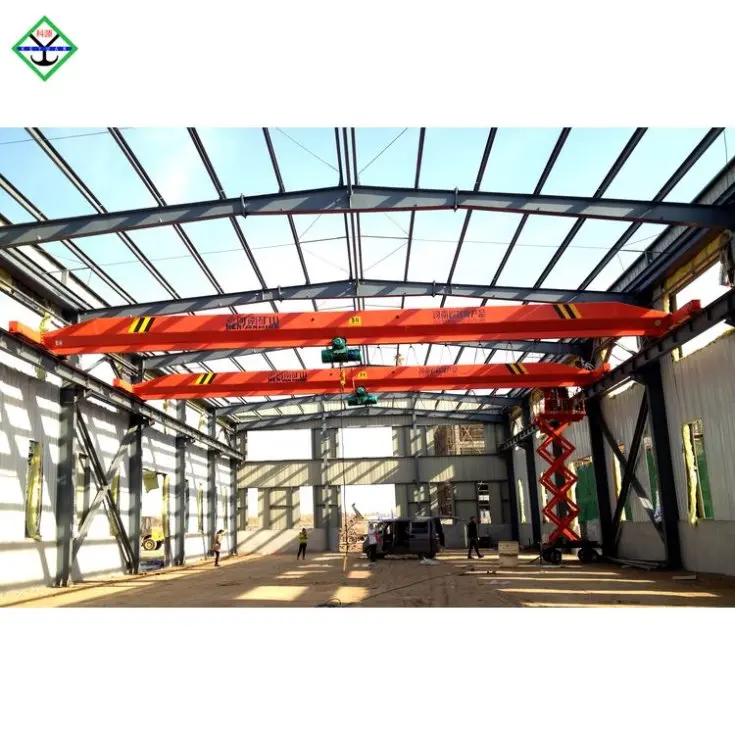

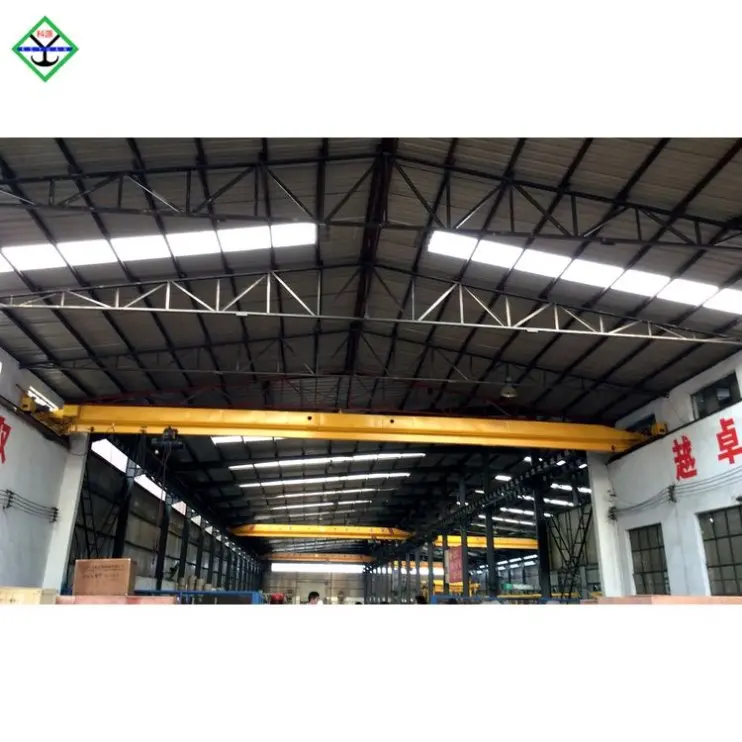

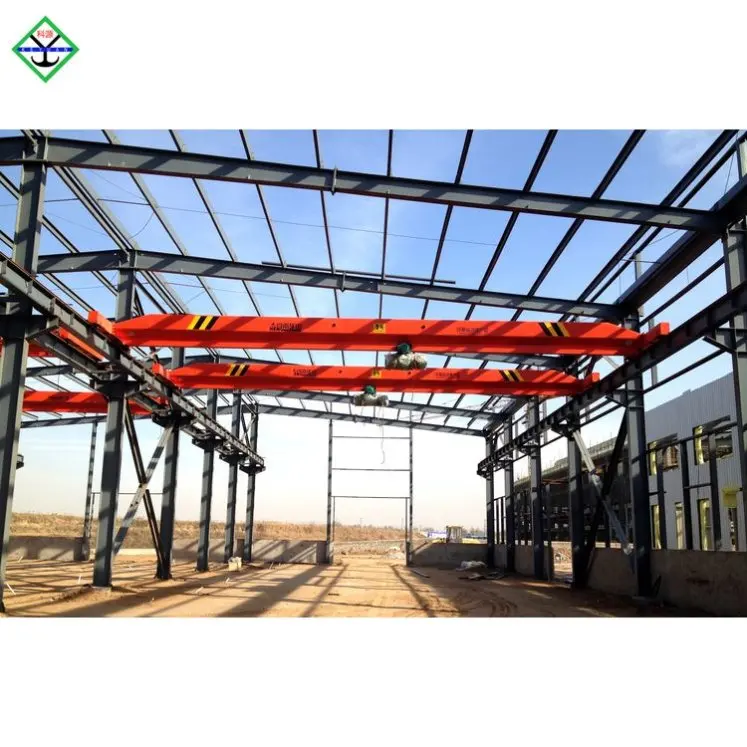

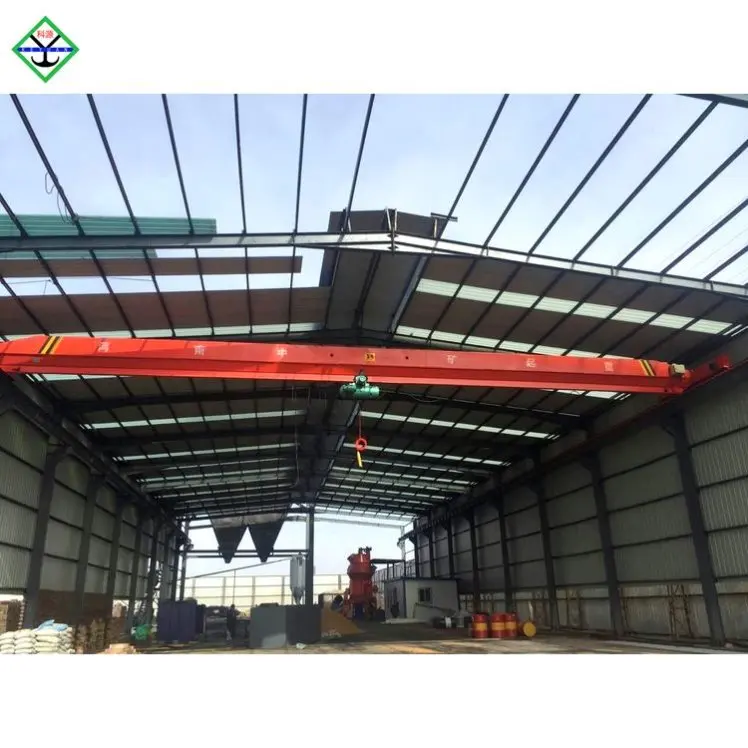

Competitive price Crazy Selling grab single girder overhead crane 10t
- Category: >>>
- Supplier: Shaanxi Keliyuan Crane Equipment Co. Ltd.
Share on (60711357199):
Product Overview
Description
Competitive price Crazy Selling grab single girder overhead crane 10t
Product Description
To move extremely heavy or bulky loads through the overhead space in a facility, instead of through aisles or on the floor, an overhead crane (also called an industrial crane, crane, or overhead traveling crane) is a machine that lifts, lowers and moves a load horizontally. Overhead cranes have high lifting capacities for load movement. Our overhead crane has smaller size, best performance ,best investment and user-friendly design than traditional one.
Componentsa) Steel structure: main bridge beam, end carriages with wheels driven by motors.b) Hoisting mechanism: electric hoist or open winch mounted on main bridge beam.c) Electrics: electric box/cables/operator.

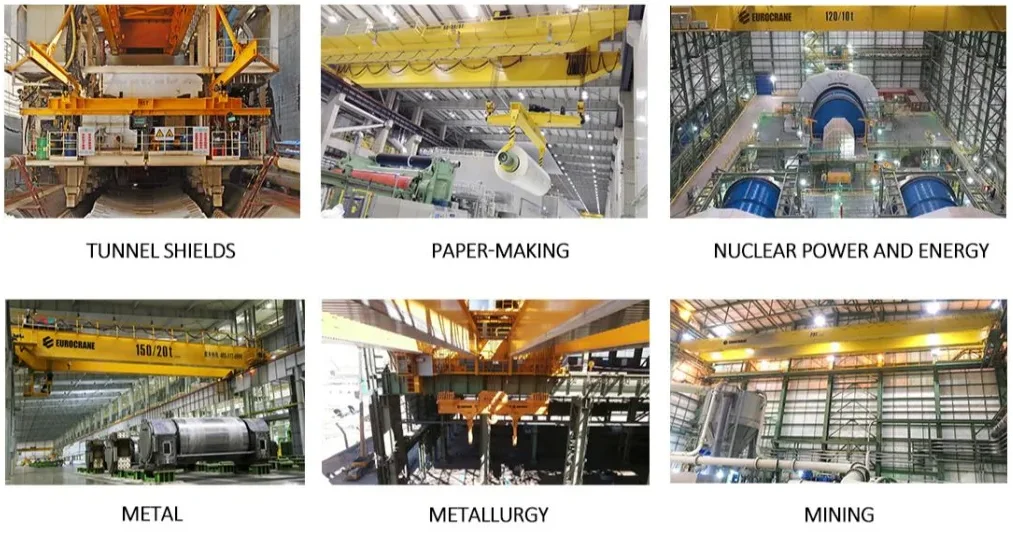

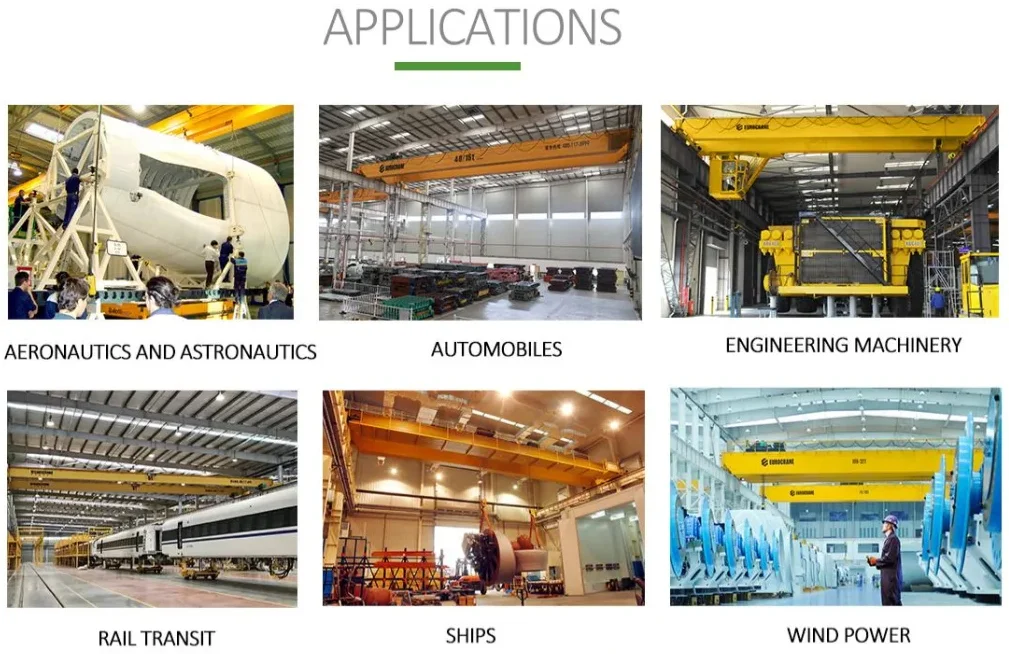

| Widely used heavy duty light weight overhead crane is used when heavier loads,wider spans or higer working frequency are required. This kind of crane is widely used in plant, workshop and warehouse for material lifting and moving. |

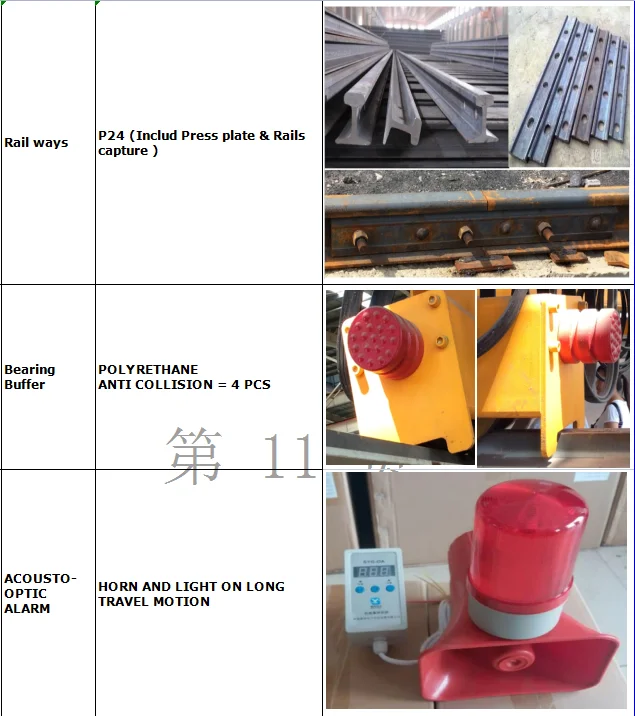

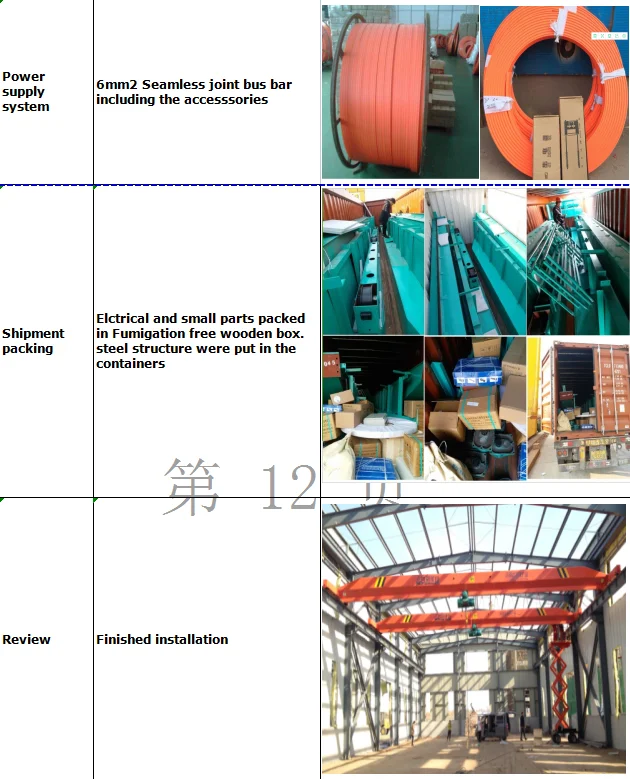

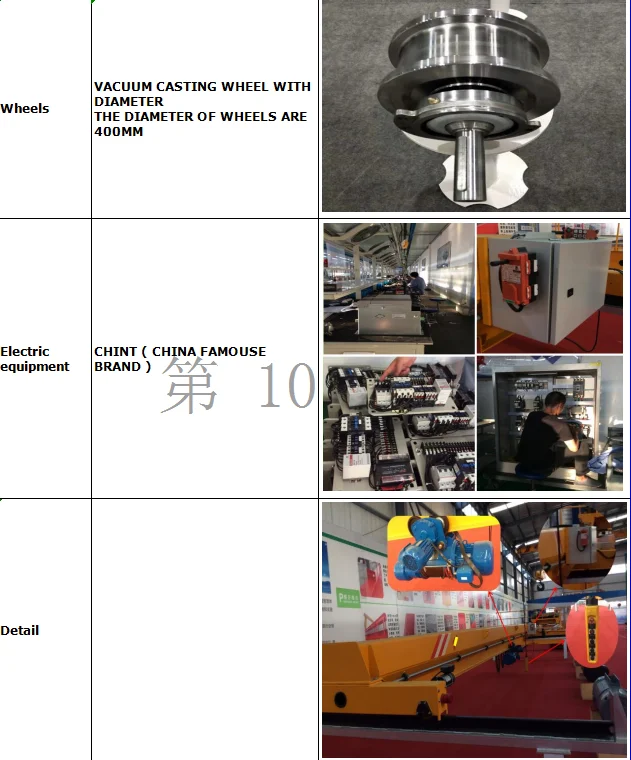

Detailed Images
Safety features1. Weight overload protection device: If the material is over the capacity, the crane will give a sharp warning for protection itself.2. Emergency brake: If the operation staff encounters some emergency situation, we could start the emergency brake system to protection the related treasure.3. Control Method: Ground control and cab control to avoid any injure to the operation staff4. Main lifting motor: with thermal protection and currency protection5. Hooks with latch6. Top quality long time bearing polyurethane materials buffer7. Protective earthing8. Crane traveling limit switches
| Safety Features | Advantages |
|
|
| No. | Item | No. | Item |
| 1 | Limit Switch | 1 | Short-circuit protection |
| 2 | Interlock protection device | 2 | Uner-voltage protection |
| 3 | Buffer | 3 | Zero protection |
| 4 | Rail tongs,Anchor device | 4 | Motor overhead protection |
| 5 | Rail clear plate | 5 | Emergency stop system |
| 6 | Protective cover | 6 | Current overhead protection |
| 7 | Bus bar preventer plate | 7 | Security chain protection |
| 8 | Anti-collision device | 8 | Ground protection |
| 9 | Overhead Limiter | 9 | Main isolating switch |

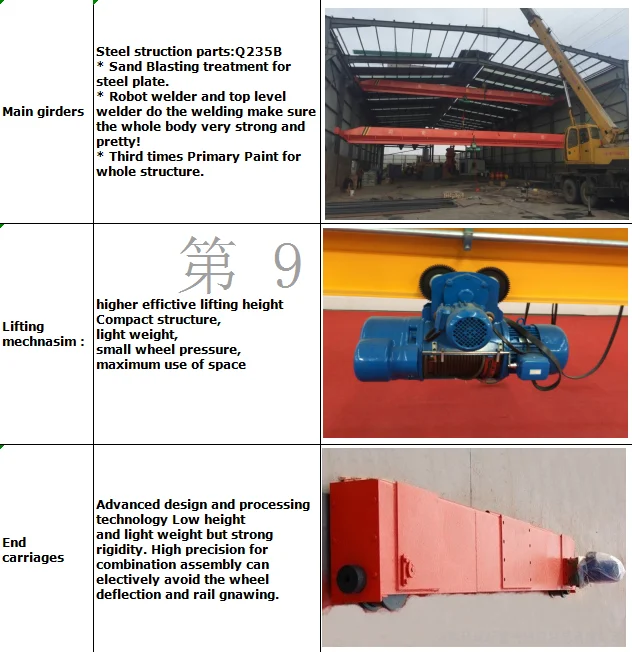

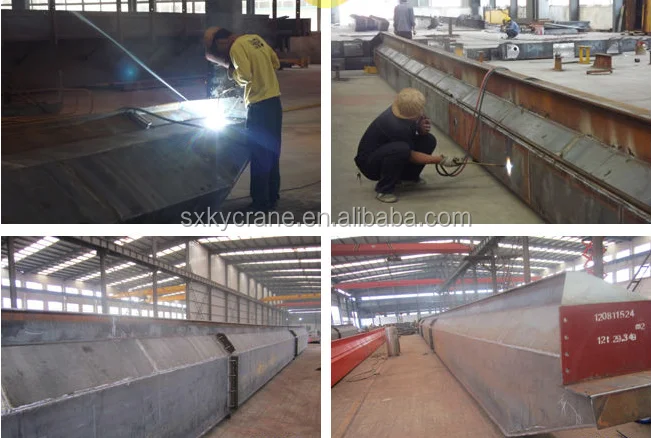

| Main Girder and Carrier beams |
|
drawing

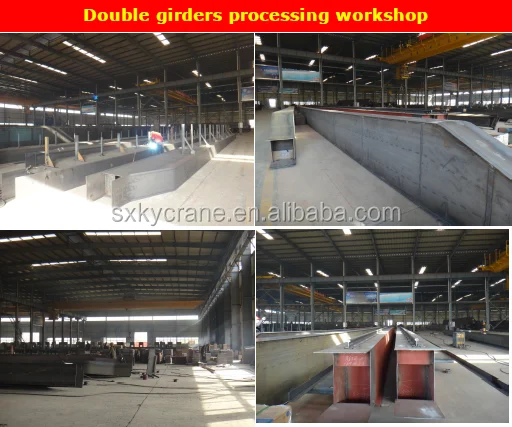

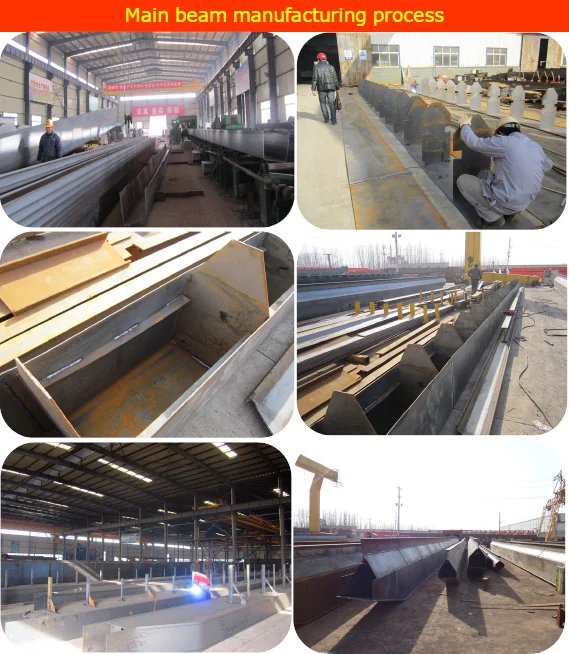

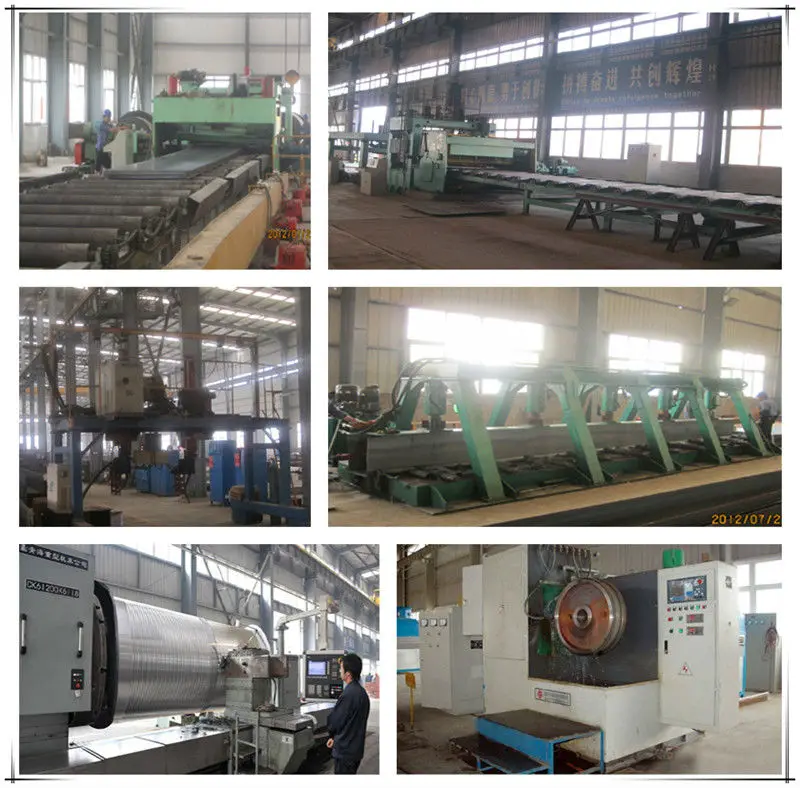

Production Flow
Customer visit

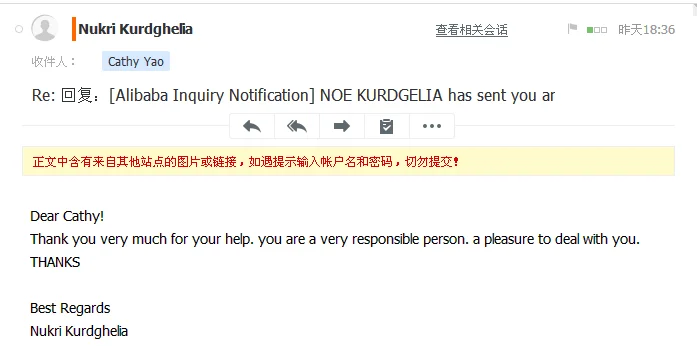

Feedback
Product category
FAQ
Pleas kindly confirm these information in order to offer you an exact quotation when you inquiry .
For overhead crane type
1.Do you need single girder overhead crane or double girder ?
2.Lifting capacity ?
3.Span ?
4.Lifting height ?
5.Traveling length ?
6.Power supply __v ____hz ___phase ?
7.What is the crane working condition ?
How many hours for continuous working of the crane on day ?
8.Operation method ?
A: pendent controller with push buttons.
B: remote control
C: cabin
9. Do you need us provide rail ways ? if yes , how long is the crane traveling ?
10.FOB or CFR price ? Your port of destination ?
The best quotation will be sent to you once these are confirmed !
Best regards
Cathy
