Product Overview

Description

Description

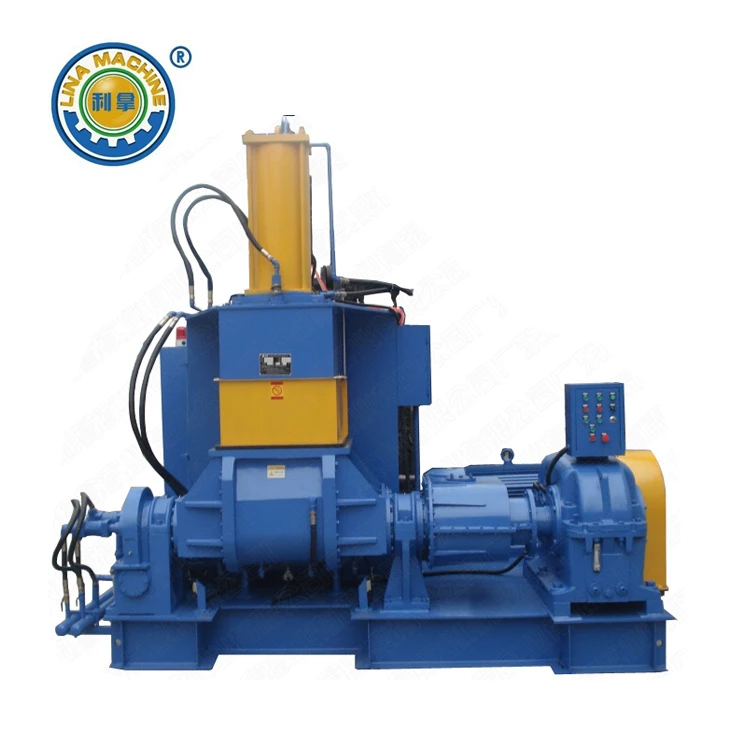

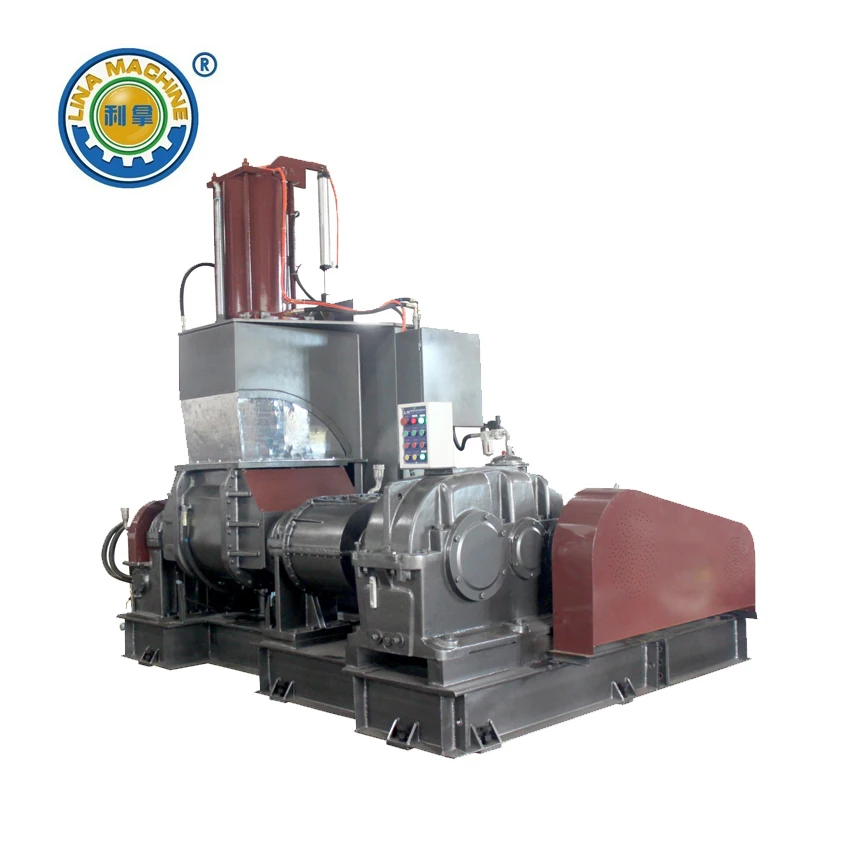

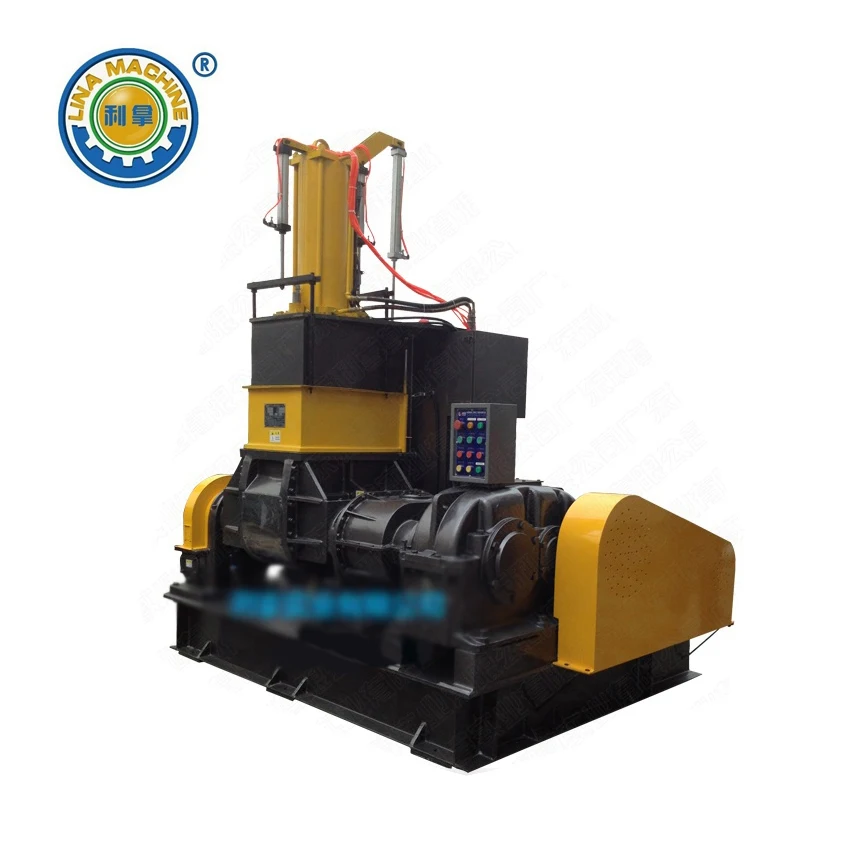

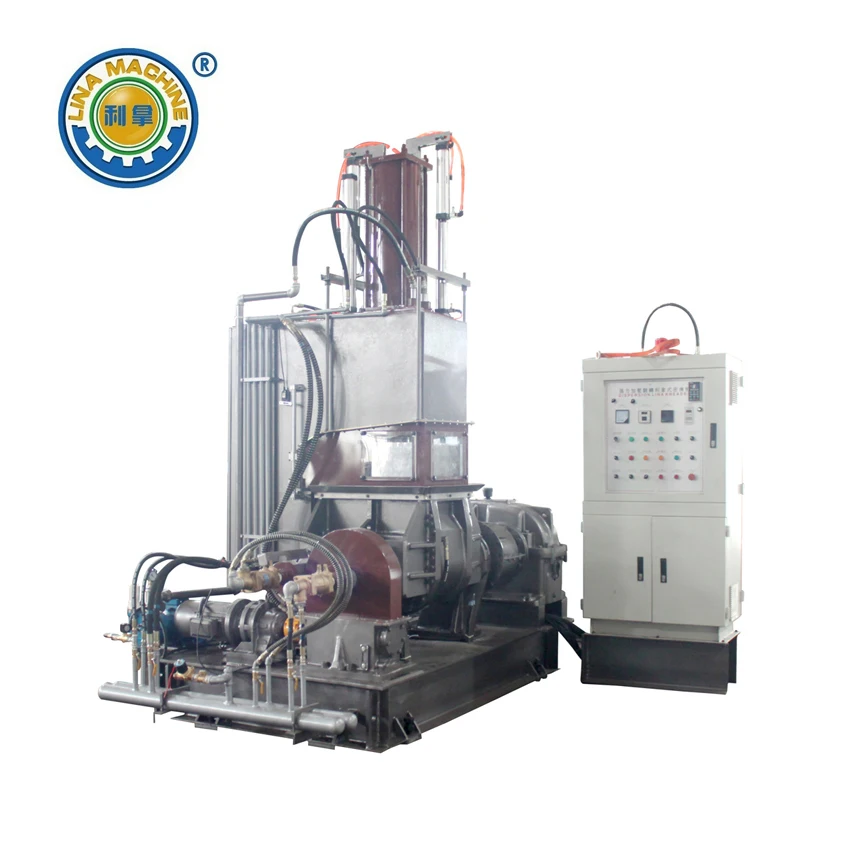

Rubber Mixing Mill Banbury Rubber Mixer for Mass Production

Banbury Rubber Mixer is used for rubber&plastic raw material mixing and dispersion, just like the PVC EVA NBR SBR etc.The specific proposal would be based on the materials characteristic, production capacity.

SPECIFICATIONS FOR Banbury Rubber Mixer
Type
Unit
LN-15 to LN-110
Capacity
Liter
15-110
Driving motor
KW
22-160
Flip device
Hydraulic flipping
Flip angle
°
110
Air compressor
KW
5.5-7.5
Water cooling
MPa
0.2-0.4
Electric heating
W
2200-24000
Size
mm
about 1900*1000*2000
Weight
KG
2800-15000

Main Features

1) Fit for various of high filled composites.

2) Effective leak proof device.

3) "M-W" type pressurization for even dispersion.

4) Accurate control system(temperature system ;electric system).

5) Low maintenance by imported accessories.

Detailed Images

Rotors

The blade is designed in diamond shape, with hollow shaft and blades through which cooling water can run.

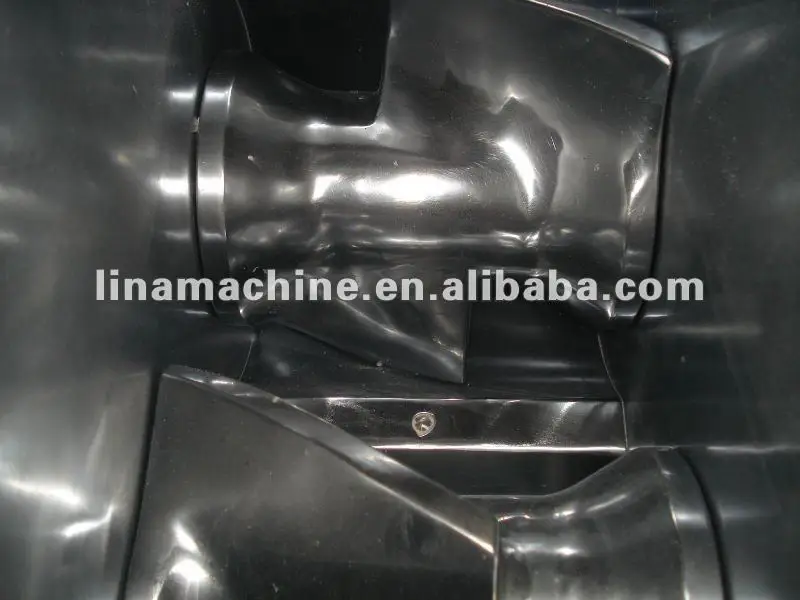

Mixing chamber

Features:M-W pressurization is applied to ensure even mixture of materials and optimized nature variation and achieve X curvilinear motion of the materials, providing excellent abrasion resistance and service life 1-2 times longer than traditionaxil machine.

Intelligent control panel and PLC control system

1. Real-time data record and export of kneading time, temperature (mixing chamber and front/rear rotors), ram pressure, current, torque and recipe code.
2. The control system can be set up to 20 mixing steps, save 20 recipe spaces.
3. The control system is capable of remote import of the process recipe and data monitoring, communicating with MES via Ethernet communication interface.
4. An Ethernet communication interface and 20% of the control points are reserved. Touch screen is provided.

Packing & Delivery
Certifications
Service and Partner

Our partnership

* Powerful enterprise

* Government enterprise and institution

* University and research department

After-Sales Service

* Quick respond.Solutions can be provided by phone or video.

* Engineers available to service machinery overseas.

Our Company
FAQ

Are you factory or trading company?

LINA Machinery has been engaged in Rubber&Plastic mixing machine for many years. We have workshop and R&D department.

What about the operational guideline?

Training of customer's operator and maintenance personnel and long-term technical consultation is provided.

How about the warranty time?

One year's non-charge warranty period is provided for units in normal operation and long-term spare parts/component are available.

Do you offer the customization of the machine?

Certainly, LINA will give you the most proper recommendation and setting according to your materials and demand.
