L6.2 Big Tamiya 2Pin 6.2mm Gold Plated Connector Male Female Connectors Plug Set Gold Plated Pins For RC Car Lipo Battery
- Category: RC Parts & Accs >>>
- Supplier: Shenzhen,Jinxinyi,Electronic,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Specification
Product name | Tamiya Connector 2P for RC Car Battery |
Spacing | 6.2mm |
MOQ | 100set |
Quality | 100%New |
Details:
Male connectors shell size: Approx. 27x13.5xc11mmFemale connectors shell size: Approx. 27x13.5x7mm
Total Dimension: Approx. 44.5 x 13.5 x 11 mm
?Current Rating: 10.0A
Voltage Rating: 300V DC/AC
Withstand Voltage: 1500V AC
Contact Resistance: less than equal 0.02Ohm
Insulation Resistance: greater than equal 1000MOhm
Operating Temperature: -25 Degrees Celsius～+85 Degrees Celsius

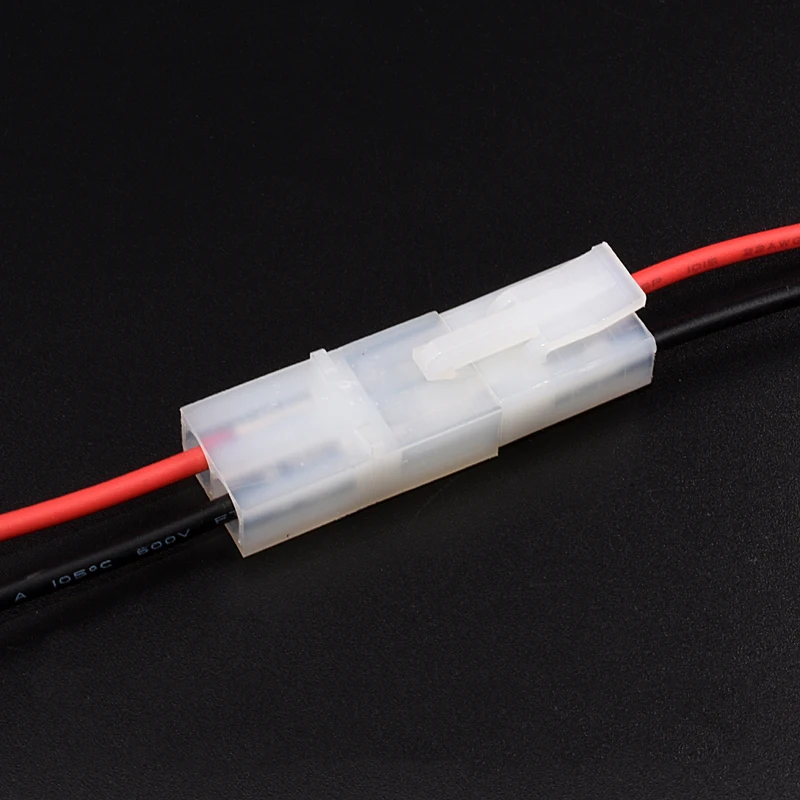

Tight and secure connection
High electrical conductivity with small resistance
Gold plated connectors for a reliable strong connection

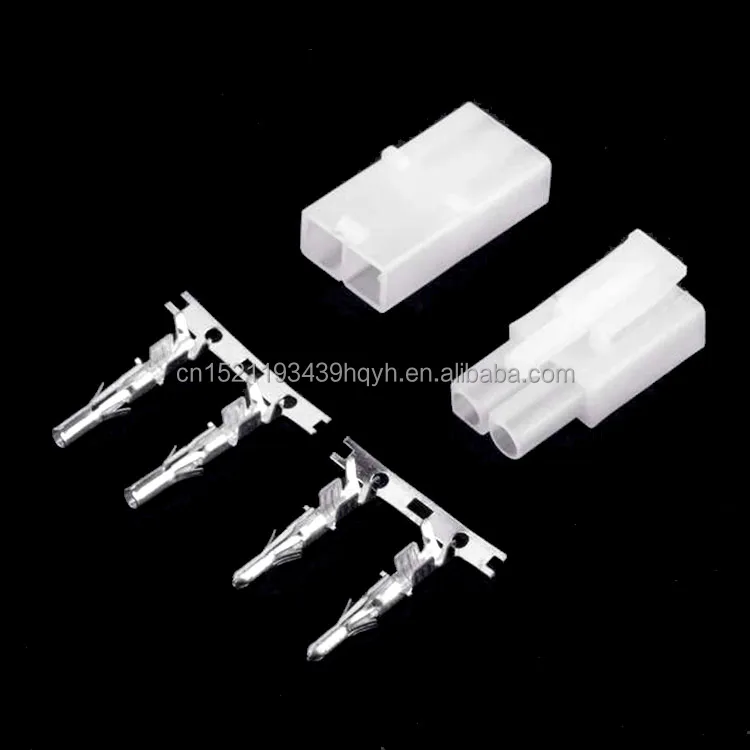

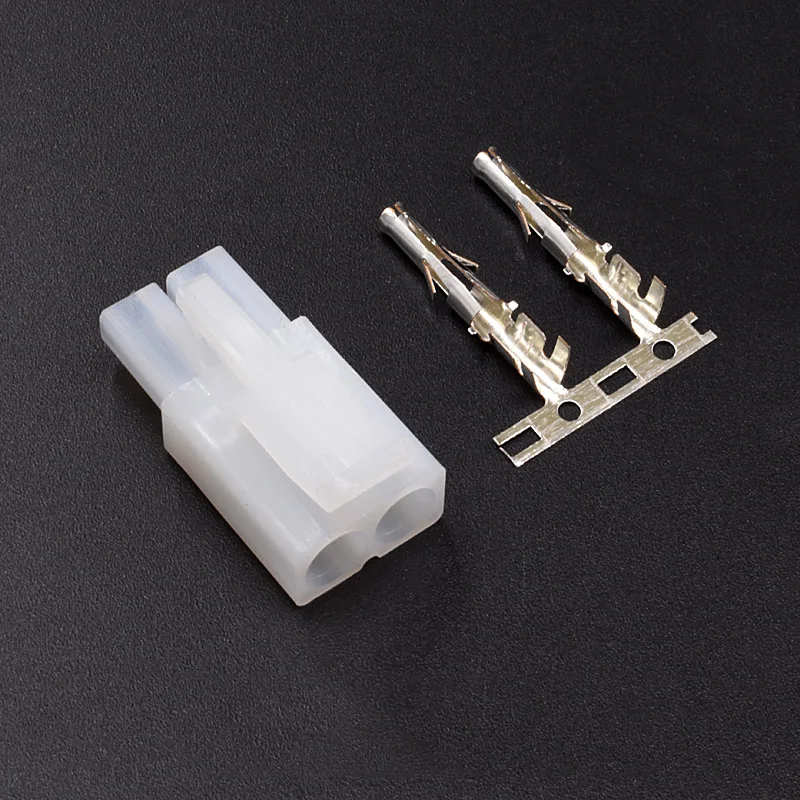

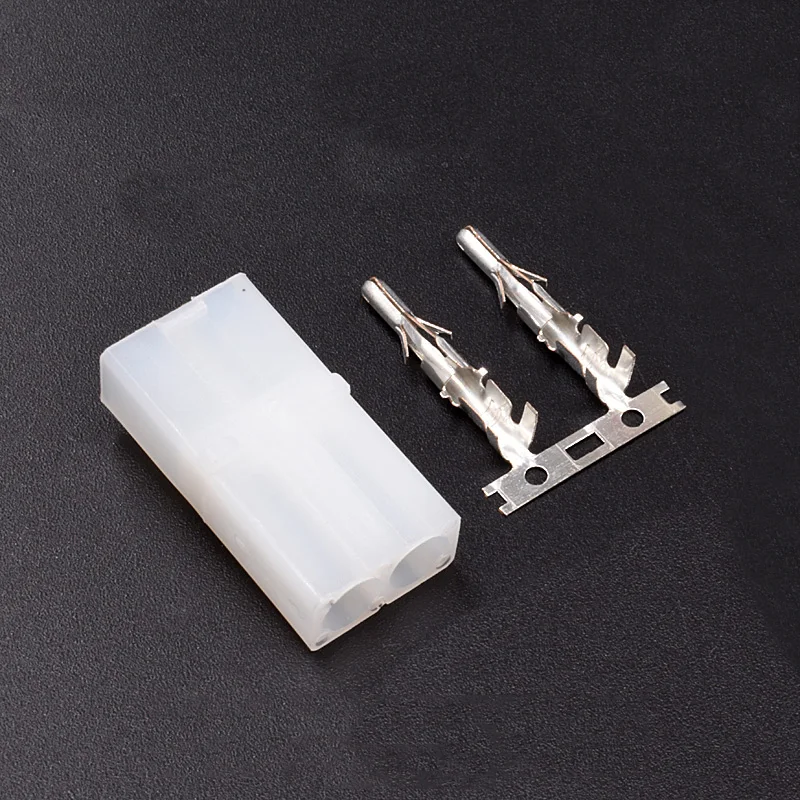

?Note: Tamiya female housings use male metal pins
Package Contents:
100 x Tamiya Set Male / Female 2 Pin Gold Plated
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
