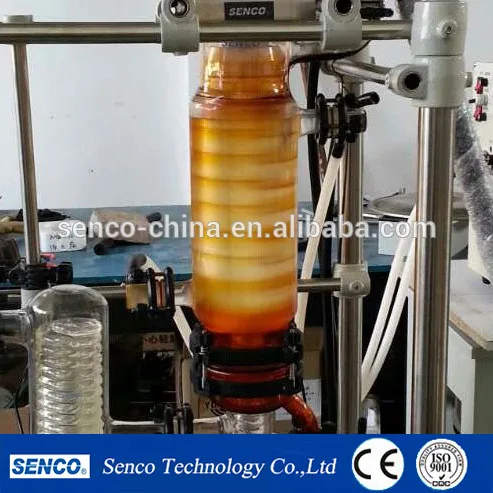

MD800 senco vacuum distillation

Product Overview

Description

Product Introduction:

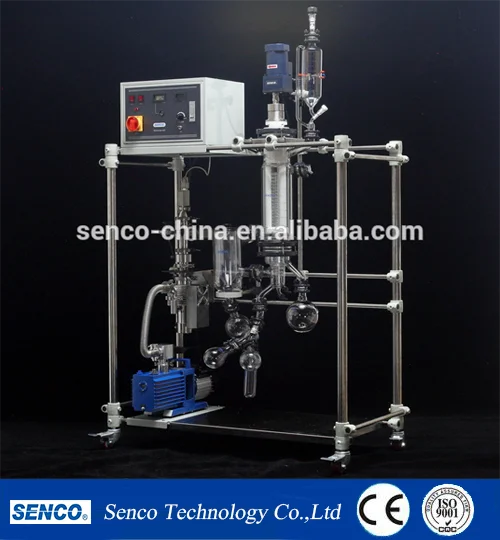

SENCO MD (Lab Molecular Still)

1.Vacuum reachable 0.1Pa(vacuum degree depend on equipped vacuum capacity)

2.Roller or Scraper Filming System

3.System integration of vacuum, heating and cooling supply with precise adjustable value

4.Many customized optional units enable flexible function extension

5.Experiment before mass production

6.Applied in separating liquid-liquid mixture. Such as flavors and fragances etc



Molecular Distillation/Short Path Distillation is a comparatively new separation technology. It can separate liquid-liquid mixture under temperature that is far lower than boiling point by the difference of mean free path of molecules under high vacuum condition. Such separation is difficult or unable to achieve on normal distillation equipments. Molecular Distillation is especially suitable to separate substances of high boiling point, heat sensitive and easy oxidized.

Main application field: Separation process in trades like Food, Pharmaceutical, Fine chemical, Electronic materials, Polymers (Polyols, fatty acids, polyphenols-compounds, polyurethane, epoxy resin, lactate, glycerol monostearate, flavors and fragrances, fuel oil and paraffin oil), etc.

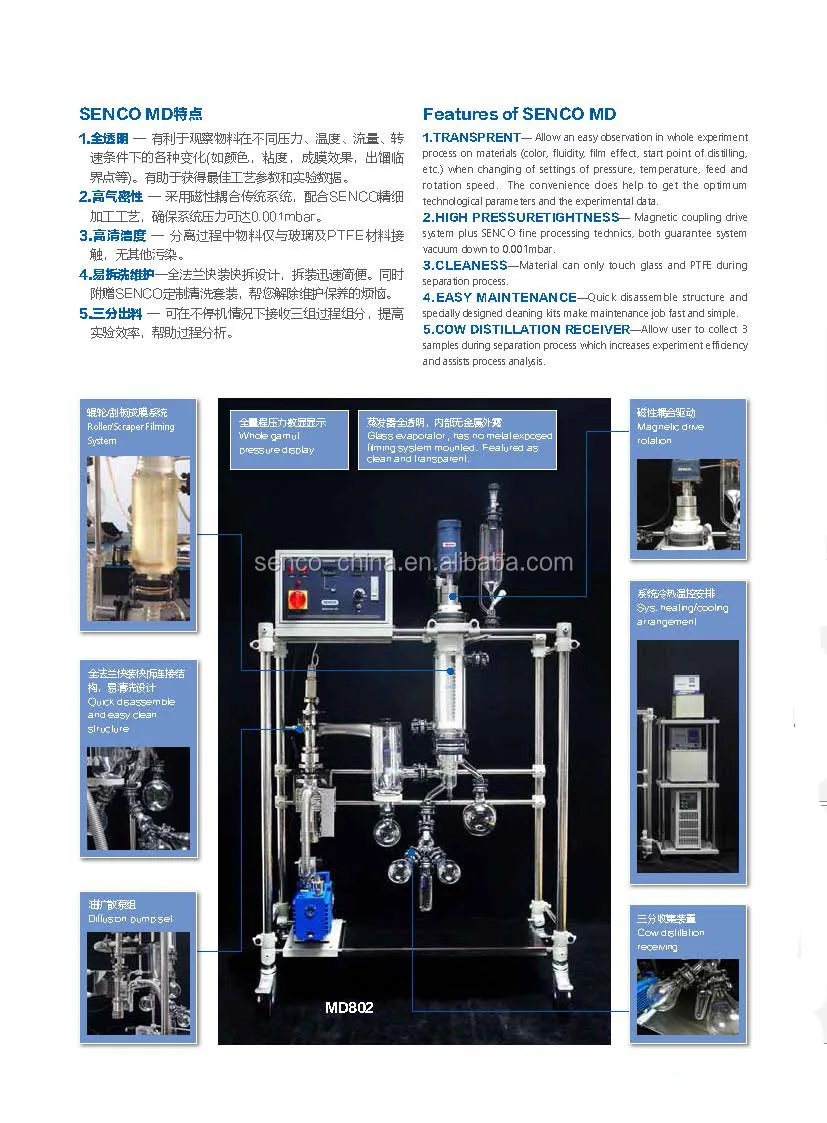

 FEATURES of MD SENCO:

1.Magnetic coupling drive, high sealing performance

2.High cleanness (solution contacts only glass and PTFE)

3.Full range digital vacuum meter (0.001-1000mbar)

4.Complete flange connections, easy sys. maintain and clean.



Main Configurations and Parameters:



Packaging & Shipping:



Packaging:

1.Carton+wooden cases.

2.Customized packaging can be available.

Shipping:

1.We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on.

2.You can also choose the appropriate one based on your timeline and budget.

3.You can choose to use your own shipping agent.

Shipping method	Single package size: 110X50X80 cm Single gross weight: 400.0 KG
Express	Door to door, very convenient, don't need to clearance or pick-up
By air	Airport to airport, you need to do the customs clearance and pick up the goods at your local airport, which you can have a local shipping agent to do for you.
By sea	Port to port and you need to do the customs clearance and pick-up the goods at your local port, which you can have a local shipping agent to do for you.

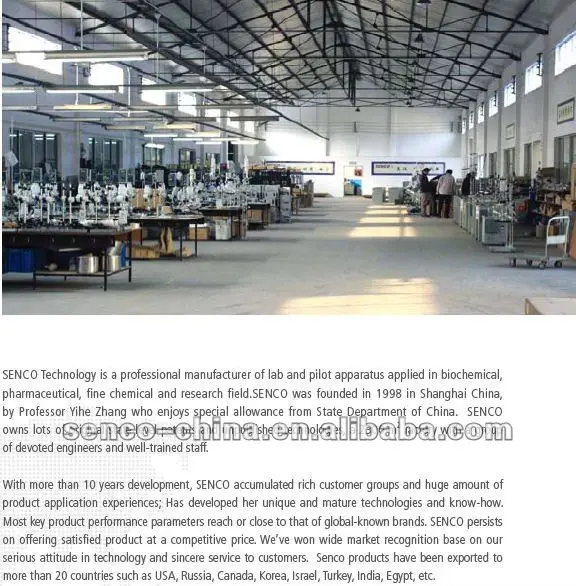

Company Information:

 Certificate:

Our Service:

Pre-sale Service:

1.According to product's using condition, technicians will offer rationalization proposals to assist clients to select proper types;

2.Provide detailed product performance specification;

3.Provide professional quoted price;

4.Provide 24-hour technical consulting reply.

5.Provide other corollary equipment according to client requirements.

In-sale Service:

1.Begin to supervise from raw material, its qualified rate can reach to 100%;

2.Whole manufacturing process are in strict accordance with promised procedure requirements, product qualified rate can reach to 100%;

3.Provide product's inspection record of key junctures to customers;

4.Provide production schedule photos to customers at regular intervals;

5.Package and transport products strictly accordance with export standard;

6.Provide transportation schedule information to clients timely.

After-sale Service:

1.Provide targeted installation video;

2.Under the premise of correct installation, normal maintenance and using, we guarantee one-year warranty period;

3.When warranty period has expired, our sold products enjoys lifetime guarantee repair, we only charge cost price for changing product's standard component and sealing component;

4.During installation and adjustment period, our after-sale service staff will communicate with customers frequently to know product's running state in time. Assist customers to install and adjust products until customers are satisfied;

5.If product has malfunction during operation period, we'll offer you satisfied answer in time. We'll reply you within 1 hour and provide solution or send staff to spot within 24 hours after receiving maintenance notification.

6.Lifelong free technical support. Conduct satisfaction survey and inquiry equipment running condition to clients by telephone or e-mail semiannually from the first day of equipment running, put on records of acquired information.

7.Provide assistant service if product is damaged during transportation.



FAQ:

Frequently asked questions of top quality Molecular Distillation System for pilot plant test
1.Ask: What's the working principle of Molecular Distillation System?
Answer: Under the condition of negative pressure, heating liquid from the thermostat which makes solution easily separately, magnetic driven scraper is rolling to form a thin film in bottle wall, mixture slowly flow onto bottle wall. This process is characterized by short term exposure of the distillate liquid to high temperatures, by high vacuum pressure (around 1024 mmHg) in the distillation column and a small distance between the evaporator and the condenser around 2 cm, where fluids are in the free molecular flow regime, i.e. the mean free path of molecules is comparable to the size of the equipment. This process has the advantages of avoiding the problem of toxicity that occurs in techniques that use solvents as the separating agent, and also of minimizing losses due to thermal decomposition.

2.Ask: What's the core technology of Molecular Distillation System?
Answer: The key system's tech is to decrease physical tightness between different moleculars distillation system. Adjustable precise temperature is reachable to 250°C. Reliable gas tightness and can maintain a high vacuum degree above 0.1Pa.
3.Ask: What factor decides the experiment outcome of Distillation?
Answer: For same type equipment, mainly includes: 1.Heating liquid's temperature 2.Vacuum degree. 3.Cooling condenser temperature. Material is restricted by its thermal active ability, the heating liquid's temperature may have influence heating-sensitive material when working, so corresponding vacuum degree, heating temperature and cooling condenser temperature are three main factors for efficiency to get correct separation parameters.
4.Ask:How to select different kinds of Molecular Distillation System?

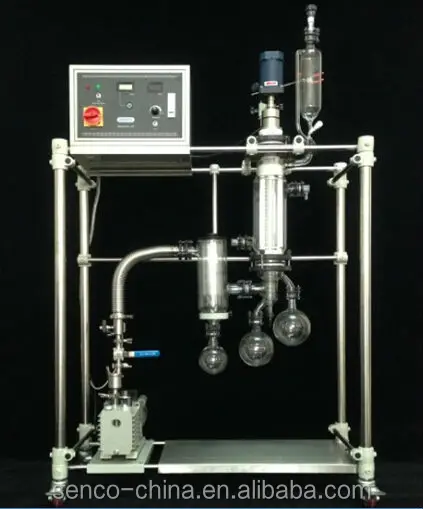

Answer: 1.According to the solvent's vacuum degree demand, you choose M-802 which has higher vacuum degree than MD-801 in standard configuration. M-802 can reach 0.1Pa.

2.MD-1200 has Evaporation Surface 1200cm². M-801&M-802 has Evaporation Surface 800cm². Selecting 1200cm² machine is faster in liquid process than 800cm² machine.
5.Ask: What's the feature of Molecular Distillation comparing to other evaporators?
Answer:1.It's better be used in research field to get needed liquid's parameter. It's not very suitable in mass process. 2.Has high vacuum degree which can reach 0.1Pa ~ 50 Pa. 3.Has advantages on dealing with materials that is heat sensitive, of high boiling temperature, belongs to biological acids or lipids. 4. MD may take only few tens of seconds to finish a separation on short path distillatory when it takes hours on a normal evaporation apparatus. 5.For viscid liquid material, you need to pre-heat the material to promote fluidity to accelarate the speed of liquid separation. 6. Your heating temperature range decide to select which heating pump you will use.

6.Ask: How to select vacuum pump for Molecular Distillation System?
Answer: For reaching 0.1Pa vacuum degree demand, you need to choose vane pump with diffusion pump on MD800 and MD1200. For above 50Pa vacuum degree, vane pmp is enough for operation.

7.Ask: MOQ, Manufacturer, Delivery time, Discount?
Answer: MOQ is one piece. We are manufacturer. Delivery time is 15 workdays. We can offer relative cheaper price according to your order quantity.
