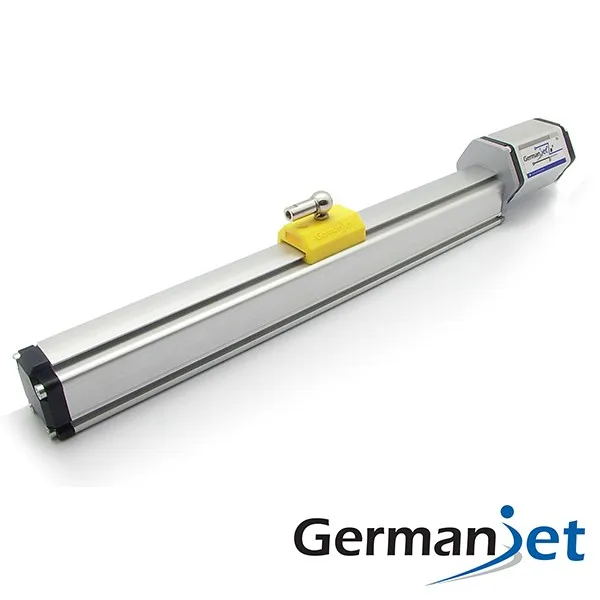

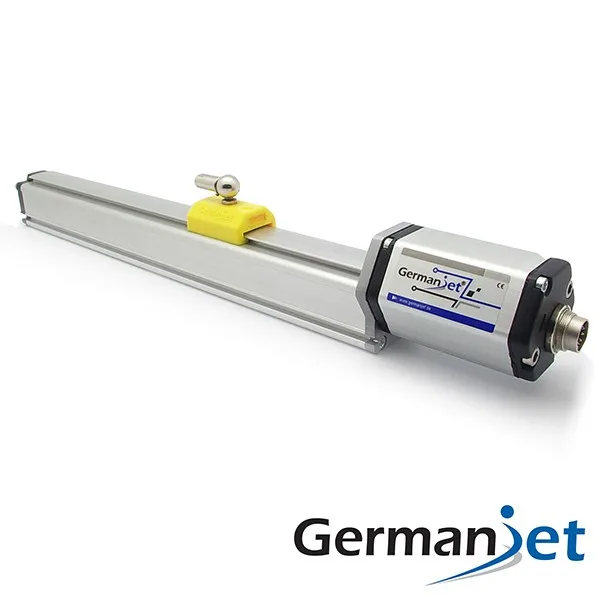

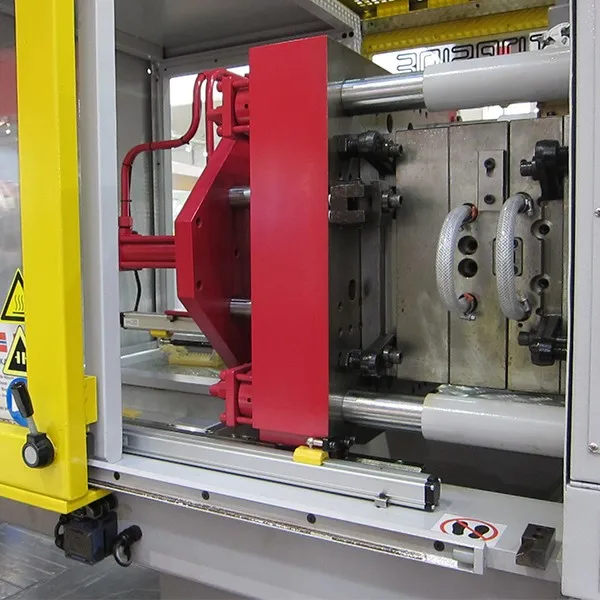

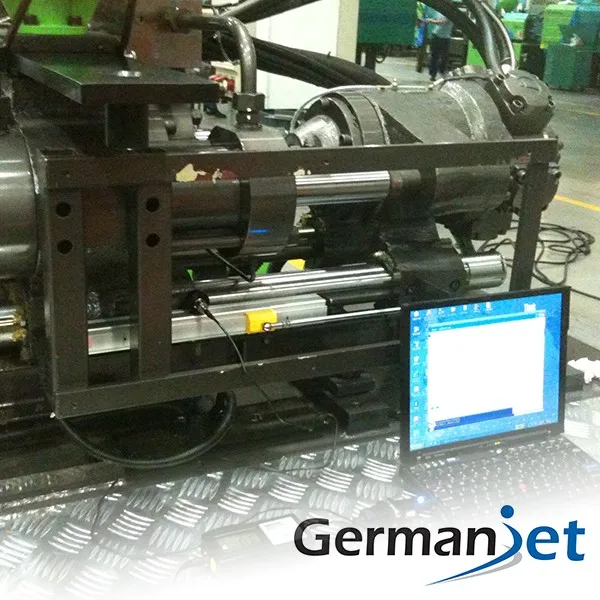

Balluff replacement 0 10v output linear sensor

Product Overview

Description

15 Series - level Sensing



15 series is the safe and reliable approach to level application in hazardous location. It is designed according to the explosion protection regulation. (GB3836.1-2000, Electrical Apparatus for Explosive Gas Atmospheres Part1:Genersal Requirements; GB3836.2-2000, Electrical Apparatus for Explosive Gas Atmospheres Part2: Flameproof enclosure "d")



It adopts the non-contact magnet-rostrictive to provide feedback of fluid level and multi-interface level of a storage tank or process vessel. The non-contact feature provides exceptional ease of installation and guarantees almost unlimited mechanical life expectancy. The high versatile IP67 profile housing offers full protection against outside agents for use in harsh environments with high contamination and presence of dust.



Order Code	150
Output	Voltage
Measurement Type	Linear displacement
Resolution	16 Bit D/A, 0.0015% (minimum 1um)
Repeatability	< +/-0.001% of full scale (minimum +/-2.5μm)
Non-Linearity	< +/-0.01% of full scale (minimum +/-40μm)
Update Time	0.5 ms up to 1200 mm / 1.0 ms up to 2400 mm
	2.0 ms up to 4800 mm / 5.0 ms up to 7600 mm
Input Voltage	+24Vdc (20.4 - 28.8Vdc)
Input Protection	Polarity protection up to -30Vdc, Over voltage protection up to 36Vdc
Power Consumption	100mA (stroke range dependent)
Dielectric Strength	500Vdc (DC ground to machine ground)
Connector Type	D60 Male
Pressure Rating	350 bar / 600 bar peak
Operation Temp.	-40 to 75 °C, Humility 90% non-condensing
Sealing	IP67 (with connector)
Vibration Rating	15g / 10-2000Hz / IEC standard 68-2-6 15g / 10-2000Hz / IEC standard 68-2-6
Shock Rating	100g single hit per IEC standard 68-2-27
EMC	Emission EN 68000-6-3, Immunity EN 61000-6-2, EN 61000-4-2/3/4/6
