2024 Leading Manufacture DMX512 Controller DJ Light Controller Wireless DMX512 Transmitter And Receiver
- Category: >>>
- Supplier: Shenzhen HCWY AIO & Monitor Technology Co. Ltd.Shenzhen Ltd.
Share on (60711487151):
Product Overview
Description
Wireless DMX512 Transceiver For Stage & DJ Lighting
Contact HCWY DMX Team Right Now,
Most Competitive Price Are Waiting For You !!!
Overview:
Wireless Dmx512 Transceiver Dmx512 Console Data To The Wireless Transmission Of Standard Lamps
And Lighting Can Also Be Transmitted On-Line Data.
The Product Is Completely Solved The Wireless Transmission Of Data Between The Console Lights And
Lamps, Lamp And Lamp completely Remove The Long Dependent On Twisted Pair.
Data Transmission Process To Be Done Without Delay, Real-Time Data And Reliable!
The Product Uses 2.4g Global Open Ism Band, License-Exempt Use,Efficient Gfsk Modulation,
126 Channel High-Speed Frequency Hopping (Fhss) Communication Design, Strong Anti-Interference Ability.
Detailed Images

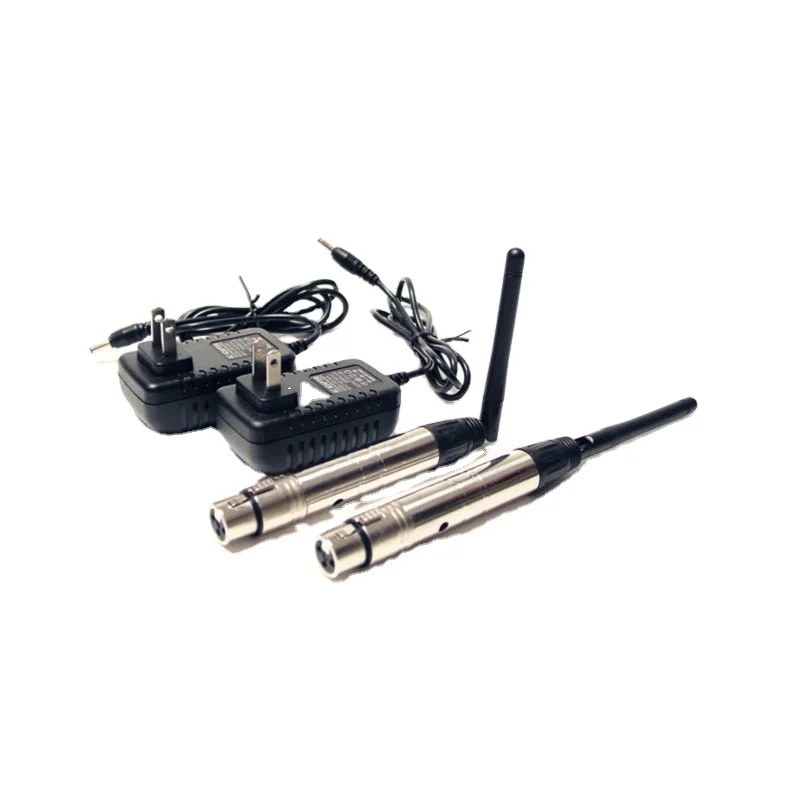

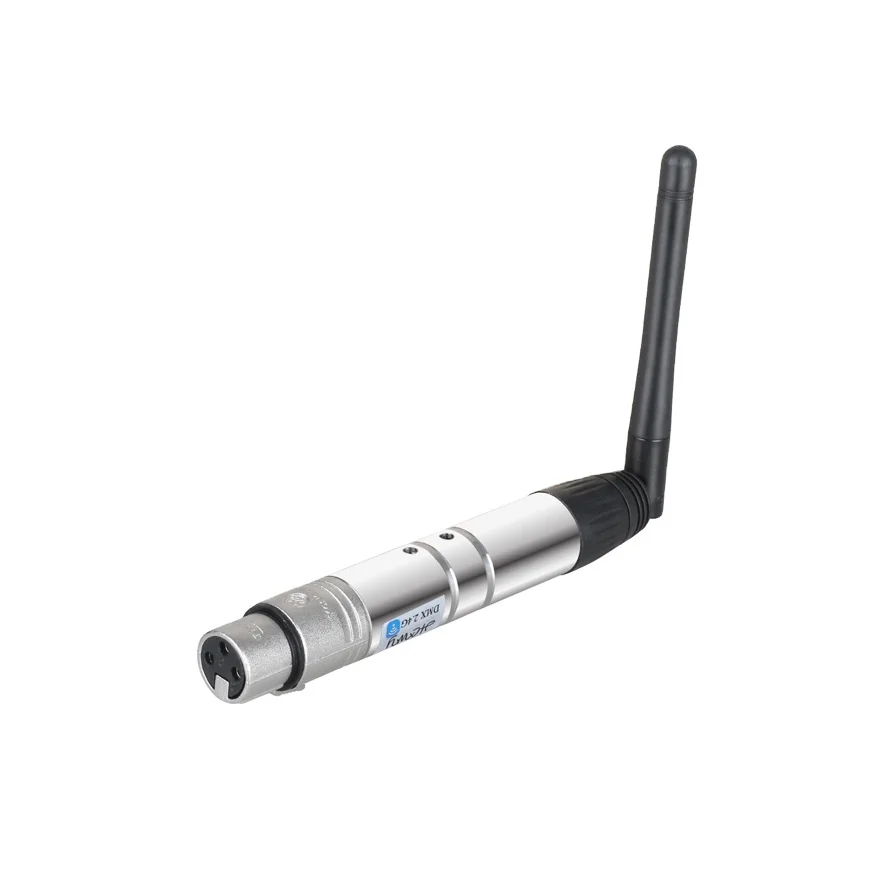

1. Wireless DMX512 Transmitter For DMX512 Console

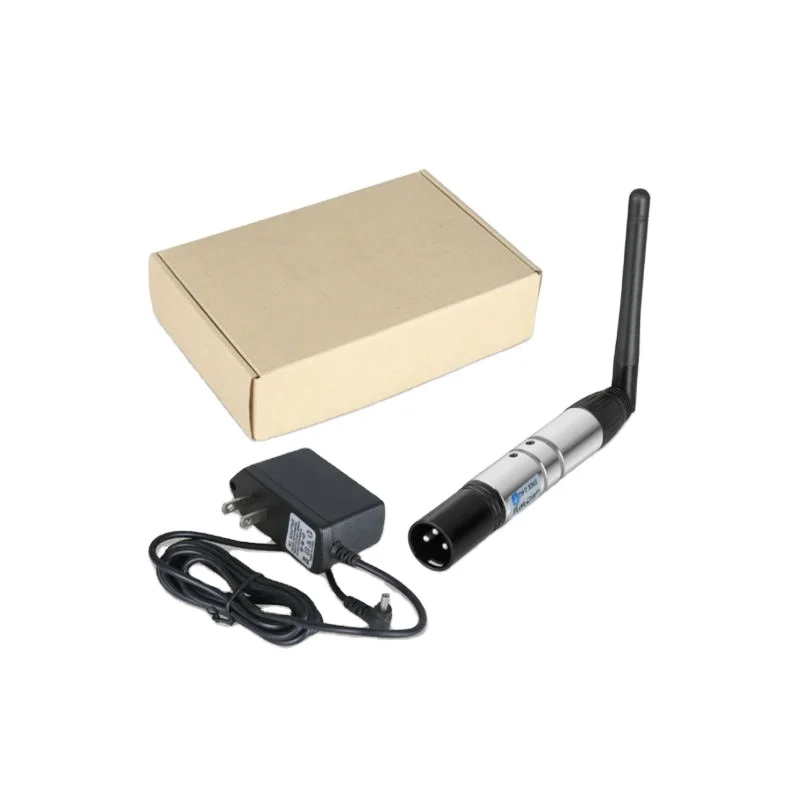

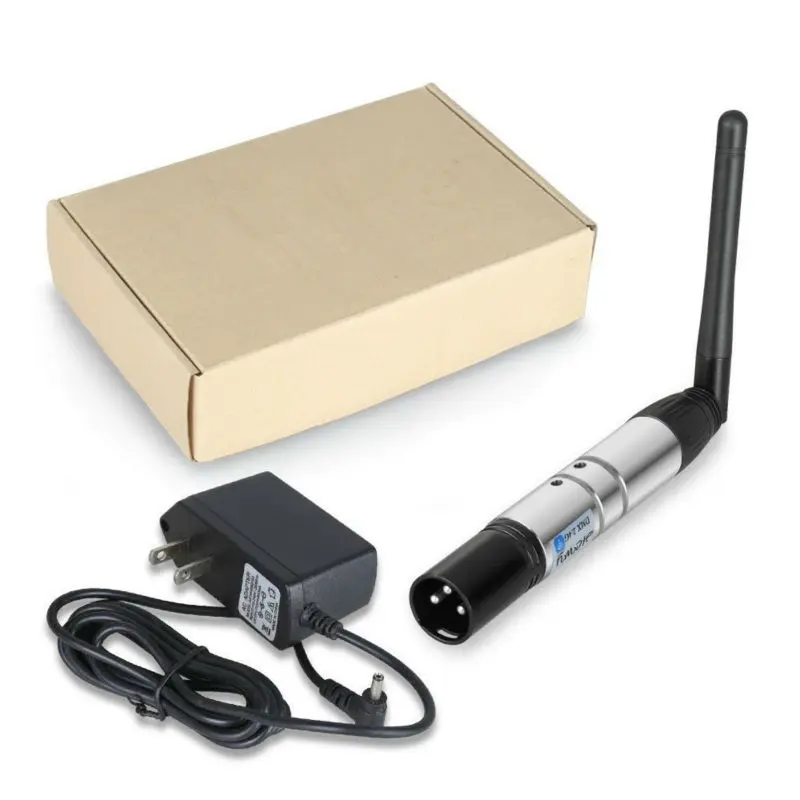

2. Wireless DMX512 Receiver For DMX512 Stage Lights.
Following Are Different Optional Items For Your Reference
OR
You Can Buy Whatever You Need Right Now !!!!
1pcs/Transmitter+2pcs/Receiver
1pcs/Transmitter+3pcs/Receiver
1pcs/Transmitter+4pcs/Receiver
1pcs/Transmitter+5pcs/Receiver
1pcs/Transmitter+6pcs/Receiver
1pcs/Transmitter+7pcs/Receiver
1pcs/Transmitter+8pcs/Receiver
1pcs/Transmitter+9pcs/Receiver
1pcs/Transmitter+10pcs/Receiver
1pcs/Transmitter+11pcs/Receiver
1pcs/Transmitter+12pcs/Receiver
1pcs/Transmitter+13pcs/Receiver
1pcs/Transmitter+14pcs/Receiver
2pcs/Transmitter+2pcs/Receiver
2pcs/Transmitter+4pcs/Receiver
2pcs/Transmitter+6pcs/Receiver
2pcs/Transmitter+8pcs/Receiver
2pcs/Transmitter+10pcs/Receiver
2pcs/Transmitter+12pcs/Receiver
2pcs/Transmitter+14pcs/Receiver
2pcs/Transmitter+16pcs/Receiver
MOQ : 100PCS (Also Accept Small Order If Need).
Packaging & Shipping
Certifications
Product Description

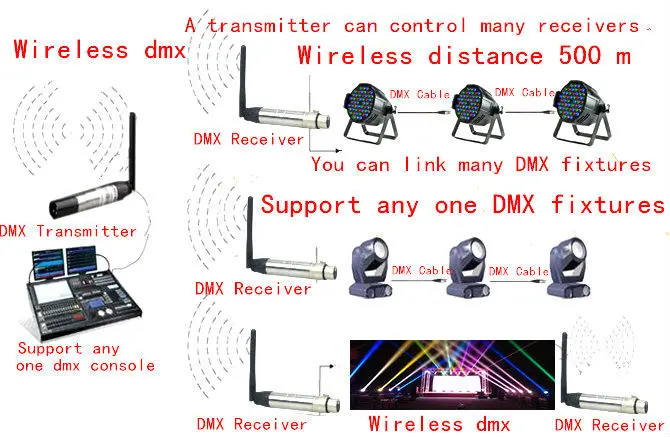

Wireless DMX512 Can Be Used In All DMX Lamp !!!
| Advantages: |
| 1. No time delay during data transmission 2. 7 groups ID code settable 3. Portable and easy to handle 4. Economical 5. Small size: 13.5cm x 2cm x 2cm only 6. One transmitter can control many receivers |
| Technical Parameters: | |||||||
| 1. Tricolor LED displaying 2. 126 channels automatically jumping frequency, high anti-jamming ability to ensure working reliability. 3. 7 groups ID code settable, user can use 7 groups individual wireless system without any interference with each other in the same place. 4. Input voltage: 5VDC 500mA MIN 5. Communication distance: 700M 6. Work frequency section: 2.4GHz ISM band, 126 channels frequency section. 7. Max transmitting power rate: 20dBm 8. Receiver sensitive: -94dBm 9. Signal port:3 pin male plug (for transmitter) & female plug (for receiver) |
| Operating Manual: |
ID code and LED color corresponding correlation:
Press key 1 time to indicate ID setting, press again to set ID, then ID value adding 1 each time by press.
|
| Working Condition: |
LED constant lit up: no DMX or wireless signal |
| Establishing Communication: |
| 1. Power on DMX512 wireless received board and transmitted board. |
2. Press "Key" button to set same ID value of transmitted board and received board, please use different ID value if you need to use more than 1 group wireless system at the same time in the same place. |
3. The red LED flashes when transmitter transmits DMX data by no interfered frequency section, then receiver changes communicated frequency section. Green LED flash till received corrected same ID value, LED flash more fast once DMX data more fast. |

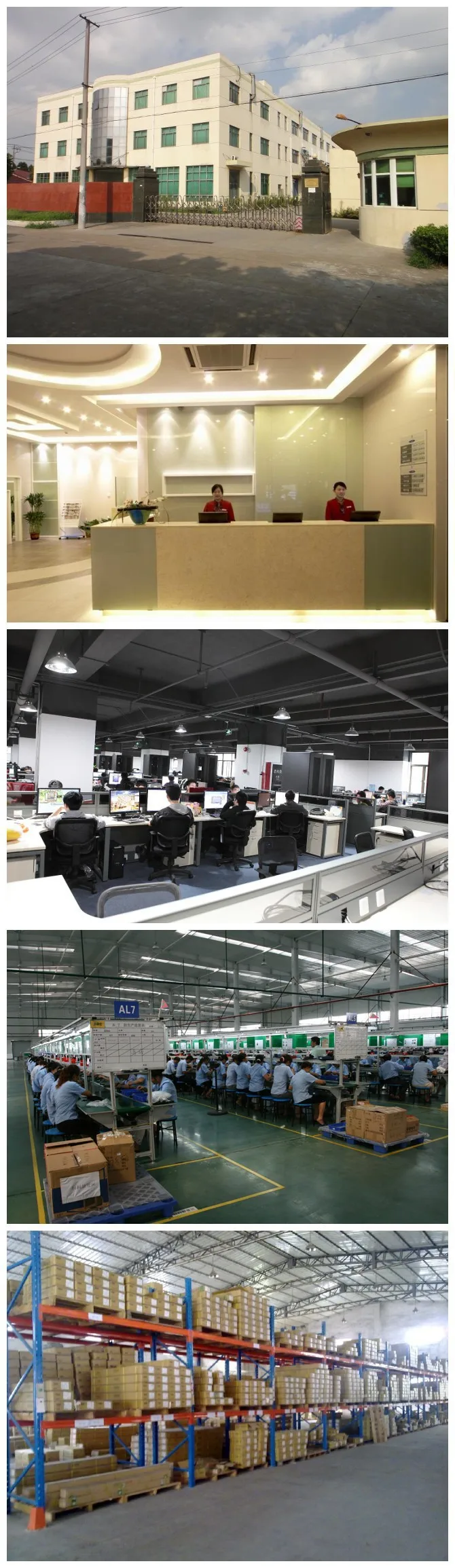

Company Information
We Are Leading Manufacturer In Wireless DMX512
1. 7 Years Warranty & All Of Our Products Are 100% High Quality Guarantee.
2. Our Team Are Looking For Overseas Factory / Wholesaler / Distributor / Trade Company
To Build Long Term Business And Win-Win Business Cooperation.
3. OEM & ODM It's Welcome !!!
Send Inquiry To Us ASAP,Let's Supply You Top Quality Wireless DMX512 !!
