Detai Immersion Heating element are constructed by brazing or welding elements into a hex pipe thread. These are intended for direct immersion into fluids and gases. The Immersion Heating element is to be installed via a threaded port in the tank or vessel. Immersion Heating element are available in a variety of pipe thread sizes and materials. Immersion Heating element are offered in a number of materials suited to a variety of fluid heating applications. Terminal housings are available for indoor, outdoor and hazardous environments. Many options are available. Since we are a made to order company, we can offer a large selection of sizes and configurations. Please contact us for assistance with your application.
SPECIFICATIONS FOR 220v 3000w 1.5 BSP Screw In Electric Tubular Water Immersion Heating element
Material (SUS304,316,321,Incoloy 800)
SUS304
Voltage
220V
Wattage
3000W
Tube diameter
8mm
Tube Length
260mm 3loops
Thread size
1 1/2"BSP(Brass)
All specifications can be customized as your request!
Product Applications
1. Heating heat transfer fluids 2. Heating medium and lightweight oils. 3. Heating water in tanks. 4. Pressure vessels. 5. Freeze protection of any fluids. 6. Food processing equipment. 7. Cleaning and rinsing equipment.
8. Beverage equipment
9. Beer brewing 10. Used in many other applications.
Certifications
Detailed Images

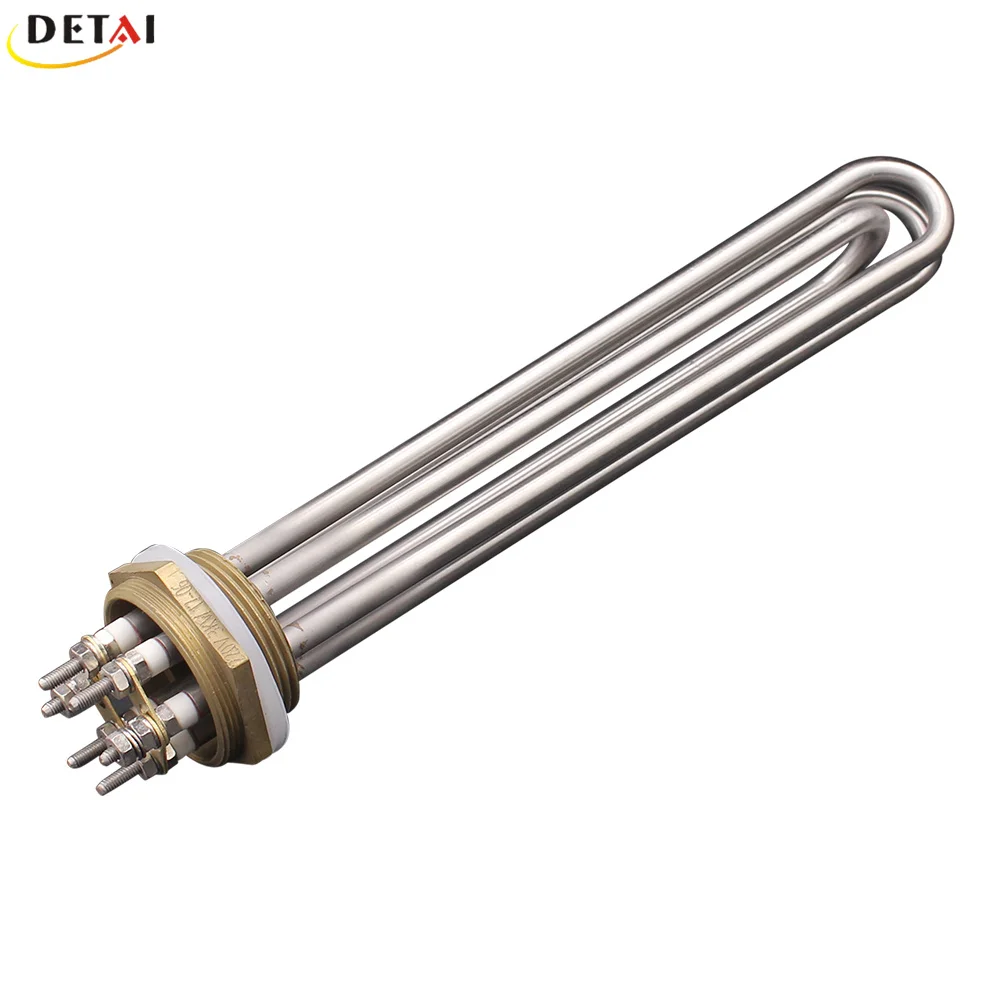

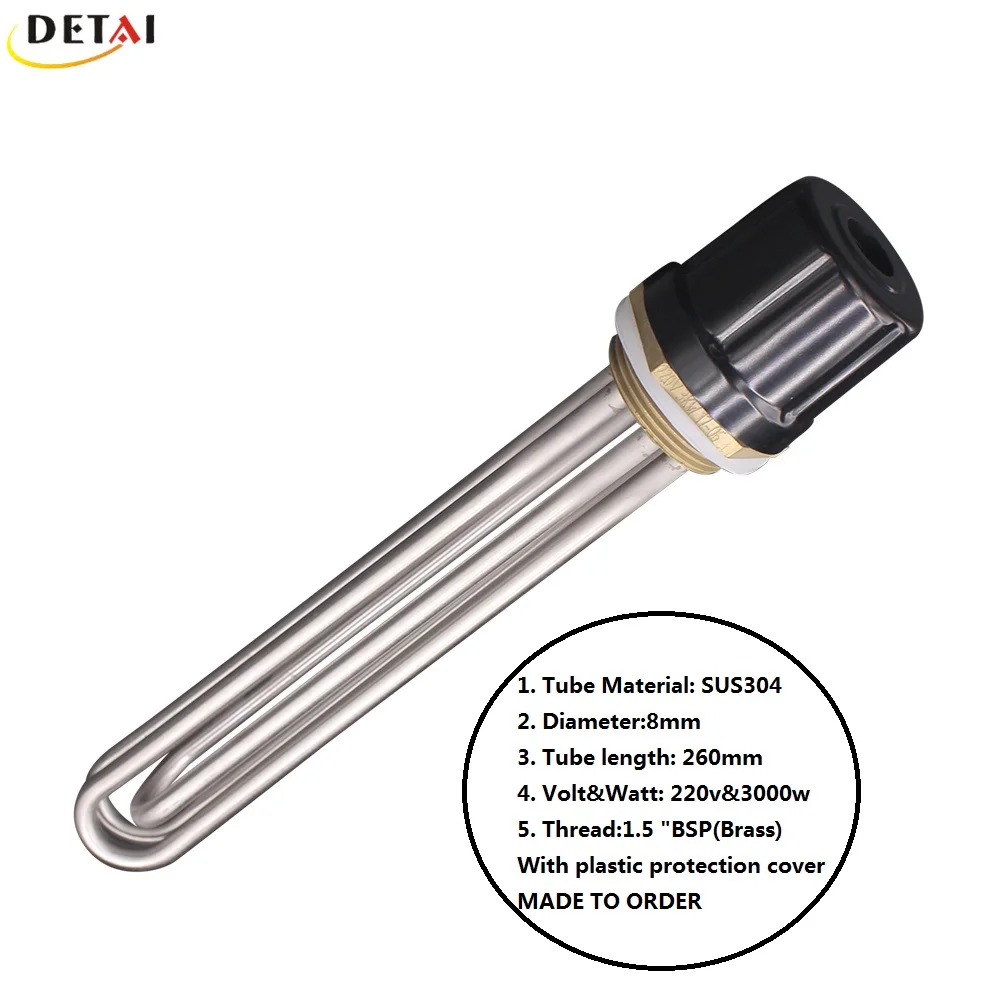

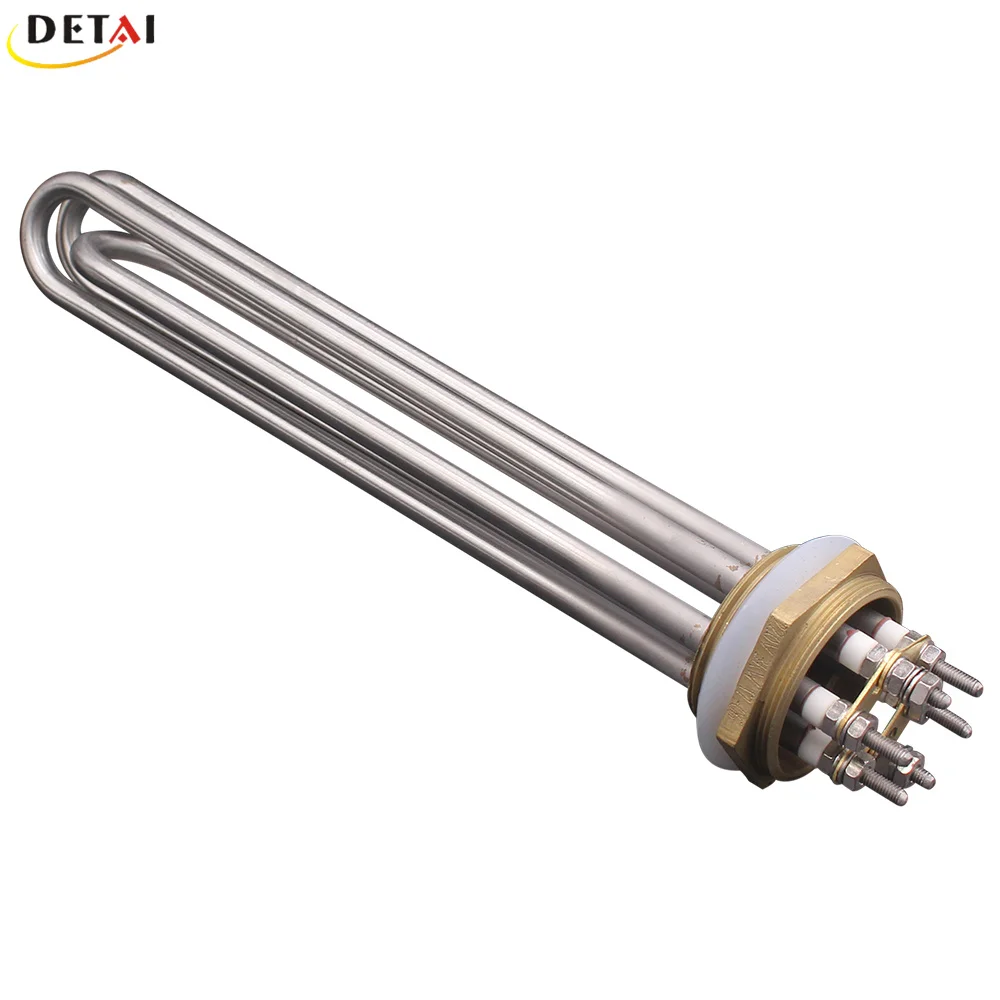

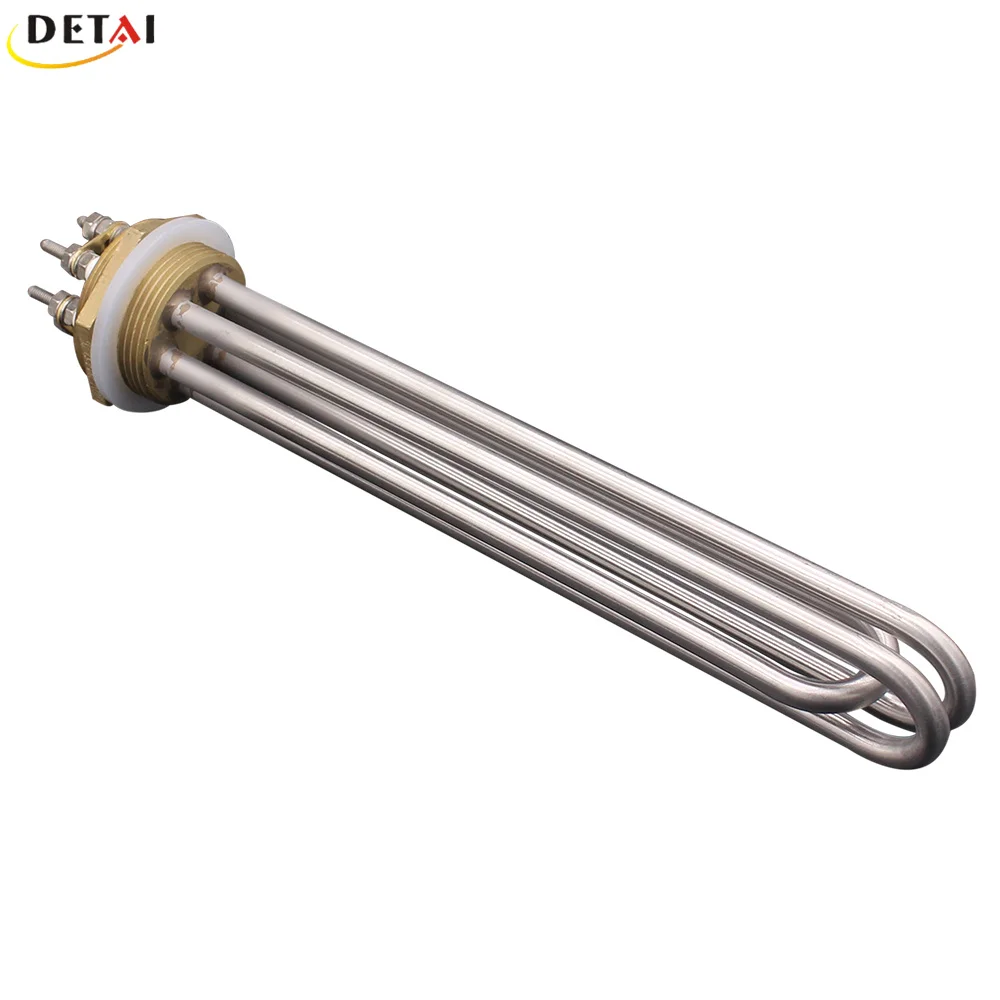

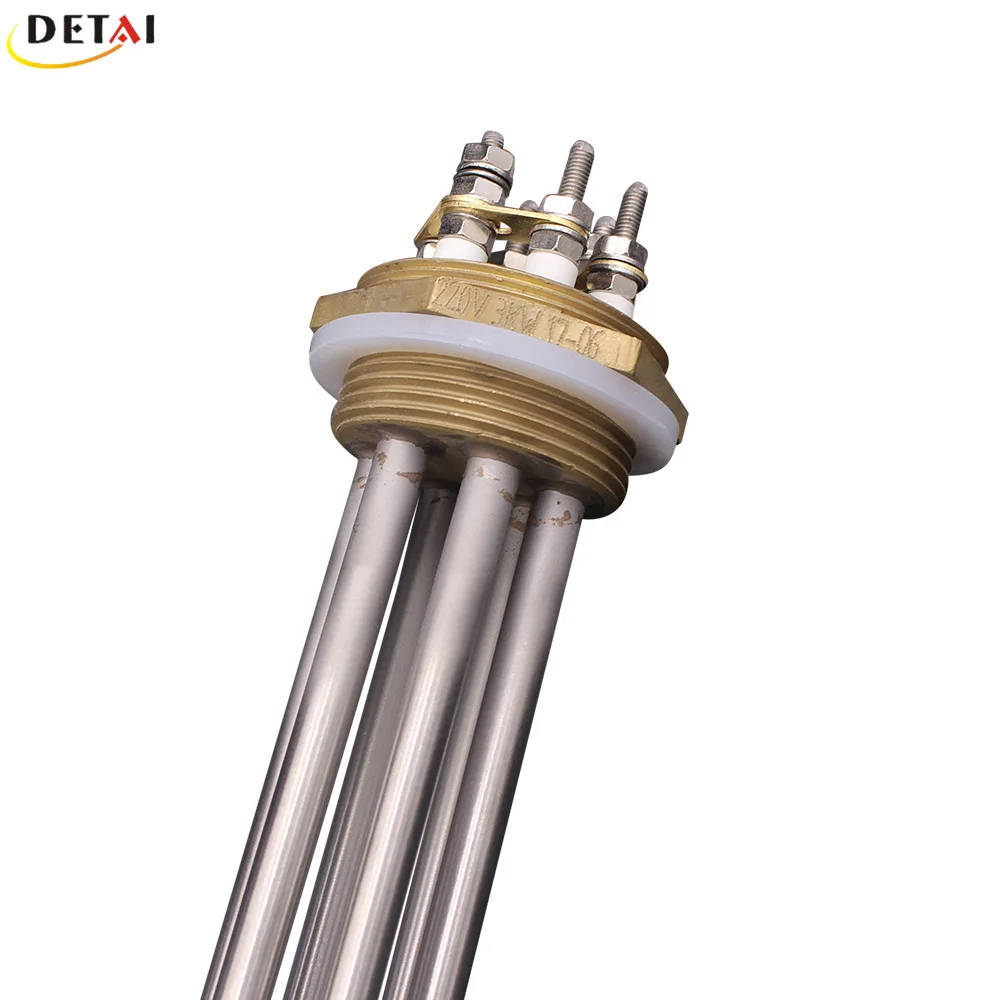

Name:220v 3000w 1.5 BSP Screw In Electric Tubular Water Immersion Heating element
DETAI manufacture a varied range of flanged Immersion Heating element for direct immersion into water, oils, resins, food stuffs and many other liquids and gasses. A standard Immersion Heating element consists of a number of robust hairpin shaped tubular heating elements welded with a flange.This type of unit gives simple, low cost installation, 100% heating efficiency generated within the solution, and minimum resistance to the circulation of solutions to be heated.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to install the heaters, training how to use the heaters.
Packing & Delivery
Packing
1.PE bags 2.Carton box 3.Wooden case
Delivery
1.Lead time:Normally 5 days after payment 2.Air&Sea shipping is available. 3.Worldwide international express.
