Blue ram refractory 10Ton electric hydraulic ram
- Category: >>>
- Supplier: Dandong Hengrui Machinery Co. Ltd.
Share on (60711572830):
Product Overview
Description
Blue ram refractory 10Ton electric hydraulic ram
HCW Series

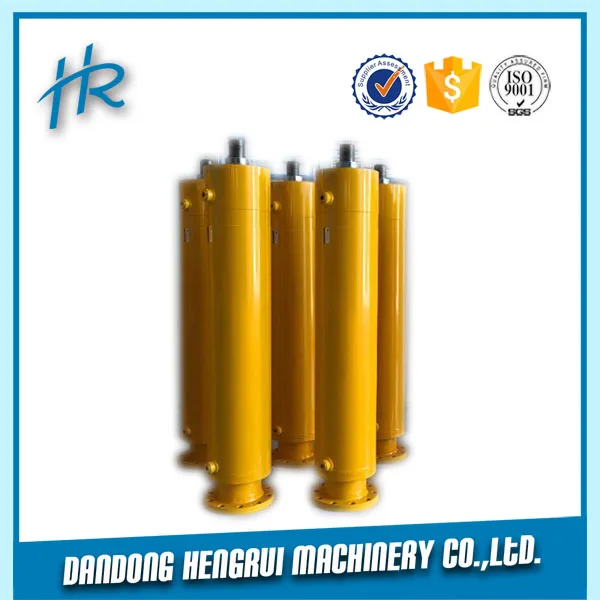

PRODUCT SHOW
Custom Hydraulic Cylinder / Pneumatic Cylinder ( we produce as per client’s drawing or design with technical requirements.) | |
Application: | Engineering machinery, mine, shipping, metallurgy, water conservancy, offshore, agriculture, etc. |
Stroke: | 50mm to 16000mm |
Bore: | 40mm to 1000mm ( 1 ½’’ – 40’’) |
Shaft: | 12mm to 500mm ( ½’’ -20’’) |
Work pressure: | 16Mpa to 70Mpa (2250 PSI – 10150 PSI) |
Seal: | Hallite, Parker, Merkel, DingZing, etc. |
Paint: | Red, Grey, Yellow, Black, etc. |
Material: | St52, CK45, 4140, Duplex2205, Stainless Steel 304/316, etc. |
Certificate: | ABS, Lloyds, SGS, etc. |
Tips: OEM service provided. We also can design by ourselves. We also produce hydraulic system, hydraulic power units. | |
1.Descriptions of Chrome Plated Shaft
1. Chemical Composition
| Material | C% | Mn% | Si% | S% | P% | V% | Cr% |
| CK45 | 0.42-0.50 | 0.50-0.80 | 0.04 | 0.035 | 0.035 | ||
| ST52 | 0.22 | 1.60 | 0.55 | 0.035 | 0.04 | ||
| ST37 | 0.17 | 1.60 | 0.55 | 0.04 | 0.04 | ||
| 20MnV6 | 0.16-0.22 | 1.30-1.70 | 0.10-0.50 | 0.035 | 0.035 | 0.10-0.20 | |
| 42CrMo4 | 0.38-0.45 | 0.60-0.90 | 0.15-0.40 | 0.03 | 0.03 | 0.90-1.20 | |
| 40Cr | 0.37-0.45 | 0.50-0.80 | 0.17-0.37 | 0.08-1.10 |
SERVICES & PRODUCTS
Machining process

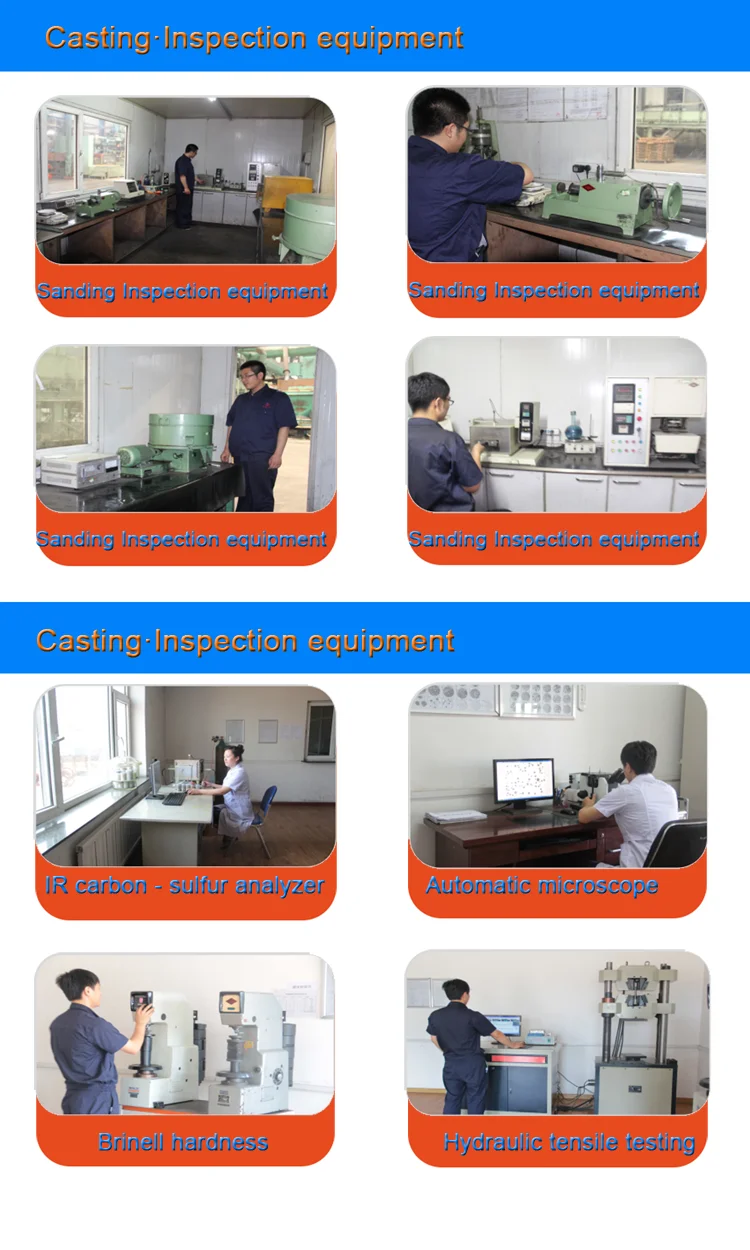

Test methods
Why choose us?
Quality
Hengrui Industries is ISO 9001 Certified for Design and Manufacturing of Hydraulic Cylinders. This certification encompassed with Lean Manufacturing allows us to ensure our products are safe, reliable and of superior quality. Learn more about how we implement Lean Manufacturing here.
Our facility upholds strict cleanliness guidelines at all times. Through a 5S system we maintain a clean and organized environment. This allows us to guarantee your cylinders are produced promptly and efficiently.
Our in-house designers and R&D department will assist you in developing new designs, redesign or troubleshoot your existing cylinder. Using Solidworks software and innovative materials we custom design cylinders that fit your application. Designers are involved in testing 100% of our products before they leave our facility.
Short Lead Times
We have continually made improvements to our manufacturing process over our 40 years. We’ve implemented lean manufacturing and moved to a larger facility. These changes have enabled us to support growth and streamlined our supply chain process in order to respond quickly to market changes. All with the goal to decrease lead time and improve quality.
We offer a 4 week lead time on new custom cylinders and maintain as little as 2 week lead time on existing designs.
Inventory Management
A consistent unbroken supply chain allows us to produce cylinders at a steady pace. We understand how important production scheduling and inventory flow are to your business. We will work with you on an individual basis and will process blanket orders to assist with your inventory levels. All of our materials are sourced in CHINA best raw material factory to adhere to our best quality standard.

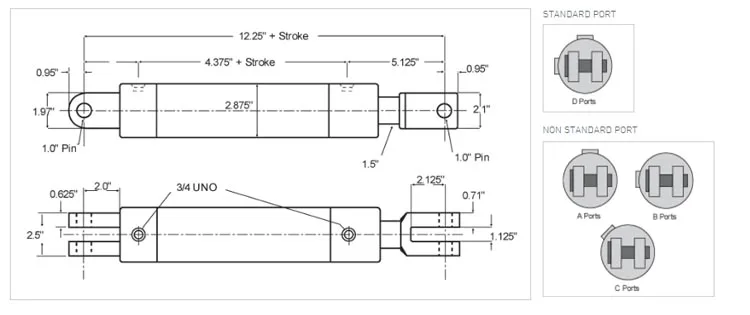

AG SERIES - Cylinder
AG CYLINDERS - 2.5" Bore
Max Pressure 3,500psi
6.6 tonne capacity at 3,000psi
| Size Code | Stroke | Closed Centre | Rod | Pin | Ports | Weight |
| AG 2504 | 4.0” | 12.25” + Stroke | 1.5” | 1.0” | 3/4” UNO | 9kg |
| AG 2506 | 6.0” | 12.25” + Stroke | 1.5” | 1.0” | 3/4” UNO | 10.0kg |
| AG 2508 | 8.0” | 12.25” + Stroke | 1.5” | 1.0” | 3/4” UNO | 11.0kg |
| AG 2510 | 10.0” | 12.25” + Stroke | 1.5” | 1.0” | 3/4” UNO | 12.0kg |
| AG 2512 | 12.0” | 12.25” + Stroke | 1.5” | 1.0” | 3/4” UNO | 13.0kg |
| AG 2514 | 14.0” | 12.25” + Stroke | 1.5” | 1.0” | 3/4” UNO | 14.0kg |
| AG 2516 | 16.0” | 12.25” + Stroke | 1.5” | 1.0” | 3/4” UNO | 15.0kg |
| AG 2518 | 18.0” | 12.25” + Stroke | 1.5” | 1.0” | 3/4” UNO | 15.0kg |
| AG 2520 | 20.0” | 12.25” + Stroke | 1.5” | 1.0” | 3/4” UNO | 16.0kg |
| AG 2522 | 22.0” | 12.25” + Stroke | 1.5” | 1.0” | 3/4” UNO | 17.0kg |
| AG 2524 | 24.0” | 12.25” + Stroke | 1.5” | 1.0” | 3/4” UNO | 18.0kg |
| AG 2526 | 26.0” | 12.25” + Stroke | 1.5” | 1.0” | 3/4” UNO | 19.0kg |
| AG 2528 | 28.0” | 12.25” + Stroke | 1.5” | 1.0” | 3/4” UNO | 20.0kg |
| AG 2530 | 30.0” | 12.25” + Stroke | 1.5” | 1.0” | 3/4” UNO | 21.0kg |
| AG 2536 | 36.0” | 12.25” + Stroke | 1.5” | 1.0” | 3/4” UNO | 23.0kg |
| AG 2542 | 42.0” | 12.25” + Stroke | 1.5” | 1.0” | 3/4” UNO | 26.0kg |
| AG 2548 | 48.0” | 12.25” + Stroke | 1.5” | 1.0” | 3/4” UNO | 29.0kg |
contast us
