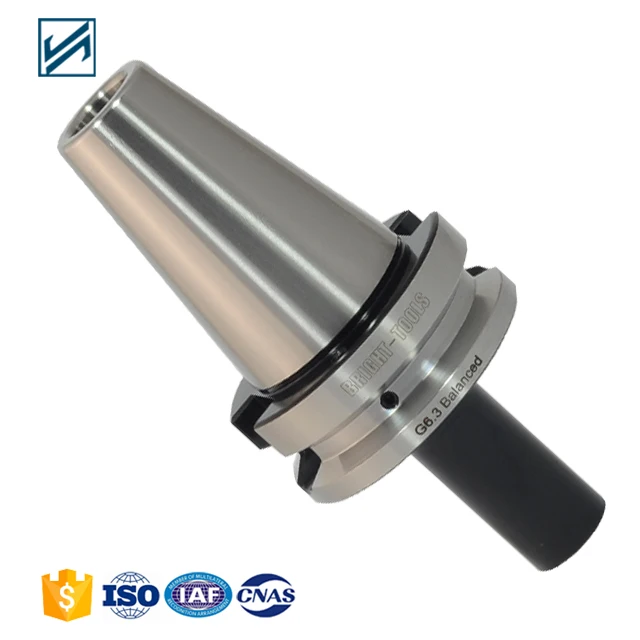

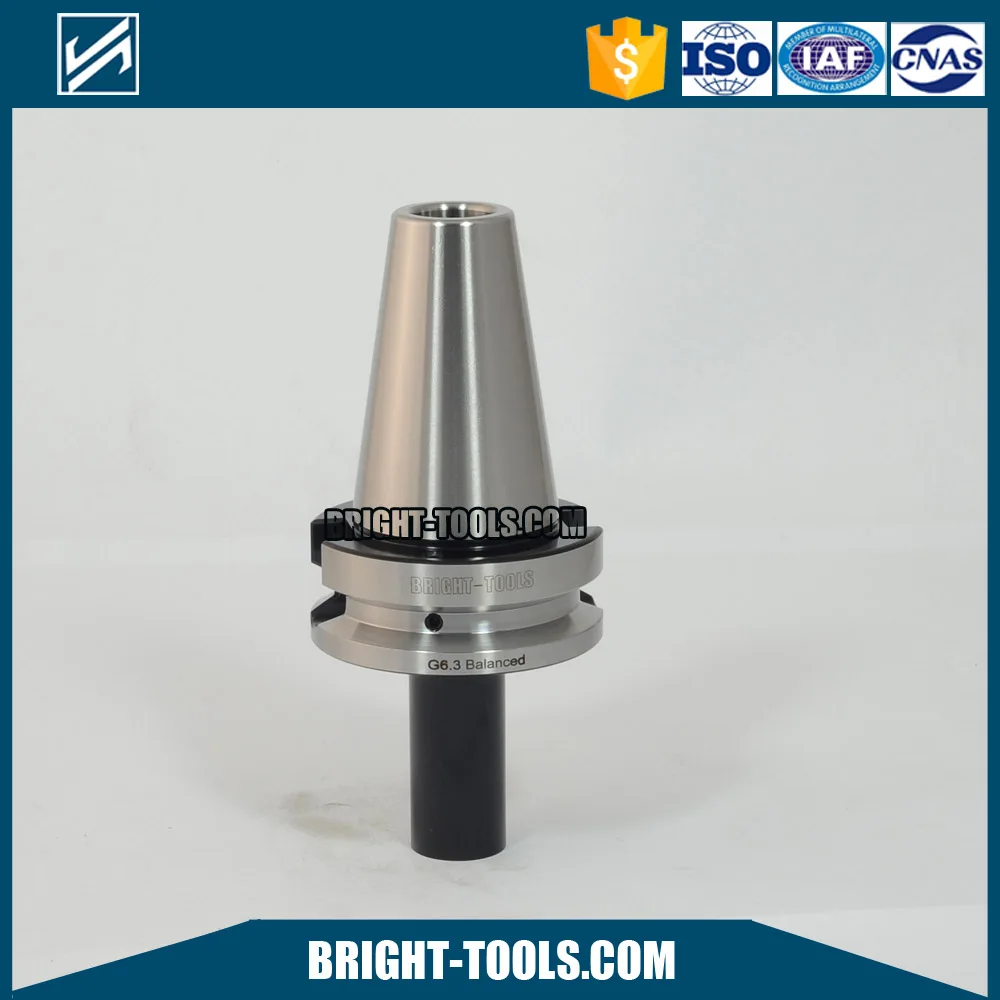

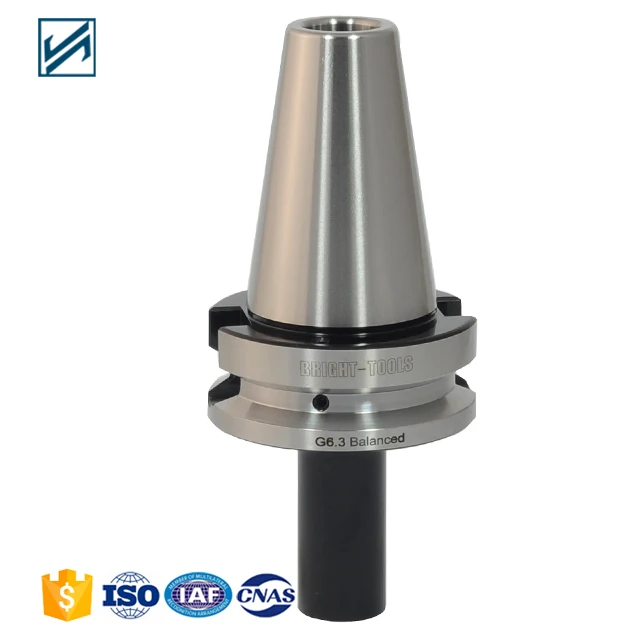

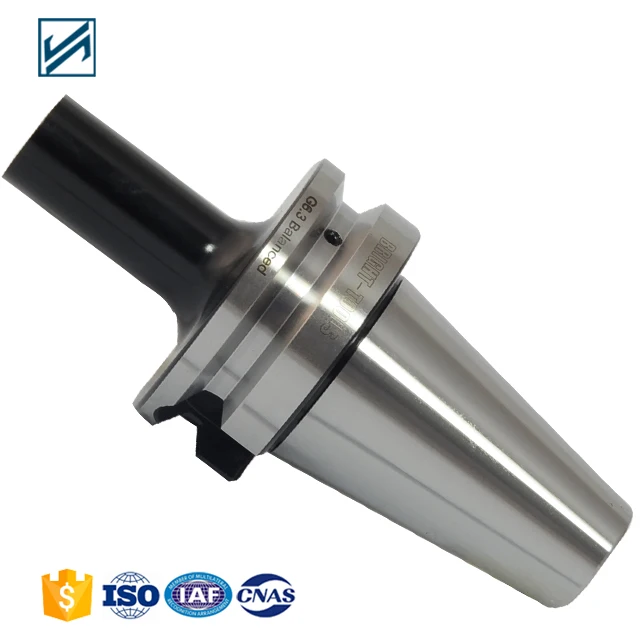

High Precision Screw in Milling Cutter Holder with BT40 standard CNC Tool Holder

Product Overview

Description

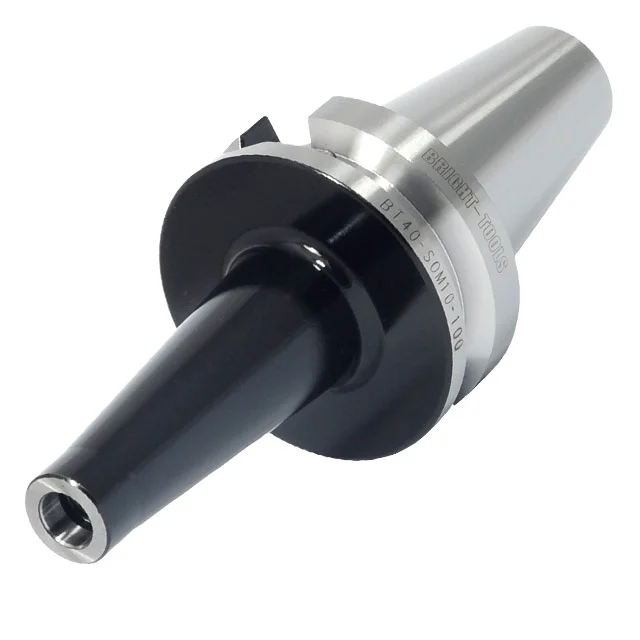

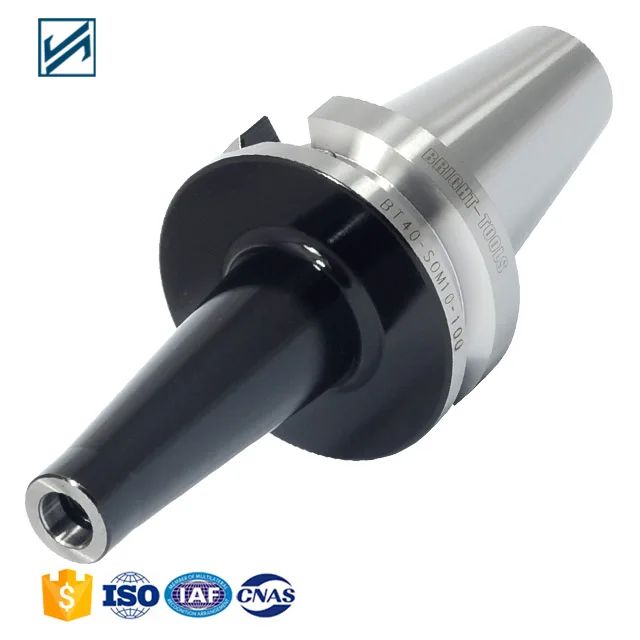

High Precision B40 Tool Adapter for BT40-SOM10-100 CNC Tool Holders



Brand Name: Bright-tools

Taper tolerance: AT3

Color: Blacking

Balance: G6.3/ 15000RPM



Manufactured from alloy steel with good core strength and long wear life.

Taper shank is case hardened to 58-62 HRC

Taper ground to AT3 or better accuracy standard for maximum contact with spindle

All critical surface are precision ground



Size	M	d1	d2	A	L	D
BT40-SOM08-52  L=25	8	8.5	13	52	25	15
BT40-SOM08-77  L=50	8	8.5	13	77	50	23
BT40-SOM08-102  L=75	8	8.5	13	102	75	23
BT40-SOM08-127  L=100	8	8.5	13	127	100	25
BT40-SOM10-32  L=5	10	10.5	18	32	5	18
BT40-SOM10-52  L=25	10	10.5	18	52	25	20
BT40-SOM10-77  L-50	10	10.5	18	77	50	23
BT40-SOM10-102 L=75	10	10.5	18	102	75	28
BT40-SOM10-127  L=100	10	10.5	18	127	100	32
BT40-SOM10-177  L=150	10	10.5	18	177	150	36.5
BT40-SOM12-32  L=5	12	12.5	21	32	5	21
BT40-SOM12-52  L=25	12	12.5	21	52	25	24
BT40-SOM12-77  L=50	12	12.5	21	77	50	24
BT40-SOM12-102  L=75	12	12.5	21	102	75	31
BT40-SOM12-127  L=100	12	12.5	21	127	100	31
BT40-SOM12-152  L=125	12	12.5	21	152	125	36
BT40-SOM12-177  L=150	12	12.5	21	177	150	38
