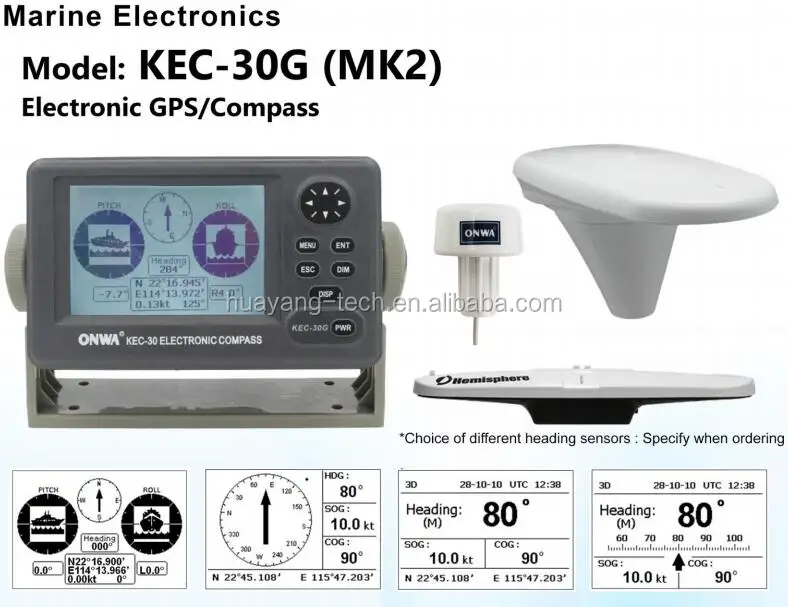

KEC 30G MK2 ONWA Electronic Fluxgate Compass

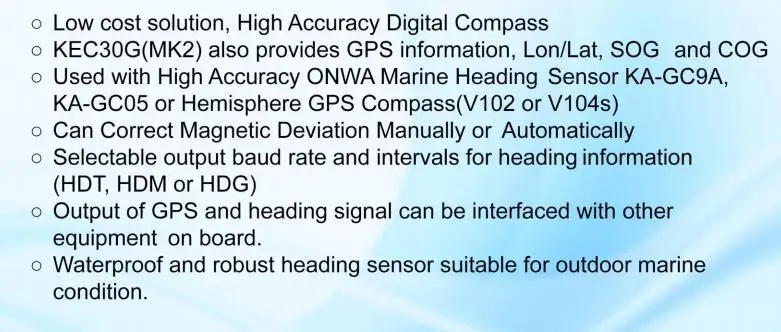

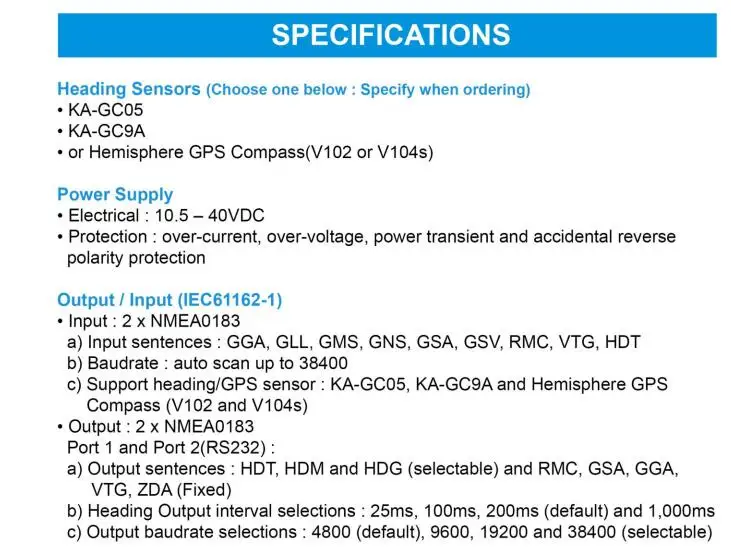

Specifications

Heading Sensors

KA-GC9A
or Hemisphere GPS Compass(V102 or V104s)

Power Supply

Electrical : 10.5 – 40VDC
Protection : over-current, over-voltage, power transient and accidental reverse polarity protection

Output/Input (IEC61162-1)

Input : 2 x NMEA0183
a) Input sentences : GGA, GLL, GMS, GNS, GSA, GSV, RMC, VTG, HDT
b) Baudrate : auto scan up to 38400
c) Support heading/GPS sensor : KA-GC9A and Hemisphere GPS Compass (V102 and V104s)

Output : 2 x NMEA0183
Port 1 (RS232) :
a) Output sentences : HDT, HDM and HDG (selectable)
b) Output interval selections : 25ms, 100ms, 200ms (default) and 1,000ms
c) Output baudrate selections : 4800, 9600, 19200 and 38400 (selectable)
Port 2 (RS232)
a) Output sentences :
- KA-GC9A : RMC, GSA, GGA, VTG, GLL (selectable)
-Hemisphere GPS Compass (V102 and V104s) : RMC, GSA, GGA, VTG, ZDA (fixed)
b) Output baudrate : 4800, 9600, 19200 and 38400 (selectable)
c) output intervals : Fixed 1Hz

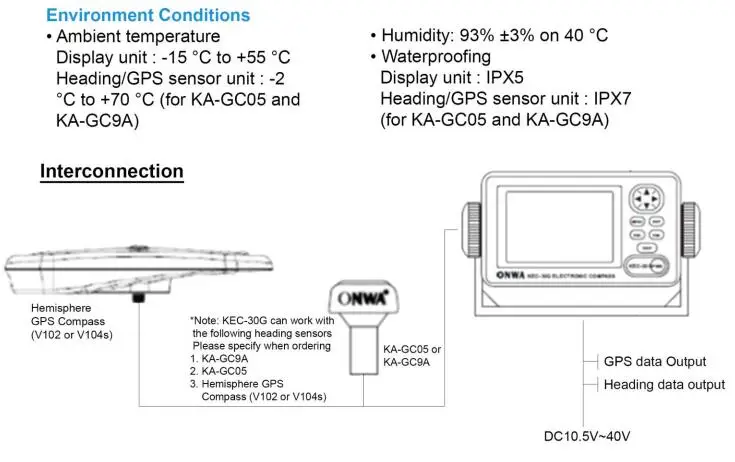

Environment Conditions

Ambient temperature
Display unit : -15°C to +55°C
Heading/GPS sensor unit : -25°C to +70°C (KA-GC9A)
Humidity: 93%±3% on 40°C

Waterproofing
Display unit : IPX5
Heading/GPS sensor unit : IPX7 (KA-GC9A)

Equipment List

·  Display unit KEC-30G

·  Heading/GPS sensor KA-GC9A or Hemisphere GPS Compass(V102 or V104s) (Specify when ordering)

·  Mounting brackets

·  Manuals (quick start and quick installation manual)

·  Standard accessories pack (one power/data cable, 2 spare fuses, 4 mounting screws)
