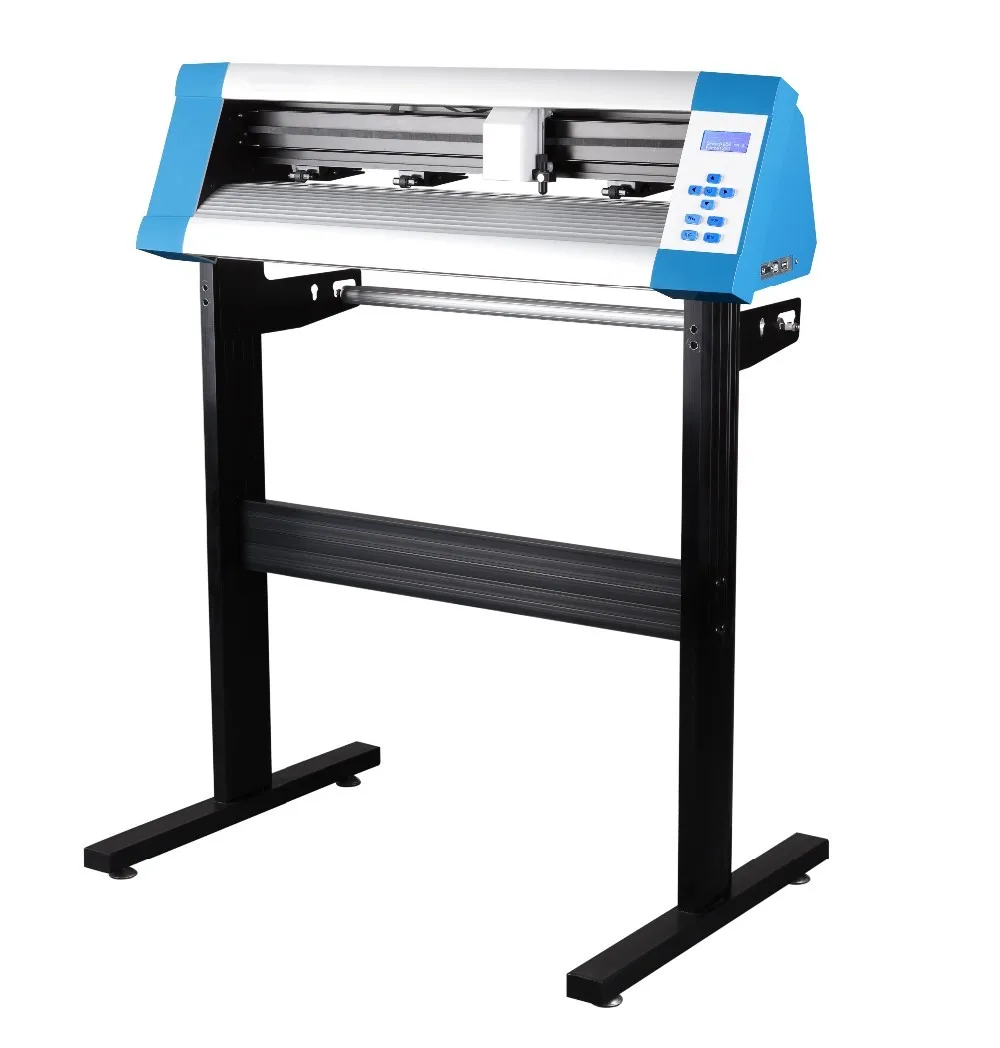

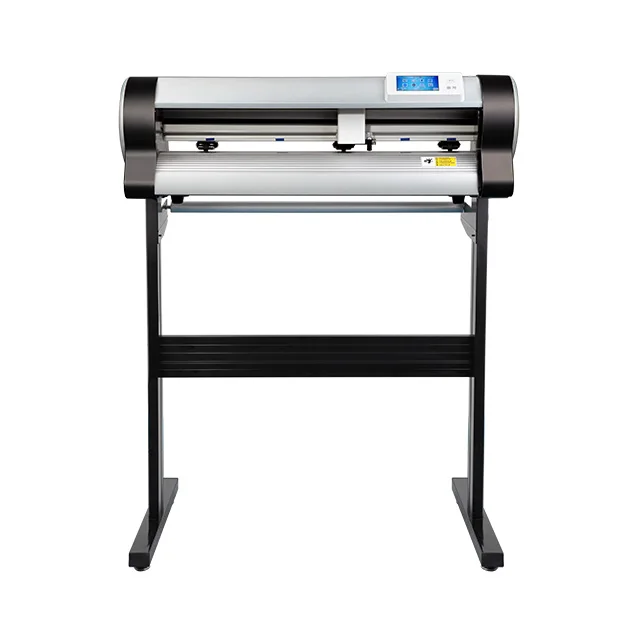

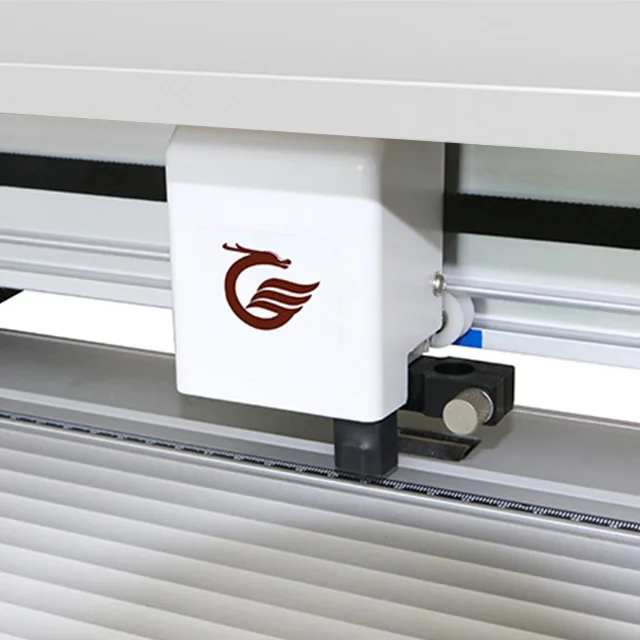

Servo motor cutter plotter CS630G ARMS automatic contour cut cutting plotter


The CS series is our new servo motor ,high speed, supper quite without any noise vinyl cutter plotter. The CS630G With laser sensor  , ARMS to automatic contour cut function. You can add optional function Multi-marks, to do segement contour cut. Now you only use one third or half price of graphtec, but buy a high quality 95% of graphtec.
We are the leading manufacturer of vinyl cutter machine in shenzhen,china.It is your best choice for advertising and heat press field

Main Features

1:Servo motor ,supper quite and fast speed vinyl cutter.
   With laser sensor, automatic contour cut,ARMS

2: High force to cut 3M reflective films (choose 1000g large force)

3: Real 256MB memory\t\t

4:High precision steel roller: guarantee 5 meters without diviation of paper feeding\t\t

5: Supper quite, without any working noise.

6:High performance 32-bit processor with ARM Cortex-M3\t\t

7: Support to cut 1.5mm letters\t\t

8: Work with U disc directlly\t\t

PC requirements: Windows 10, 8, 7, Vista, XP (both 32 bit and 64 bit)

Language: Chinese/English

Software support: Coreldraw Signmaster,Flexisign.
You can output from Artcut,Coreldraw Flexisign and Signmaster directly.For all our cutter plotter, you don't need to worry software. Different countries, the software maybe different. For most popular software, mycut sticker cutter all support. This will make cutting so easy.

\t
Model
\t
CS630G (24'')
\t
CS1200G(48'')
\t
CS1500G(59'')
\t
Media Way
\t
Floor stand
\t
Main Board
\t
High-performance & intelligentARM 32 CPU; 64MB memory
\t
Driver
\t
servo motor
\t
Maximum Paper Feed Width
\t
730mm
\t
1400mm
\t
1600MM
\t
Maximum Cutting Width
\t
630mm
\t
1270mm
\t
1500MM
\t
Maximum Cutting Speed
\t
1000mm/s
\t
Cutting Force
\t
50-500g(digital adjustment)
\t
Mechanical Precision
\t
0.05mm
\t
Repeatable Precision
\t
< +-0.1mm
\t
Plotter Instruction
\t
DM-PL/HP-GLAutomatic Identification
\t

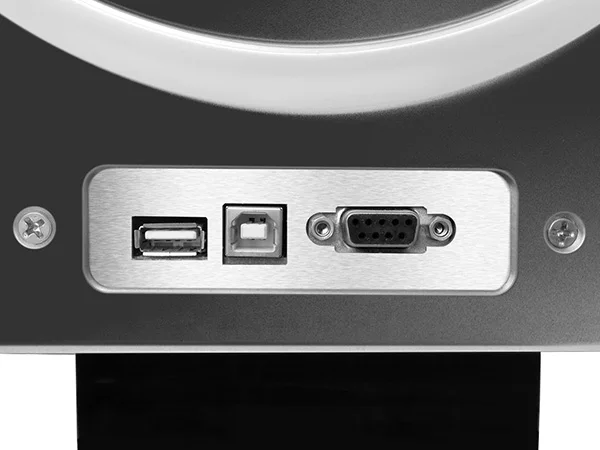

Interfaces
\t
USB / Serial port / U-Disc port
\t
Power Supply
\t
AC110V /220V±10%, 50Hz/60Hz
\t
Laser point Positioning
\t
Contour cutting function; Compatible with Flexi10, signmaster and Coreldraw
\t
Noise at Work
\t
≤25 DB
\t
External Dimension
\t
1045*330*375mm
\t
1590*330*375mm
\t
1890*330*375mm
Detailed Images

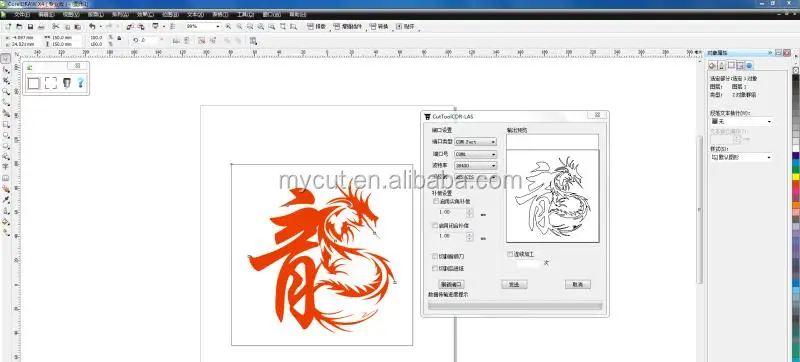

Design and cut from Coreldraw /Signmaster

install the coreldraw or signmaster software ,and we supply coreldraw or signmaster plug in .Easier and professional design cutting solution for you.

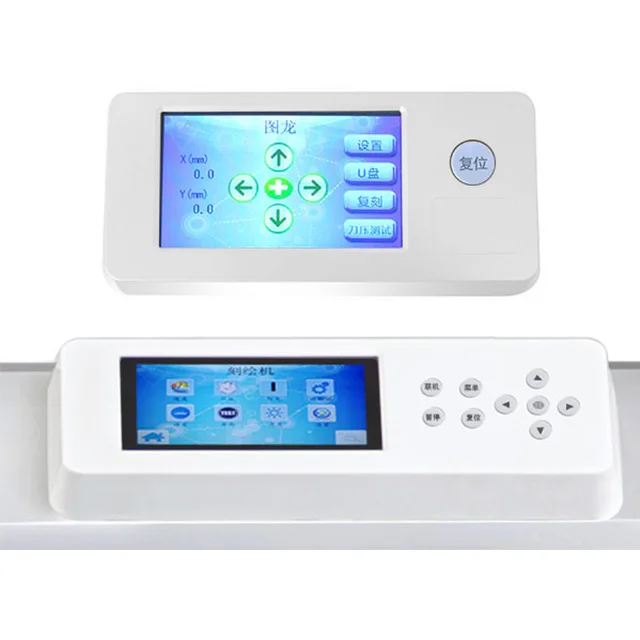

new cutting plotter easier and smart operation

We supply you large screen and the new models with fashion look,optional touch screen, wifi connection.New models are easier for end customers to use.

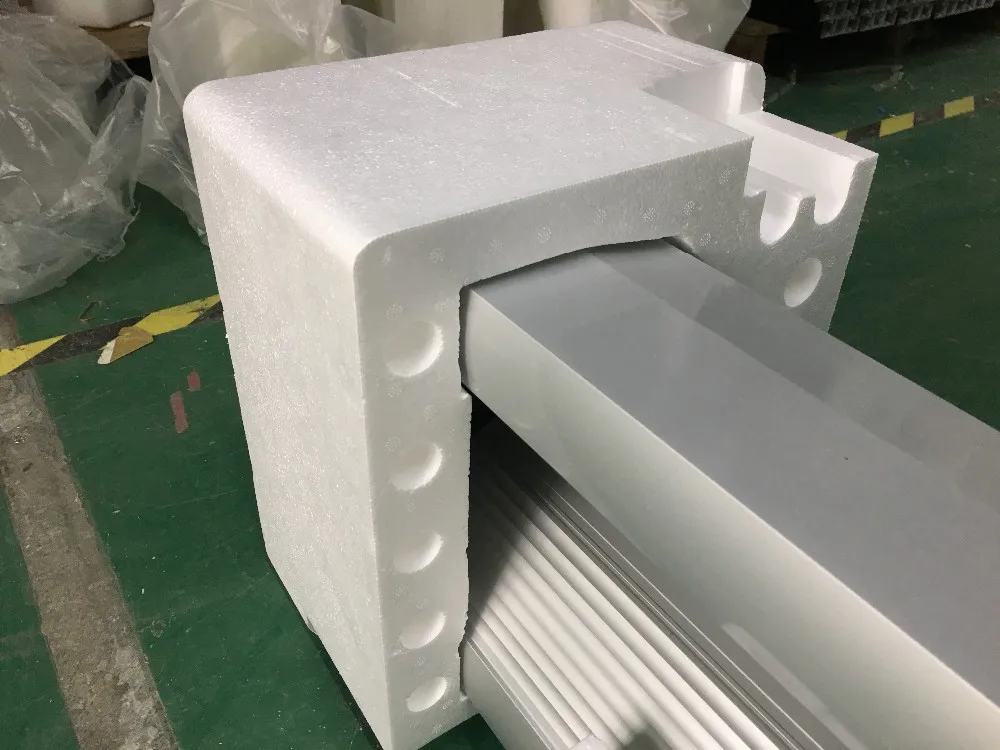

Packing & Delivery

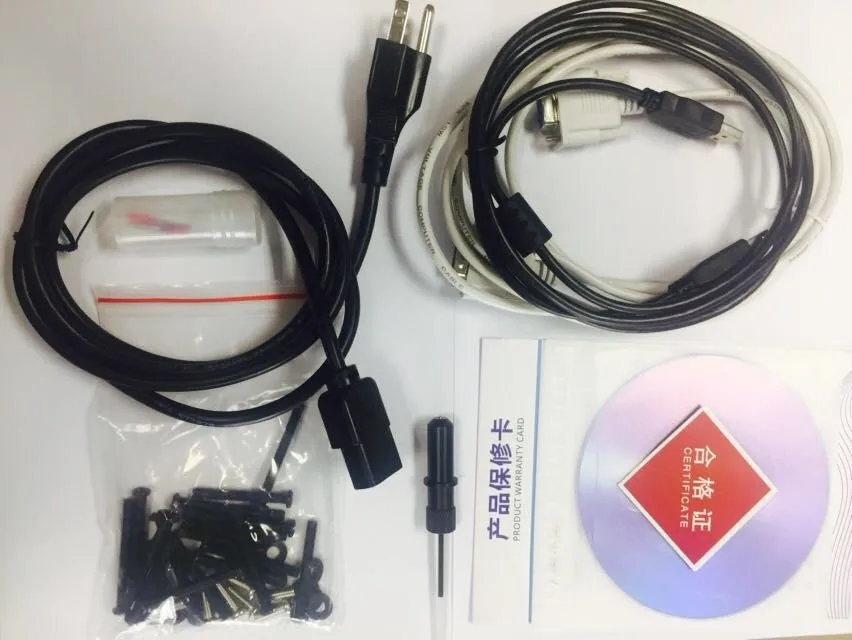

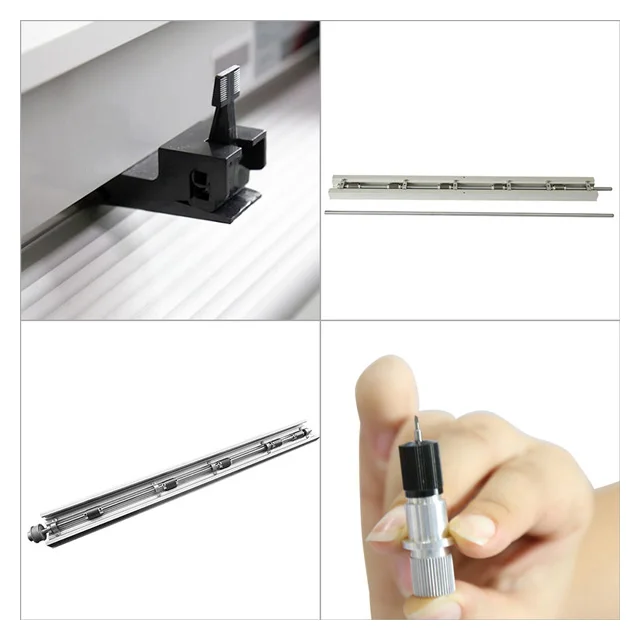

Standard Accessary:\t



1 x power cord 1 x Manual 1 x Blade holder


3 x Blades       1 x Pen holder\t


1 x RS232 data cable     1 x USB data cable

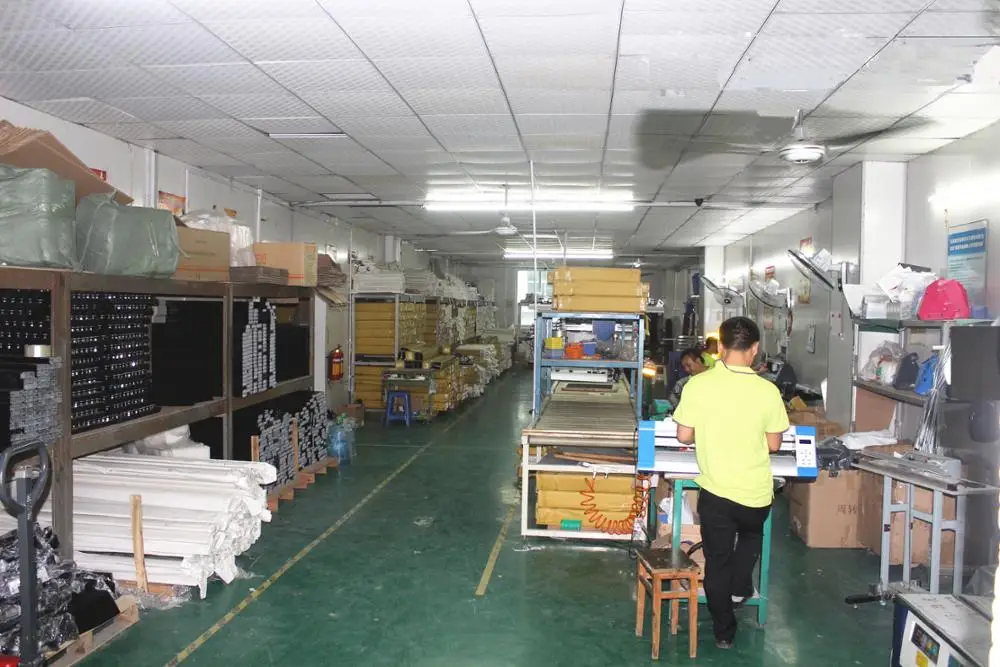

Factory Info

Shenzhen Huansheng Machinery Co.,Ltd      Source Manufacturer           Cutting Plotter Factory

As a  professional manufacture of vinyl cutter machine,  Our factory comply with ISO9001: 2008 quality control as the production standards, insists to test every machine meticulously in the workshop. And our professional team offer customers with comprehensive and thoughtful service. For all our vinyl cutter,engraving machine and CNC equipment, we can guarantee strictly tested before delivery.

Our vinyl cutter have been widely used in the following areas:Advertise sign,sticker,paper cutting,traffic signs and heat transfer industries.

Welcome to visit our factory and get mor detail information,please visit www.mycutcutter.com. Or contact Shirley Wei :008618820966962 .
Our Packing&Service

1.One year free warranty, main parts are free charge when damaged during the guarantee period.
2.Free training course at our factory with professional engineers.
3.We provide the consumable parts at agent price when you need replacement
4.24 hours online service each day, free online technical support.
5.We provide door to door technical support to agents, if necessary.
