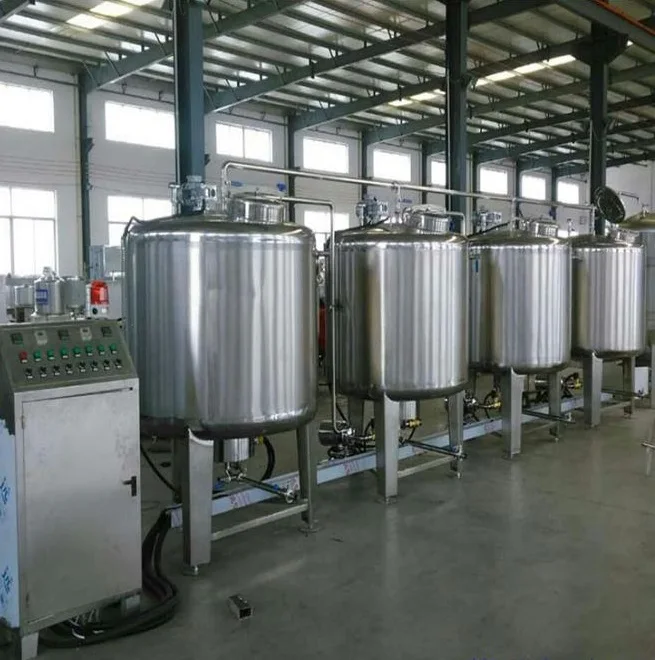

Yogurt/Cheese Equipment/ Dairy Milk Processing Machine
- Category: >>>
- Supplier: Shanghai Chun Nuo Machinery Co. Ltd.
Share on (60711654556):
Product Overview
Description
Product Introduction
This dairy processing Line produce several types of market milk products, i.e. whole milk, skimmed milk and standardized milk of various fat contents.
This dairy processing line raw milk can be fresh milk or powder milk, the procedure method can be pasteurization or HTST pasturizer or UHT processing.
End Product package of this dairy processing line can be plastic pouches, plastic cuos, plastic bottles, glass bottles, roof top box etc. for this dairy production line according to different end product and package type, the production technology is differently designed, but commonly include to follow steps.
Main Parameters
| Milk Processing Line | ||
| No. | Name | Main Technology Parameters |
| 1 | Milk Receive/Storage and Cream Separator Unit | |
| 2 | electron pound scale | maximum weighing 500KG |
| 3 | milk weighing tank | made of SUS stainless steel, single layer, product feeded in through 40 mesh filter net, CIP cleaning ball |
| 4 | milk acceptor | SUS304 stainless steel, single layer, CIP cleaning ball |

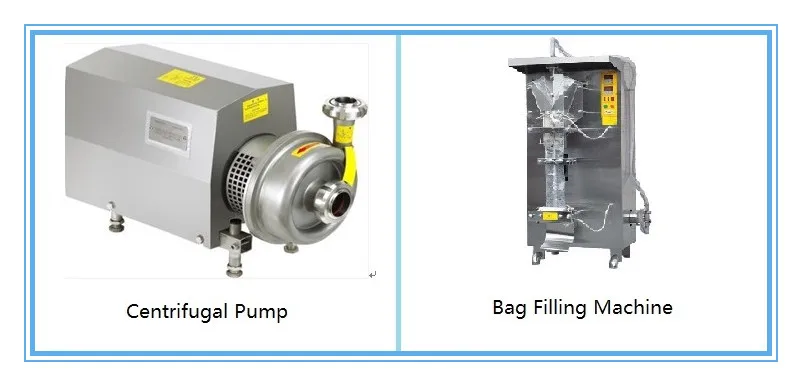

| 5 | milk pump | SUS304 stainless steel, pump lift 24M, Hard Alloy Mechanical Seal, Inner Shell Bright-Polished |

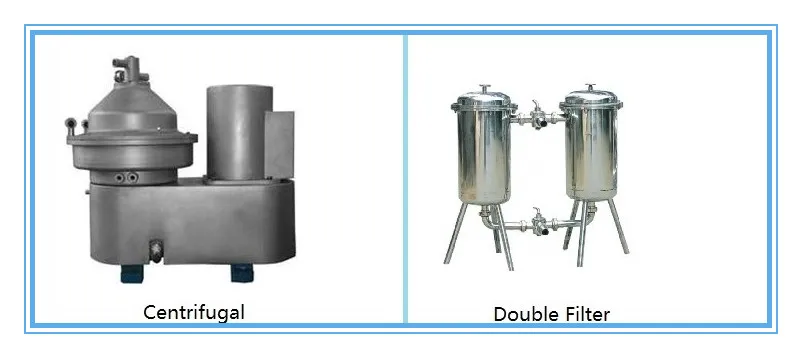

| 6 | twin piping filter | SUS304 stainless steel, two pipes, stainless steel filter element 100 mesh |
| 7 | dish separator | auto residue discharge |
| 8 | chilling tank | SUS304 stainless steel , alveolate jacket, attached with compressor |
| 9 | milk pump | SUS304 stainless steel, pump lift 24M, hard alloy mechanical seal , inner shell bright-polished |
| 10 | Preparing Unit | |
| 11 | blending tank | SUS304 stainless steel, heating insulated, top off-center vertical agitator, conical head, airtight manhole, breather valve, digital readout thermometer, anti-eddy baffle, supporters with adjustable feet |
| 12 | milk pump | SUS304 stainless steel, pump lift 24M, hard alloy mechanical seal , inner shell bright-polished |
| 13 | mini set of plate-type heat | SUS304 stainless steel, two stages |
| 14 | high speed emulsification tank | SUS304 stainless steel, heat insulated, bottom high speed emulsification, digital readout thermometer, supporters with adjustable feet |
| 15 | milk pump | SUS304 stainless steel, pump lift 24M, hard slloy mechanical seal, inner shell bright-polished |
| 16 | two piping filter | SUS304 stainless steel, stainless steel filter element 100 mesh |
| 17 | Sterilizing, homogenizing unit | |
| 18 | UHT sterilizer | tube type, sterilizing temperature 137℃, holding time 4s, fully automatic control |

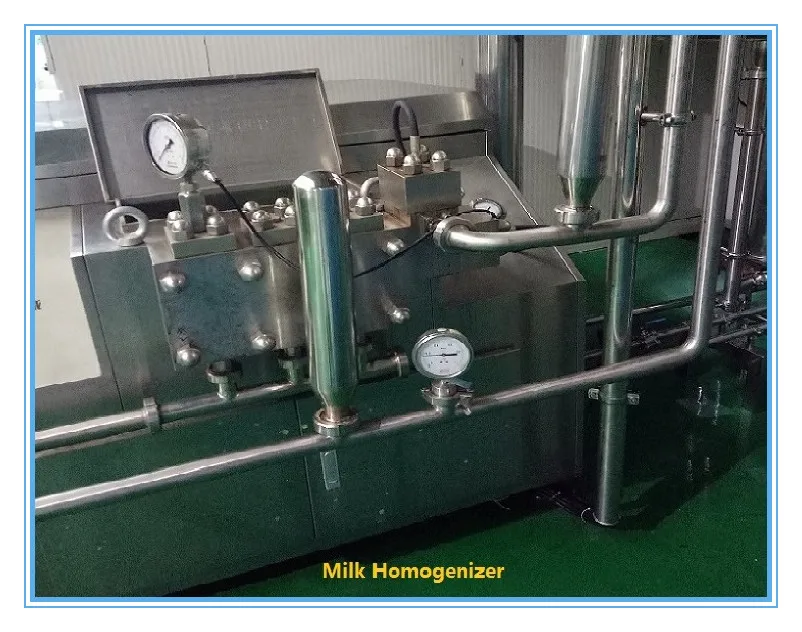

| 19 | high pressure homogenizer | 40MPa,(starting box included) |
| 20 | temperature holding | SUS304, holding 300S |
| 21 | distributing plate | SUS304, 3 holes |
| 22 | Cheese/Butter processing plant | |
| 23 | bufferying tank | SUS304 stainless steel, heat insulated, top off-center vertical agitator, conical head, airtight manhole, breather valve, digital readout thermometer, anti-eddy baffle, supporters with adjustable feet |
| 24 | milk pump | SUS304 stainless steel, pump lift 24M, Hard Alloy mechnical seal inner Shell bright-polished |
| 25 | cream seperator | |
| 26 | bufferying contanier | SUS304, with cover |
| 27 | milk pump | SUS304 stainless steel, pump lift 24M, hard alloy mechnical seal, shell bright-polished |
| 28 | butter-churner | SUS304, stepless timing |
| 29 | cheese vat | SUS304, with heating jacket and insing device |
| 30 | pressor | SUS304 6 heads |
| 31 | mould | SUS304, 10L, with cover |
| 32 | Yogurt fermentation unit | |
| 33 | fermentation tank | SUS304 stainless steel, heat insulated, top off-center vertical agitator, conical head, airtight manhole, breather valve, digital readout thermometer, anti-eddy baffle, supporter with adjustable feet |
| 34 | rotary pump | SUS304 Stainless Steel,Hard alloy Mechnical Seal , Manual steppless shift |
| 35 | plate cooler | SUS304, single stage, milk discharge at 4 degree centigrade |
| 36 | rotary pump | SUS 304 stainless steel Hard alloy mechnical seal, manual steppless shift |
| 37 | Filling Unit | |
| 38 | higher positation tank | SUS304, stainless steel, heat insulated, top off-center vertical agitator, conical head, airtight manhole, breather valve, digital readout thermometer, anti-eddy baffle, supporters with adjustable feet |
| 39 | pasteurized milk filling machine | |
| 40 | yogurt filling machine | |
| 41 | CIP system | |
| 42 | Semi-auto CIP system | Outer coat of SUS304 stainless steel matereial. Inner shell of SUS316. Single cleaning way. Concentrated acid/alkali tank. |
| 43 | CIP return pump | Stainless steel 304L, pump lift 24M, hard alloy mechnical seal, inner Shell bright-polished |
| 44 | Installation Part | Project installation and commissioning |

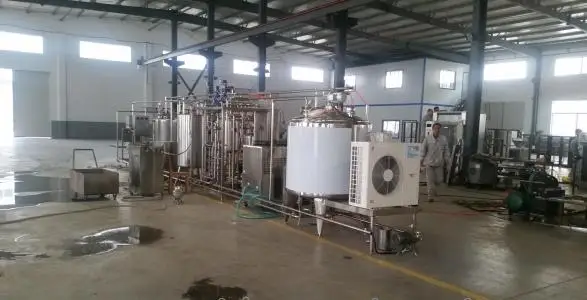

Commissioning
Packaging & Shipping
FAQ
FAQ
1. Q: How do I pay for my purchase order?
A: T/T, L/C at sight, Paypal.
2. Q: Are you trading company or factory?
A: Factory.
3. Q: What is the delivery time?
A: It will take about 30-45 days to finish an order, but the exact time is according to actual situation.
4. Q: Do you have quality control?
A: Yes. Your customerized requirements for color, logo, design, mark are very welcome.
5. Q: How abot the warranty control?
A: One year warranty fo the machines since sold. If quality problems occurs, please feel free to contact us.
6. Q: Can you do the turnkey project?
A: Absolutely yes.
