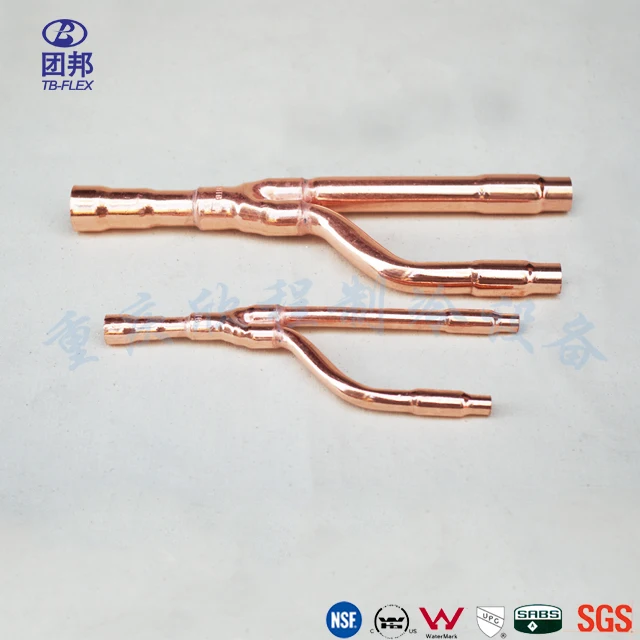

Central Air Conditioner Copper Disperse Pipe Branch Pipe for Daikin 33T VRF System

Product Overview

Description

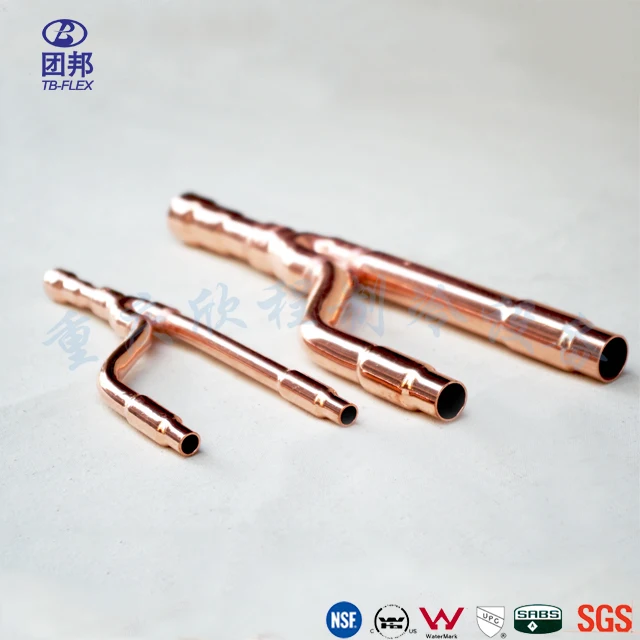

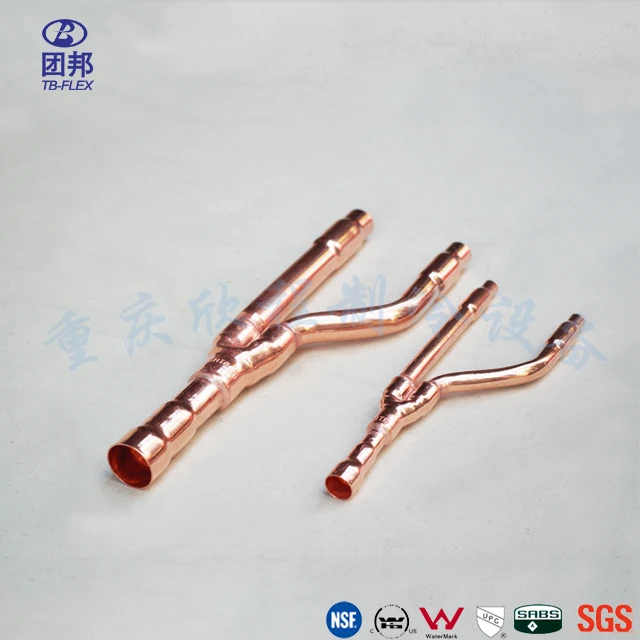

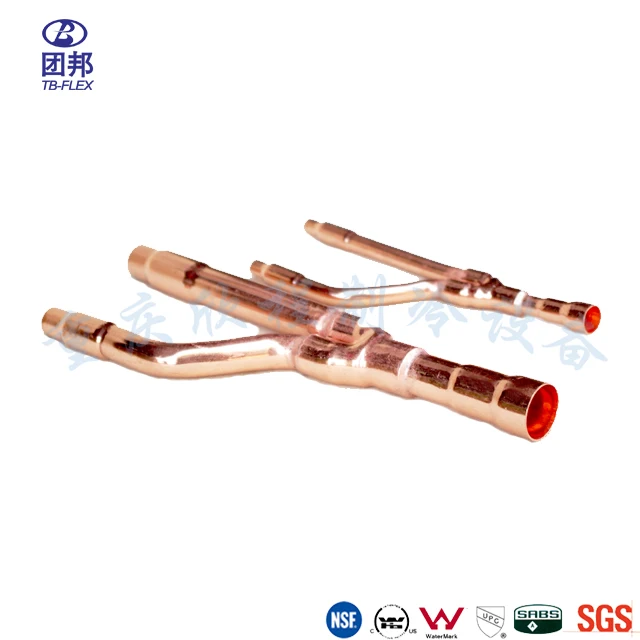

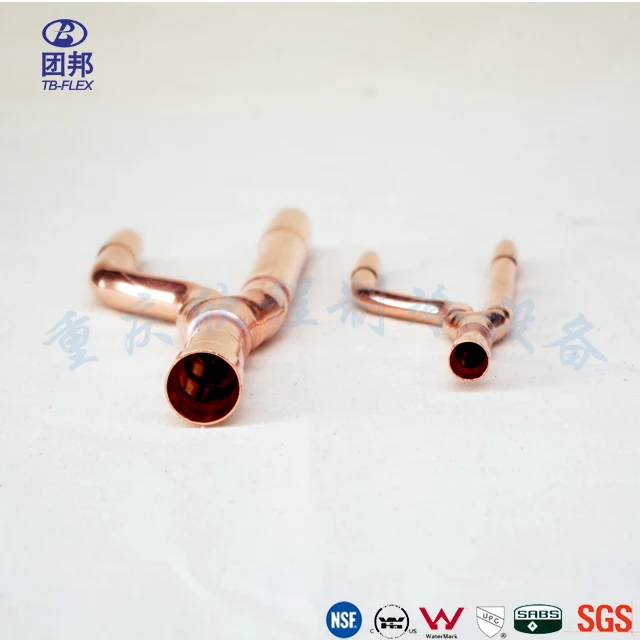

Central Air Conditioner Copper Disperse Pipe Branch Pipe  for Daikin 33T VRF System



Technical Data

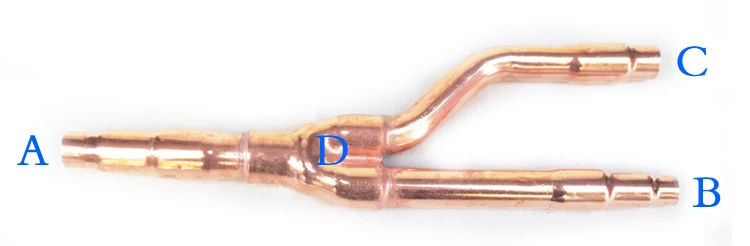

Daikin Disperse Pipe
TYPE		"A"CALLBER(MM)	"B"CALLBER(MM)	"C"CALLBER(MM)	"D"
KRHJ26KT22T	Gas	19.05/15.88/12.7	15.88/12.7	15.88/12.7	Red copper three way Connector
	Liquid	9.52/6.35	9.52/6.35	9.52/6.35
KRHJ26KT33T	Gas	22.23/19.05	19.05/15.88	15.88/12.7	Red copper three way Connector
	Liquid	12.7/9.52	9.52/6.35	9.52/6.35
KRHJ26KT72T	Gas	31.75/28.58/25.4	25.4/19.05/15.88	19.05/15.88/12.7	Red copper three way Connector
	Liquid	15.88/12.7	12.7/9.52	12.7/9.52/6.35
KRHJ26KT73T	Gas	38.1/34.93/31.75	31.75/28.58/25.4	25.4/19.05/15.88	Red copper three way Connector
	Liquid	19.05/15.88	19.05/15.88/12.7	15.88/12.7/9.52
KRHJ26KT75T	Gas	43.45/38.1/34.93	38.1/31.75/25.4	31.75/28.58	Red copper three way Connector
	Liquid	22.23/19.05	19.05/15.88/12.7	19.05
KRHJBHF22MC90	Gas	31.75/28.58	28.58/25.4/22.23/19.05	28.58/25.4/22.23/19.05	Red copper three way Connector
	Liquid	19.05/15.88	12.7/9.52	12.7/9.52
KRHJBHF22MC135	Gas	38.1/31.75	31.75/31.28/28.58/25.4	28.58/25.4/22.23/19.05	Red copper three way Connector
	Liquid	19.05/15.88	19.05/15.88	15.88/12.7/9.52
	Gas	31.75/28.58	28.58/25.4/22.23/19.05	28.58/25.4/22.23/19.05
	Liquid	19.05/15.88	12.7/9.52	15.88/12.7/9.52



Advantages

Central Air Conditioner Disperse Pipe Branch Pipe Copper Pipe Fitting for Daikin 33T VRF System

-          Standard: JISH3300:1997,GB/T17791-2007,ASTM B280

-          Top quality copper material C1220/SF-Cu/C12000

-          Material pipe made by EXTRUSION process, perfect size tolerance.

-          All pipes are checked by on line Eddy Current Inspection to ensure all the pipes are qualified products.

-          Smooth and clean Outer/inner surface, no smudge and rust.

-          Well brazed and all pass pressure test.

-          Long service life and recyclable.



 Central Air Conditioner Disperse Pipe Branch Pipe Copper Pipe Fitting for Daikin 33T

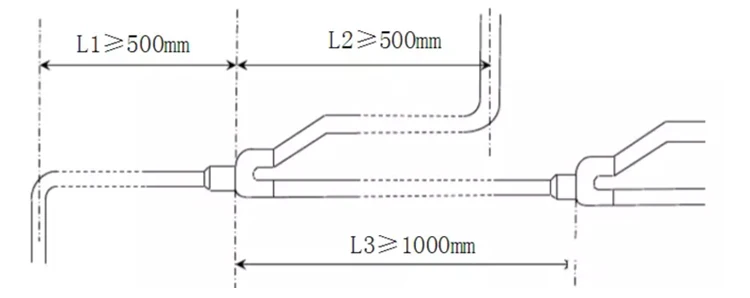

Installation Distance Notes

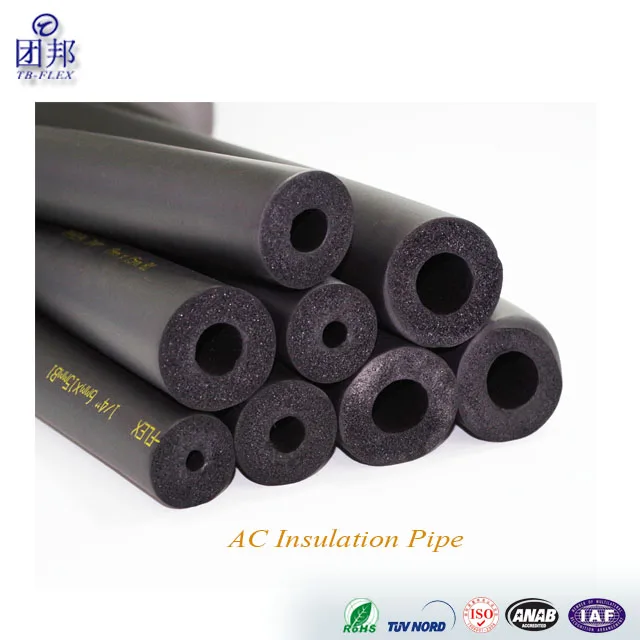

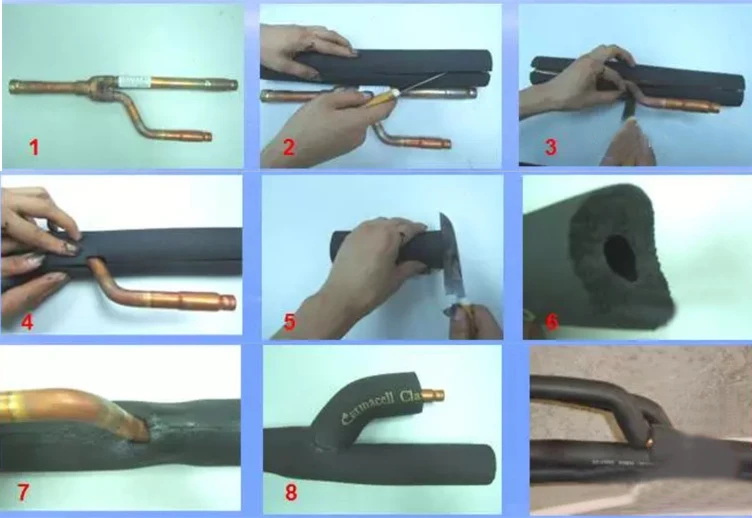

How to Insulate the Disperse Pipe







Company Profile



Founded in 1998, Chongqing Xincheng Refrigeration Equipment Co., Ltd. is located in Chongqing, China. It mainly produce and sell central air-conditioning, Refrigerator, refrigeration unit, air cooler, water chilling unit and Refrigerant. All products are qualified with IAF, CMA, ANAB, CNAS, AL, ISO9001, TUV NORD, ilac-MRA and etc.

In 2008, Xincheng Company was authorized to be the most reliable dealer on refrigeration equipment. With its strictly quality control and management, Xincheng has won many customers’ trust and becomes more and more visibility in Asia, North America, South America, Europe, and Africa.

We core value to build business relationship with our customers are based on honestly, cooperation and mutual benefit. On this foothold, we are struggle to improve our product quality, management and customer service.

Also, any OEM/ODM need are welcomed. Please feel free to let us know your requirements.

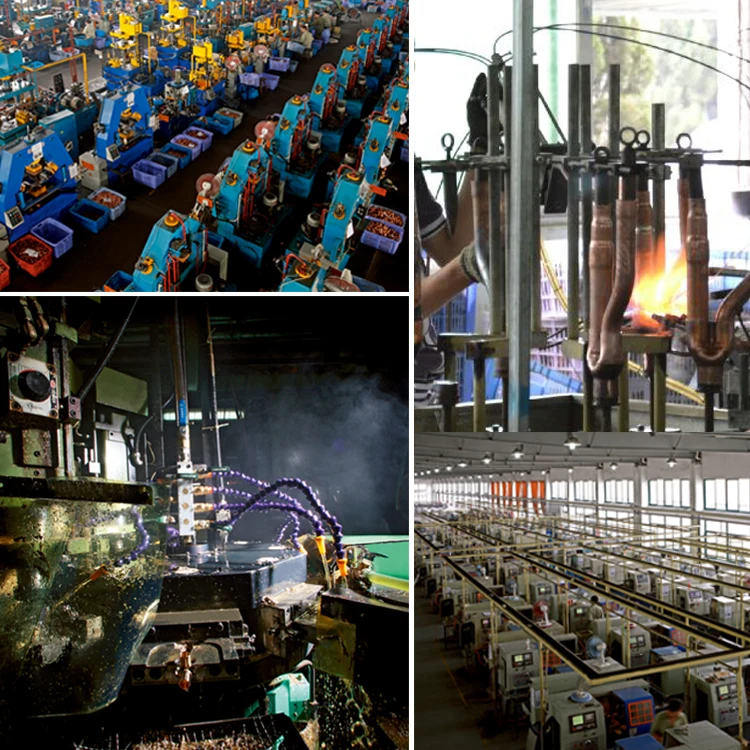

 Production Line



 Central Air Conditioner Disperse Pipe Branch Pipe Copper Pipe Fitting for Daikin 33T VRF System

Test Procedures



Certificates

Exhibition Show

 Central Air Conditioner Disperse Pipe Branch Pipe Copper Pipe Fitting for Daikin 33T VRF System

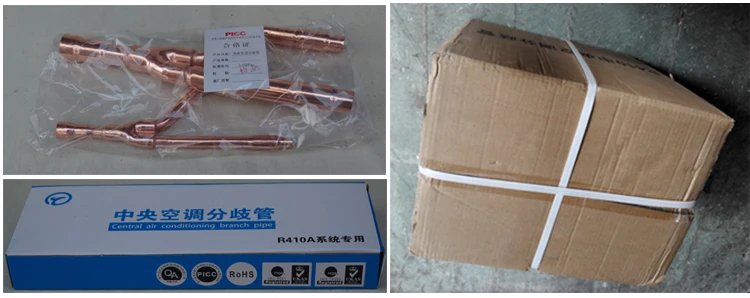

Package & Transportation



Payment Method



L/C, T/T, West Union
