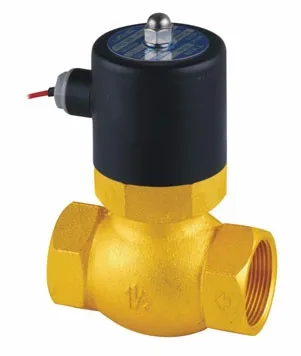

2 Way 2L Steam Solenoid Valves 2 inches

Title goes here.

Model\t2L170-10\t2L170-15\t2L170-20\t2L200-25\t2L300-40\t2L500-50
Fluid\tAir, Water, Steam
Operation\tGuide type
Type\tNormal close type
Aperture (mm)\t17\t22\t30\t50
Cv value\t4.8\t12\t20\t48
Port size\t3/8''\t1/2''\t3/4''\t1''\t1 1/2''\t2''
Operation fl uid viscosity\t20 CST Below
Operating pressure\t0.1 ~ 1.5MPa
Max. Proof pressure\t2.25MPa
Operating temperature\t-5 ~ 180C
Voltage range\t±10%
Material of body\tBrass(Option: Stainless Steel)
Material of oil seal\tPTFE
