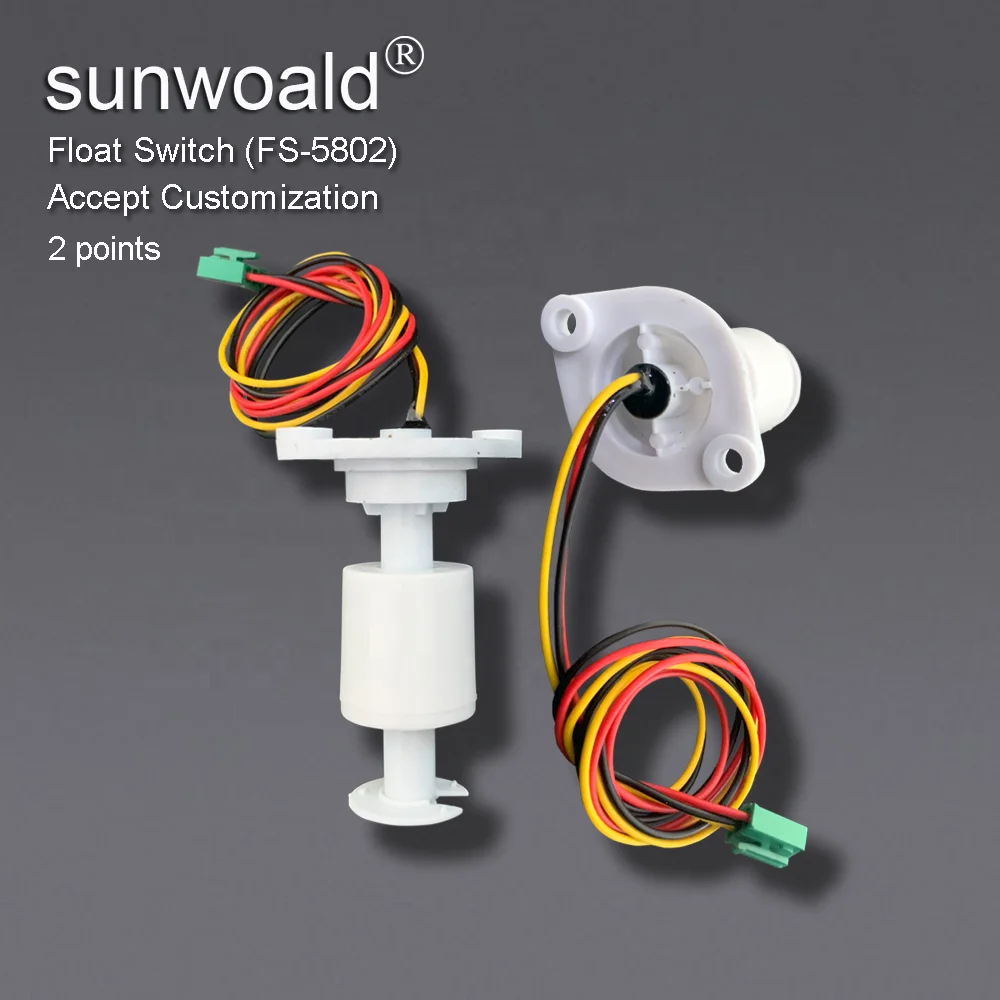

Sunwoald 58mm double points magnetic PP Water Float switch for water dispenser/ toilet

Product Overview

Description



Magnetic Double Point Level Sensor

Product Description

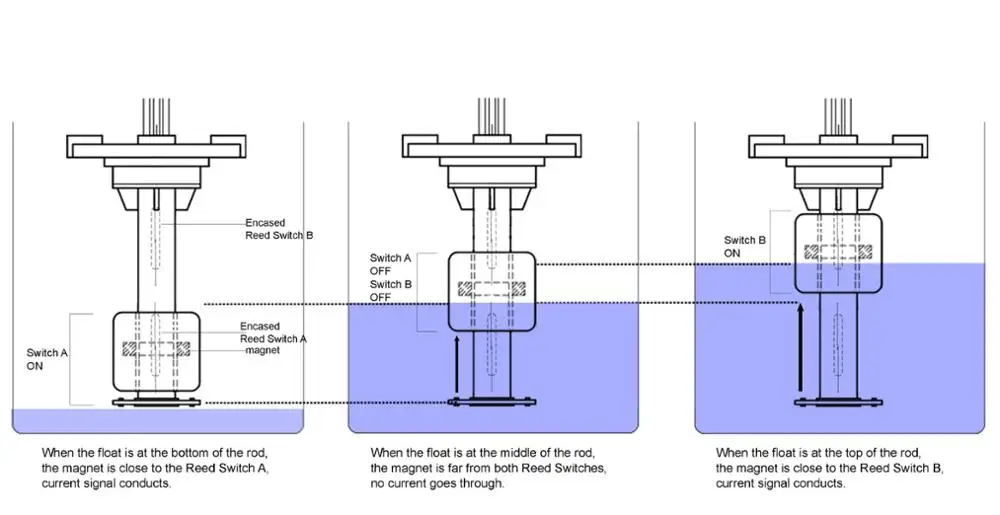

Working theory:



The magnetic float level switch is a device used to sense the level of liquid in a tank. There is a magnet in the float ball and a magnetic reed switch in the rod. When the liquid level rises, it drives the float ball up close to the reed switch inside the rod. The magnet then force the two magnetic contacts inside the switch to connect, which allows current to pass. When the reed switch connects the circuit, it’s called “Closed.”



Product Application

The magnetic float level switch can be used to monitor liquid level in watering machine, water heater, solar energy, air conditioner, vending machine,BSD-P, water dispenser, Humidifier, dehumidifier, fluid control, a pump, alarm device, moisturizing machine , bathroom utensil , oil tank , water tower and chemical industrial ,etc. And widely applied in motor vehicles, industrial equipment, agricultural equipment and household electrical appliances in the future.

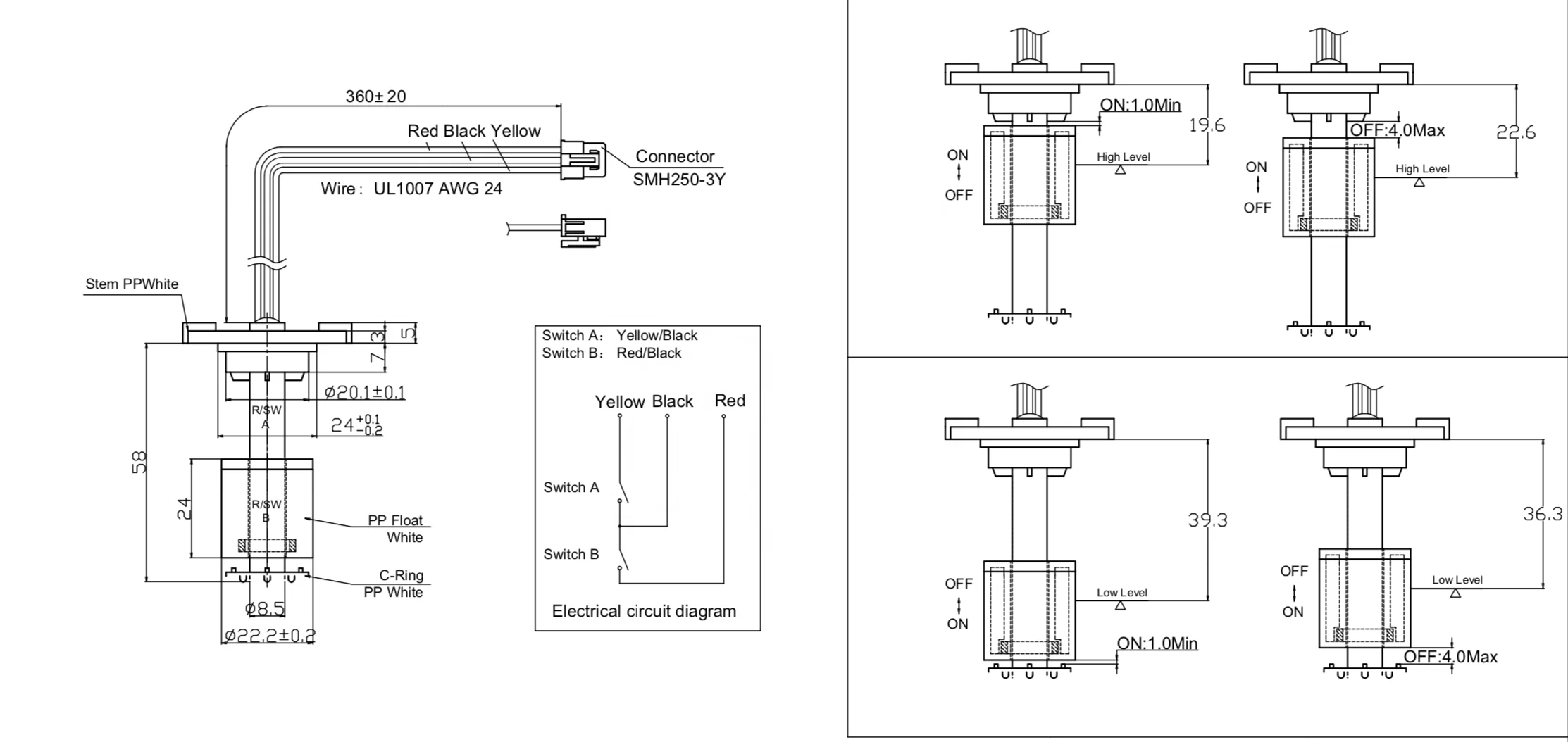

Product Specification-Magnetic Reed Switch Level Sensor



Switch Characteristic		Physic Characteristic
Contact Form	A (normally open)	Min Shock	30G
Max Contact Rating	10W	Min Vibration	30G(10-50Hz)
Max Switch Voltage	100V	Temp. Rating	-10~+60°C
Max Switch Current	0.5A	Heat Shock	-40~+80°C
Max Contact Resistance	300m Ohm	name	Float Switch/Level Sensor
Max Insluation Resistance	100M Ohm
Electronic Life	1x 107(5Vdc,10mA)

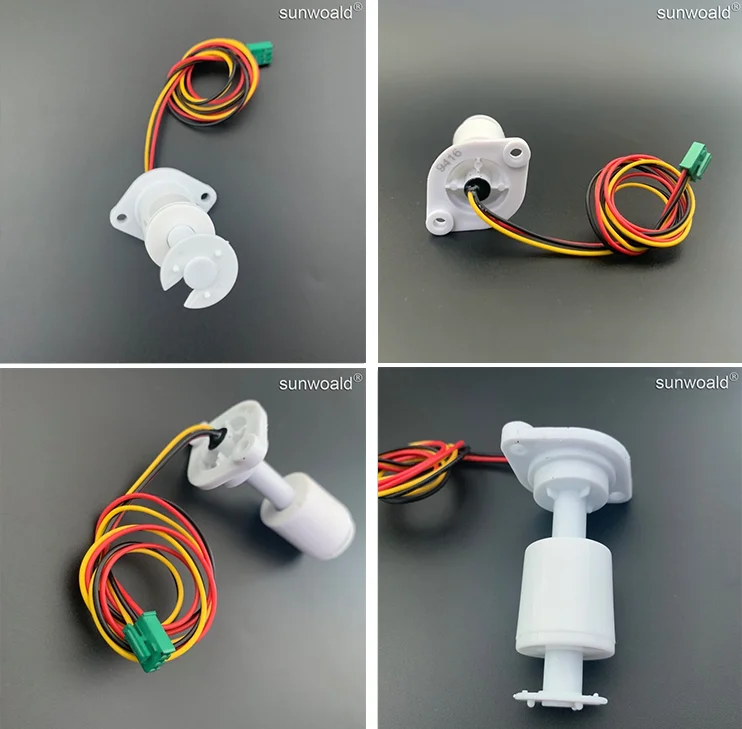

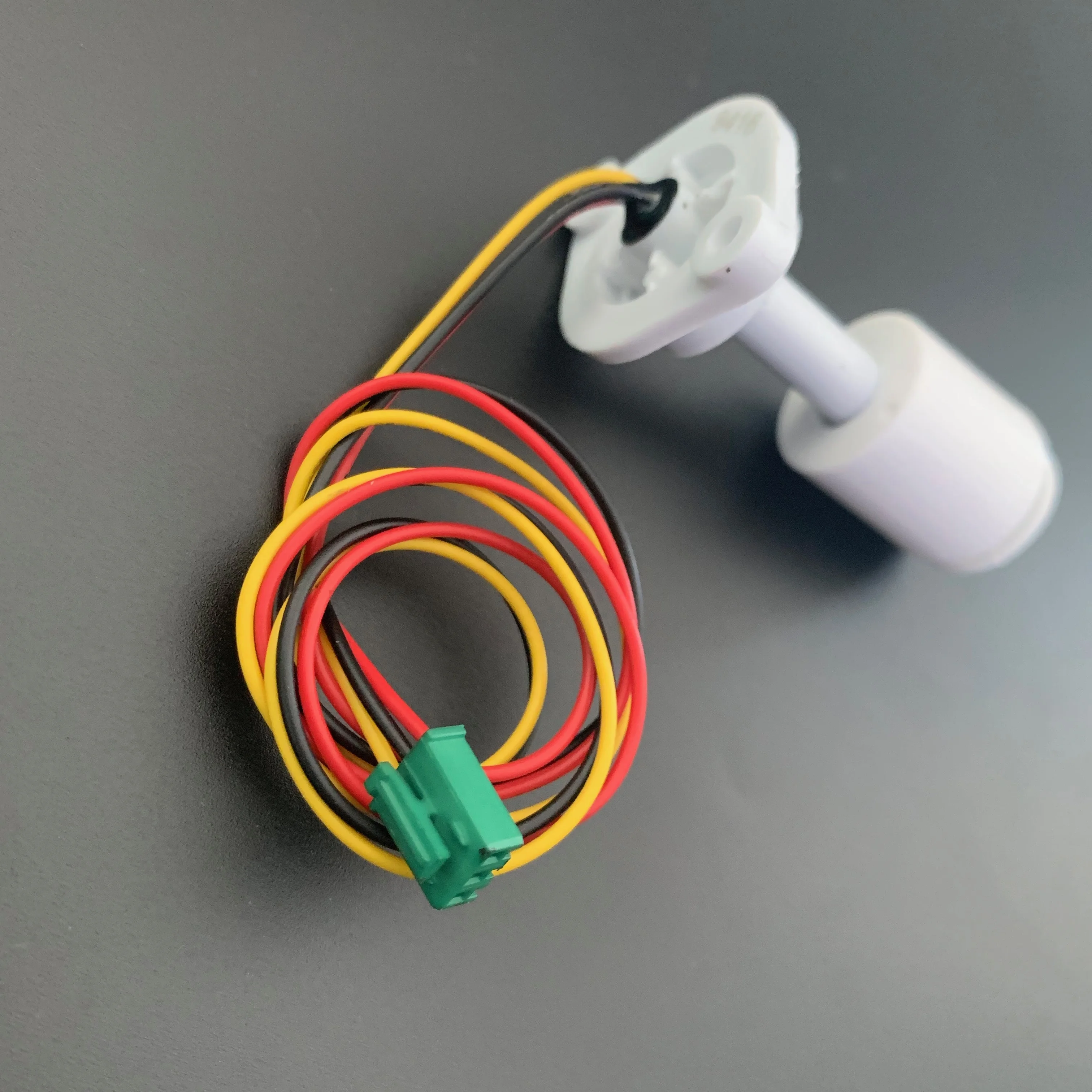

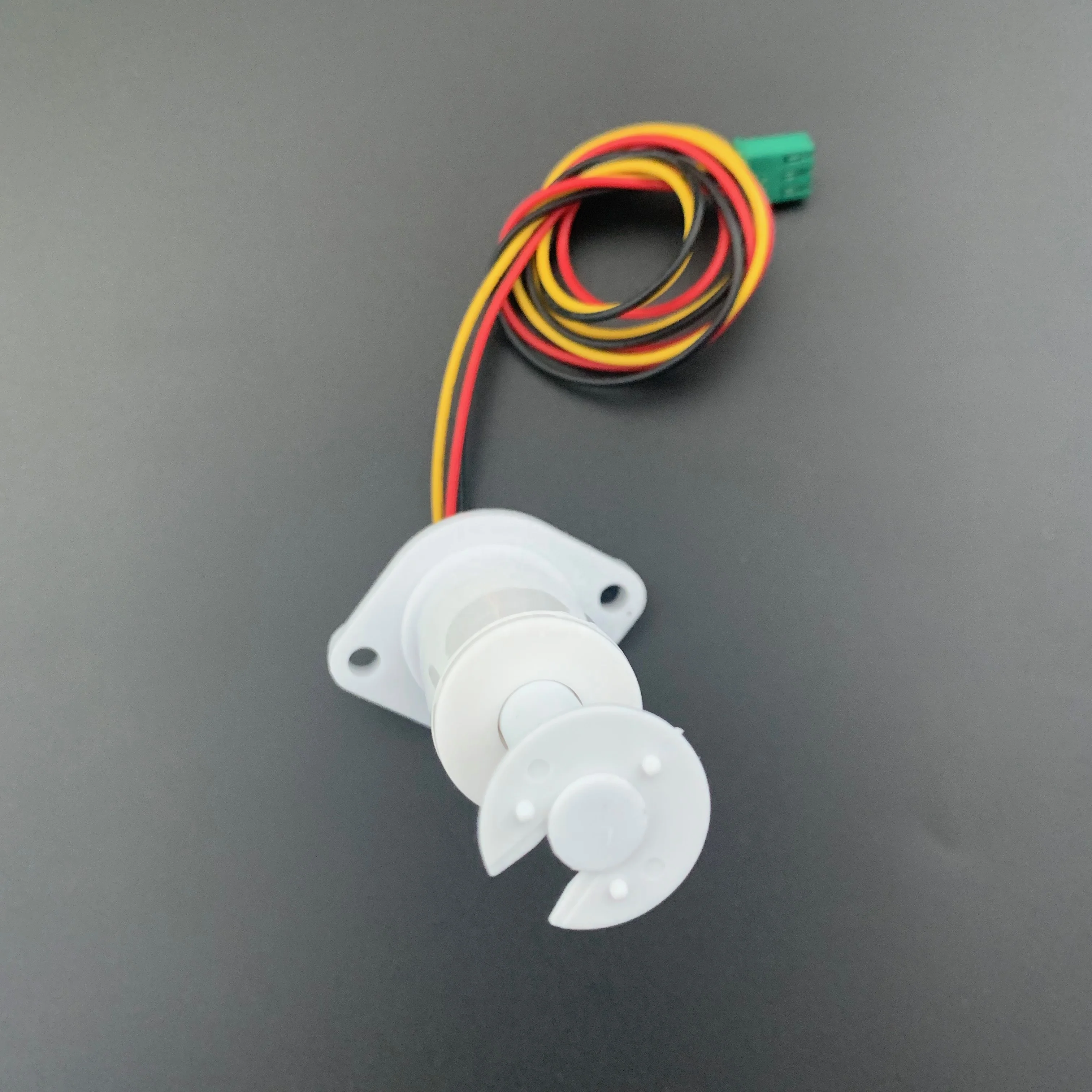

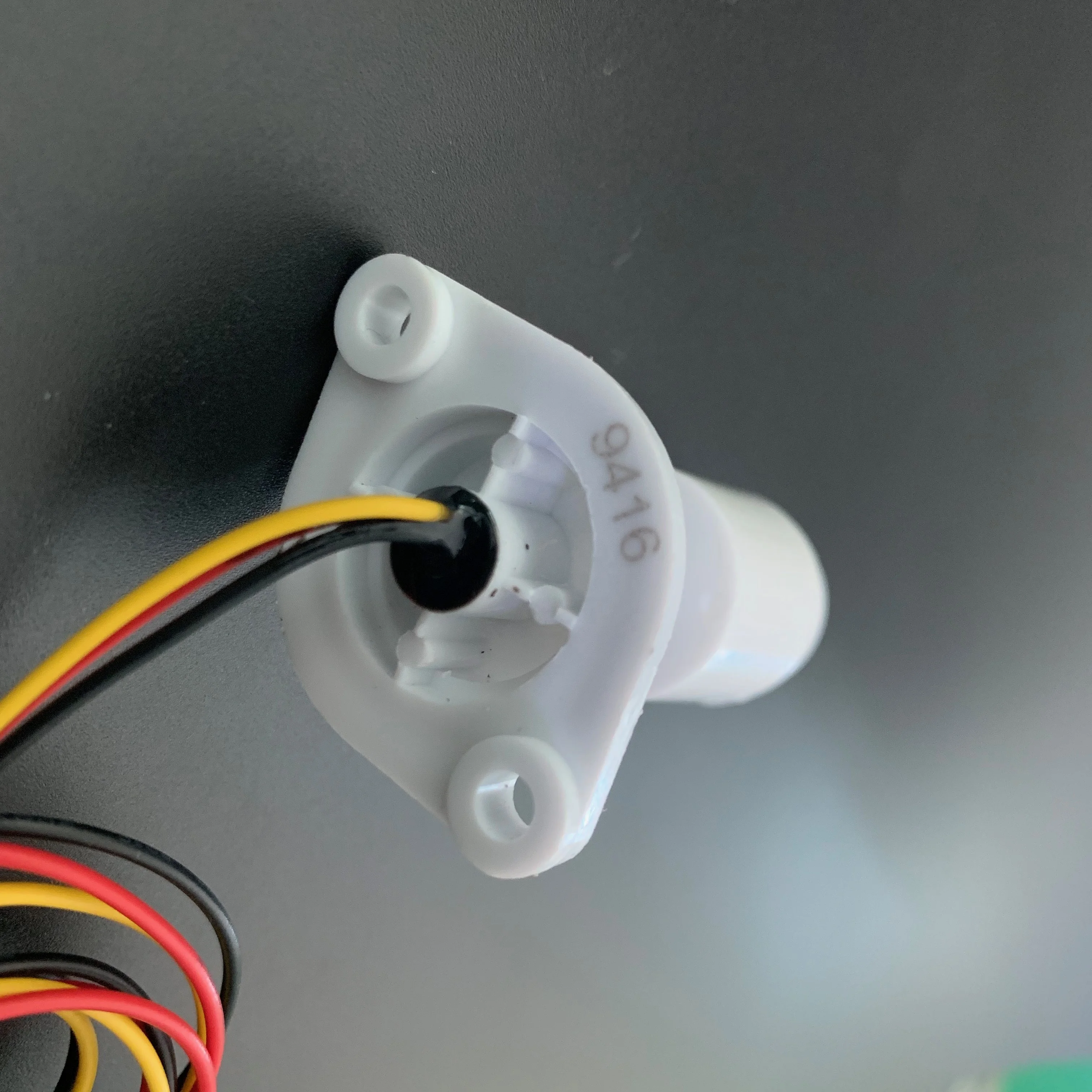

Product Image





Related Products



FS-8502	FS-6302	FS-1002









Certifications

Package & Delivery





FAQ

1.Question:  What are your main products?

Answer: We mainly focus on water float switch, flow sensor and door contact switch. We ensure a reasonable price and high quality products.

2.Question: Where is your company?

Answer: We are a factory based in Shenzhen, Guangdong, China. All of our products are safely manufactured according to UL, ISO9001 and RoHs principles, and carefully checked before packed.

3.Question:  What are the available materials for Water Float Switch/ Level Sensor?

Answer: Plastic PP, Stainless steel

4.Question: Are these materials safe for drinking water?

Answer: Sure! All of our materials are made according the RoHs principles, they are nontoxic and environmental friendly.

5.. Question: Is the float switch made normally open or closed?

Answer: Most clients take our normally open model, but no worries we can make normally closed one if you need. To save from trouble, please read our datasheet before ordering.

6. Question: There is no float switch in the list suitable for me, can you OEM a new model according to our desire?

 Answer: Yes, we can! Please send us your requirement and basic data or pattern of the product you want, our engineers will take care and OEM the model for you!
