Product Overview
Description
IP protection IP51 class wireless smart energy meter
Product Description
| Product name | IP protection IP51 class wireless smart energy meter | |
| Meter type | DRT-341D | |
| Digit length | 5+2/6+1 | |
| Nominal voltage(Un) | 230/400V AC | |
| 230/240V AC(option) | ||
| Operational voltage | (-0.7-1.3)Un | |
| Insulation capabilities | - AC voltage withstand | 2KV for 1 minute |
| - Impulse voltage withstand | 6KV – 1.2µS waveform | |
| Rated current (Ib) | 1.5/5/10A | |
| Maximum rated current (Imax) | 6/80/100A | |
| Operational current range | 0.4% Ib- Imax | |
| Over current withstand | 30Imax for 0.01s | |
| Operational frequency range | 50/60Hz ±10% | |
| Internal power consumption | ≤2W / 10VA | |
| Pulse output rate (pins 20 & 21 | 1000imp/kWh | |
| Consumption indicator (RED LED) | Flashing at load running | |
| Data store | The data can be stored for more than 25 years without power | |

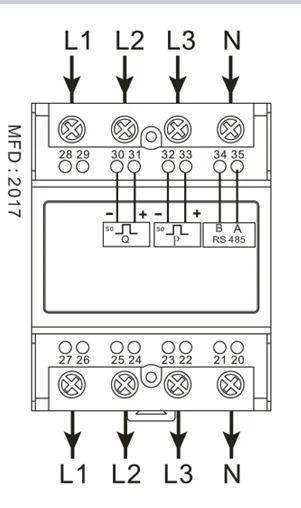

The drawing of IP protection IP51 class wireless smart energy meter

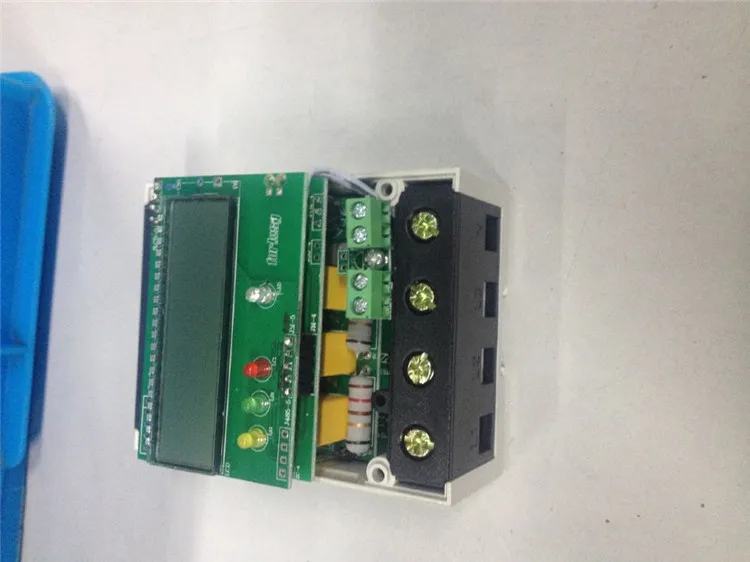

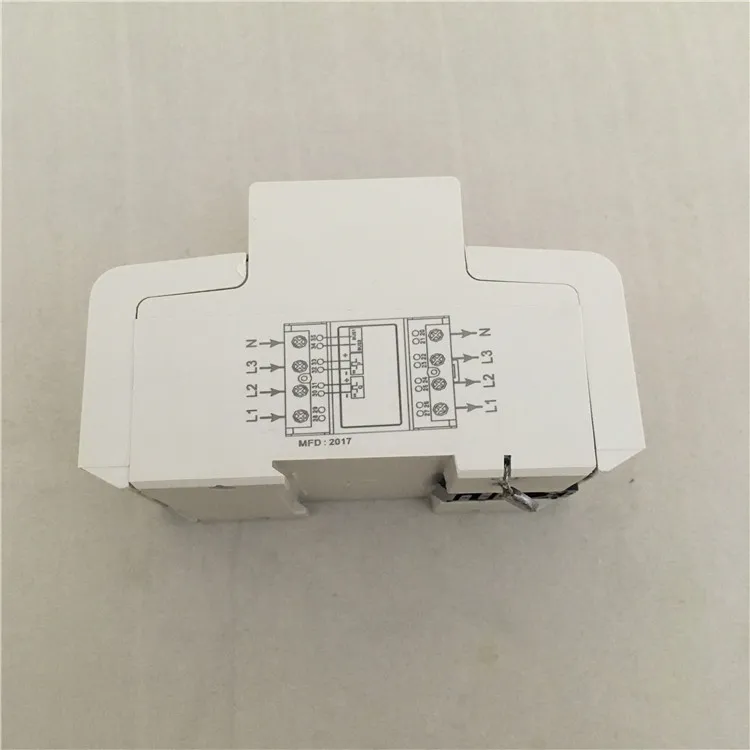

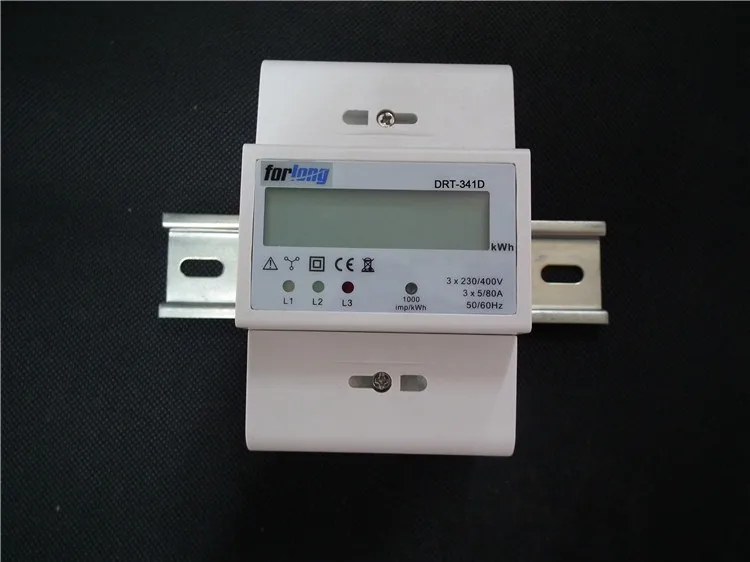

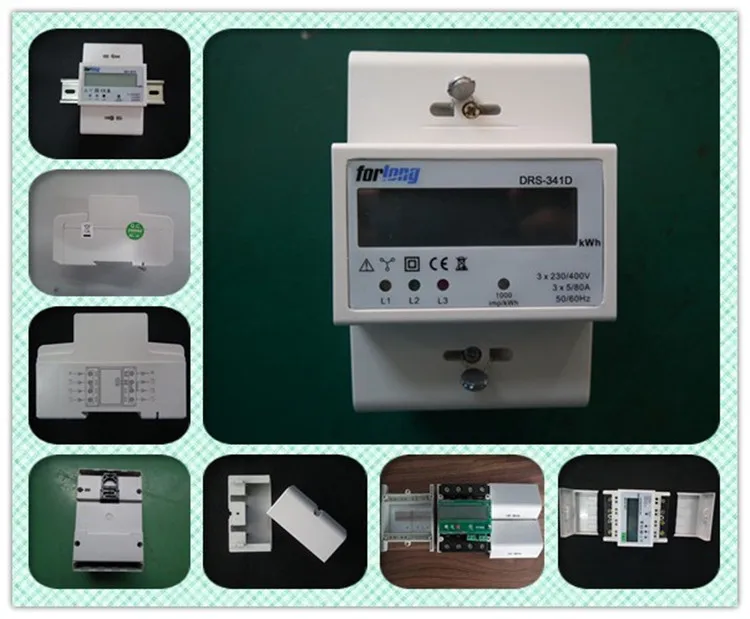

The actual pictures of IP protection IP51 class wireless smart energy meter
The sale data of IP protection IP51 class wireless smart energy meter
Realated Production
IP protection IP51 class wireless smart energy meter
Why does choose us ?
1. Q:No light for the consumption indicator
A:Check switch or circuit-breaker and fuse or thermal cut-off.
A2:Reinstall terminal screws on the 1 and 4. Make sure all screws are fixed. Than there should be a 230V 50Hz AC voltage between the terminal screws on the 1 and 4 when power supply is input.
2. Q: No light for the consumption indicator.
A1:Only when load is running, this LED will flash.
A2;If the operating power is too low, the spacing interval of flashing will take some more time, this is why it seems like LED isn’t burning.
A3:Please contact your technical supporter to replace this meter.
3. Q:The register can’t run.
A1: Check that the power supply indicator is burning.
A2: If the operating power is too low, the spacing interval of the pulses will take some more time, this is why it seems like the meter won’t count.
A3: Please contact your technical supporter to replace this meter.
4. Q: No pulse output.
A: Check the external voltage source (Ui) is 5-27V DC.
A2: Check correct connecting:connect 5-27V DC to connector 20 (anode), and the signal wire (S) to connector 21 (cathode).
A3: Please contact your technical supporter to replace this meter.
5. Q: Pulse output rate wrong.
A: Please contact your technical supporter to replace this meter.
2. Q: No light for the consumption indicator.
A1:Only when load is running, this LED will flash.
A2;If the operating power is too low, the spacing interval of flashing will take some more time, this is why it seems like LED isn’t burning.
A3:Please contact your technical supporter to replace this meter.
3. Q:The register can’t run.
A1: Check that the power supply indicator is burning.
A2: If the operating power is too low, the spacing interval of the pulses will take some more time, this is why it seems like the meter won’t count.
A3: Please contact your technical supporter to replace this meter.
4. Q: No pulse output.
A: Check the external voltage source (Ui) is 5-27V DC.
A2: Check correct connecting:connect 5-27V DC to connector 20 (anode), and the signal wire (S) to connector 21 (cathode).
A3: Please contact your technical supporter to replace this meter.
5. Q: Pulse output rate wrong.
A: Please contact your technical supporter to replace this meter.
