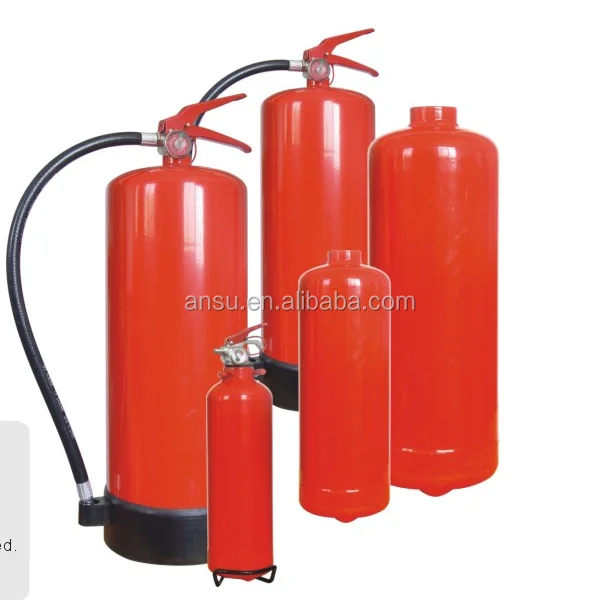

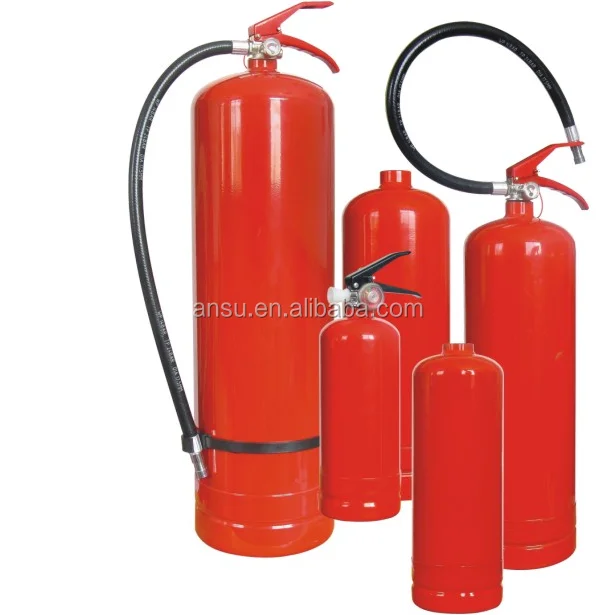

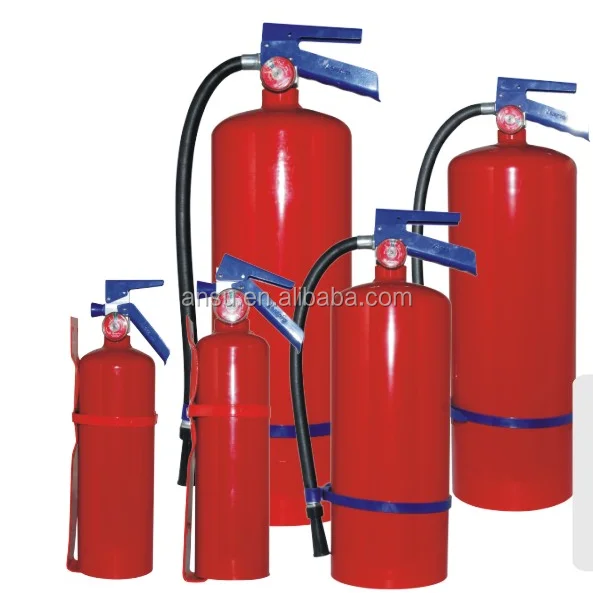

Portable dry power extinguisher is kind of light, efficient and movable fire control
equipment with ABC (ammonium phosphate) dry power extinguishing agent and driving
gas nitrogen filled in a fullsealed container. Nitrogen drives dry power extinguishing
agent to eject to put out fire. The extinguisher is able to put out fire quickly and is light,
efficient, convenient for use, portable, safe and reliable.
Portable dry power extinguisher applies to put out just burning fires of Class A fire
(ordinary solid material fire), Class B fire (flammable liquid fire), Class C fire
(gas fire) and Class E fire (charged equipment fire). It is widely used to prevent and control
fire in factory, school, restaurant, department, warehouse, vehicle and ship.
Product Code
1kg
2kg
4.5kg (10lb)
9kg(20lb)
12kg
Out-diameter (mm)
90/85
110
130
182
182
Cylinder-high (mm)
240/260
310
455
500
600
Cylinder weight (kg)
0.54
0.85
1.1
3.15
3.85
Extinguisher weight (kg)
1.86
3.16
5.9
13
16.5
Volume (L)
1.25L
2.5
4.5
10.6
14.1
Filling weight (kg)
1kg
2kg
4.5kg
9kg
12kg
Temperature range
-30℃~ +60℃
-30℃~ +60℃
-30℃~ +60℃
-30℃~ +60℃
-30℃~ +60℃
Work pressure (Bar)
12
12
12
12
12
Test pressure (Bar)
21
21
21
21
21
Discharge time (S)
8
11
15
20
20
Discharge range (M)
3–5
3–5
4–7
5–8
5–8
Fire rating
5A 34BC
8A 70BC
21A 113BC
34A 233BC
55A 233BC

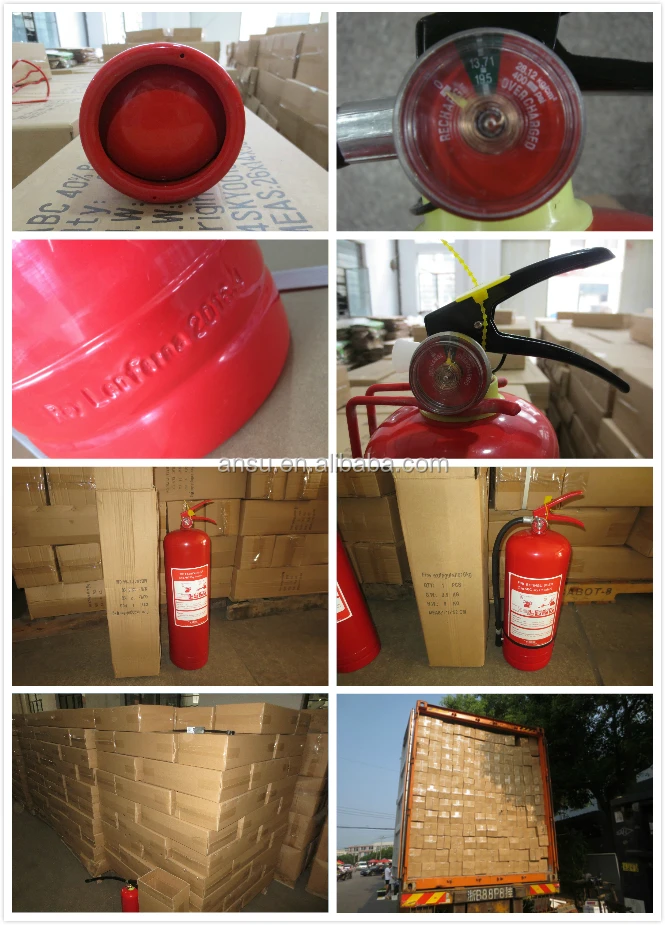

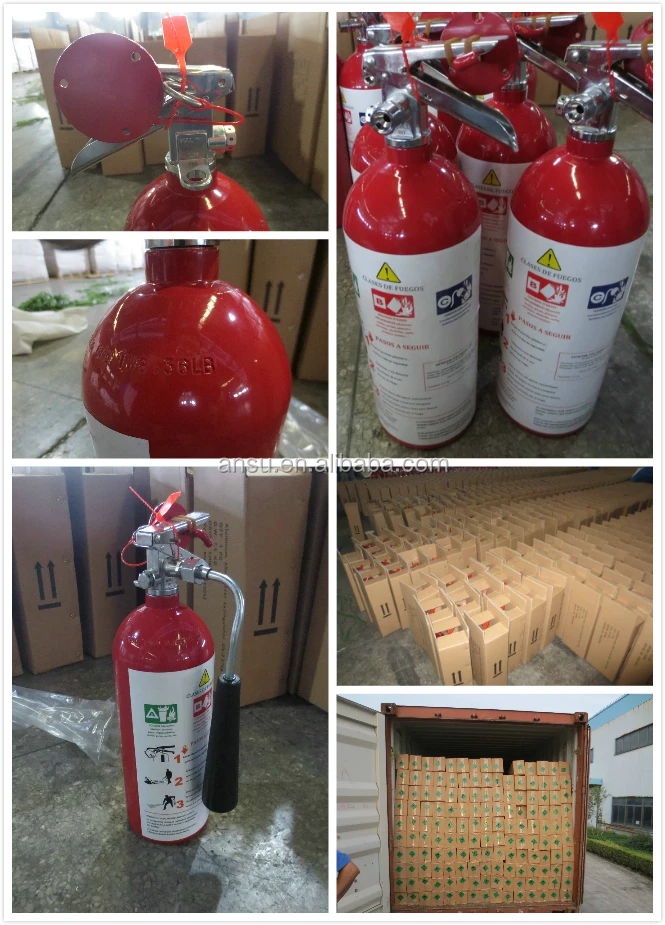

Packaging & Shipping
Company Information
Hangzhou AnSu Fire equipment specialized in fire fighting products:

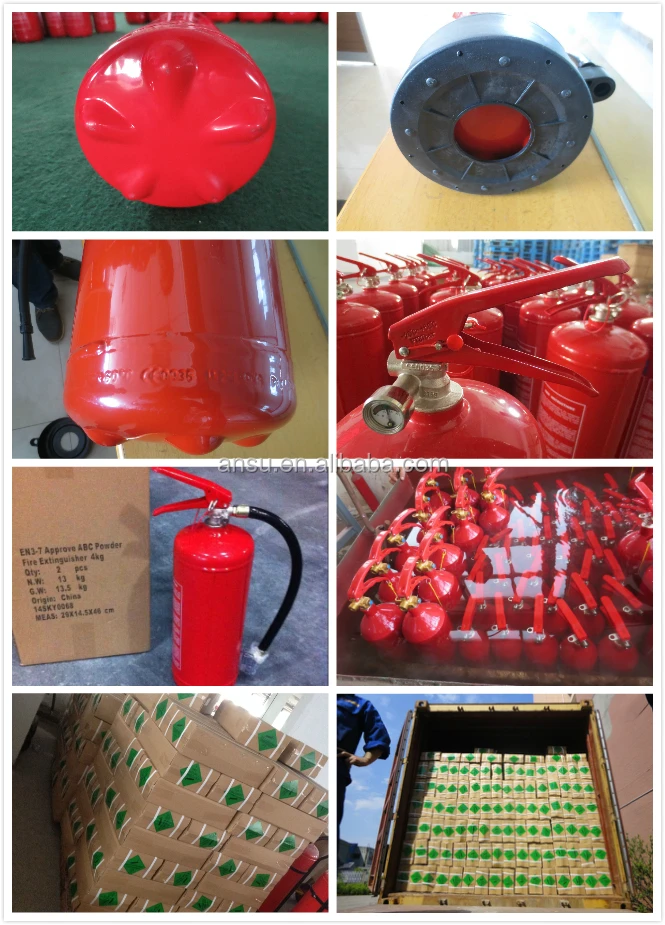

EN3 Fire Extinguisher

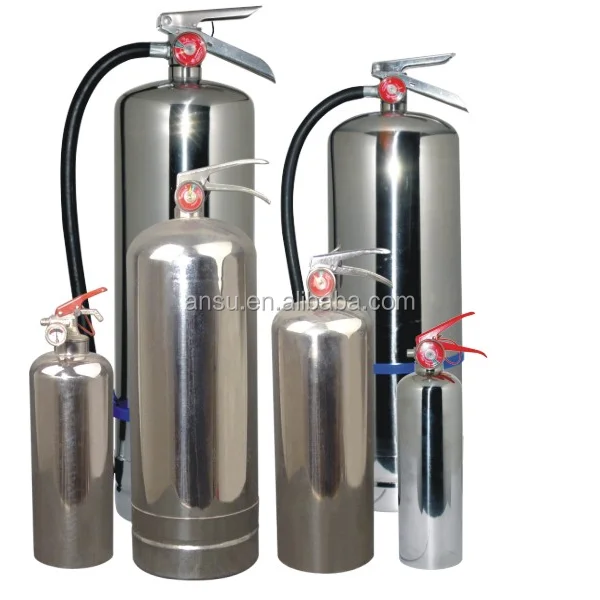

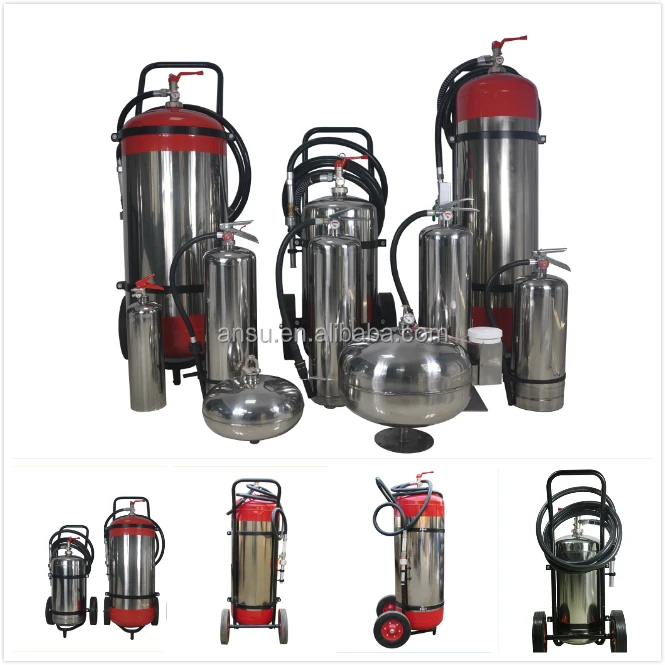

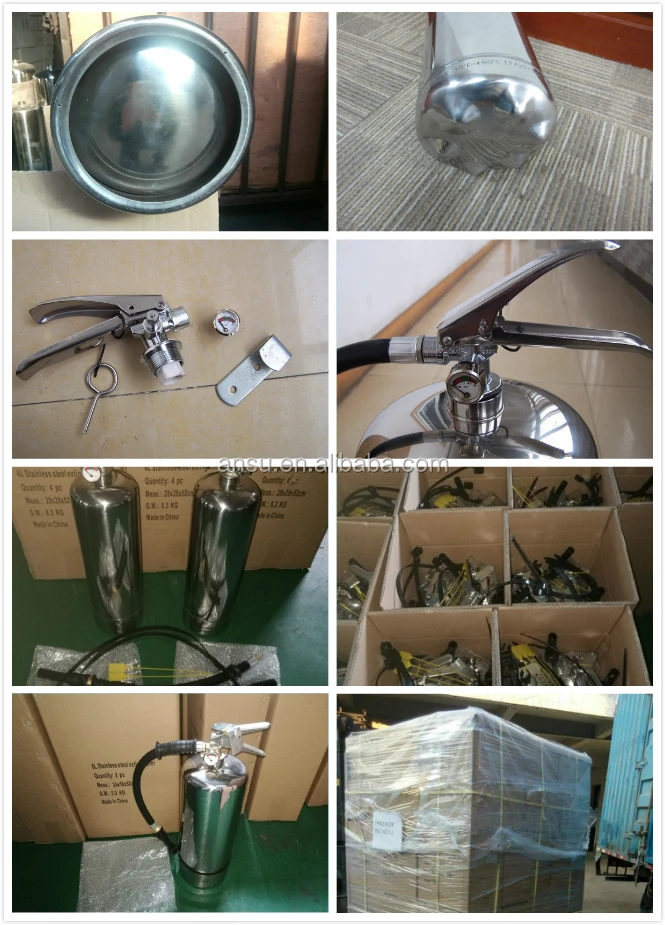

Stainless steel fire extinguisher

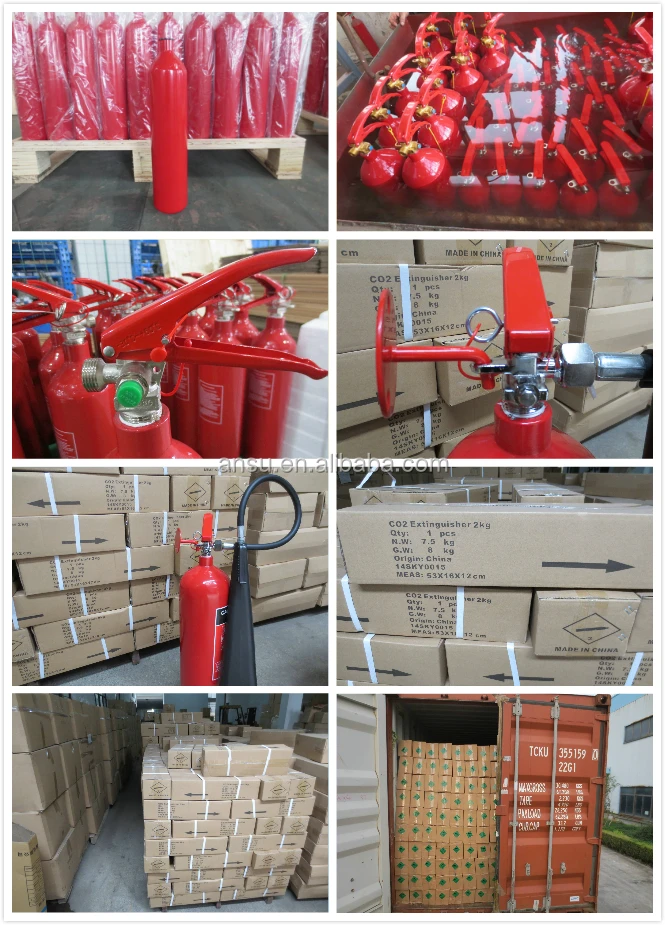

CO2 fire extinguisher
Foam and Water fire extinguisher
Fire hose reel and cabinet
Fire hydrant and valve
Etc
Quality and Safety: We have ISO9001:2000,CE ,EN3,EN671,EN1869,EN14604 etc certificates for most of our products on fire fighting equipment. Mainly export to Europe , Latin America,Middle east,Africa and so on.We make sure the safety of our customers during use our products.
AnSu fire also supply OEM ODM products ,High Quality ,Professional Service,Honesty is our basic rules. We have very good after-service,one professional high efficient and warmly sales team service you at 24 hours.We promise that all feed backs from clients would be replied within 8 hours during working days.
AnSu fire rule is saving time and cost for clients ,Taking good profit and well development for clients.Growing space and training for each staff,Clients and staffs push AnSu fire safety company development.
