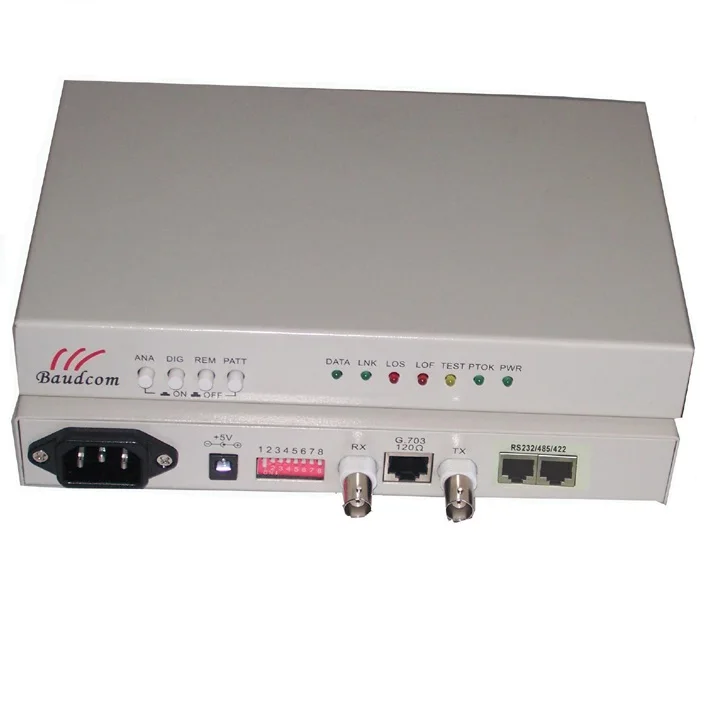

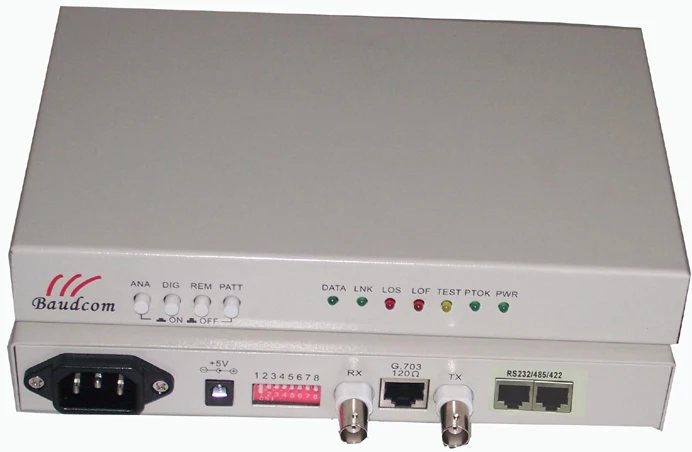

fiber optic G.703 E1 to RS485 converter
- Category: >>>
- Supplier: Shanghai Baudcom Communication Device Co. Ltd.
Share on (60711873208):
Product Overview
Description
Product: rs485 to fiber optic converter
Our advantage:Warranty is 3 years with good quality/Low MOQ:1Piece/Low price/OEM or ODM accepted.
Overview
The rs485 to fiber optic converter odulate RS485 signal to fiber. The transmitting distance up to 120km. WDM(bi-di),dual fiber and multimode are availble.The rs485 to fiber optic converter which realizes transmission of the RS485 signal on fiber. This product has solved the problem of contradiction between communication distance and communication rate of RS422 port. At the same time, it also has solved the problem of electromagnetic interference, earth link disturbance and thunder/lightning destruction, thus greatly enhancing reliability, security and privacy of data communication. It can be widely used in various kinds of situations such as industrial control, process control and transportation control, and especially suited in bank, electric power as well as departments and systems which have special request to the electromagnetic interference environment.
rs485 to fiber optic converter
Feature
1.Based on self copyright IC.
2.Serial date creates receive and send signal automatically.
3.RS232/RS485/RS422 interface can be optional by dip switch.
4.Serial port supports 0-115.2KBps baud rate auto-negotiation.
5.Combination of PDH technology and digital lock loop clock technology.
6.Unique serial port for circuit protection, supporting hot-plugging.
7.Data transmission is stable and reliable with integrated light-receiving and transmitting module.
8.Complete surface paste and install craft, industrial grade design, and production-runs with piece-pasting machine.
Specification
| Optical interface | Wavelength | single-mode 1310nm/1550nm/multi-mode 850nm/1310nm for option |
Fiber core number | double core/single core for option | |
| Sending consumption | -9dBm/-5dBm | |
| Transmitting range | 0-50km/120km for option | |
| Receiving sensitivity | <-36dBm (BER <10-11) | |
| Connector | SC/FC/ST | |
| RS485 port | Rate | asynchronous mode:0-115200bps auto-negotiation |
| Characteristic | satisfies ITU-T V.24 V.11 standard | |
| Connector | RJ45 | |
| Environment | The device operate temperature range wide, can work normally and stable in different environments. No causticity and impregnant gas, no rising dust, and no strong magnetic field disturbing. | |
| Operate temperature | 0°c~50°c | |
| Relative humidity | 95% (no condensation) | |
| Power supply | DC-48V: voltage range -36V~-72V, AC220V: voltage range 175V~265V | |
| power consumption | <5w | |
| Dimension | 85(W)x121(D)x27(H)mm | |
Application

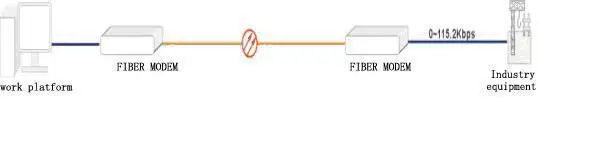

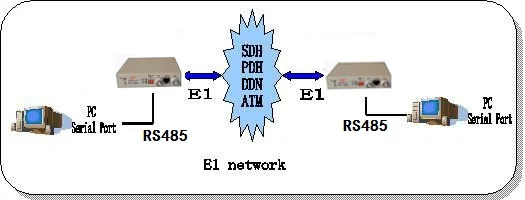

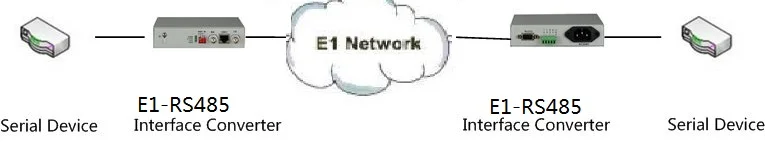

Application diagram
FAQ
1.How can i get a sample ?
You need place sample order to us.We will arrange the sample production for you.
2.Could you do design for us?
Yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.
3.How can we place order?
After we made agreement on the product' parameters, we will make proforma invoice for your confirmation.when we got your advance payment (deposit) we will arrange the production and delivery.
If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if you don't have ship forwarder, then when the goods arrived at Destination port, you must find a ship forwarder help you clear the custom.
4.How about the shipping?
For small orders, we will send the goods by International Express like HK Fedex, DHL, TNT or UPS. usually it takes about 7work days to arrive.If big quantity we will ship by Ocean transportation, it takes one month to arrive. if urgnet, you can select shipping by Air, but freight charge will be more expensive.
6.what's your products' advantages ?
A. good quality and competetive prices.
B. Strictly quality control when producing.
C. Professional team work, from design, development, producing,assemble,packing and shipping.
D. Aftersale services, if there is quality problem, we will offer you replacement for defective quantity.
Packaging&Shipping
The devices will be well packaged by carton with Foam or other shock proof materials.
Certification
Product Testing
Order Information
| BD-OP-RS485/AC | RS485 over fiber optical modem,one RS422 port,dual fiber,single mode,20km,power AC 220V |
| BD-OP-RS485/DC | RS485 over fiber modem,one RS422 port,dual fiber,single mode,20km,power DC 48V |
Contact us
If you have any interest in our product, please feel free to contact me in first time. We will provide a more preferencial price for the active contacted person.
| Official Website | //www.baudcom.com.cn |
| My name | Anne Li | |
| Skype | sales02_2000 | |
| sales02@ baudcom.com.cn | ||
| +8617701868283 | ||
| 17701868283 |
Related Products
 |  |  |  |

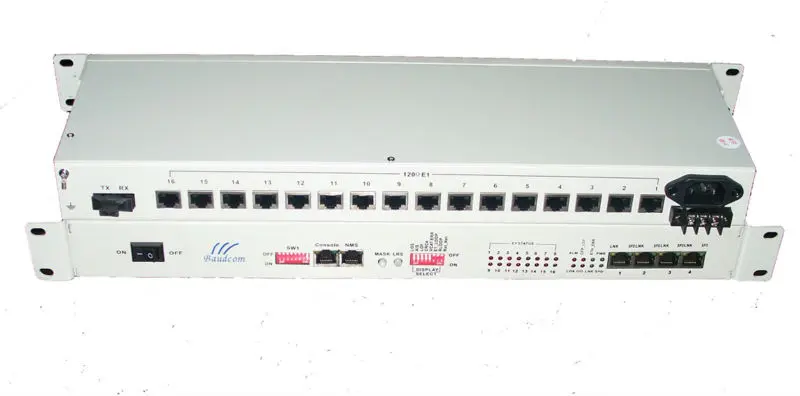

| E1 fiber modem | optical ethernet over 16E1 | E1 TDM over IP | Fast Ethernet Media Converter with SC/ST/FC optical connectors |
 |  |  | |

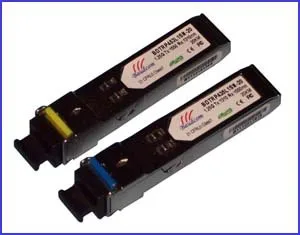

| 8port GPON OLT | 1000M SFP transceiver module Up to 1.25Gb/s | FTTX application4FE+POTS+CATV Triple Play ONU | Ethernet over T1 converter for high-speed LAN-to-WAN |
