Rotary 5k RV24YN20S b502 potentiometer

Product Overview

Description

Rotary 5k RV24YN20S b502 potentiometer

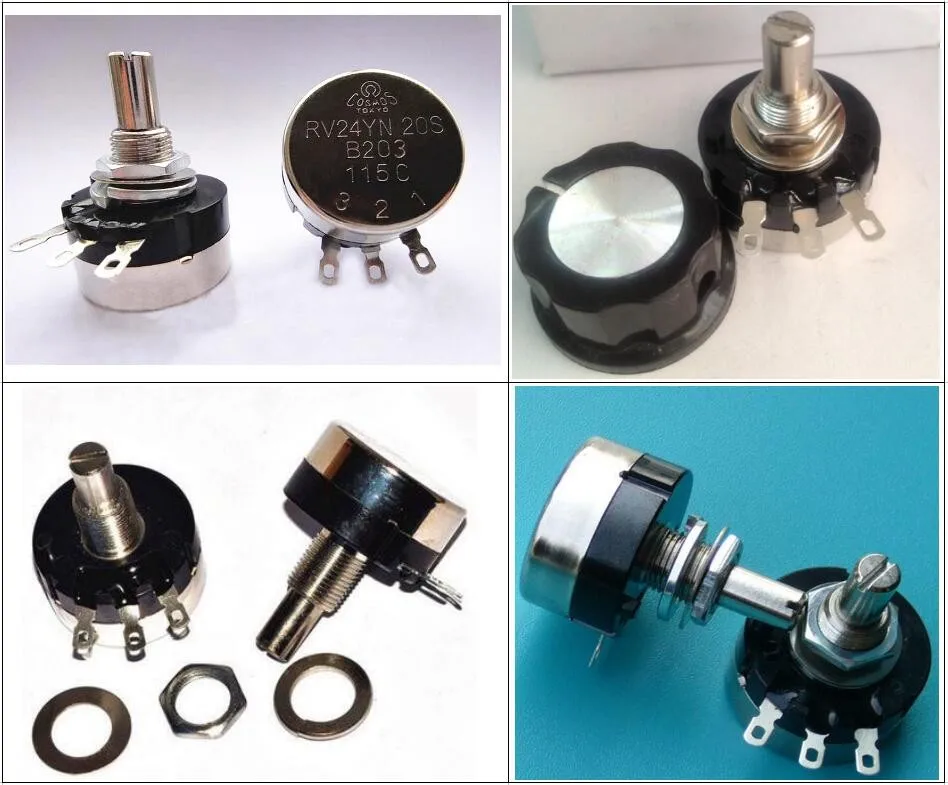

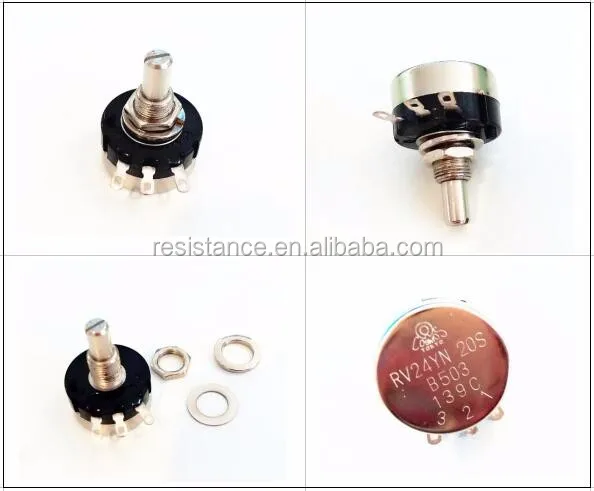

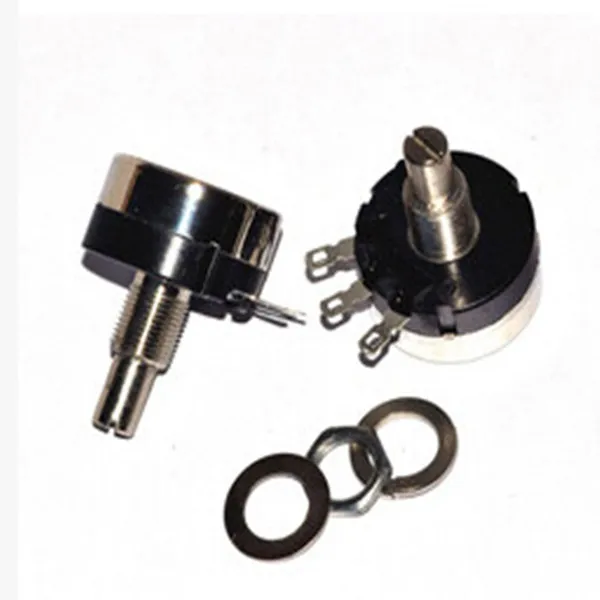

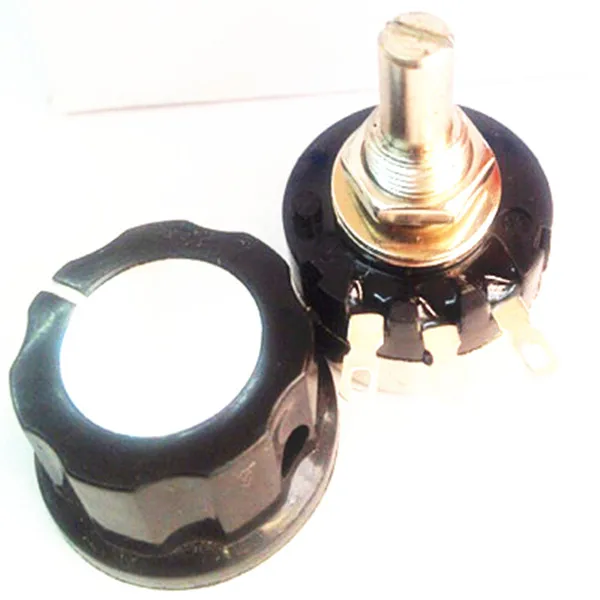

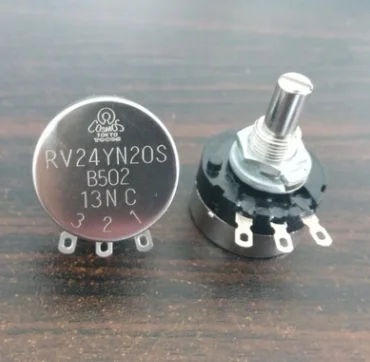

♦product Picture details:

♦product Dimentions:

♦product Data Sheet:

Electrical characteristic:
Total resistance range		B50Ω~B2MΩ A,C:1KΩ~2MΩ
Resistance tolerance		±10%
End resistance		≤3Ω
Resistance taper		B(Linear) A(Logarithm) C(Reverse log)
Contact resistance variation		3% or 3Ω,whichever is greater
Power rating		B:0.25W/40℃,0W/85℃ AC:0.125W/40℃,0W/85℃
Max.input voltage		B:DC315V or power rating.whichever is smaller AC:DC200V or power rating.whichever is smaller
Insilation resistance		≥100MΩ
Dielectric strength		AC1000V 1 Minute
Electrical angle		280°±10°
Environmental characteristic:
Soldering heat		350℃ 3sec
Rotation life		15,000 cycles
Load life		1000 hours with rating load
vibration		3 directions for 2 hours each,Amplitude 1.5mm
Temperature characteristic		-10℃ 30 minutes without load
Low temperature exposure		1 hour without load
Moisture and load lift		40℃ 90~95%RH 500 hours
Mechanical characteristic:
Mechanical angle		300°±5°
Shaft torque		5~30mN.m(51~306gf.cm)
Stop strength		900mN.m min.(9.18kgf.cm min.
Operating temp.range		-10℃~+85℃
Solderability		235℃,5 sec
Nut tightening torque		1470mN.m max.(15kgf.cm max.)
