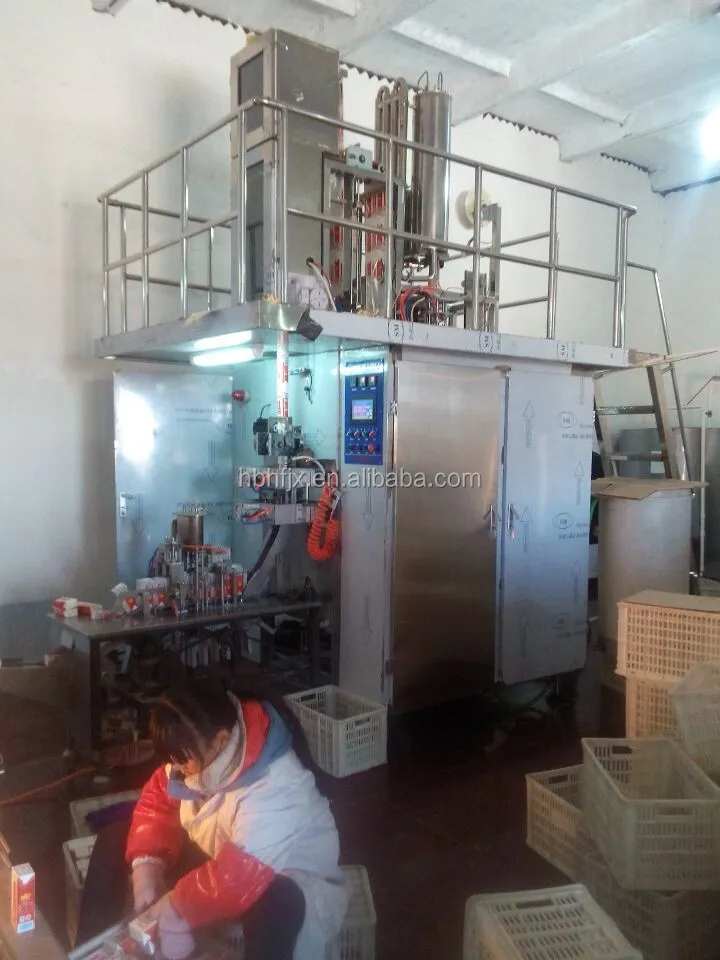

Automatic Production Line Pet Carton Box Aseptic Packing Machine Beverage Filling Machine

Share on (60711891980):


Price:

Quantity:


Product Overview

Description


Automatic Production Line Pet Carton Box Aseptic Packing Machine Beverage Filling Machine

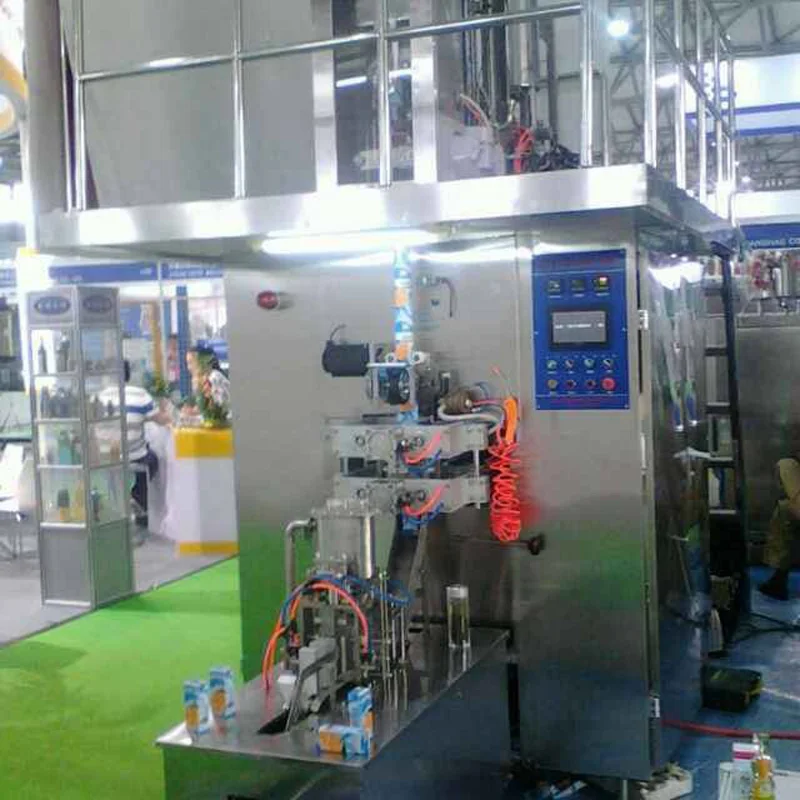

juice filling machine.jpg

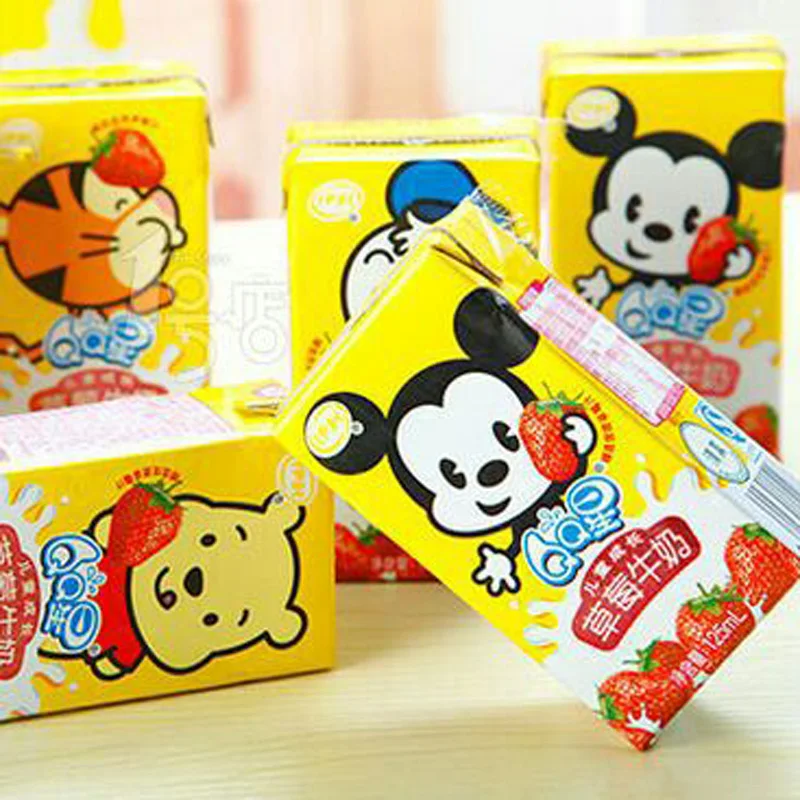

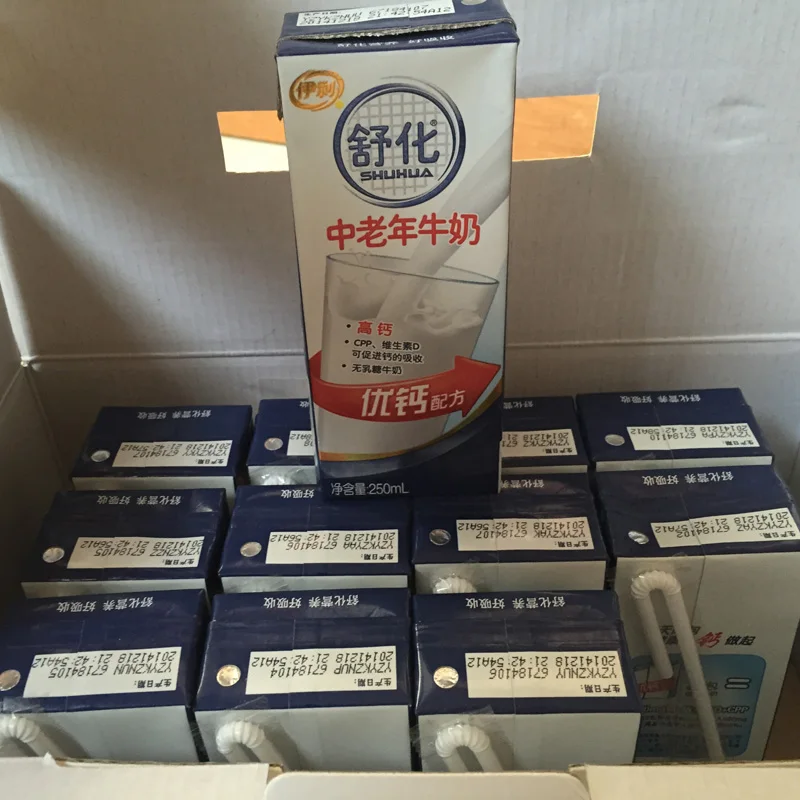

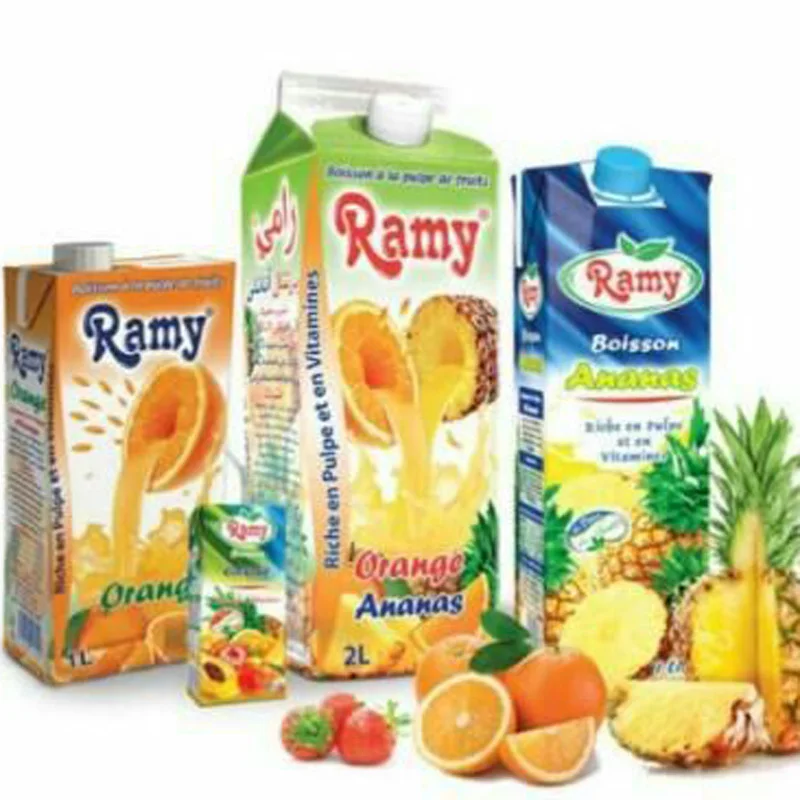

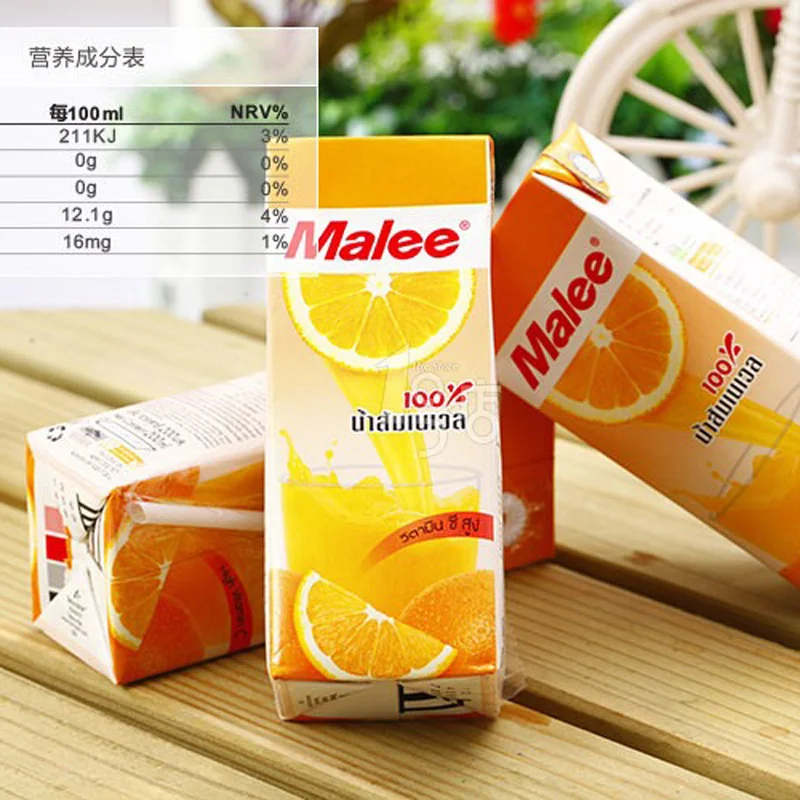

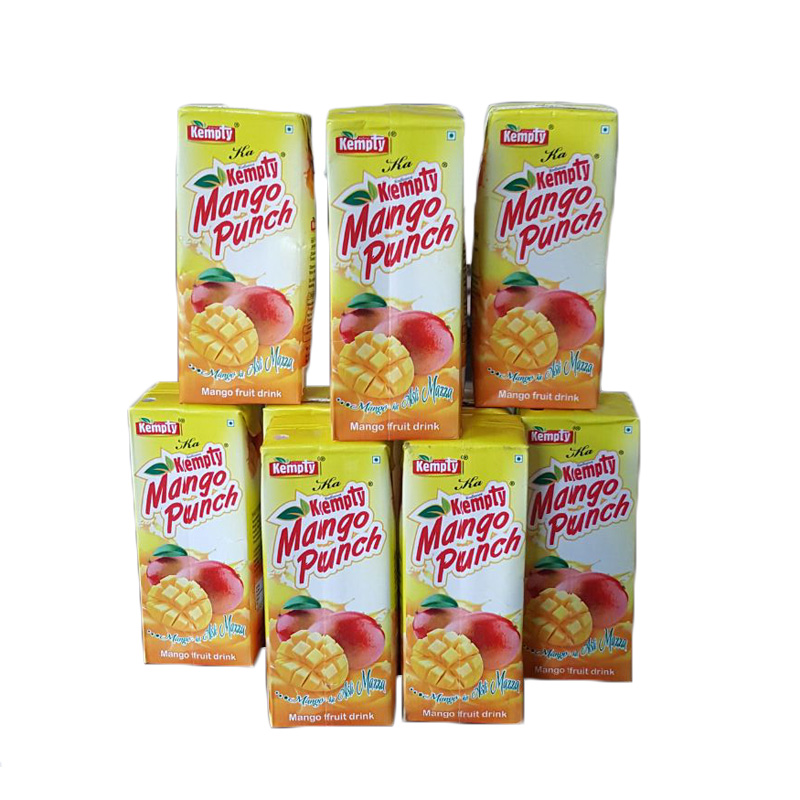

cartons.jpg IMG_0139.JPG BOXER.jpg boxes.jpg IMG_0478.JPG

.png

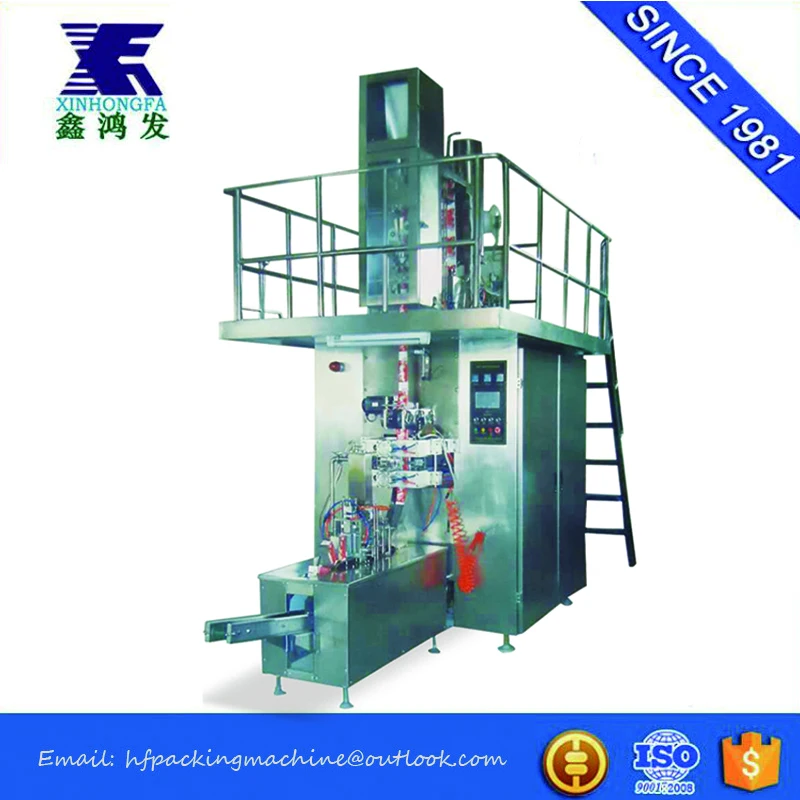

HF-WZJ-A2000 Aseptic carton Box filling packing machine

Product Description



TypeHF-WZJ-A2000
Filling volume200-250ml
product nameAutomatic Aseptic carton box filling machine
shelf life6-12 month
Filling speed1600-2000 box/hour
overall Dimensions4000mm(L)x1900mm(W)x3500mm(H)
Weight1800kg
power source50HZ 380V/220V
Operating systemPLC System
chilling systempure water
Installed  power7kw
operational enviromentTemperature 15-30 degree ,Humidity 20-60%/rh
Air source pressure :0.6-0.7Mpa
Air consumption0.6m3/min (0.6-0.7Mpa)
Filling content temperature15-25 degree
steam consumption4.5kg/hr
Filling content viscosity<30cp
H2O2 usage amount 0.7-1.2L/hr
H2O2 concentration35%

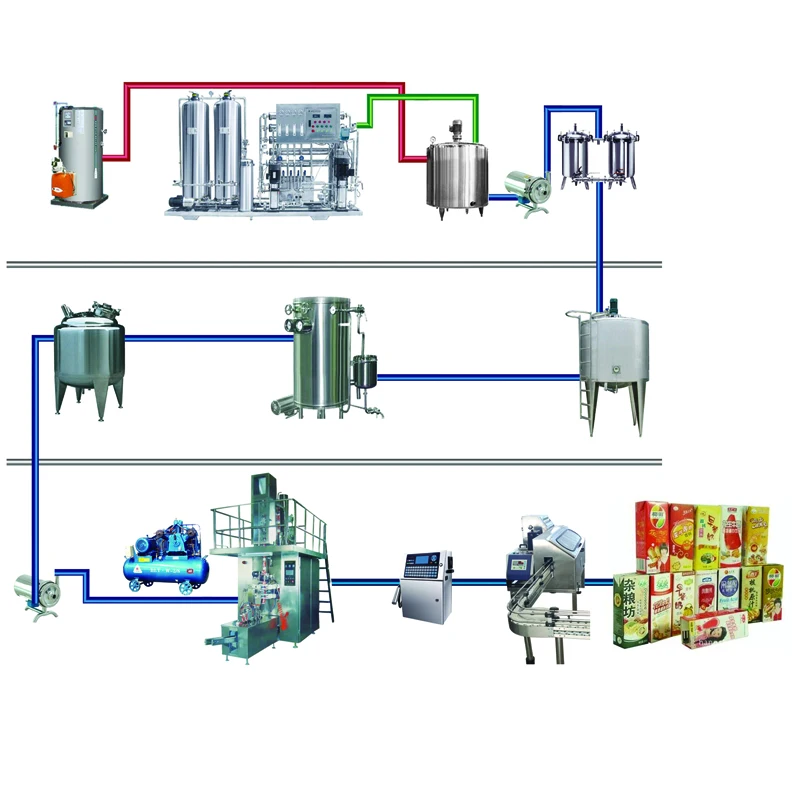

Production Line:
24-25 2.jpg
Machine Features :
  • < 1 The machine is suitable for filling milk ,juice ,wine and other Beverage
  • <2 Electrical Integration, High automation ,convenient to operate with PLC system
  • <3 Liquid level automatic control of filling volume can be more accurate
  • <4 Main components use worldwide famous brand

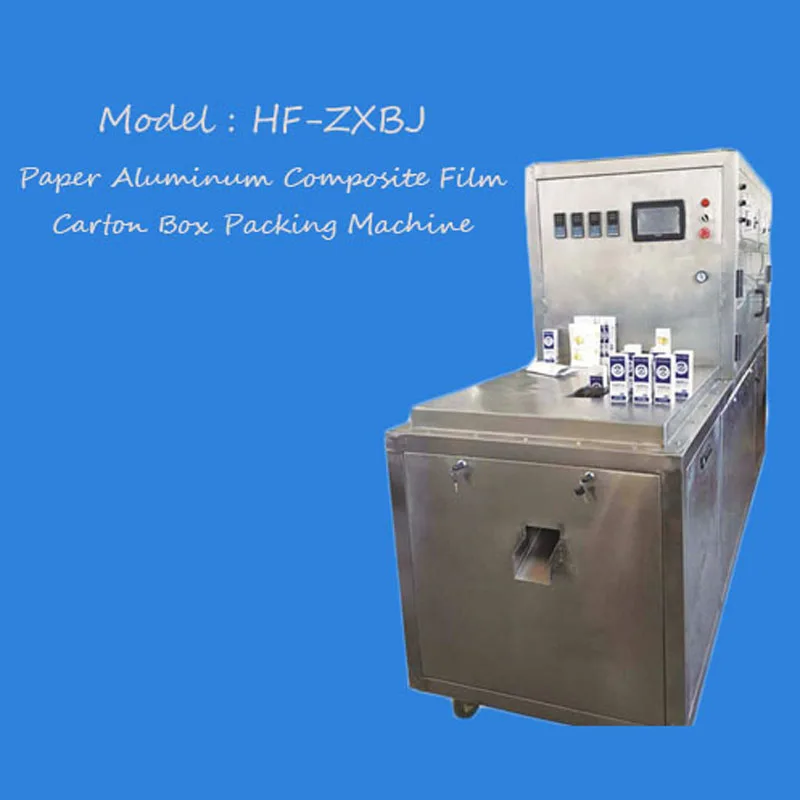

Our related Production:



12-13 2_.jpg

Packaging & Shipping



Packaging
Size
1300 (L) *680(W) * 1400 (D)
Weight
180kg



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.



Our Services
Delievery10-15days
payment Term30% deposit in advance, and the balance before shipment
Quality Guarantee12 months after installation



FAQ



Why our company is your correct choice in China

  • 1. Small profits and quick returns is our business policy, so the water filling machine is worth every cent.
  • 2. We focus on advanced supply chain management, which can ensure the raw materials are with goodquality and competitive price.
  • 3. Workers, engineers and boss of our company have spent more than 20 years in beverage machinery industry, so they have rich experience to provide Turn Key project Service.
  • 4. There are several engineers available to oversea service, the salary per day is cheap. As long as our customers need them, they can leave for your country as soon as possible, our principle to let our production line always runs normally.
  • 5. We can update the production status for our customer once per week, our target is to let our customer receive goods on time.
Company Information

 Being a provincial technological enterprise specialized in packaging technology and food machinery research (JKGZZ No. 013), Cangzhou Hongfa Institute of Packaging Technology of Hebei Province has made pioneering development in the research of packaging machine and other food machinery, and has acquired a number of national patents and scientific achievements such as“168” project, etc. The successful launch of HF-YX automatic computer-controlled photoelectric tracking liquid packaging machine has attracted a lot of attention from the industry of liquid packaging. It is highly praised by numerous manufacturers after use. Other mechanical products developed by the institute include aseptic packaging machine, ice pop maker, multi-purpose filling, sealing capping machine, high speed shear emulsifying machine, aseptic brick machine, liquid pillow filling machine, standing bag, special bag filling capping machine, etc. In addition, the institute can provide customized products according to different needs.
    “Hongfa” machinery has become a necessity for cold food, milk beverage, liquor, seasoning, edible oil and liquid chemical companies, etc. The products have been sold in over 20 provinces and cities at home and exported to Middle East, Europe, America, Russia and other regions and countries.







ISO9001CEPatent
