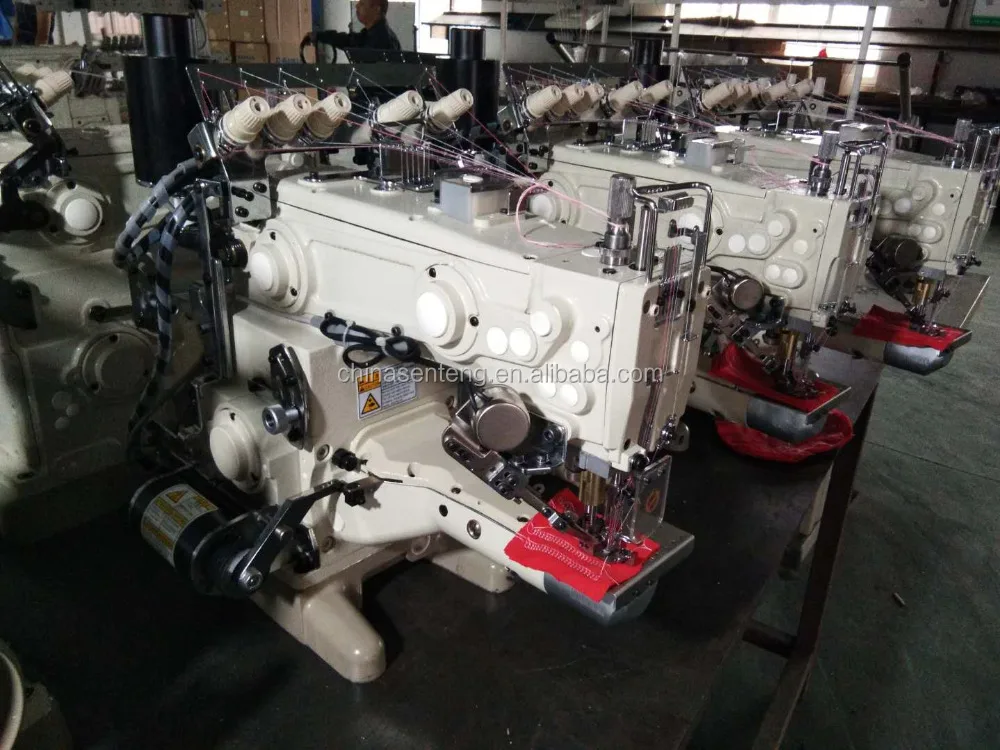

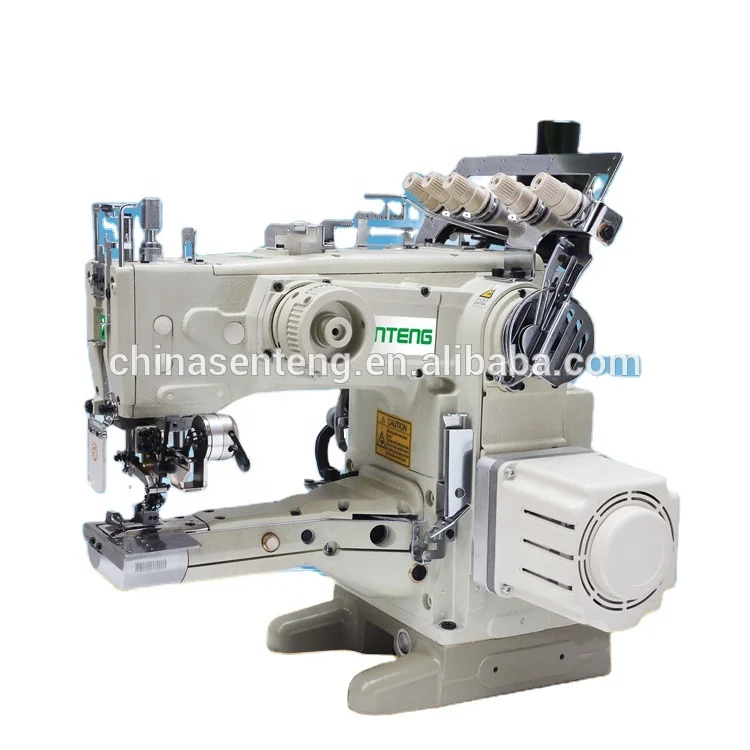

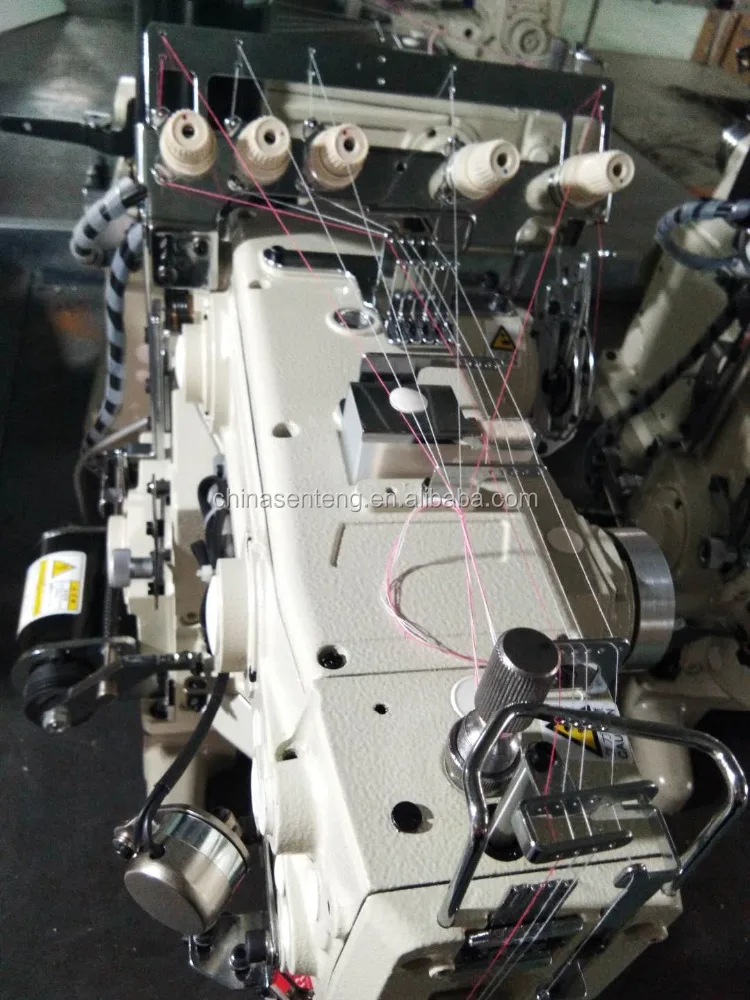

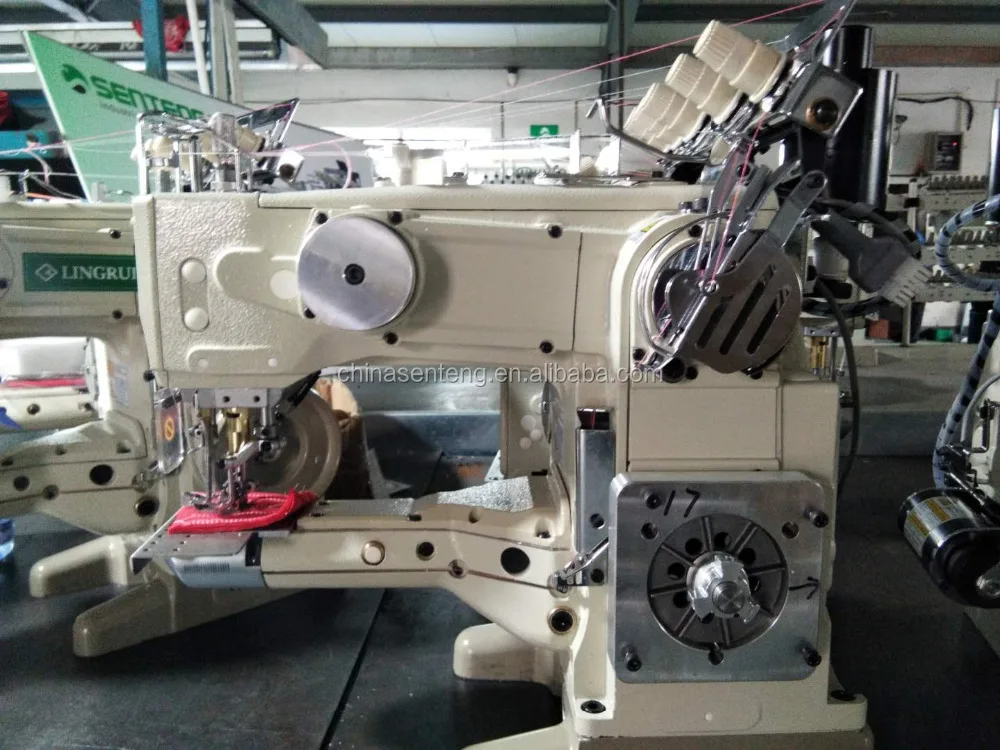

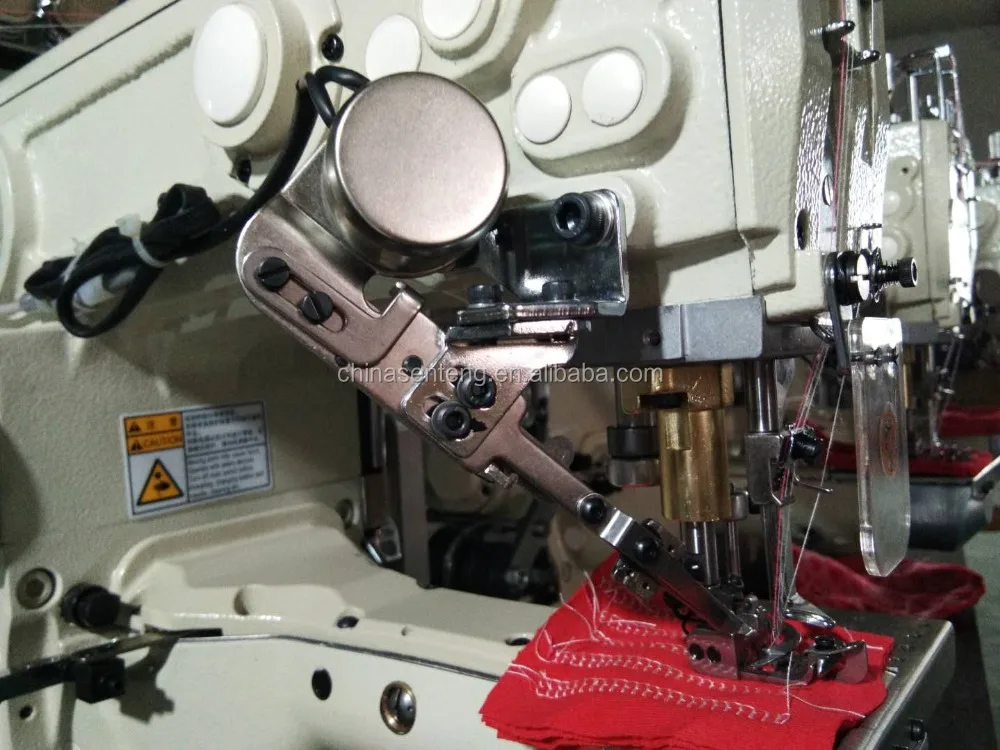

ST 1500 156M UT Feed up the arm automatic thread cutting interlock sewing machine

Product Overview

Description

 This machine is suitable for some special process in garment making,interlocking and cover sewing of small caliber parts,such as collar,sleeve,elastic lace of a kind of garment,specially suitable for knitting wear,sports wear,swimming suit and all kinds of leisure clothes,jacket etc.appilicable to sewing of cotton wool,cloth and knitting wear for garment factory.

1. This machine is 3 needle , 5 thread interlock machine,can be with upper decoration thread,the stitch is autiful.

2.This machine is with good out-look,reasonable tructure,adopt two sets timing-belt,accurate transmission and able working.

3.This machine is with all-sealed lubrication system and automatic oil-supply,just need to add oil for one time per yuar,full lubrication,good sealed,clean and environment protection.

4.This machine can realize"one machine multi-function"just by changing the needle plate.

5.Easy to operate,can conveniently change the stitch from 1.2-4mm by push buttons,can easily changing the difference ration from 1:0.8 to 1:2by knob.

6.All the spare parts adopt good quality alloyed steel,and with special sclerosis treatment,to enhance the wear resistance of the machine,low noise,low vibration,long working life.

7.This machine is with security equipment of finger-guard,eye-guard,etc,can be used safely.







Characteristic:





Model	Number of  thread	Needle type	Needle  gauge	Stitch  length	Ratio	Presser  foot lift	Needle stroke	Max Speed  (rpm)
ST 1500-140M	4-5	UY128GAS  9#-16#	4.0mm	1.2-4mm	1:0.8-1:2	9mm	31.5mm	4000
ST 1500-148M	4-5	UY128GAS  9#-16#	4.8mm	1.2-4mm	1:0.8-1:2	9mm	31.5mm	4000
ST 1500-156M	4-5	UY128GAS  9#-16#	5.6mm	1.2-4mm	1:0.8-1:2	9mm	31.5mm	4000
ST 1500-164M	4-5	MY1014B  9#-16#	6.4mm	1.2-4mm	1:0.8-1:2	9mm	31.5mm	4000
ST 1560-160M-L	4-5	MY1014B  9#-16#	6.0mm	1.2-4mm	1:0.8-1:2	9mm	31.5mm	4000
