Product Overview

Description

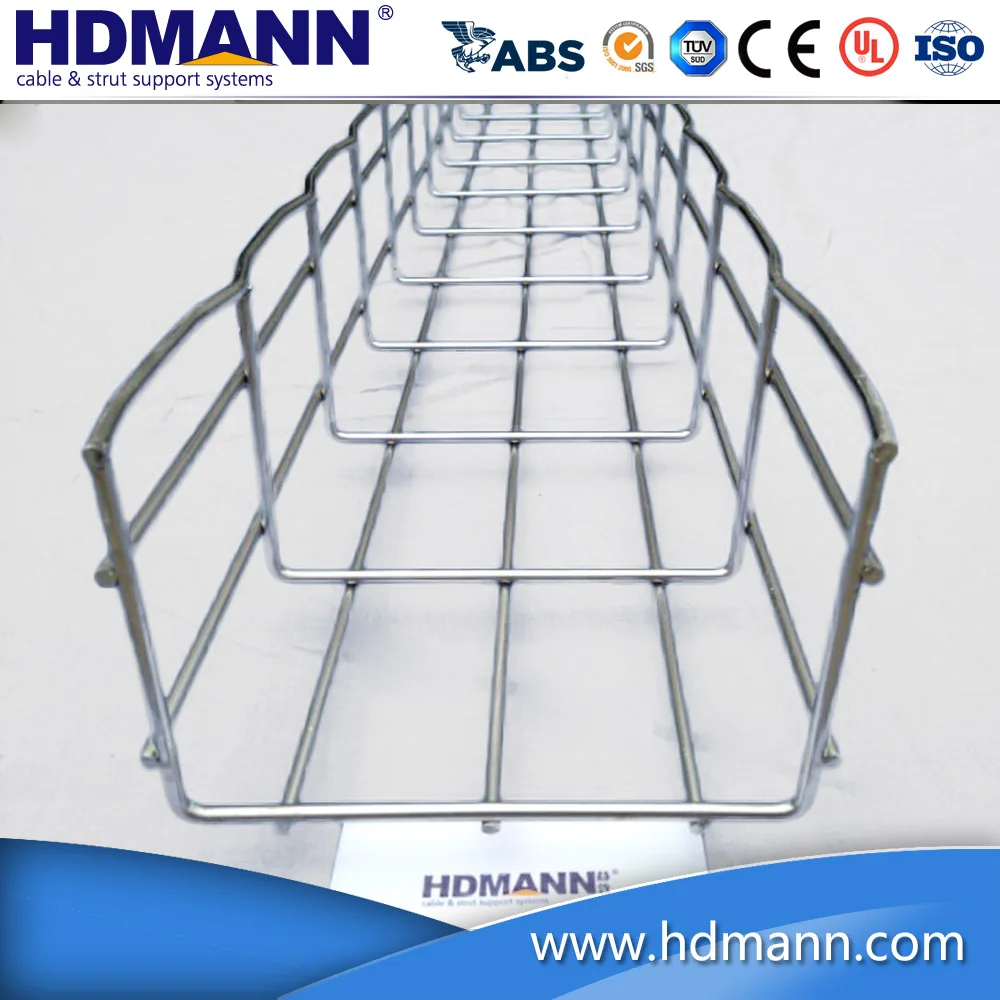

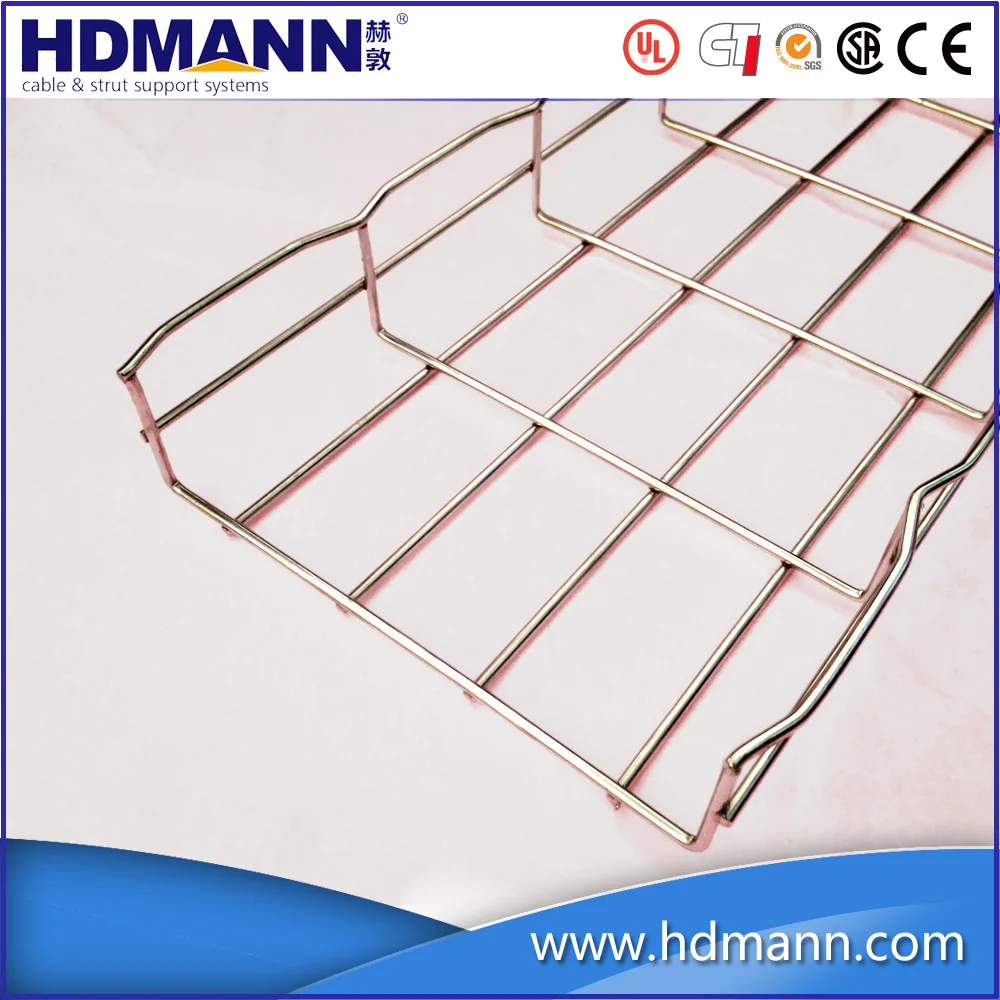

wire mesh cable tray basket type cable tray



HDMANN WIRE MESH CABLE TRAY SYSTEM

 HDMANN wire mesh cable tray is constructed of precision engineered, high quality, welded steel wire and is the result of decades of research gained from the installation of 94,000 miles of tray across the globe.

 Our wire mesh cable tray is subjected to testing at every stage of the manufacturing process. In actual use, it has performed in a wide variety of office buildings and is widely used for from heavy power cable pathways on oil drilling platforms to data installation above the ceiling. wire mesh cable tray

 Our wire mesh cable tray is alailable in depths of 25-150mm, and in a variaty of widths, ranging from 30-1000mm. The standard finish is electroplared zinc after fabrication. A variaty of other finishes available are including hot dipped galvanized after fabrication, pre-galvanized as well as multitude of colors in powder coating. The wire mesh cable tray is also available in type 304 and 306 stainless steels for extremely corrosive enviroments. wire mesh cable tray

 As for the wire mesh cable tray fittings, the fittings can be fabricated in field. However, to expedite installation, HDMANN  offers factory assembled horizontal fittings. The pre-fabricated fittings are time-saving and cost-effective compared with the field-fabricated horizontal fittings, which enjoys a great reputation. A complement of accessories and brackets used for wire mesh installation are also provided. See our catalogue unpon request. wire mesh cable tray



WIRE MESH CABLE STANDARD SPECIFICATION

Table of standard wire mesh cable specifaction
H*W	Profile wire Nos	Wire dis(mm)	Weight(kg/meter)
35*100	4	4	0.58
35*150	5	4	0.73
35*200	6	4	0.89
35*300	8	4	1.2
50*50	5	4	0.66
50*100	6	4	0.82
50*150	7	4	0.97
50*200	8	4	1.12
50*300	10	5	2.24
50*400	12	5	2.72
50*450	13	5	2.96
50*500	14	5	3.2
50*600	16	5	3.68
50*750	19	6	6.35
50*800	20	6	6.69
100*100	8	4	1.13
100*150	9	4	1.28
100*200	10	4	1.43
100*300	12	5	2.72
100*400	14	5	3.2
100*450	15	5	3.44
100*500	16	5	3.68
100*600	18	5	4.16
100*750	21	6	7.04
150*200	12	5	2.72
150*300	14	5	3.2
150*400	16	5	3.68
150*450	17	5	3.92
150*500	18	5	4.16
150*600	20	5	4.65

 Finishes&materials: HDG, Pre-galvanized, Electronic-galvabized, Powder-coating, stainless steel 304/316, GI

Lenghth: Maximum 3000mm wire mesh cable tray

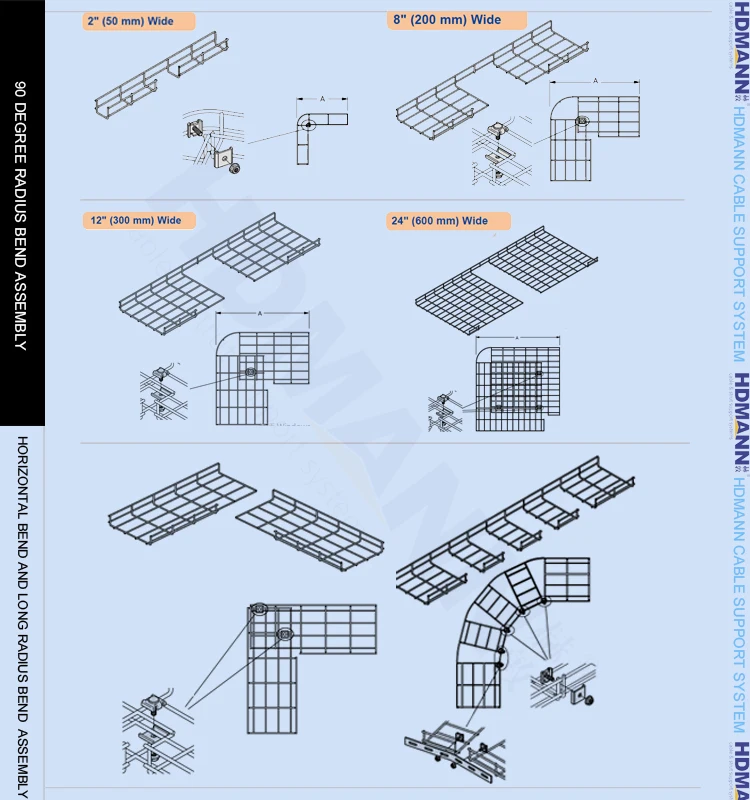

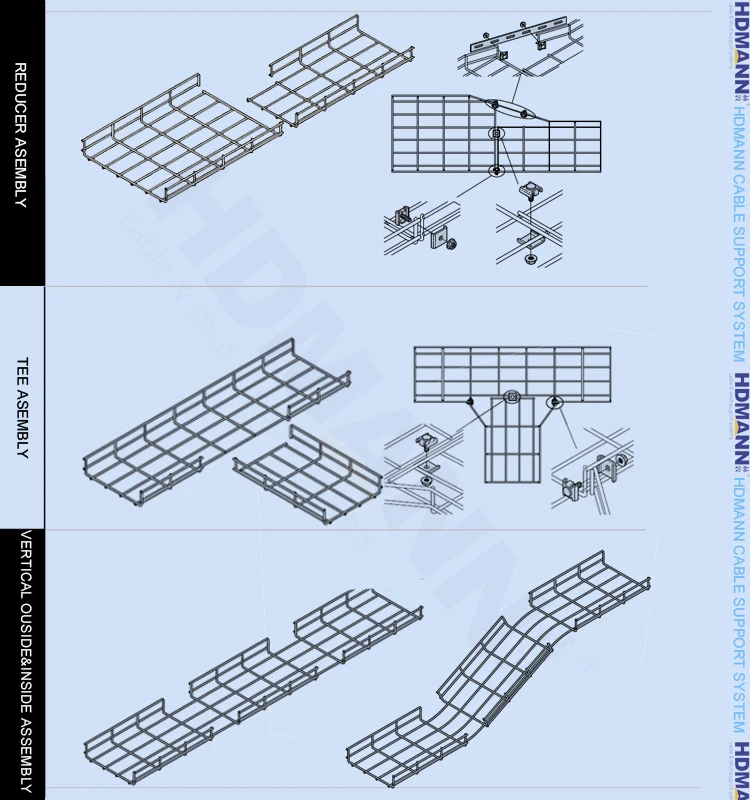

FIELD-FABRICATED FITTINGS SEL-ASSEMBLY INSTRUTION

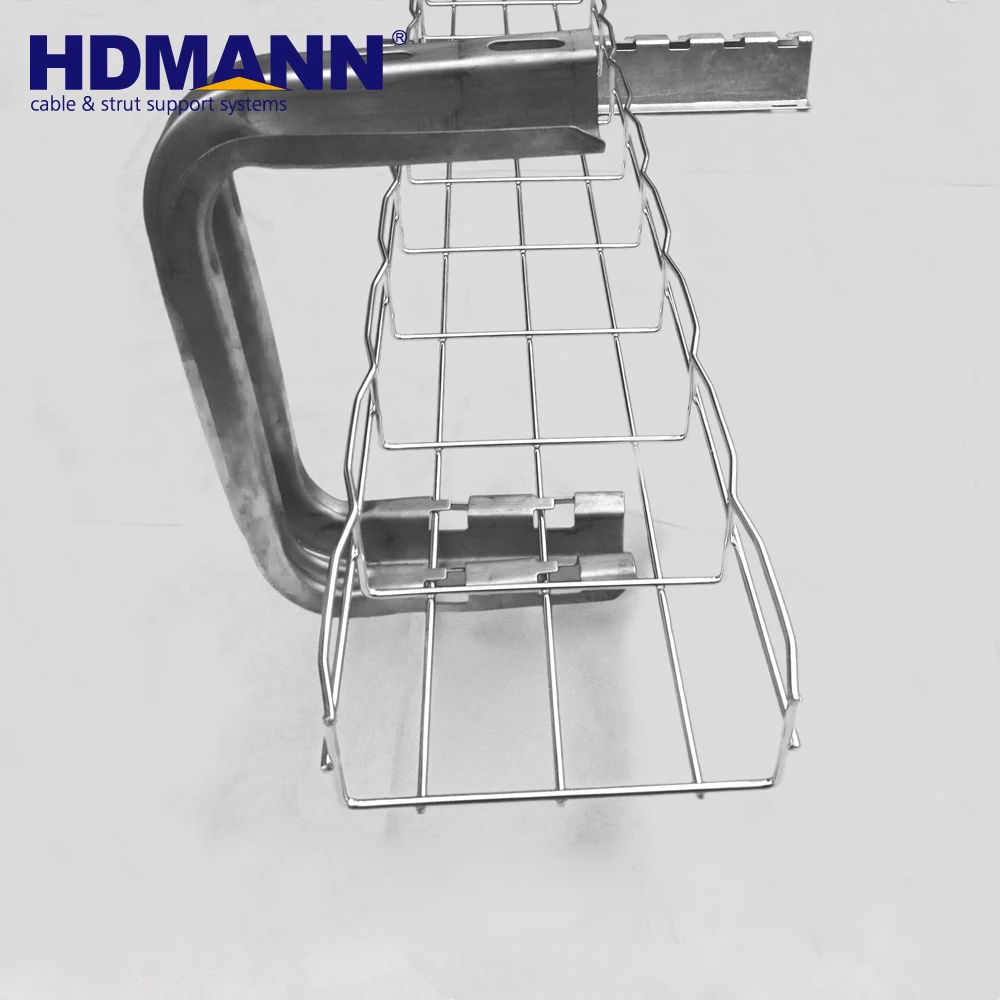

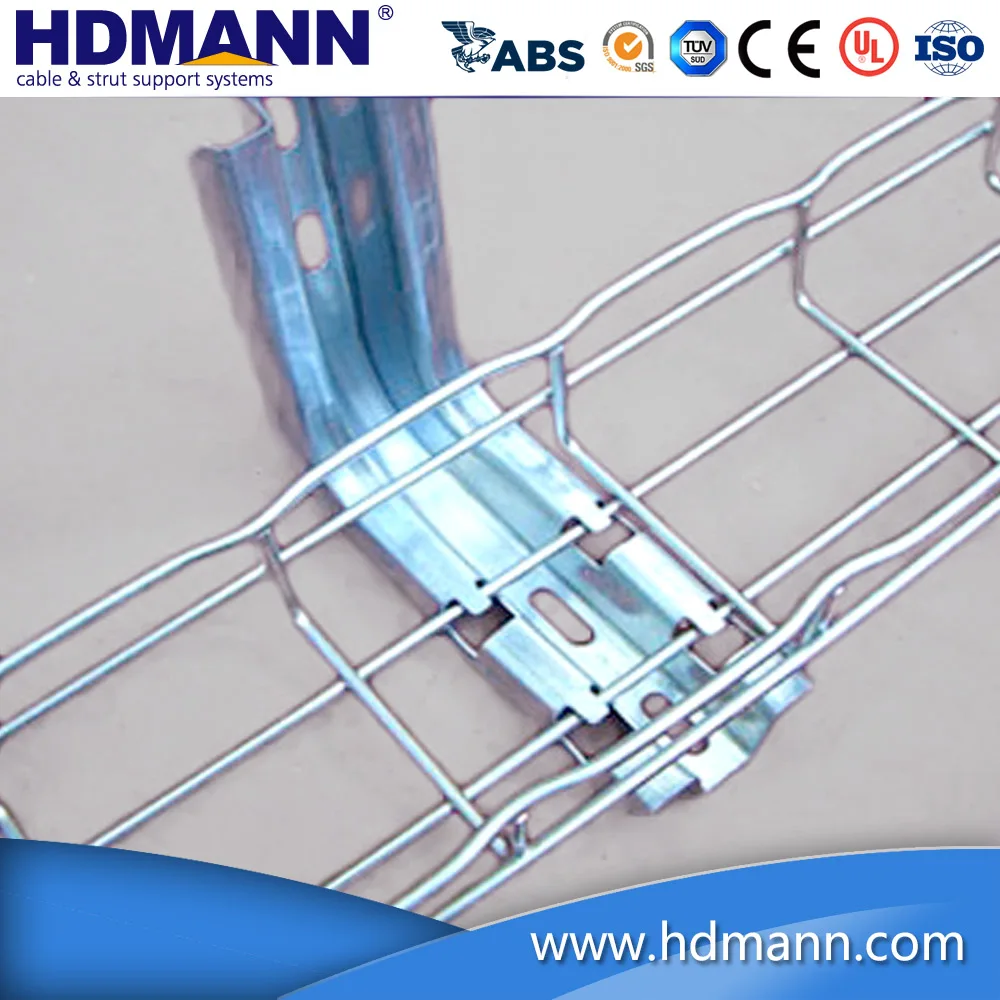

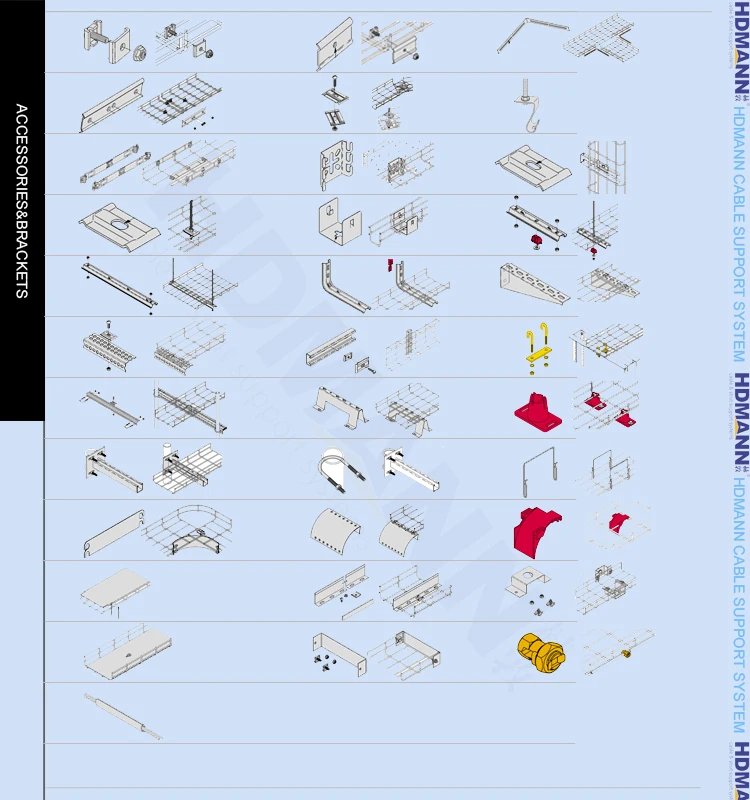

WIRE MESH CABLE TRAY WITH A COMPLETMENT OF ACCESSORIES AND FITTINGS

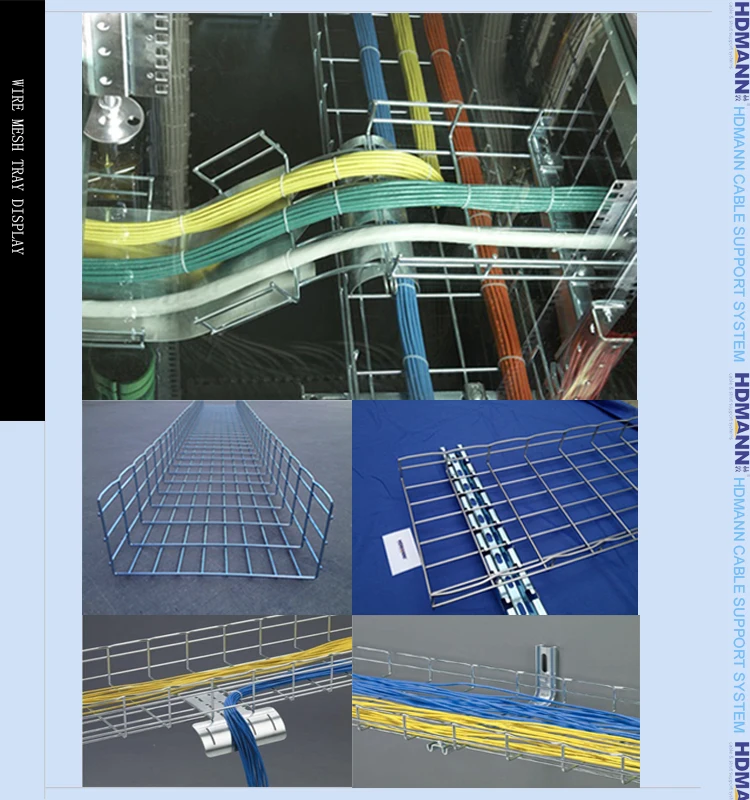

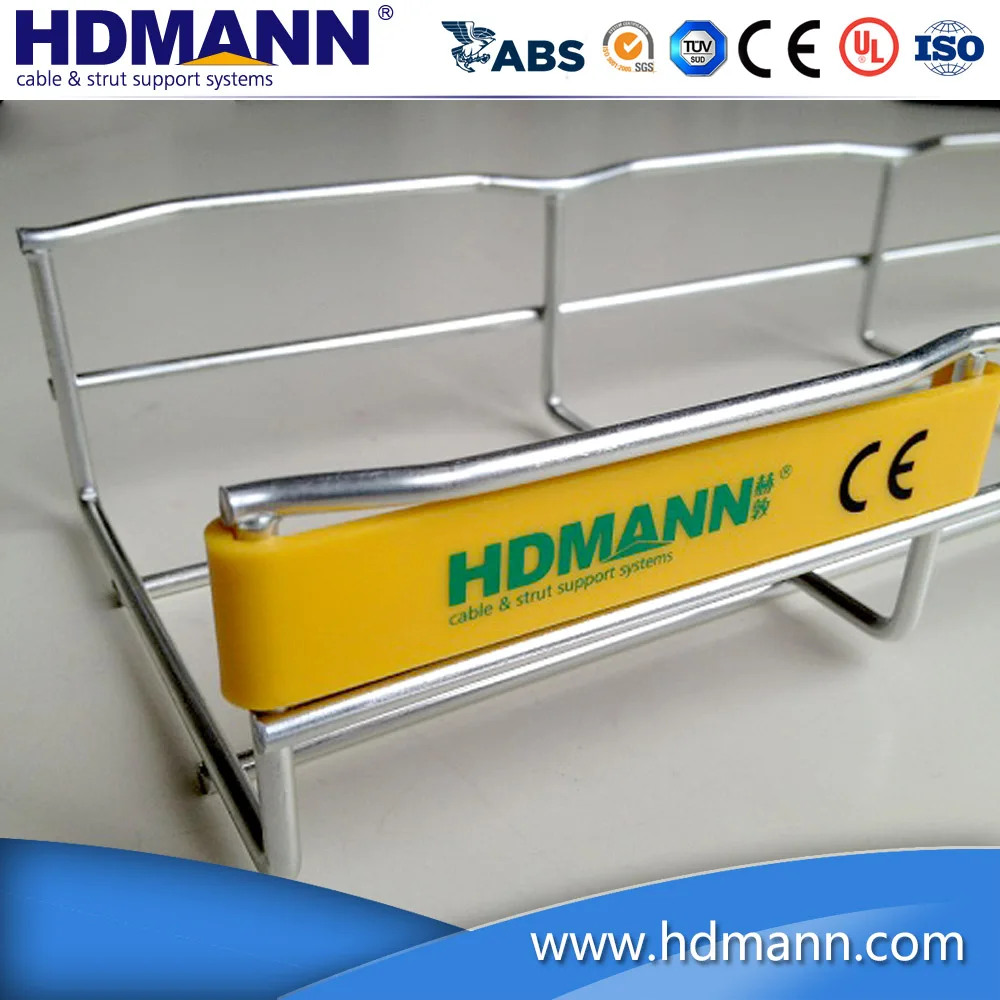

REAL WIRE MESH CABLE TRAY DISPLY

WIRE MESH CABLE TRAY PRODUCTION LINES

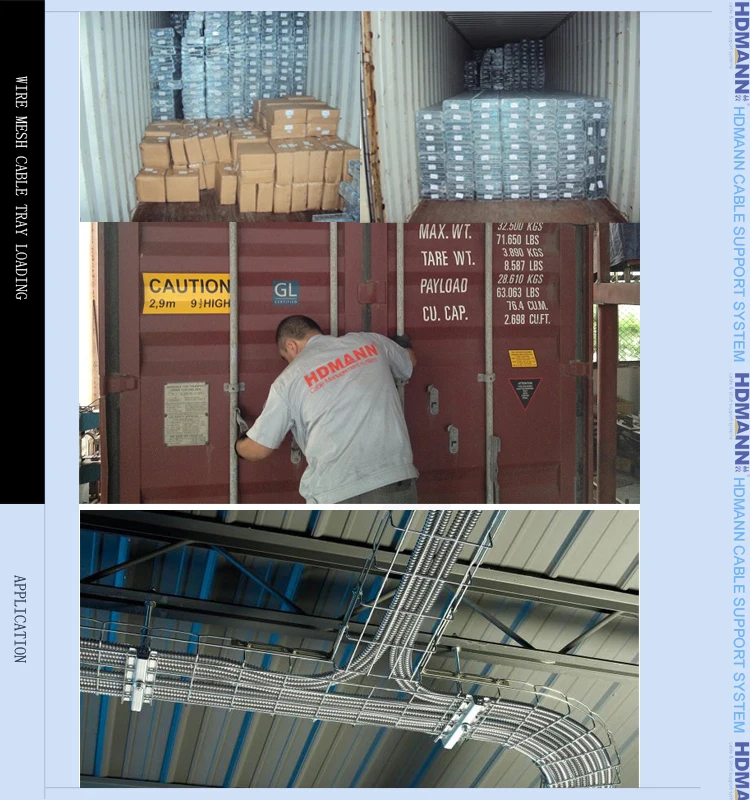

WIRE MESH CABLE TRAY LOADING SITE



 HDMANN INDUSTRY CO., LTD---CABLE SUPPORT&FRAMNG SYSTEM

CHINA LEADING OEM SUPPLIER IN THE LINE OF CABLE SUPPORT

CERTIFICATION



What is the type of our bussines?

We are a exporter and manufacturer, and have factories in China.

What are the trading terms we practice?

Generally, we practice FOB/CIF/C&F and DAP.

What are the payment terms we accept?

T/T, L/C, NEGOTIABLE

What is the delivery time?

Generally, it would take 10-20 days to finish the production for normal order quantity.

Can we provide the samples?

Yes, sample is free.
