XJZ YW2 Industrial Used Fire Alarm System

Product Overview

Description

Brief introduction

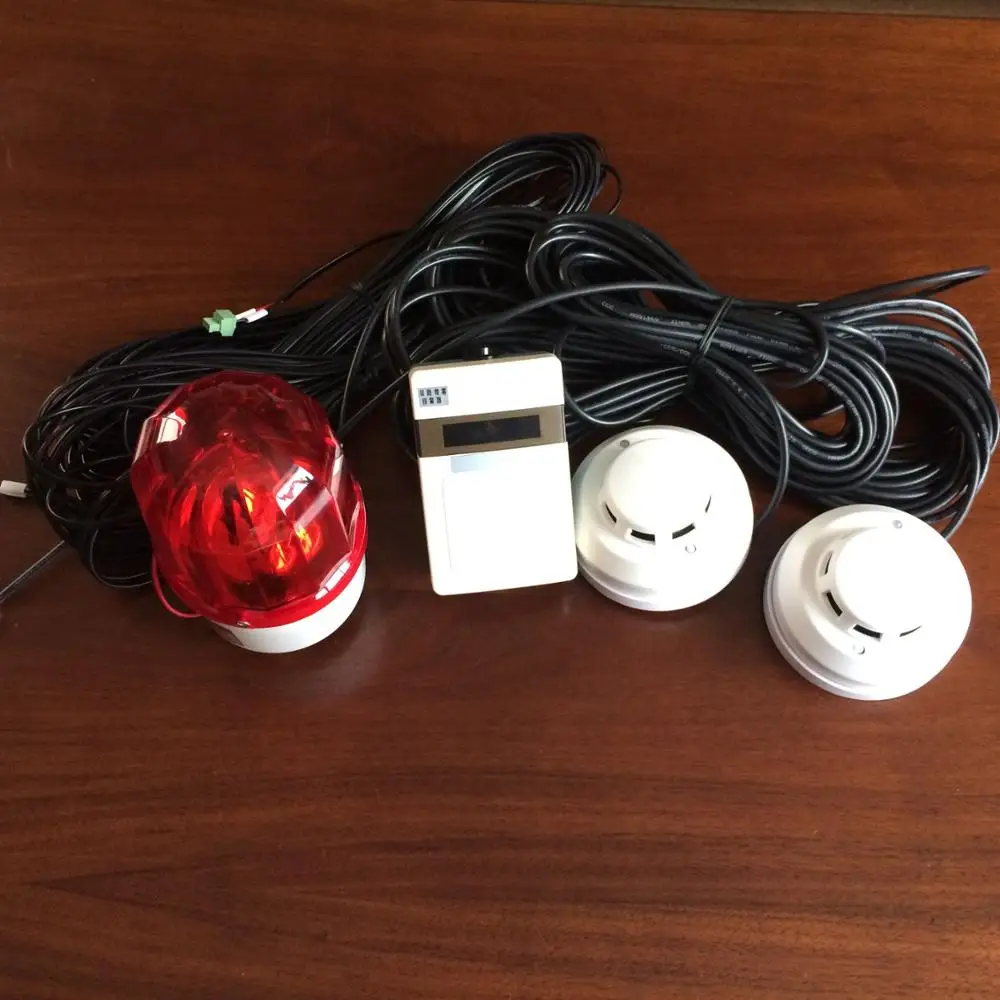

This smoke alarm system is widely used on unattended areas. With an outdoor audible and visual alerter, it works after powered on and is very easy for installation and operation. The system is composed of 1 controller, 2 smoke detecting sensors, 1 outdoor audible and visual alerter and connection cables.



Main functions

1.    Fire monitoring;

2.    Smoke alarm output;

3.    Alarm manual test;

4.    Alarm reset

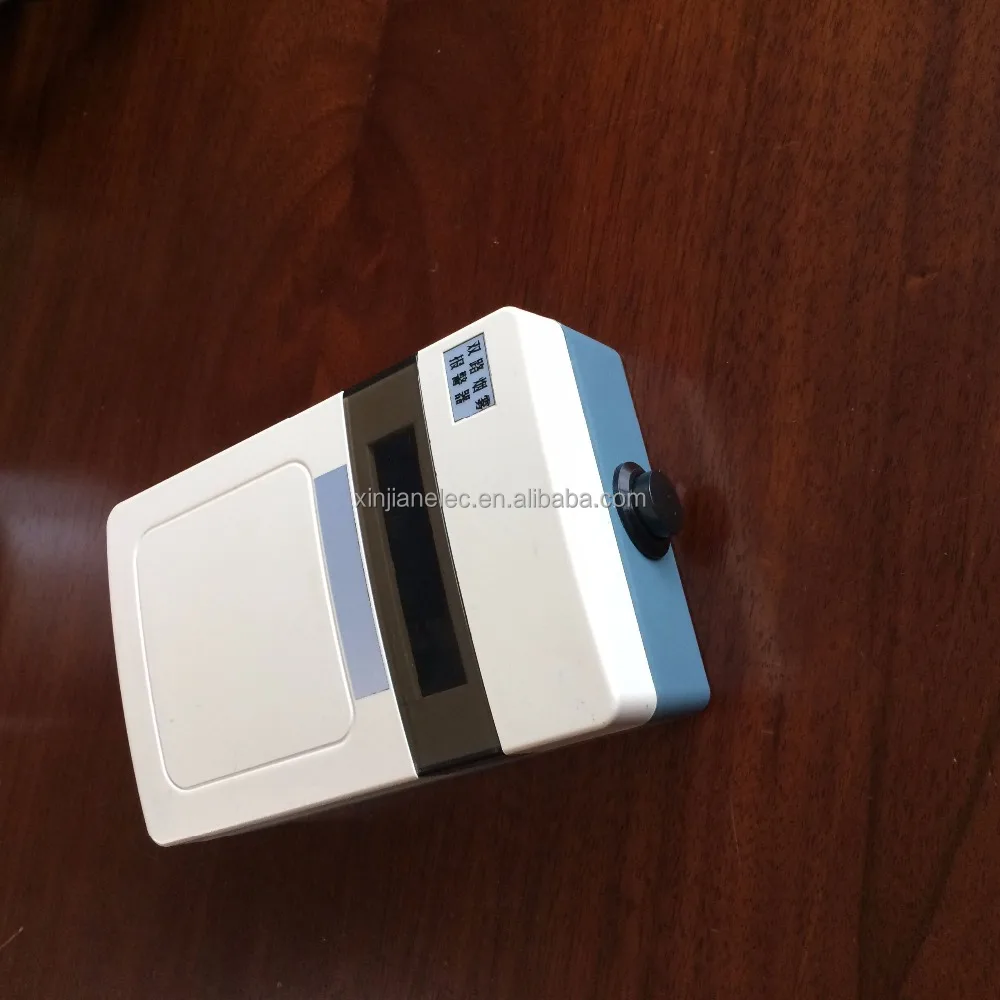

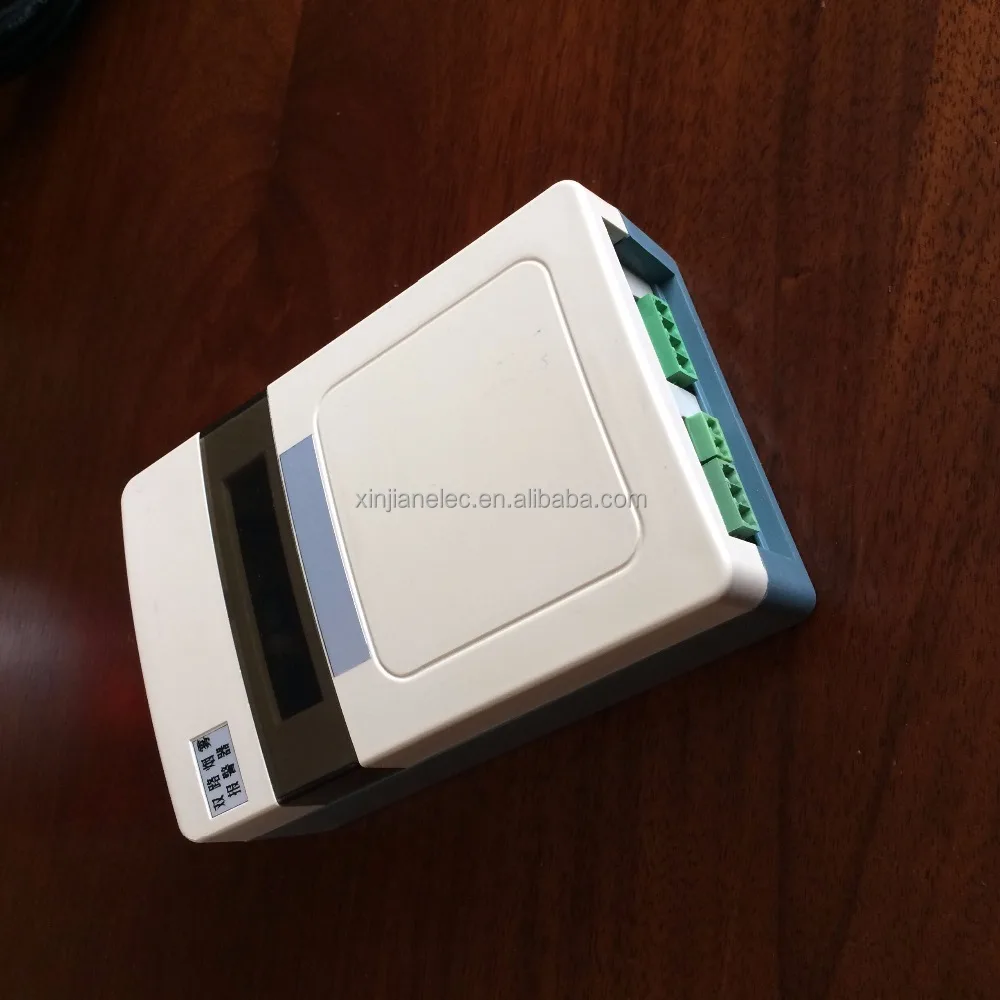

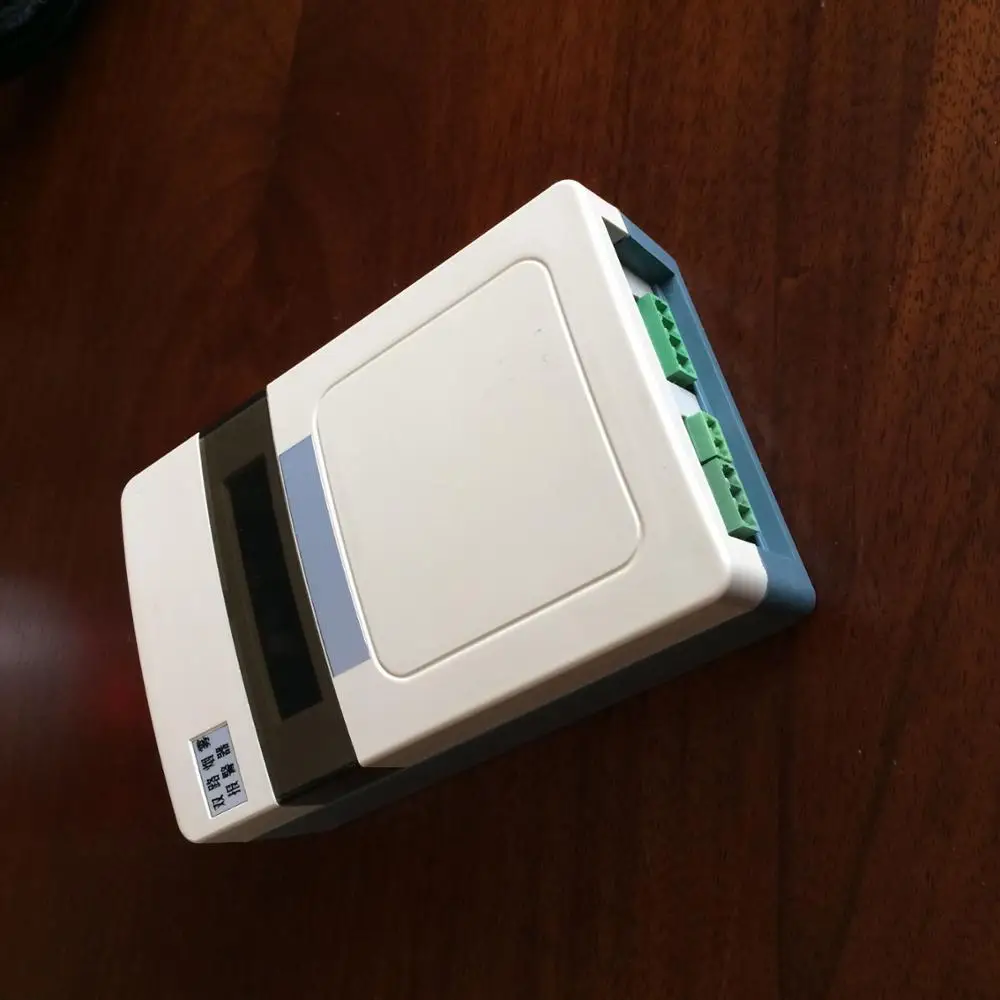

Controller technical parameters

Operating voltage	AC 220V,50Hz
Operating temperature	-10 ~ 60℃
Channels of smoke detecting	2 channels
Alarm output capacity	1 alarm output, 3A@AC 220V
Mounting	Wall mounted
Controller size	120x75x40mm

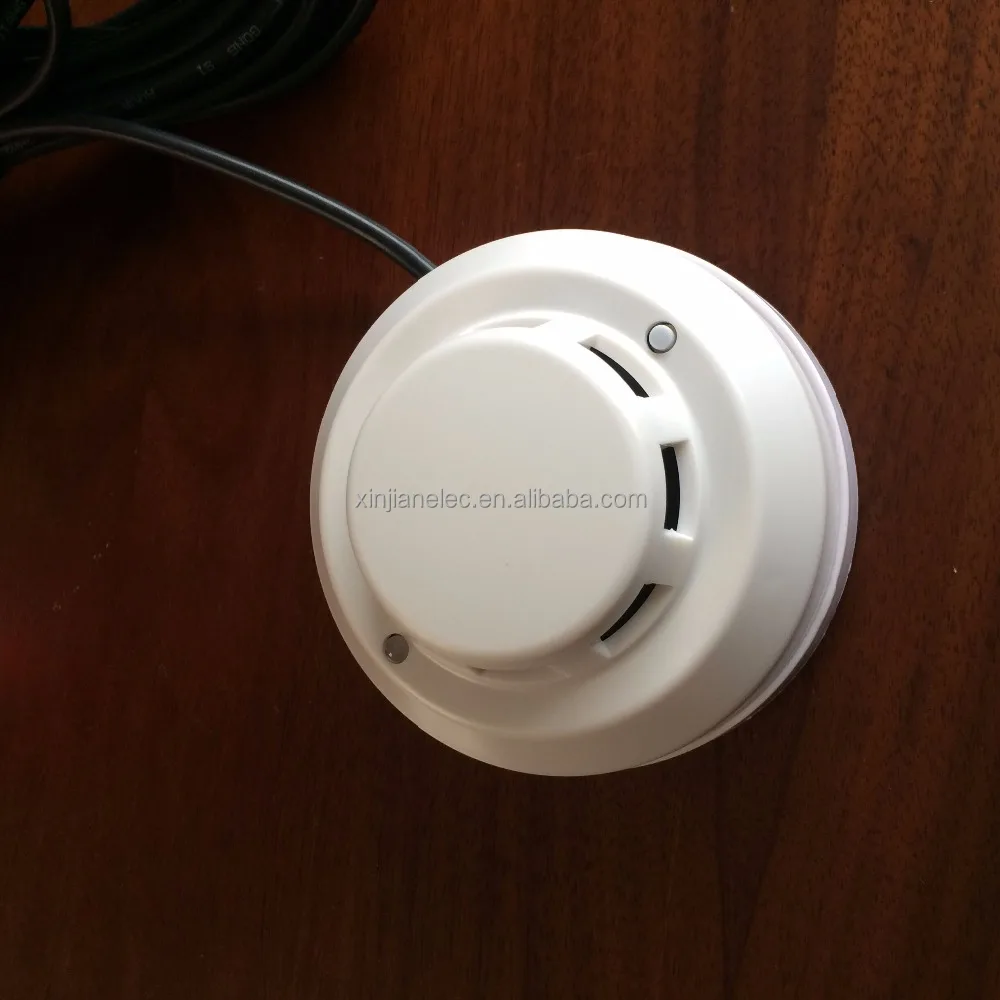

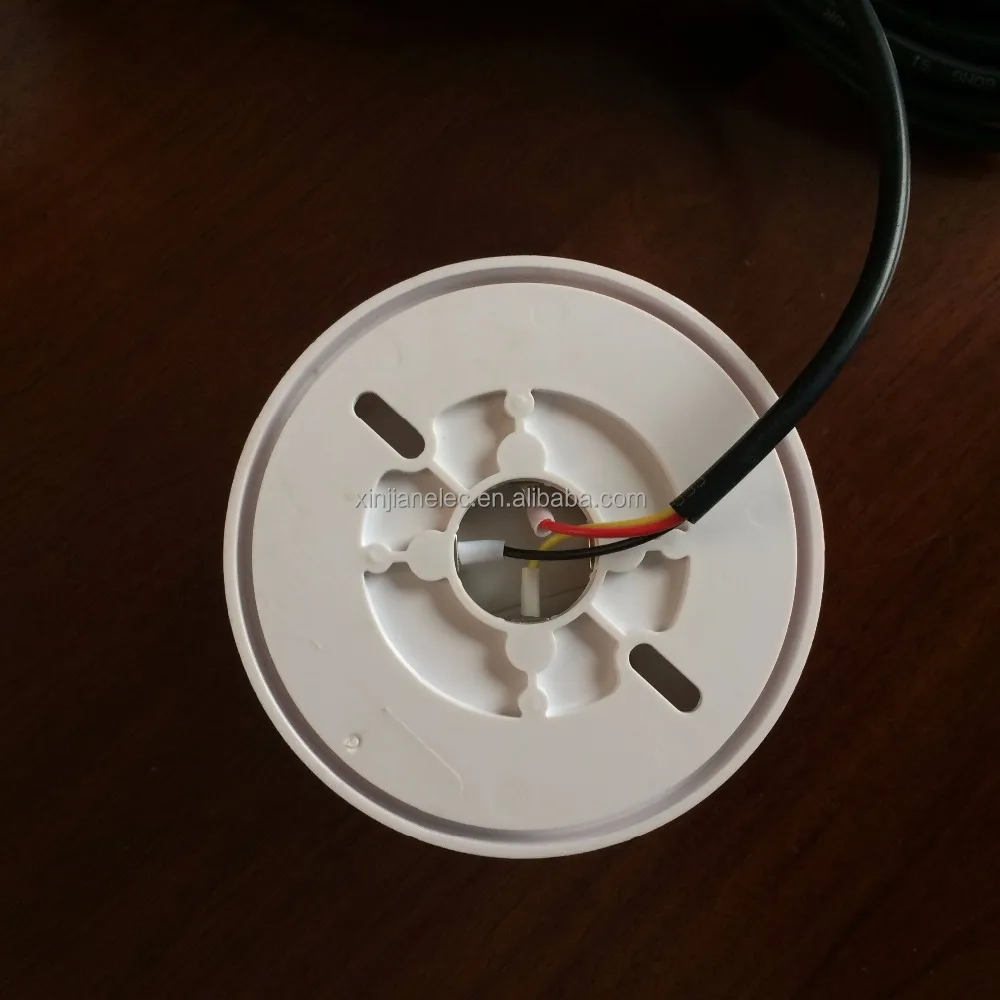

Smoke detecting sensor technical parameters

Operating voltage	DC24V, powered by controller
Operating temperature	-10 ~ 60℃
Operating current	Static current 8mA; alarm current ≤55mA
Detecting range	20 m2
Output	NC(already set, don't change it)
Alarm mode	Network alarm signal
Mounting	Ceiling mounted
Size	104x51mm



Outdoor audible and visual alerter technical parameters

Operating voltage	AC 220V, powered by controller
Color	Red
IP grade	IP55
Work mode	Rotate
Alarm sound	90 dB
Mounting	Rack mounting
Size	160x98mm





Product pictures



About our company

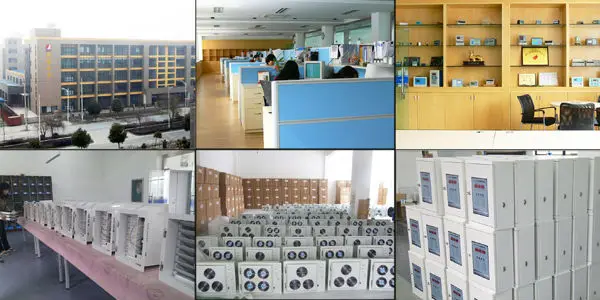

Hangzhou Xinjian Electronic Co., LTD. is an ISO9001 certified manufacturer, and also is a hi-tech company. It has been specialized in designing and producing industrial control solution since 1997. All products are designed and made for the global market, and we’ve offered OEM/ODM service to world-class brands. We have been highly recognized not only for its good quality but also excellent after-dales services both in domestic and international market.
