12 Volt DC Voltage Monitoring Relay SVR1000/D12 Voltage Detection Device

Product Overview

Description

SVR1000/D12 single phase monitoring voltage relay DC12V universal protector relay

SVR1000D/DC12



♦ Features

    -- Powered by the measuring circuit

    -- Compatible with AC and DC supply

    -- Built-in LCD and keypad afford a precise,digital setting

    -- Compact modular 43mm  housing

    -- Adjustable over- and undervoltage threshold

    -- Independent adjustable delay time for overvoltage, undervoltage

    --  Adjustable reset mode:automatic reset or manual reset

    -- 1  CO & 1NC contacts

 --  Fault recording with last 3 faults



♦ Protective Functions

  -- Overvoltage     -- Undervoltage



♦ Typical Applications

   • Pumps     • Fans  • Air-conditioning system

   • Blowers    • Motors  • Compressors •  Elevators



Approvals

    • CE   • CCC

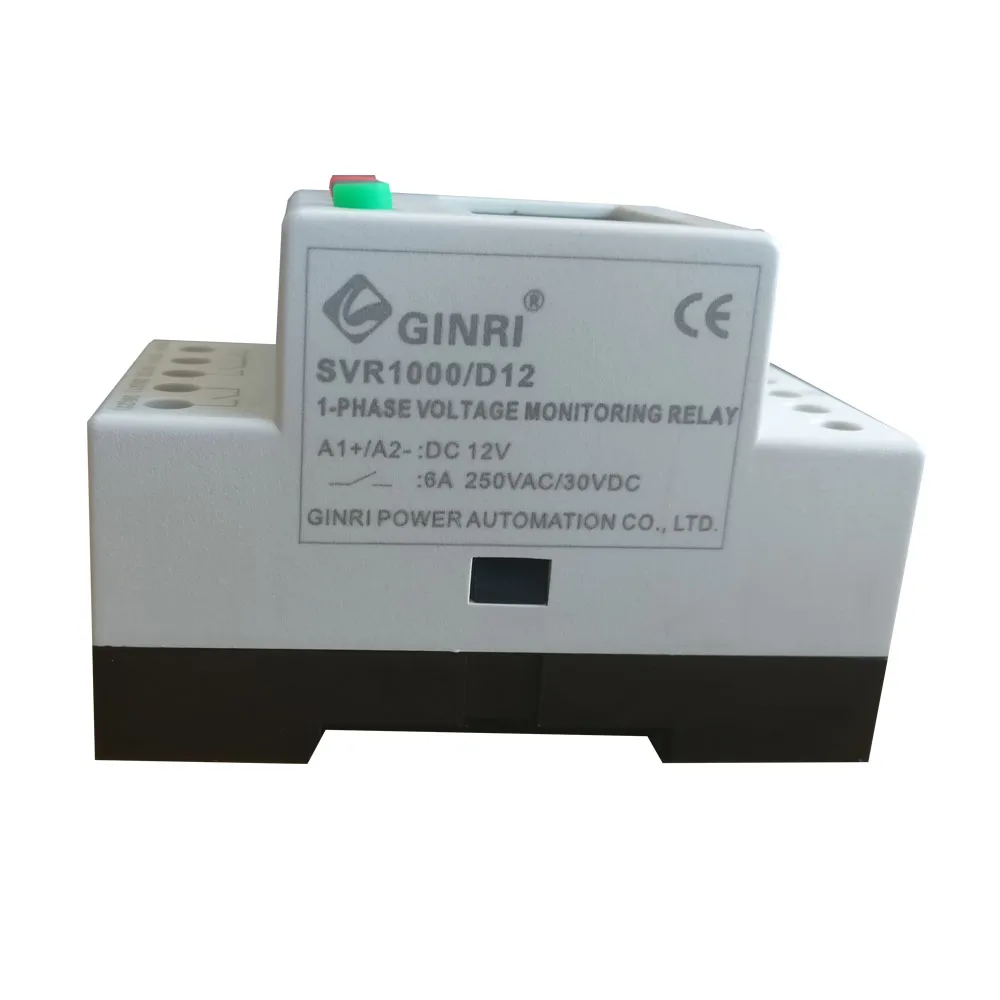

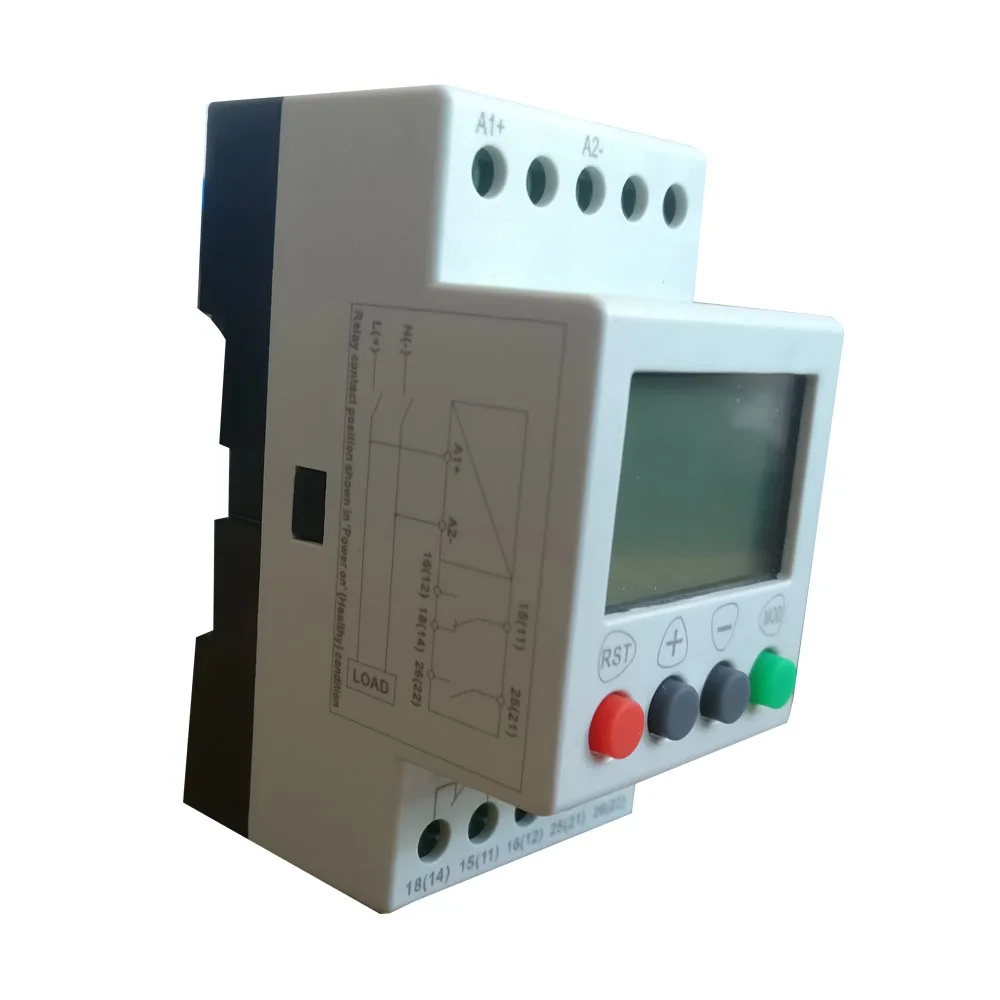

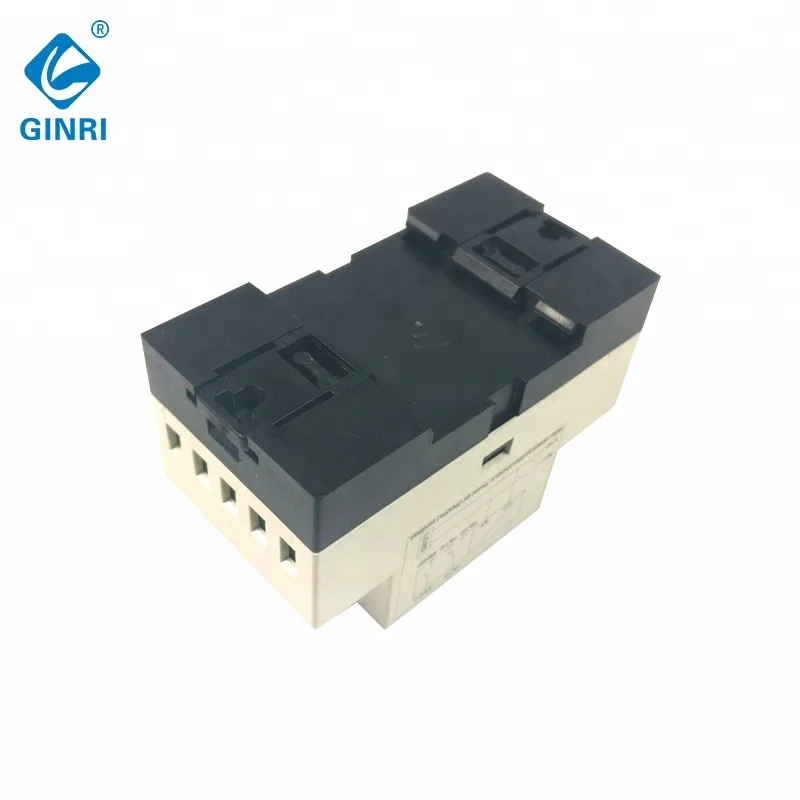

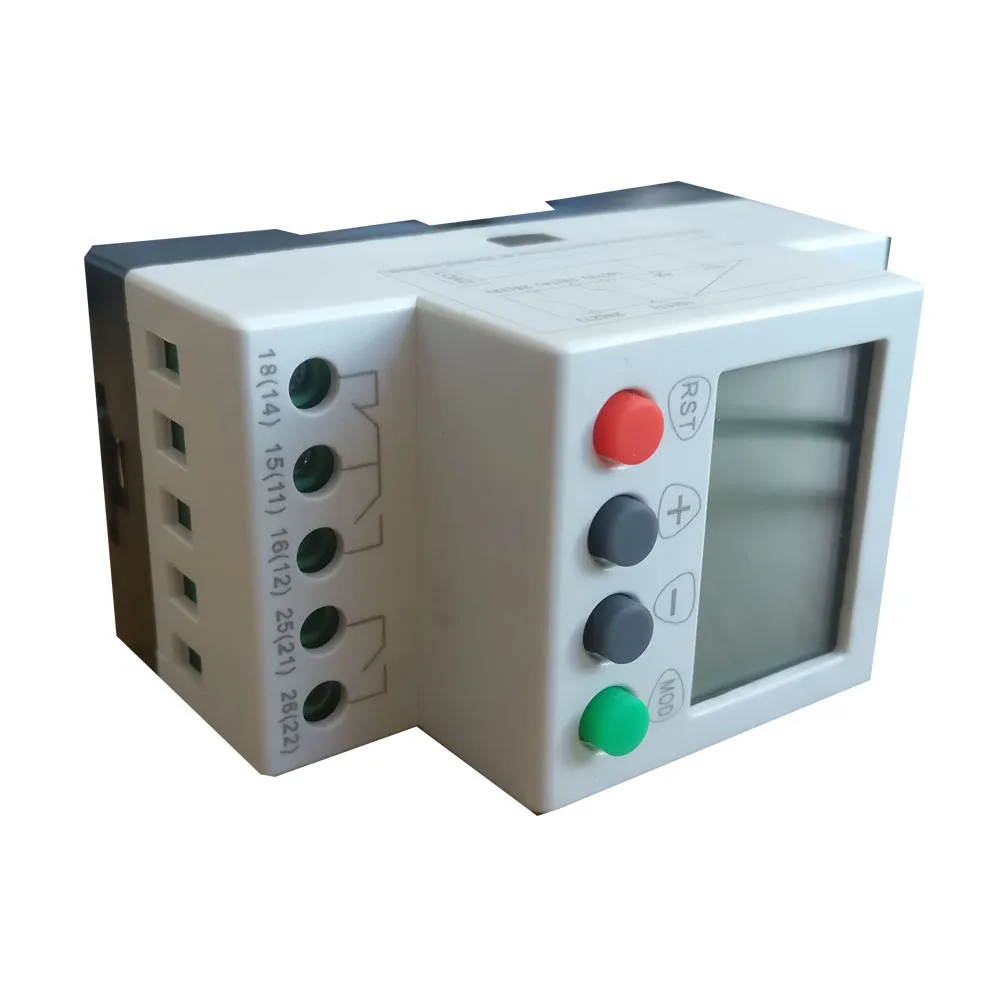

♦ Product Photo





♦ Technical data



Model	SVR1000/D12
Measuring circuit	A1+,A2-
Rated voltage	DC12V
Monitoring functions	overvolatege, undervoltage
Overvoltage setting range	DC 9.0~18.0V  adjustable
Undervoltage setting range	DC 9.0~18.0V  adjustable
Voltage hysteresis	0.1~6.0V  adjustable
Delay time for overvoltage and undervoltage	0.1-999s adjustable
Reset mode	Manual/ Automatic/Automatic with power-on delay
Delay time for reset	0.1-999s adjustable
Indicators	LCD indicating voltage,operationand fault status
Output contacts	1 CO & 1NC
Contact capacity	6A ,250VAC
Dimensions (H x W x D)	80×43×54mm
Mounting	DIN rail



♦ Wiring Diagram







♦ GINRI Selection Guide







♦ GINRI Packing







♦ GINRI Relay Family Photo







FAQ

Q1. What advantages do you have?

A1. Ginri Power Automation are the direct Manufacturer in Wenzhou China from 1995, we have professional developing, marketing & production team to offer you the most competitive price and best service.

Q2. What’s your main product?

A2. We are 100% focus on Automation Products Voltge Monitoring Relay, Motor Protection Relay, Relay Modules, and Connector-Terminal Conversion Units.

Q3. Could you print our own logo?

A3. Yes, Our company are available for Retail & Wholesale & OEM & ODM.

Q4. How long is the quality guarantee?
A4. 18 month warranty, our products are 100% inspection.

Q5. How long is the deliver time?

A5.  It usually takes about 3 - 5 working days for sample order and 10 - 25 days for big order.

Q6. What is your payment terms?
A6. Our Payment term is T/T, Aliexpress, Western Union, PayPal, Money Gram, L/C at sight.

Q7. How could I get your sample?

A7. You can request sample purchse through our alibaba trade assurance service.
