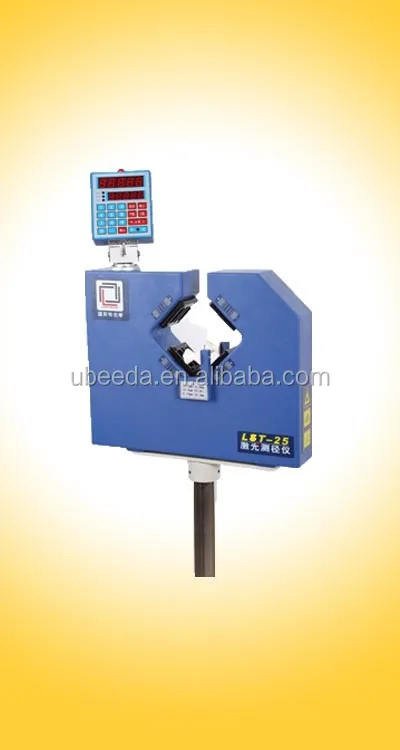

Precise non contact online dynamic state Laser Diameter Detector for glass tube outside diameter
Precise non-contact online dynamic state Laser Diameter Detector for glass tube outside diameter
Precise non-contact online dynamic state Laser Diameter Detector for glass tube outside diameter
Precise non-contact online dynamic state Laser Diameter Detector for glass tube outside diameter

Precise non contact online dynamic state Laser Diameter Detector for glass tube outside diameter

Share on (60712003397):


Price:

Quantity:


Product Overview

Description


Product Description

Product Introduction

LST series of laser scanning online diameter measurement instruments are specially designed for wires and cables,which not only measure and display diameter and deviation online,but also automatically control diameter of wire and print parameters according to user,s demand.LST series instruments have two categories: the I series measure object in one axis,and the II series measure object in two vertical axes (X axis and Y axis).The two categories have same communication interfaces and operation functions.

\t
SPECIFICATIONS FOR ONE AXIS LASER DIAMETER GAUGE
\t

Main performance parameters
\t
Measurement range
\t
0.1 - 25mm
\t
Resolution
\t
0.001mm
\t
Accuracy
\t
±0.002mm
\t
Power requirements
\t
AC 180 ~ 260V, 50Hz
\t


Applications
\t
Wire and cable
Glass pipes
Metal wire and line
Extruder combines
Drawing machine

Main Features

★ Suitable for online measurement of any round wires and other objects.
★ Non-contact measurement, high-speed inspection, high precision and stable performance.
★ Adopt Fθ optics, Fewer measurement error.
★ Inside PID regulation module.
★ All-dimensional revolving operating panel.
★ Remote displays of various sizes are optional.
★ Standard RS232/485 communication interfaces, supporting CAN and Modbus with extra protocol adapter.
★ Wires quality management software can record the real time curve of changing external diameters.
★ Reliable operation in the most foul environments.

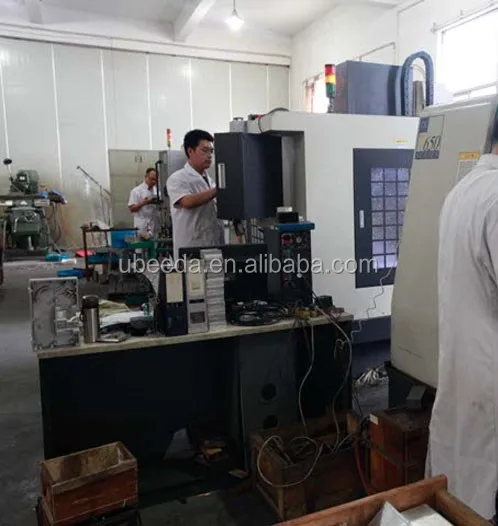

Our Company
\t
Type Specification
\t
Measuring Range
\t
Measuring Precision
\t
Resolution Ratio
\t

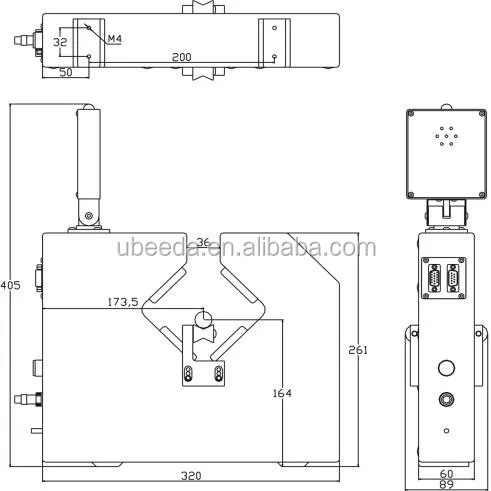

External Dimension of Measuring Head
\t
LST-25/JIB
\t
0.1～25mm
\t
±2μm
\t
1μm
\t
290×60×170mm
\t
LST-25/JIIB
\t
0.1～25mm
\t
±2μm
\t
1μm
\t
320×60×256mm
\t
LST-40/JIB
\t
0.2～40mm
\t
±2μm
\t
1μm
\t
400×80×175mm
\t
LST-50/JIB
\t
0.2～45mm
\t
±2μm
\t
1μm
\t
400×80×175mm
\t
LST-40/JIIB
\t
0.2～40mm
\t
±2μm
\t
1μm
\t
365×80×311mm
\t
LST-70/JIA
\t
1～70mm
\t
±5μm
\t
3μm
\t
668×120×160mm
\t
LST-100/JIA
\t
1～100mm
\t
±5μm
\t
3μm
\t
480×80×367mm
\t
LST-200/JIA
\t
1～200mm
\t
±5μm
\t
3μm
\t
660×120×437mm

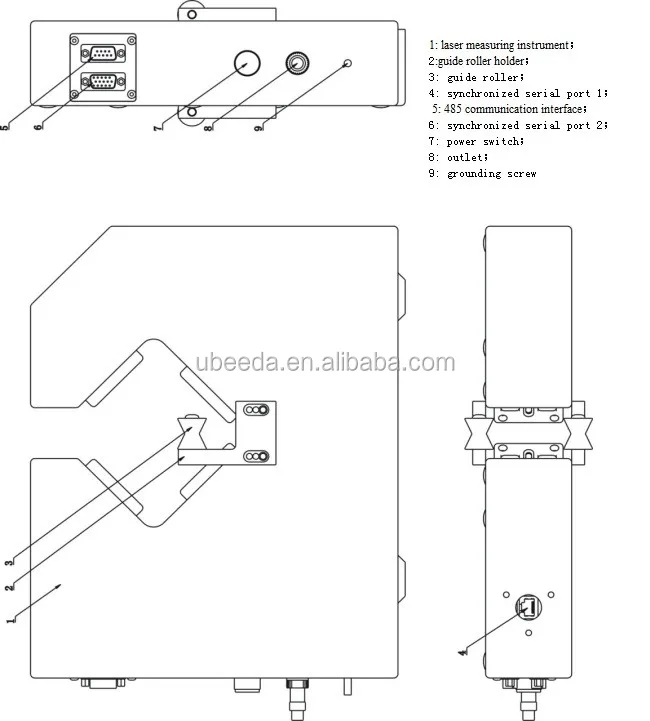

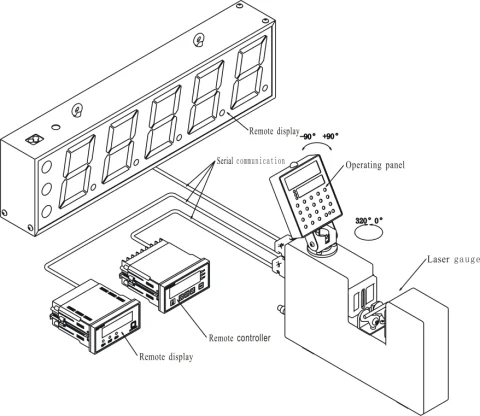

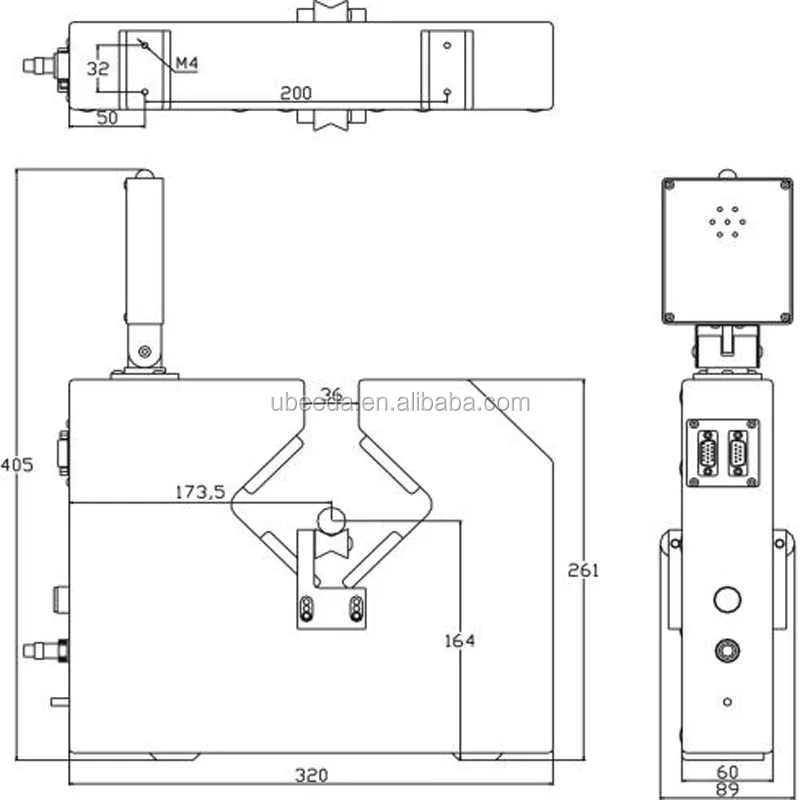

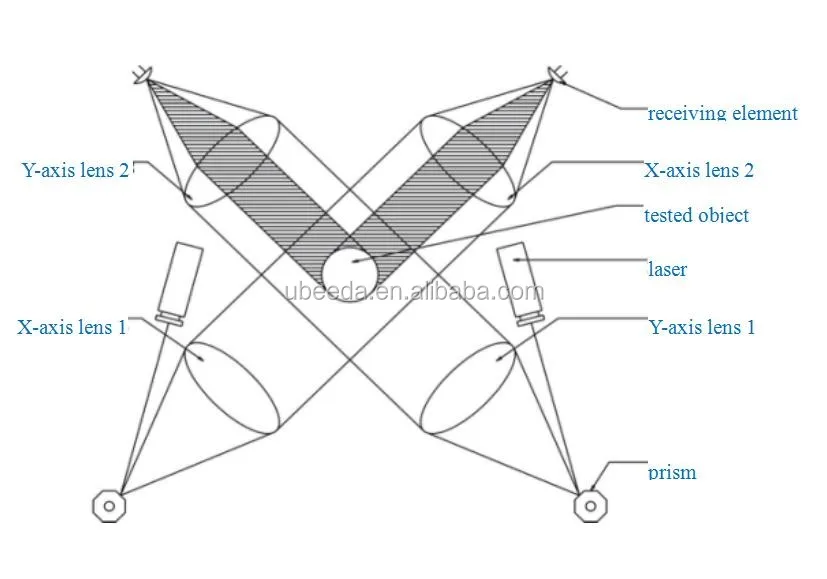

Composition picture

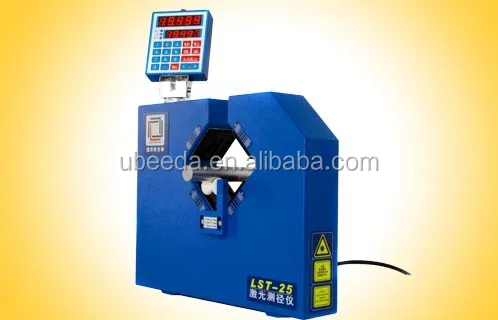

Detailed Images

Machine Parts

Name: Laser diameter gauge

Brand: Ubeeda

Original: China

Laser diameter measuring instruments are also applied for on-line measurement of optical fiber, glass tube, plastic tube and other spherical wire.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Offer sample price for testing.

* Quickly reply.

* View our Factory.

After-Sales Service

* Training how to instal the machine.

* Training how to use the machine.

* Engineers available to service by phone.

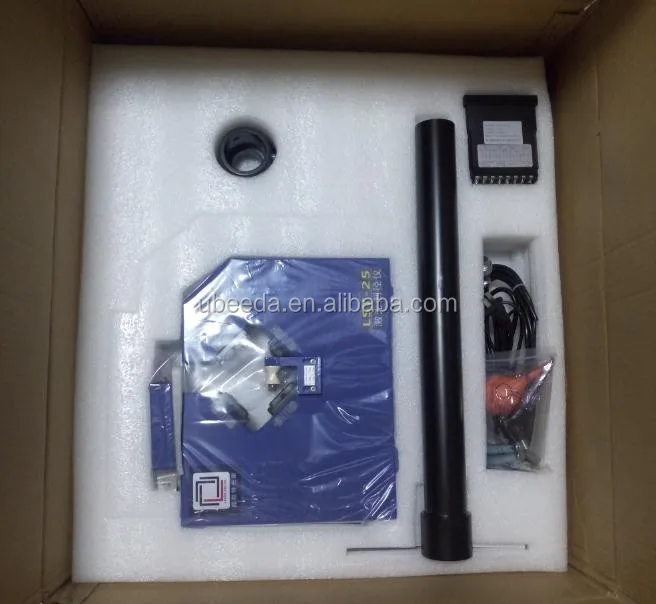

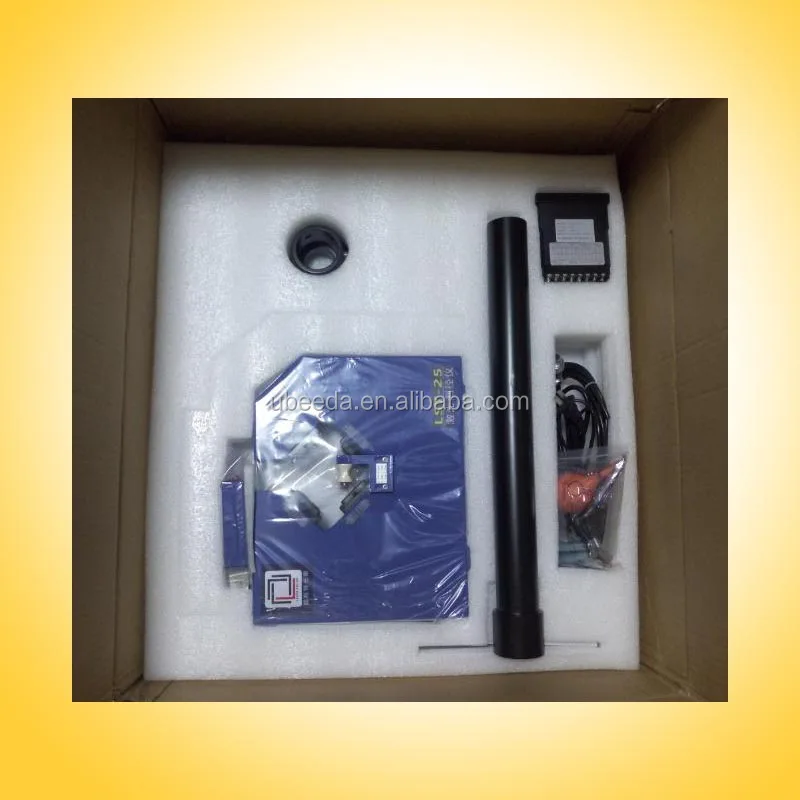

Packing & Delivery
\t
Packaging
\t
Size
\t
68 (L) *60 (W) * 21(D)
\t
Weight
\t
17kg
\t



Packaging Details
\t
The normal package is carton (Size: L*W*H). If container is too tigher,we will use pe film for packing or pack it according to customers special request.
