Automatic frequency tracking Ultrasonic generator used for welding ultrasonic welding machines
- Category: >>>
- Supplier: Hainertec (Suzhou) Co. Ltd.
Share on (60712008976):
Product Overview
Description
Products Description
Model | Frequency(KHz) | Capacitance(pF) | Impedance（Ω） | Power（W） | Transducer and horn Size（D*H)mm |
HSW-40800-SP | 39.5±0.4 | 1350±10% | ≤15Ω | 800 | 45*75 |
HSW-401200-SP | 39.5±0.4 | 9000±10% | ≤5Ω | 1200 | 45*80 |
HSW-351200-SP | 34.5±0.4 | 9000±10% | ≤5Ω | 1200 | 45*80 |
HSW-35800-SP | 35.8±0.4 | 5500±10% | ≤10Ω | 800 | 45*75 |
HSW-35500-SP | 34.8±0.2 | 2150±10% | ≤25Ω | 500 | 41*75 |
HSW-35800-SP | 35.2±0.2 | 4650±10% | ≤15Ω | 800 | 41*75 |
HSW-30500-SP | 30.0±0.4 | 2950±10% | ≤25Ω | 500 | 45*75 |
HSW-30800-SP | 29.5±0.4 | 1350±10% | ≤25Ω | 800 | 45*75 |
HSW-20600-SP | 30.0±0.4 | 1350±10% | ≤30Ω | 600 | |
HSW-28300-SP | 28.0±0.4 | 2050±10% | ≤25Ω | 300 | |
HSW-25800-SP | 28.0±0.4 | 5200±10% | ≤22Ω | 500 | |
HSW-251200-SP | 24.5±0.4 | 6200±10% | ≤20Ω | 1200 | 75*115 |
HSW-202000-SP | 20.0±0.4 | 15000±10% | ≤15Ω | 2000 | 70*115 |
HSW-201800-SP | 19.4±0.4 | 11000±10% | ≤15Ω | 1800 | 75*115 |
HSW-203300-SP | 19.4±0.4 | 18000±10% | ≤15Ω | 3300 | 75*115 |
HSW-152200-SP | 15.0±0.4 | 7800±10% | ≤12Ω | 2200 |
Note: Intermittent or pilse mode of working, the power is generallt nominated by the peak power generated in instantaneous operation.

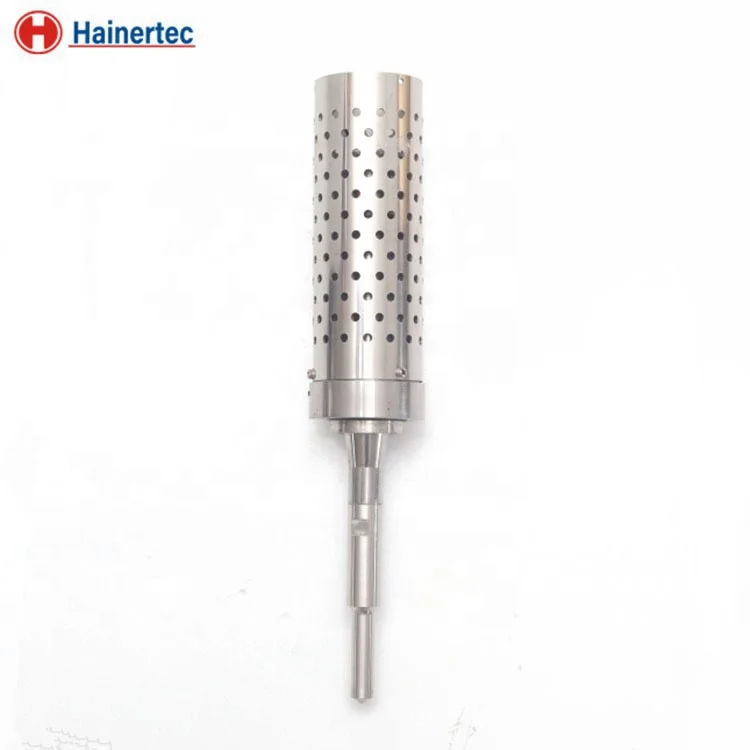

Can design various shapes(Cone and ladder) and different ratio boosts.
Can design various shapes(Cylindrical, rectangular, etc)horns.
Can provide drive circuit with 110-220VAC input voltage.

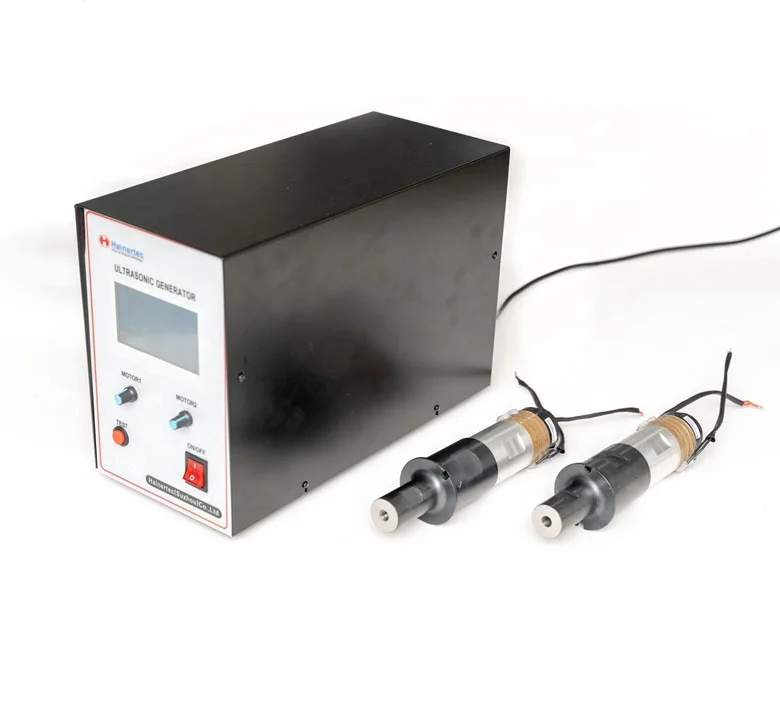

Technical parameter of ultrasonic generator.
Model | Frequency(KHz) | Max Power(W) | Size（L*W*H)(mm) | Weight | Notes |
HNG-FP-SSPD-I | 15-20 | 2500 | 430*200*130 | 6 | Digital frequency tracing |
HNG-FP-SSPD-II | 25-30 | 2000 | 430*200*130 | 6 | |
HNG-FP-SSPD-III | 35-40 | 1200 | 430*200*130 | 6 | |
HNG-FP-SSSP-IV | 15-25 | 2000 | 4.5 |
We accept design.
The generator adopts new technology, full digital, longer service life, easy to operate, automatic， frequency tracing.
Specifications:
1. Model: HSW-FP-SP
2. Frequency: 15/20/25/28/35/40 KHz
3. Voltage: 220V
3. Output: 300W-3300W
4. Dimension: 430*200*130 mm
5. Weight: 18kg

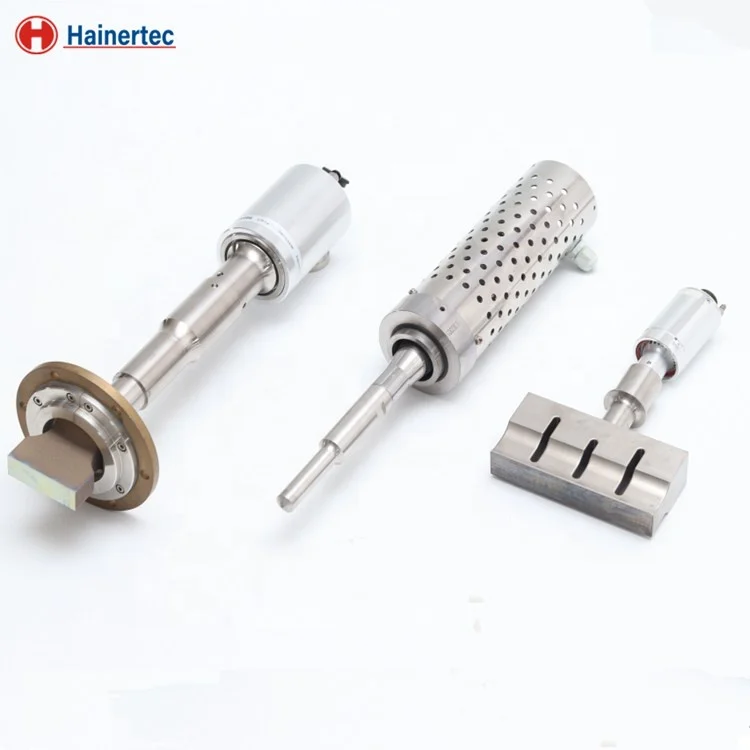

6. Part: Ultrasonic Generator + Ultrasonic Transducer + Horn
1. Model: HSW-FP-SP
2. Frequency: 15/20/25/28/35/40 KHz
3. Voltage: 220V
3. Output: 300W-3300W
4. Dimension: 430*200*130 mm
5. Weight: 18kg
6. Part: Ultrasonic Generator + Ultrasonic Transducer + Horn
Application
Nonwoven Machinery,
Nonwoven Bag Making Machine, Nonwoven Surgical Cap Making Machine, Nonwoven Bouffant Cap Making Machine, Nonwoven Shoe Cover Making Machine, Nonwoven Ultrasonic Plastic Welding Machine, Ultrasonic Lace machine, Three Layers Bag Making Machines, Plastic Bag Making Machine, Stationery, Machinery, Automation Equipment, etc.
Details Images
Samples
Strong production capacity
FAQ
Q: Are you trading company or manufacturer ?
A: We are a manufacturer.
Q: How long is your delivery time?
A:It depends on the type of machine.
Q: Can your machine be customized?
A: Yes, all of our machines can be customized.
Q: How about terms of payment?
A: T/T, PayPal, L/C, etc.
A: We are a manufacturer.
Q: How long is your delivery time?
A:It depends on the type of machine.
Q: Can your machine be customized?
A: Yes, all of our machines can be customized.
Q: How about terms of payment?
A: T/T, PayPal, L/C, etc.
Q: Can I put my LOGO/brand on the machines and finish products?
A: Yes, Sure. Just send us your artwork.
A: Yes, Sure. Just send us your artwork.
Company Profile
Hainertec (Suzhou) Co., Ltd. Was founded in 2004, focusing on ultrasonic technology, it is a collection R&D, design manufacture and sales of the technology-based enterprises.
The company is mainly engaged in the development and manufacture of ultrasonic devices, accessory parts and system equipment. The main products include Piezoelectric Ceramics, Ultrasonic transducers, Ultrasonic generators and Ultrasonic system equipment. These products are widely used in medical apparatus, biological instruments, precision spraying beauty and health care, biochemical environmental protection, biological extraction, ultrasonic catalysis, industrial screening, jet printer oscillator, ultrasonic cleaning household appliances, military industry and other fields.
The company has been cooperating with famous enterprises and university at home and abroad, and 60% of our products are exported to more than 60 countries and regions such as Europe, America, Australia, Middle East and southeast Asia.
The company has passed ISO9001 Quality System Certification. Also, it is a high-tech enterprise but also a postgraduate workstation and industry university research base, having obtained several patent at the same time.
