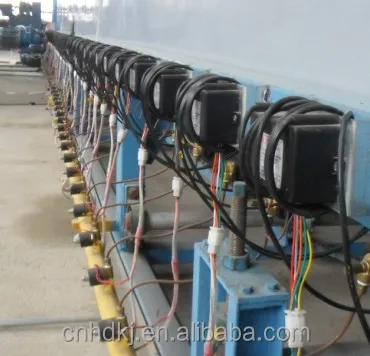

High efficiency electric pulse igniter used for industrial oven gas burner

Product Overview

Description

Electric pulse igniter used for industrial gas burner

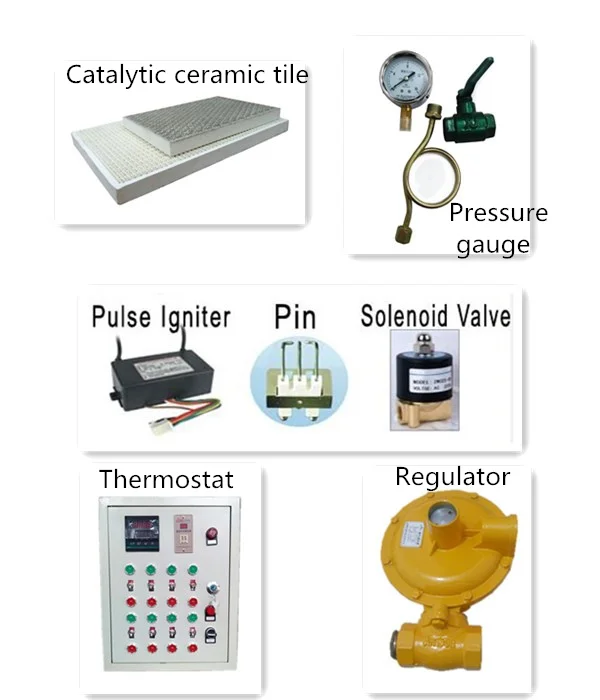

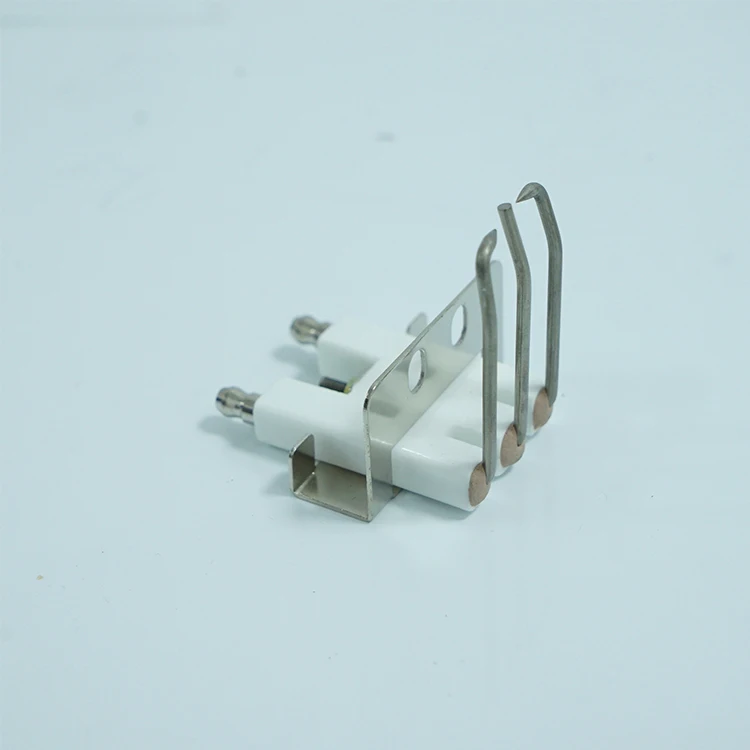

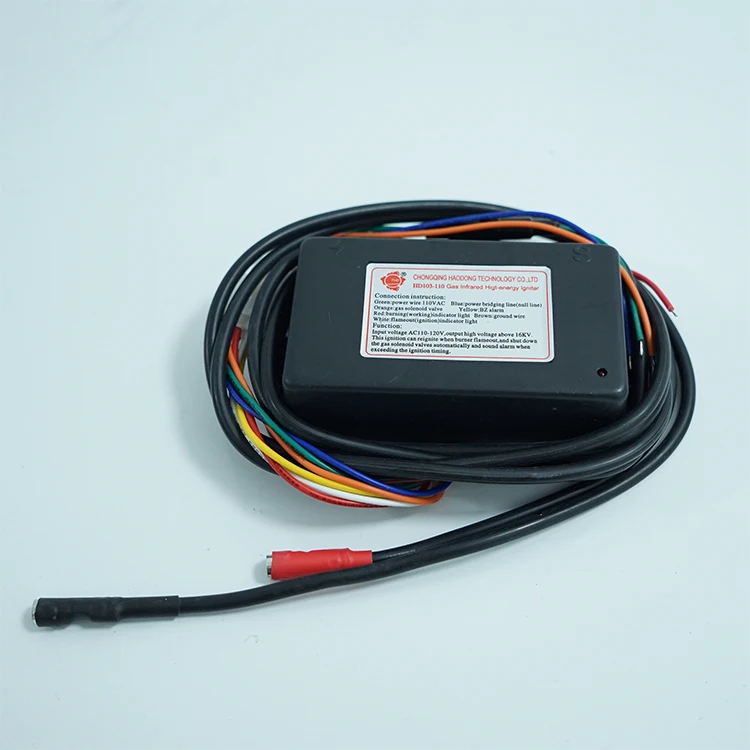

Detail picture for electric pulse igniter

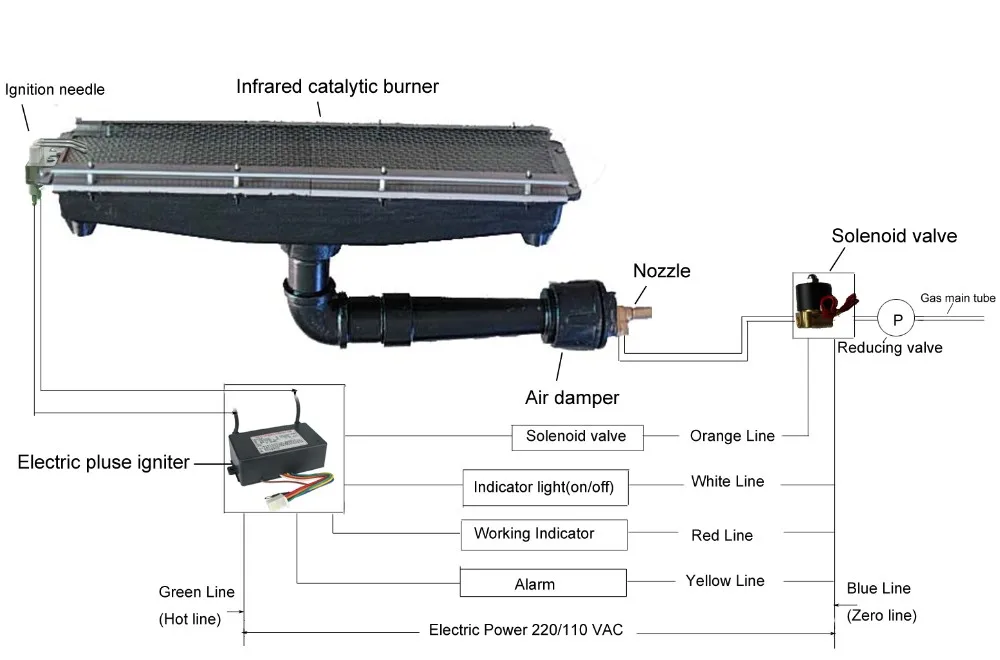

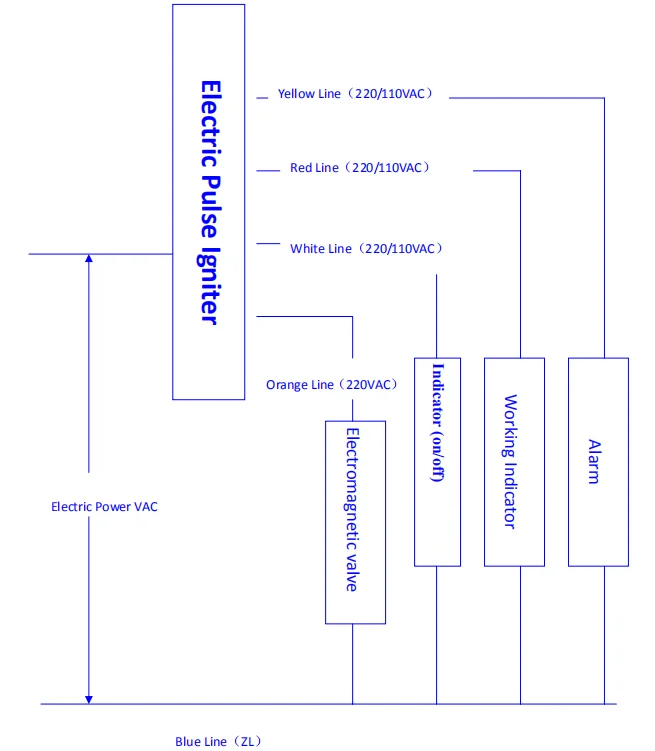

Connection

Purpose of electric pulse igniter

This product is mainly used for the ignition and control of industrial equipment with the energy of liquefied petroleum gas, natural gas and coal gas.



Features of electric pulse igniter

    Electric ignition or switching control ignition

    Ignite the gas again automatically if the fire went out accidentally.

    Automatic monitoring or photoelectric control. If the fire went out, it can give warning automatically.

    If it failed to ignite the gas or the fire went out accidentally, it can cut off the gas supply immediately.

    Technology of Single-chip and digital microcomputer

    lightning proof



Technical Parameter of electric pulse igniter

No	Items	Quotas	Remarks
1	Rated operational voltage	VAC
2	Discharge frequency	50HZ
3	Arcing distance	≥6mm
4	Duration of ignition	10s	It can be adjusted according to your requirements
5	Duration of rekindling	10s
6	Discharge energy	≥4J
7	Discharge cycle	≤400ms
8	Width	≥12μs
9	Deferent high pressure	≥15KV









Package of electric pulse igniter





Our service for electric pulse igniter

Please contact me online, or just send me a message. we will reponse to you in 2 hours on working days.



  GOOD, FAST, IN GOOD FAITH.



1: We promise each product have predelivery test and any problem after sell we will deal with.



2: We will choose the fastest, safest and cheapest way to deliver.



3: If you have any question about the technology of burners, use way and install, please feel free to tell us. we will explain it detailly.

4: We can provide sample.
