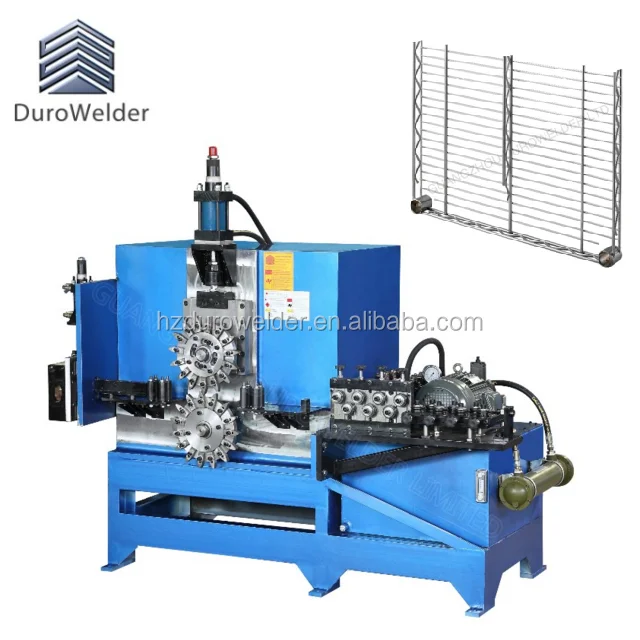

Automatic Hydraulic Steel Wire Bending Machine for Wave and Zigzag Shape Forming

Product Overview

Description

Product Description



Features of the Machine

1.The machine is mainly used for bending various metal wire,such as steel wire,stainless steel wire, etc.,into "wave" shape, "zigzag" shape and "Z" shape.

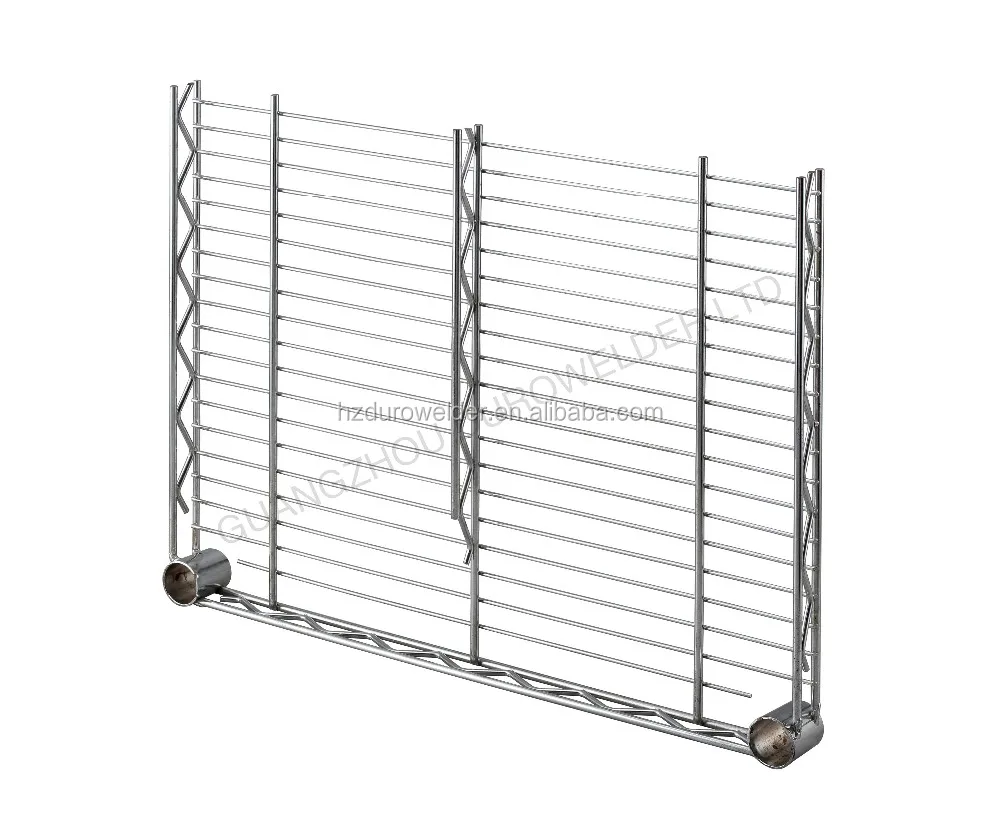

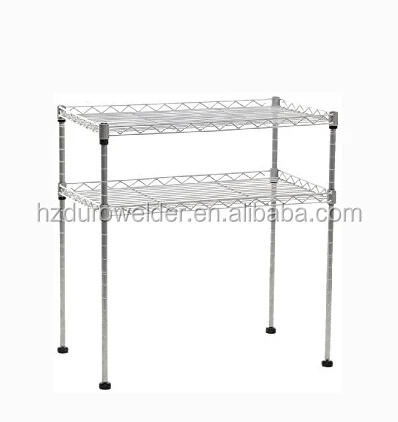

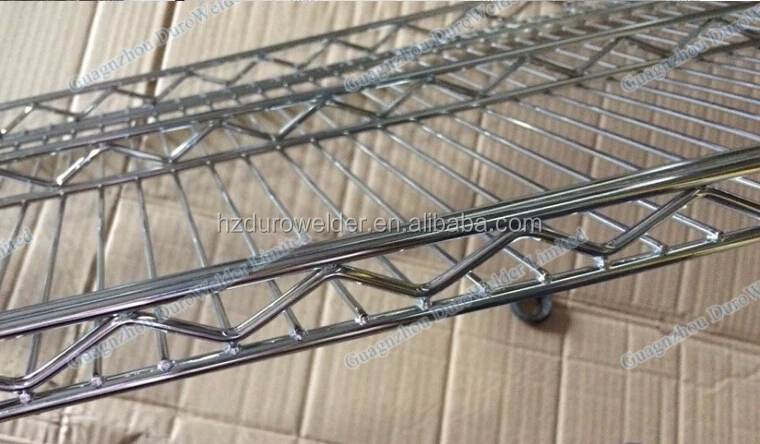

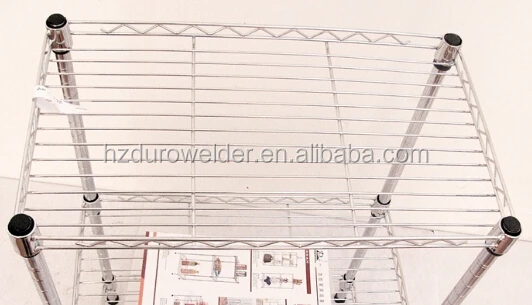

2.Widely used in processing and production of shelf edge,cloth cabinet bottom grid lace,and a variety of hardware appliances, lighting, decoration, arts and crafts, Home Furnishing.

3.Adopt advanced microcomputer and PLC control system,adjust conveniently and quickly.Can control the action of each part and system independently,can be free to adjust the size of each products during the production.

4.After setting the number of production,the machine can finish the output automatically,reducing the number of employees and increasing the degree of automation.

5.Double hydraulic cylinder,gear transmission,stable operation,high precision.

6.According to customer requirement,wave height and wavelength of the wire can be customized to meet the needs of various products.




1.why choose our factory ?

Our company has advanced production equipment and strong technology. The producing process is under strict management in quality. Our products are sold around the world and highly thought of since excellent quality and perfect service at home and abroad.



2.The advantage for product?

High efficiency , energy saving and good quality.



3.The advantage for us ?

Reasonable price and best services , advanced equipment and strong technology.



4.How to order?

Do not hesitate to contact by online or Email as soon as possible once you are interested in our products. The specific quotation will be offered basing the request dimension and quantity.



5. What about the quality?

All products according to ISO and National highest standard, also we can offer CE, certificate if necessary.



6. What payment is available?

L/C at sight, or T/T 30% deposits before production and 70% balance to be paid before shipment.



7. Warranty

The machine have one year warranty.


Main Technical Parameters

Rated Voltage	380VAC or Customized,3PH,50/60Hz
Rated Power	3.7KW
Max Wire Diameter	More than 6MM
Producing Speed	More than 10M/Min
Overall Dimensions	180CM*150CM*120CM
Machine Weight	800KG
