DW115CNC Automatic big pipe multi stack square pipe bending machine with ball mandrel
- Category: >>>
- Supplier: Zhangjiagang Smarting Import&export Co. Ltd.
Share on (60712087567):
Product Overview
Description
DW115CNC Automatic big pipe multi stack square pipe bending machine with ball mandrel
Product Description
Main specification
1) PLC Control Unit,imported electric and hydraulic elements.
2) Direct Acting Hydraulic clamping.
3) Easy Operator Interface and Easy Data Input by English.
4) Large Program Storage Capacity.
5) Automatically lock angle and the bending accuracy is high.
6) Angle changing is controlled by coder.
7) The foot-switch with multiple-function:automatic start,emergency stop and resuming,The safety is high.
8) Self Diagnosis and Error Messages
9) Suitable materials:Steel pipe,Stainless steel pipe,copper pipe,aluminum pipe,iron and others.
Technical parameter
Program | DW115CNC | |
Max bending R for carbon pipe is 1.5D | Ø115X6t | |
Max bending R for SS pipe is 1.5D | Ø100.5X 4.8t | |
Availability Length of bending pipe | 4500mm | |
Max R for bending | R520mm | |
Min R for bending | R90mm | |
Max angle for bending | 185° | |
Bending process for every pipe | 16 | |
Working rate | Bend rate | Ma×25°/sec |
Rotary rate | Ma×180°/sec | |
Feeding rate | Ma×600mm/sec | |
Working accuracy | Bend angle | ±0.1° |
Rotary angle | ±0.1° | |
Feeding length | ±0.1mm | |
Watt of oil press electrical machine | 14mpa | |
Information inputting method | Axis (Y,B,C) | |
Bending method | Hydraulic | |
Max bending group | 99 | |
Power of rotary Servo motor | 2000 W | |
Power of feeding Servo motor | 3500 W | |
Electrical motor power | 22kw | |
Weight of machine | 7800kg | |
Size L W H(CM) | 580X138X150 | |

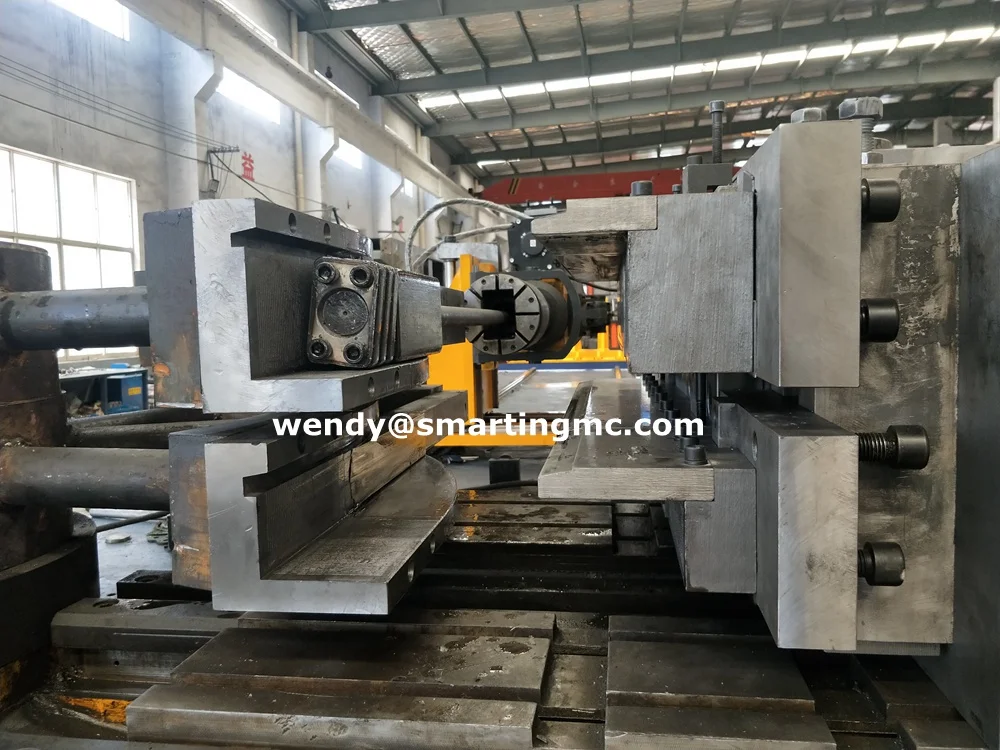

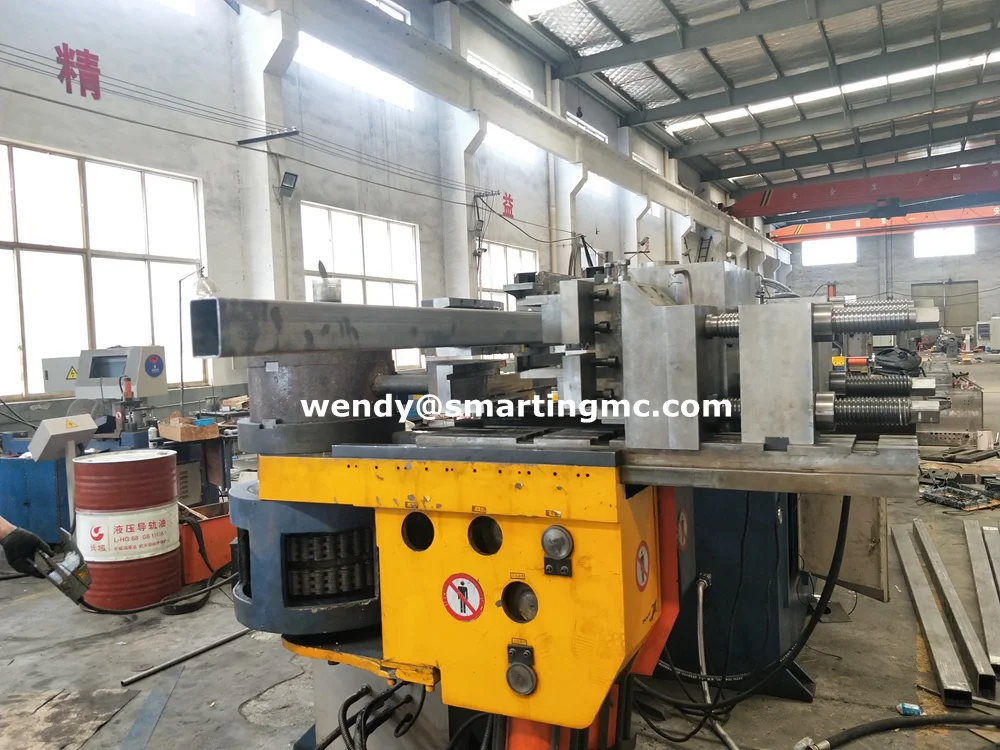

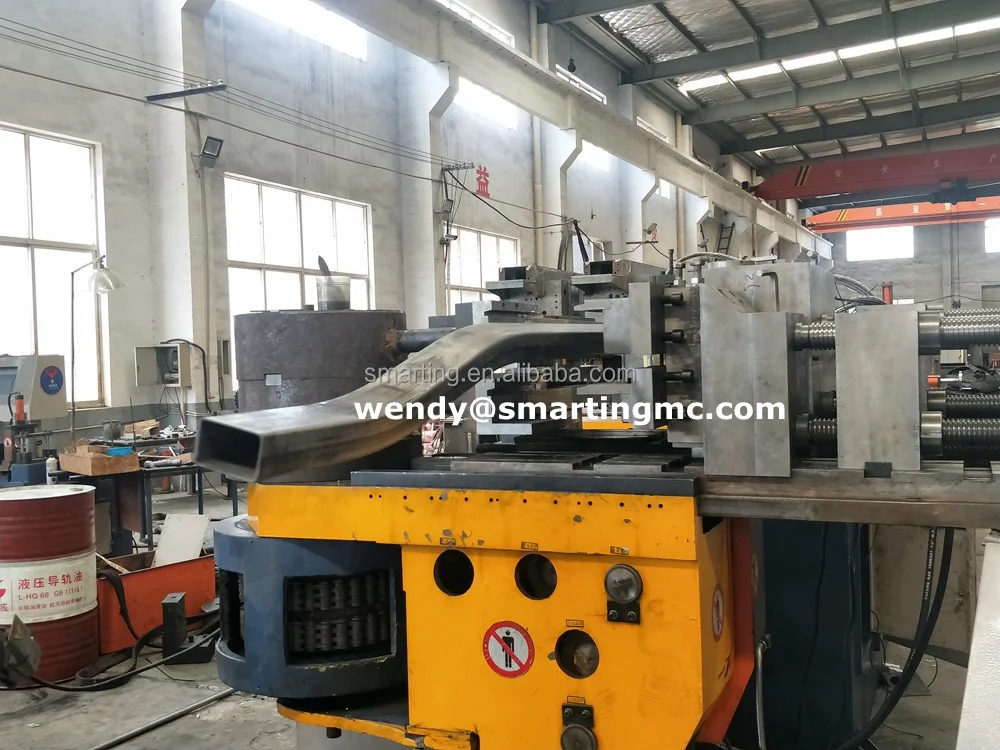

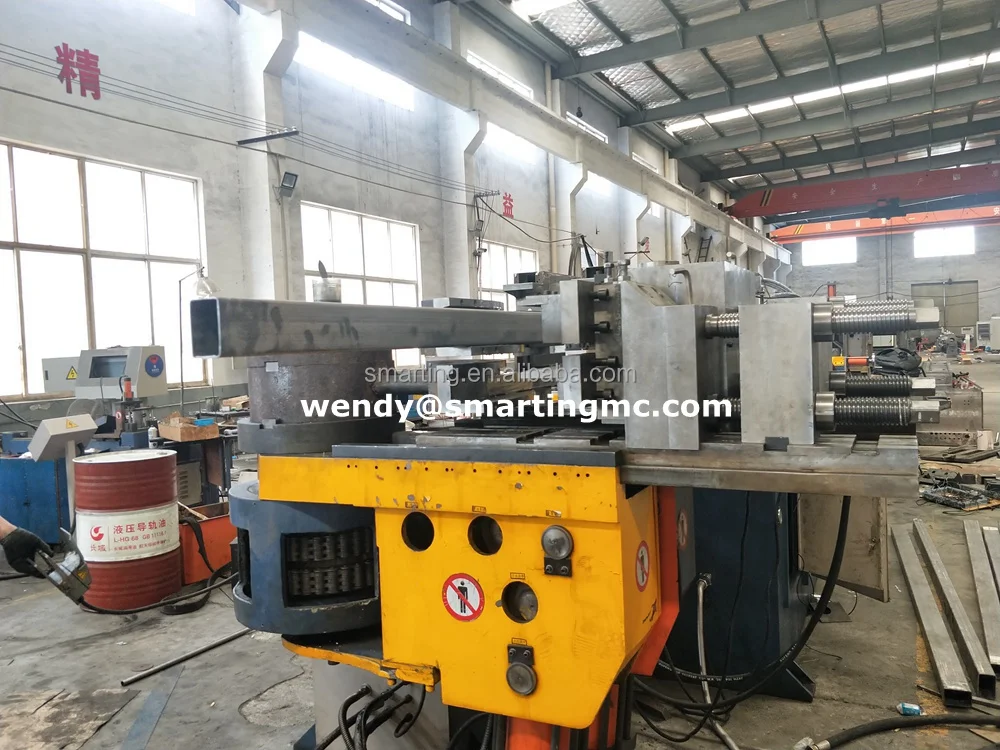

Machine photo

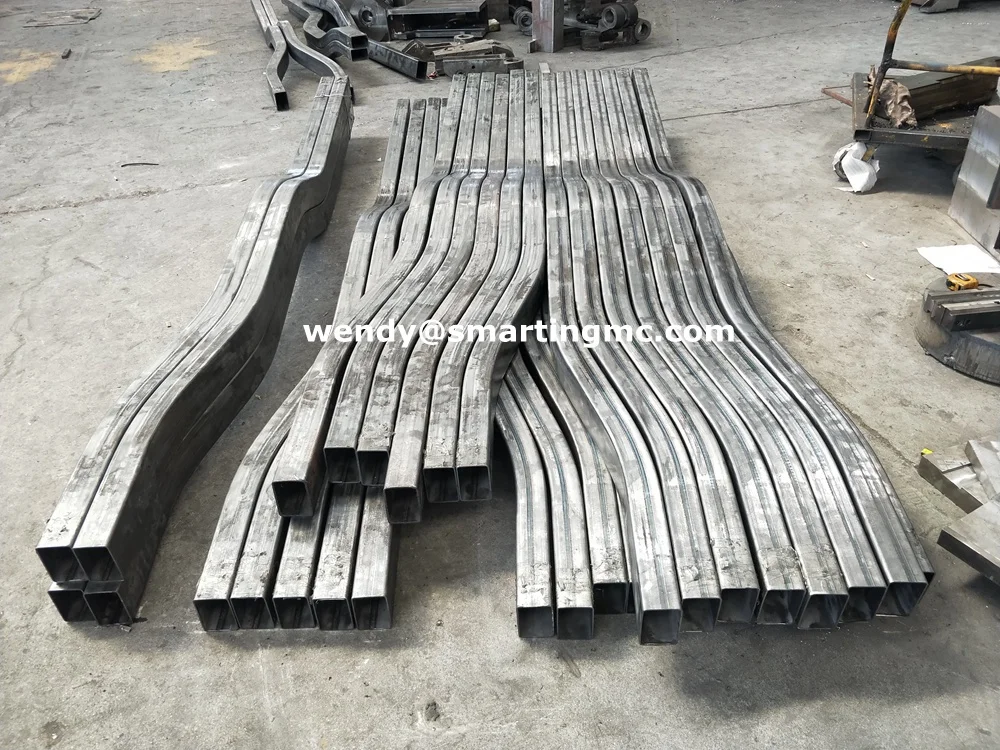

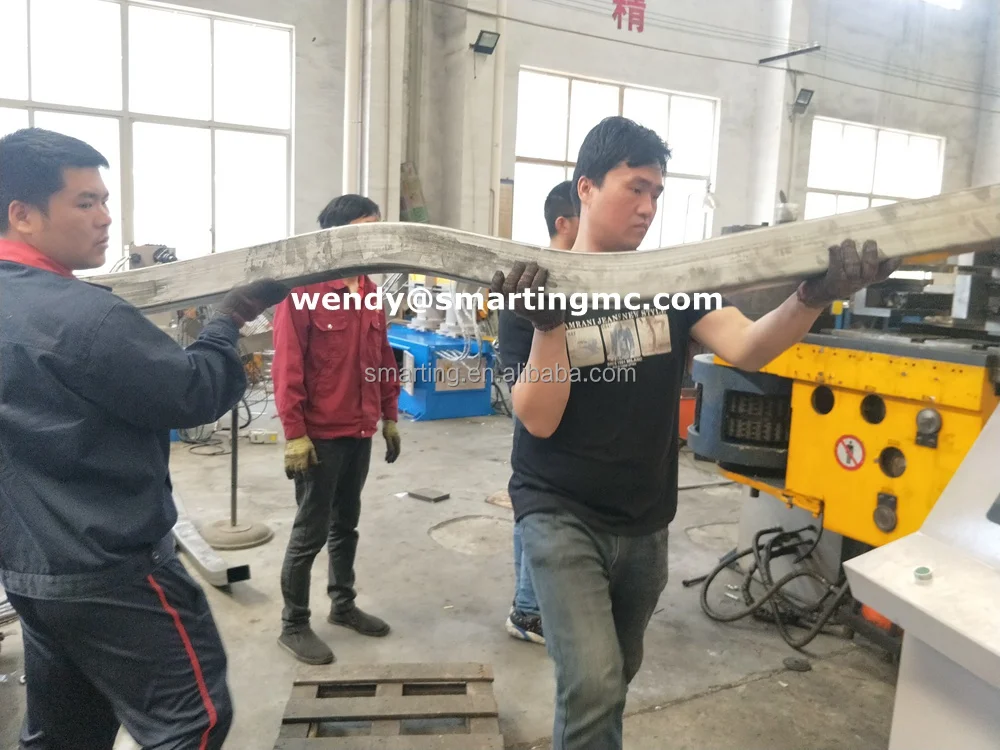

Pipe samples
