Hospital Zone Valve Box With Shut off Valve Box

Product Overview

Description

Hospital Zone Valve Box With Shut off Valve Box:

Regarding Medical Zone Valve Box:

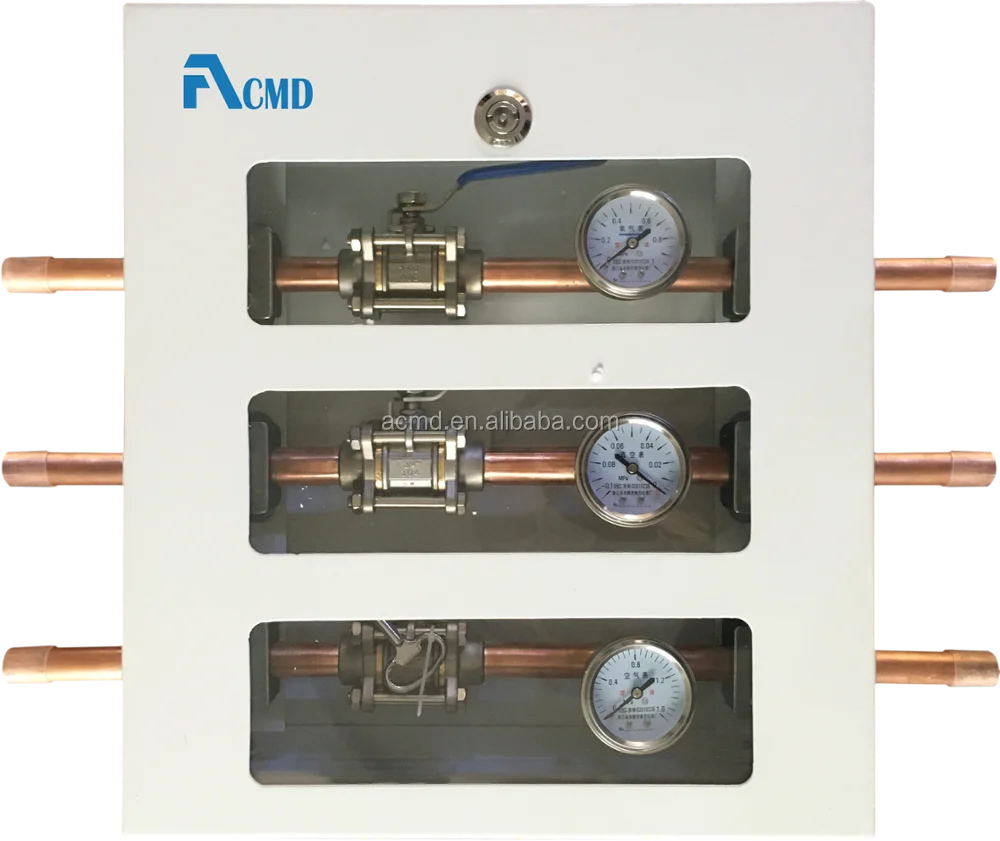

The ACMD brand Zone valve box is used for shut off the flow of medical gas in hospital gas pipeline system if any emergency happens or need to maintenance . It is consisted of stainless steel valve box, stainless steel ball valve with extension copper tube, bracket for ball valve, pressure gauge.



Features:



* Sized up to 6 kinds of gases
* Color-coded labels for identity gas services
* Stainless-steel 3 pieces ball valves
* Silver brazed connection
* Easy access pull out window
* Units of gauge available in PSI, MPA
* Complies with latest edition of NFPA99







Technical Details for Zone Valve Box~



Product Name	Hospital Zone Valve Box With Shut off Valve Box
Gas Direction	Gas Pipe Designed from Left to Right, Easy to Installation
Consisted of	3 Pieces Ball Valve with Extension Pipe ,Gas-tight and Reliable
Material	Stainless , Cooper, Brass
Pressure Displayer	Digital Pressure Meter or Gauge Reading
Valve Size	Available in Size 1/2''-2''
Pressure range	Maximum Pressure Rating of 600psi ( 4137kpa )
Application	For Gas Pipeline or Manifold System

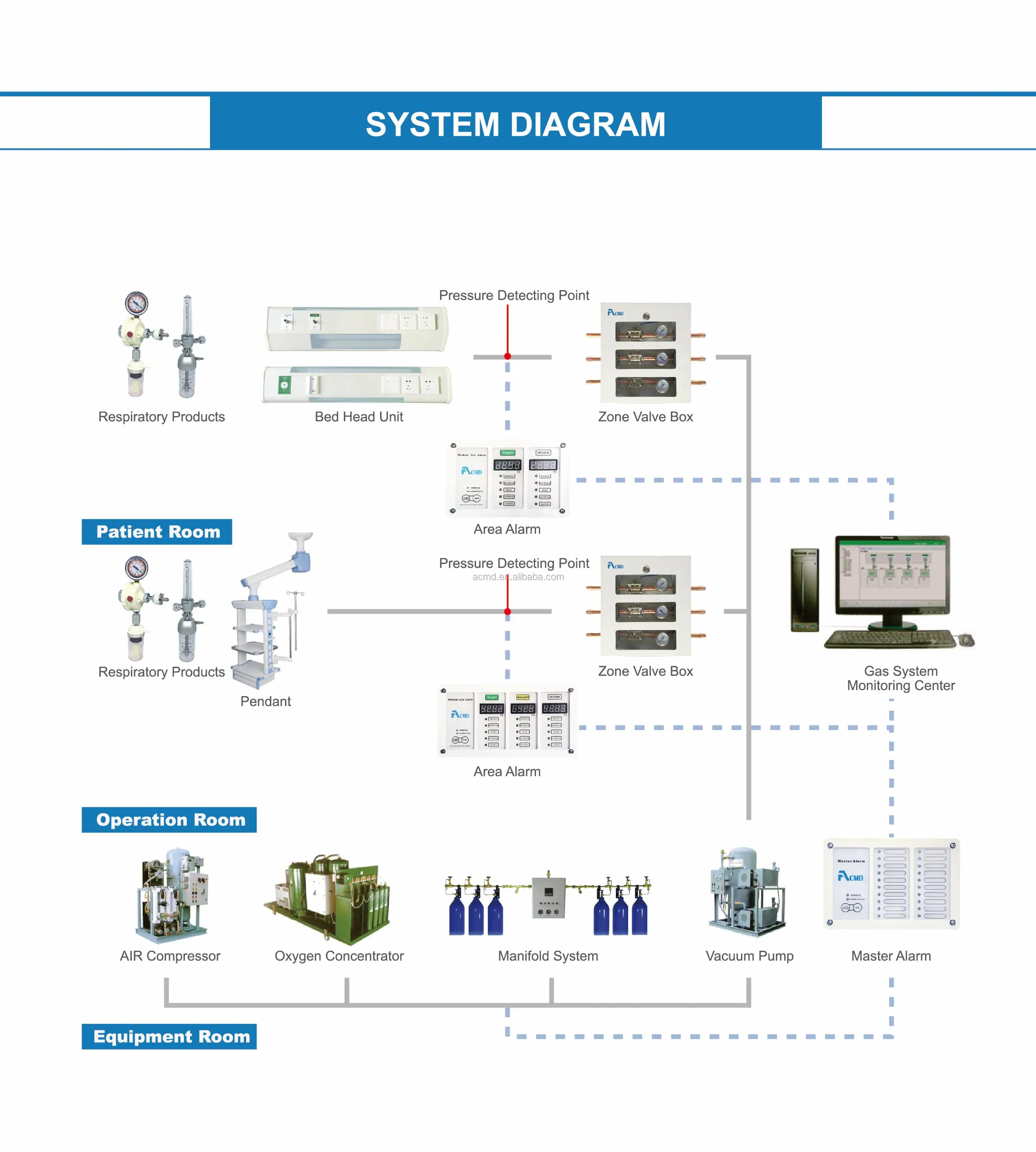

Related Products for Hospital Gas Pipeline System:





Packing Details and Shipping for Zone Valve With Box:



Our company use carton box for standard packing Medical gas outlets, Oxygen Flow Meter, Vacuum Regulator, Area gas alarm, Nurse call system, Zone valve with box, Bed head unit, Wooden case packing Manifold system, Surgical Pendant. Each box is empty without letter on it. Special Carton or Wooden Box could be customized according to requirments.



The following is standard packing size for most using zone valve box 1 gas, 2 gases, 3 gases :



Products name	Carton Box Size Standard	Gross Weight ( Kg )	Quantity of Products
1 Gas Zone Valve Box	57*43*15cm	8kg	1 pcs Each Carton
2 Gases Zone Valve Box	57*43*15cm	10kg	1 pcs Each Carton
3 Gases Zone Valve Box	57*43*15cm	12kg	1 pcs Each Carton



This is our wooden case customized for bed head unit before sea shipping :





Company Introduction:



Suzhou ACMD Medical Technology Ltd., Company is one of the leading manufacturer and Project Engineer in China for Hospital, Our company mainly focused on Design Hospital gas pipeline system and Secondardary medical equipments for domestic market and forgien projects.



Why Choose ACMD Medical Company? The Advantages We Have For Hospital Gas Pipeline System:



1, Attend Domestic and Foreign Medical Exibition Every Year, Acknowlodge the newest industry development.

2, Have Good Relationship with Designing Institute Worker, Providing Satisfied Hospital Engineering Design.

3, 5 Steps Quality Controlling System to Ensure High Quality Products.

4. 5 Years Warranty for ACMD Direct Sold Products.

5. Fast Manufacturing Period, 3-5 Days after Receiving Payment including OEM.

6. Fast Delivery Method, We have 5 Years Shipping Farwarder Make Sure in-time Delivery.
