Tehow IEC61008/IEC61009 1 Standard B type RCCB RCBO
- Category: >>>
- Supplier: Shanghai Tehow Electric Co. Ltd.
Share on (60712105899):
Product Overview
Description
Related Products
Product Description
Function
•Can be used in homes, offices, buildings, and industries
•Earth fault/leakage of current protection
•electric-shock protection and fire protection
•Isolation
•Control
Residual current circuit breaker technical Data
| 1. | Standards | IEC61008 |
| 1. | breaker Pole No. | 2P, 4P |
| 2. | Rated Voltage (V) | 240(220), 415(380) |
| 3. | RCCB Rated Current(A) | 10, 16, 25, 32, 40, 63 |
| 4. | Rated residual operating current l&no(mA) | 30,100,300 |
| 5. | Rated residual non-operating current l&no(mA) | 0.5l&n |
| 6. | Tripping time | <0.1s |
| 7. | Vibration resistance | Minimum 5g 30min,0~8Hz |
| 8. | Warranty period | 5 years warranty |
| 9. | Installation | On symmetrical DIN rail 35mm /Panel Mounting |
Features of residual current circuit breaker
1. Elegant appearance; cover and handle in arc shape make comfortable operation.
2.Contact position indicating the window
3.Transparent cover designed to carry the label
4. In case of overload, to the protected circuit, RCCB handles trips and stays at the central position, which enables a quick solution to the faulty line. The handle cannot stay in such a position when operated manually.
5. Provides protection against earth fault/leakage current and function of isolation.
6. High short circuit withstands capacity.
7.Applicable to terminal and pin/fork type busbar connection.
8. Equipped with finger protected connection terminals.
9. Fire resistant plastic parts endure abnormal heating and strong impact.
10. Automatically disconnect the circuit when earth fault/leakage current occurs and exceeds the rated sensitivity
11.Independent of power supply and line voltage, and free from external Interference, voltage fluctuation

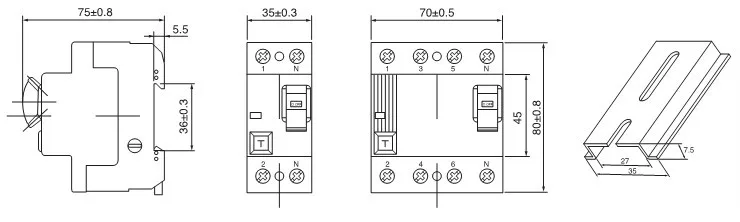

Residual current circuit breaker dimension and Installation diagram

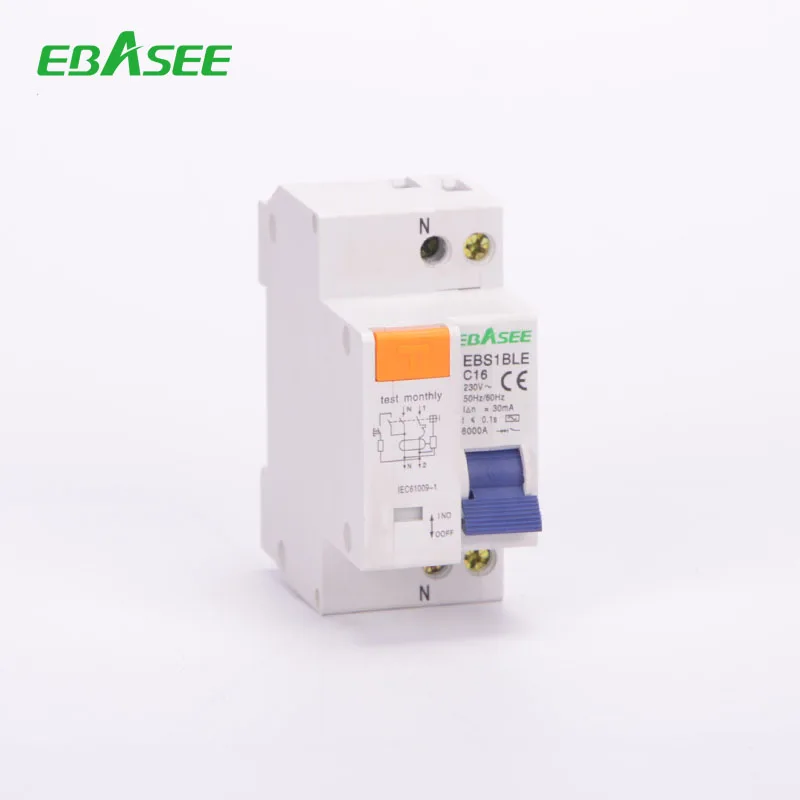

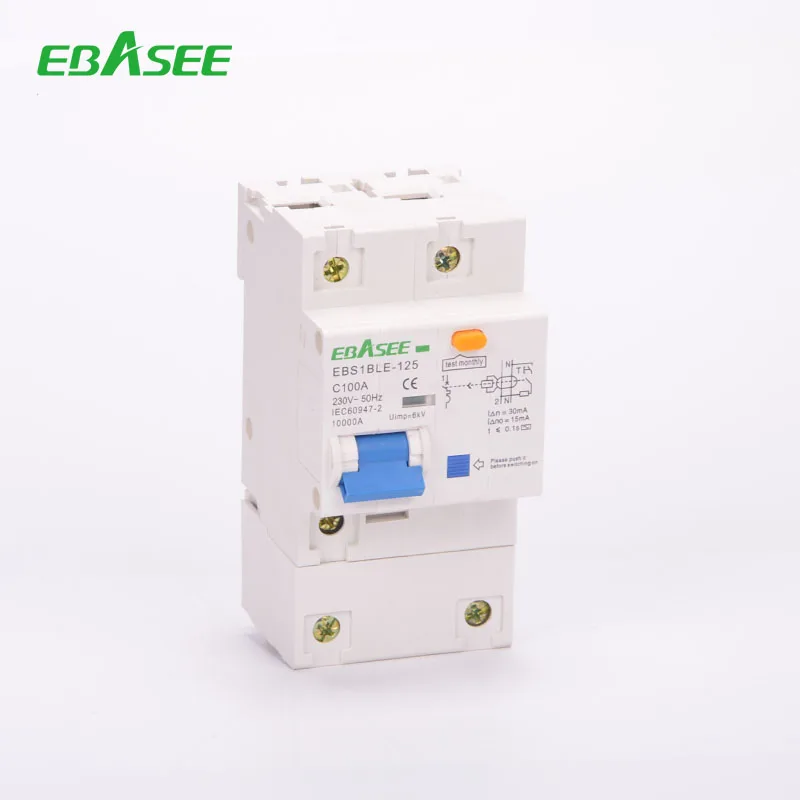

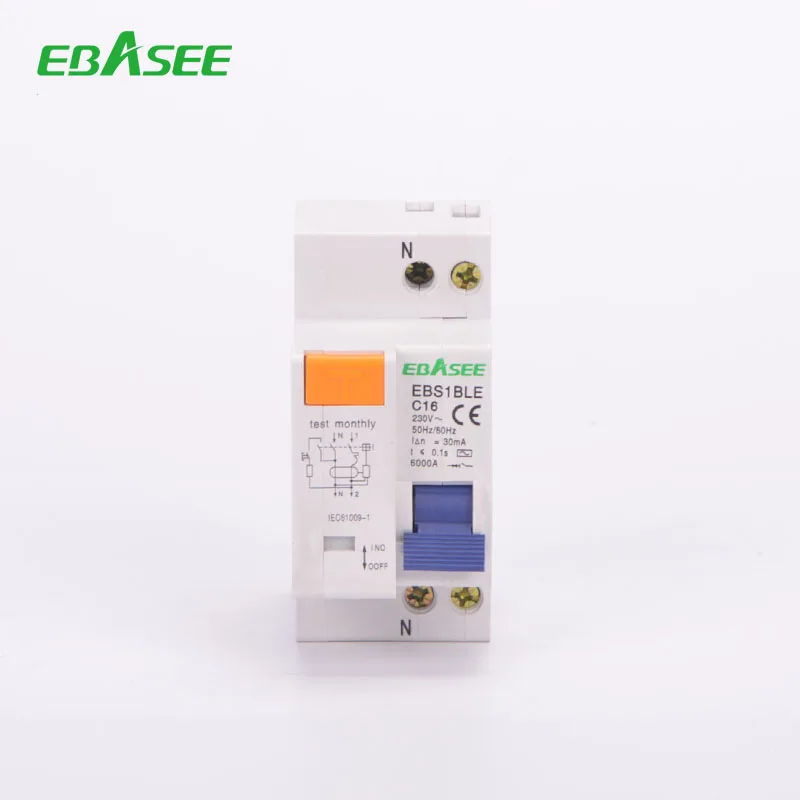

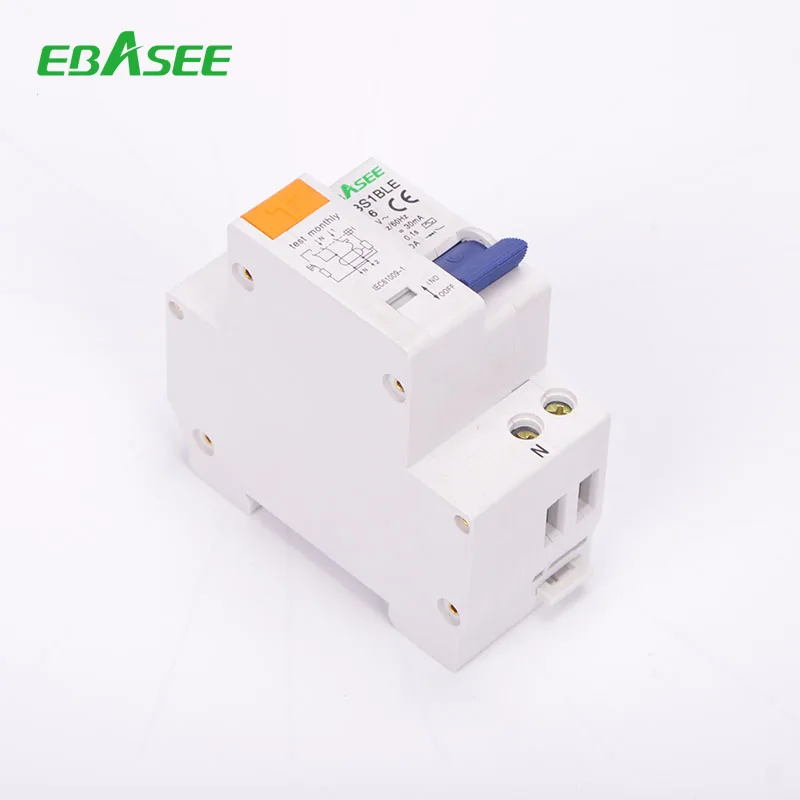

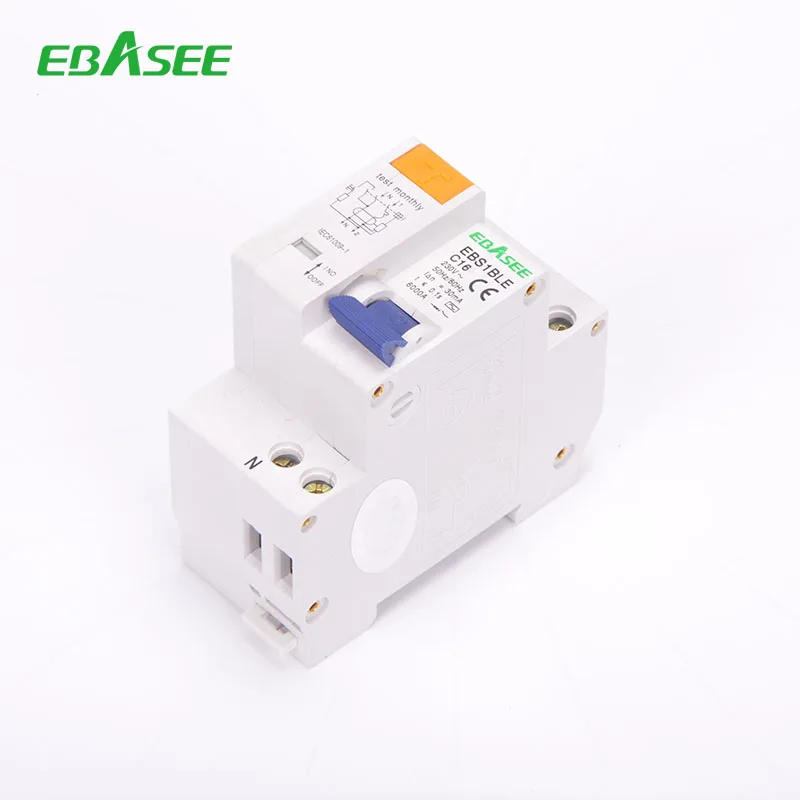

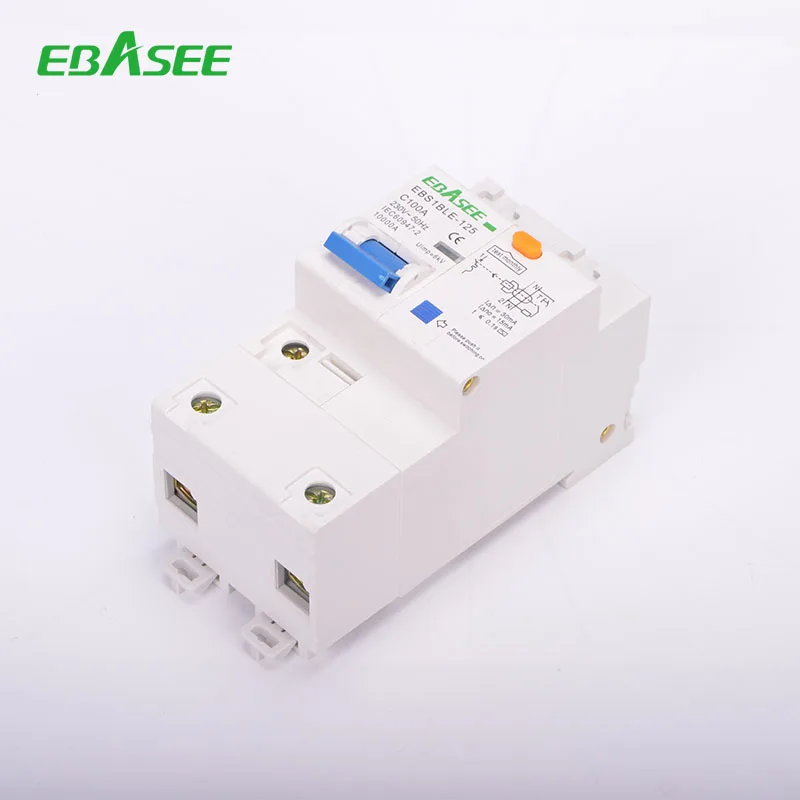

Detailed Images
