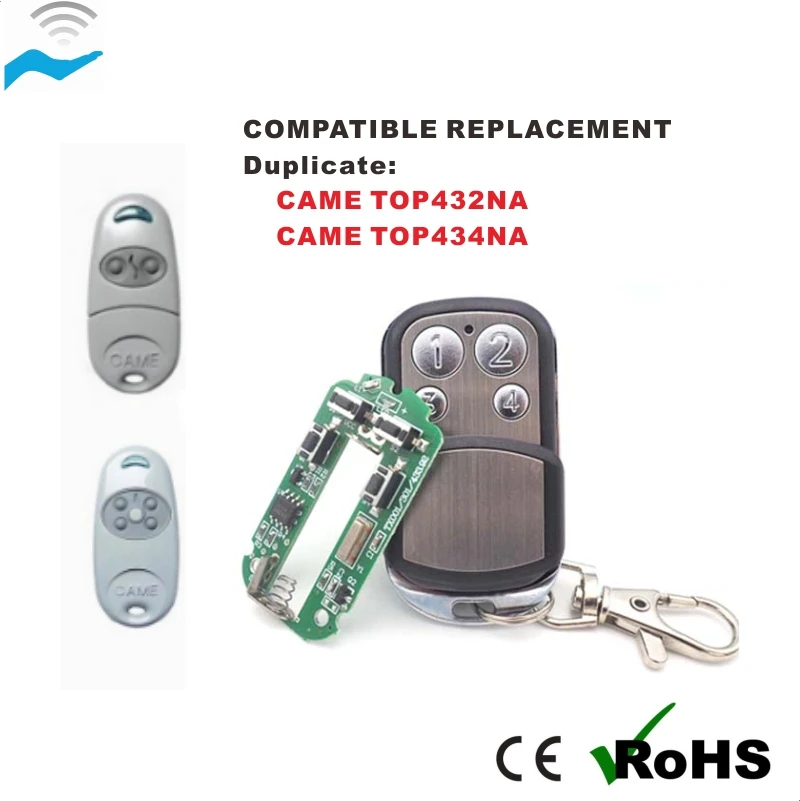

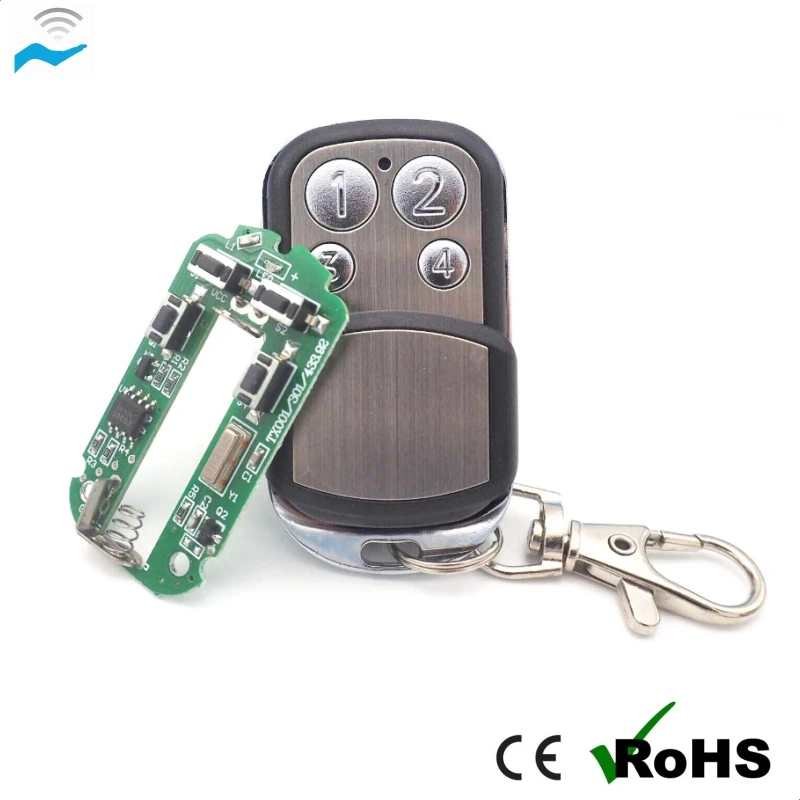

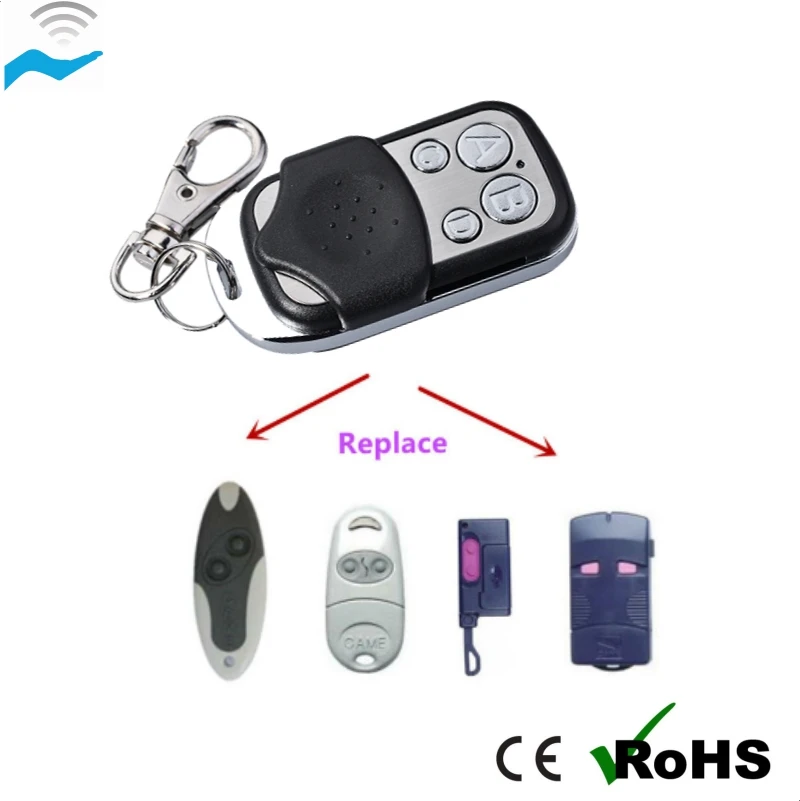

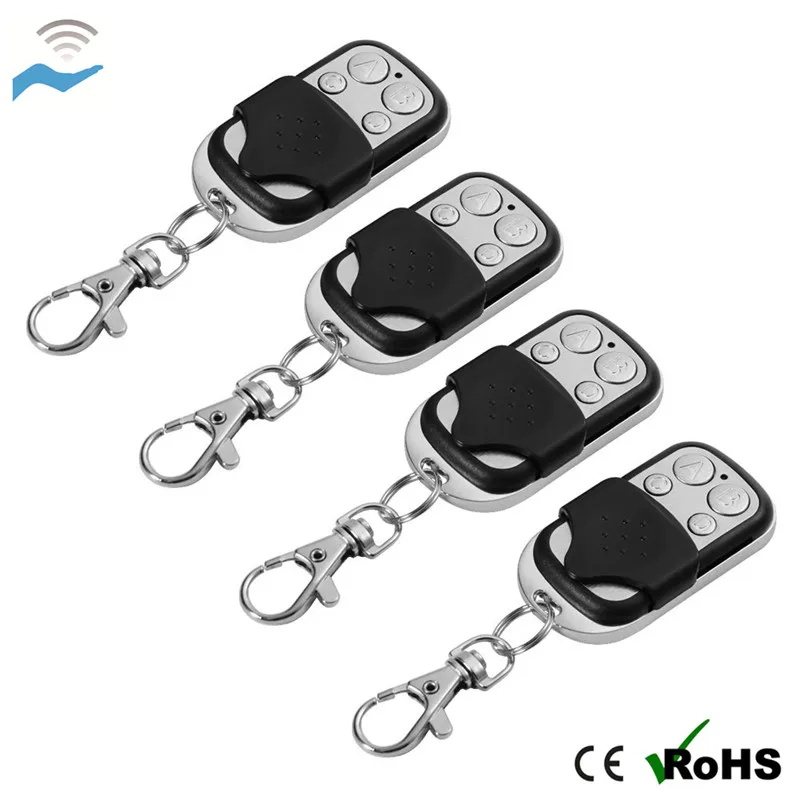

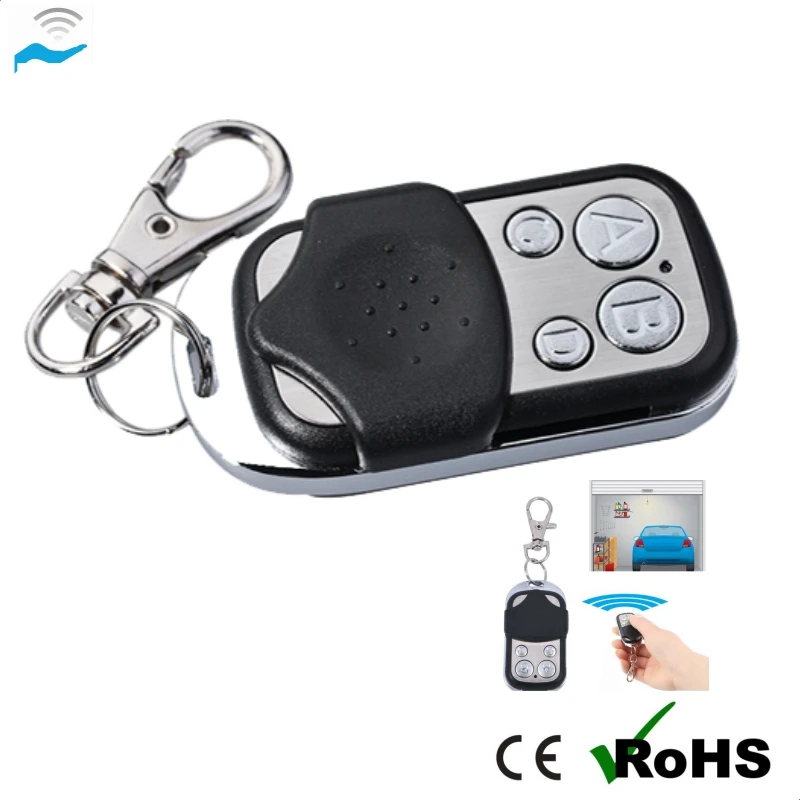

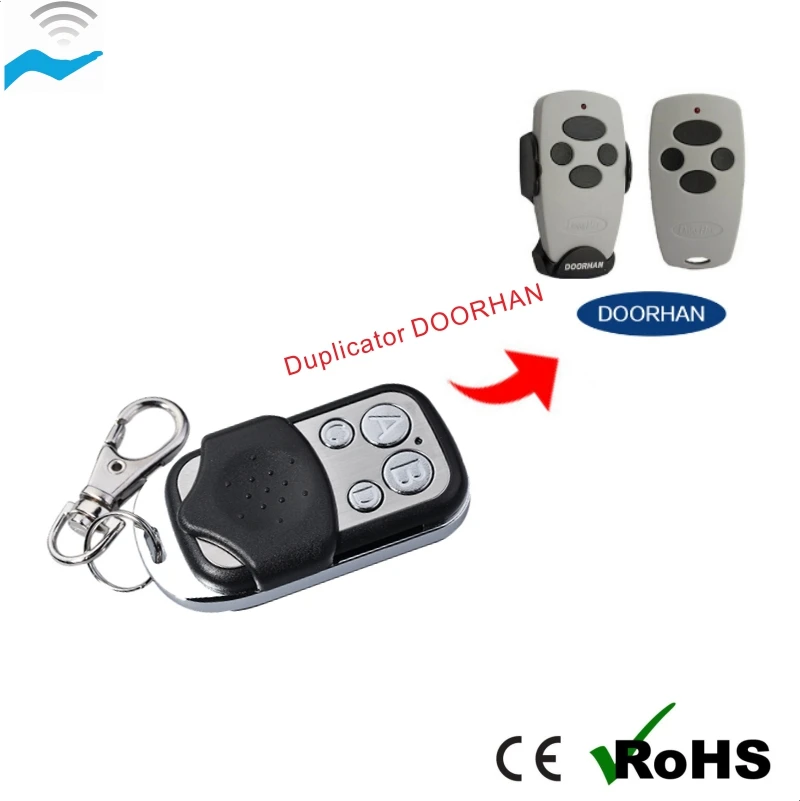

ABCD button rf Remote control for gates & doors Opener 433.92mhz remote duplicator

Product Overview

Description

ABCD button rf Remote control for gates & doors Opener 433.92mhz  remote duplicator



Specifications:  gate opener doorhan / top432na / slide gate opener doorhan
Channels: 4   wireless rf remote control garage / 12v remote control switch
Frequency: 433MHz   12v 4ch channel 433mhz wireless
Material: Plastic, Metal
Condition: 100% brand new

6. Package included:
1 x Wireless Remote Control per small box









Main techData:

1.Operating voltage:DC12V

2.Operating Current:<=12mA

3.Operation frequency:433MHZ

4.Transmit Power>=10mW

5.Transmission speed:50-60KHz

6.Frequency windage: ±0.2MHz

7.Transmission distance:100meters (open space)

8.Oscillation resistance:Per customer's request

9.Chip and operating mode: Copy code

Use range:

Very easy and convenient used for home/store anit-theft alarm,electric cars,,motorcycles,

automobile ,car alarms,all kind of doors/windows controllers and other industrial control.

 433mhz wireless keypad rolling code / 4 button gate garage door opener / cloner remote control







 hcs301 rolling code duplicator remote control / sliding gate opener universal remote control / duplicador de parqueo



Operating Instructions:

 universal remotes gates / europe garage door opener / alarm wireless transmitters

1, Clear : Pressing Arming key and disarming key at the same time , after 2s LED light flashing 3 times ,then don’t loose Arming key , but loose Disarming key and press Disarming key for 3 times ,then flashing fast , it shows clearing successfully .

 wireless rf learning code remote control / automatic window openersliding

2, Duplicating: Left hand handling the original remote control, right hand handling the duplicating remote control, keeping the two close, at the same time pressing the Arming key of the two control, after 3s LED light flashing 3 times, then flashing fast, it shows that the original control of the Arming key code has been copied in to the duplicating remote control. The other three keys are the same operation.

 rolling shutter switch / 868mhz rolling code remote control

3, Resume : If you clear code of duplicating remote control incautiously , you can press starting key and muting key , after 3s , LED light flashing 3 times , now flashing fast, it shows the code of duplicating remote control is resumed .

 sliding gate motor in china / universal garage door remote/ 1ch 220v remote control switch

4.Recover: If you meet misoperation and cancle useful codes, before re-copy, you can press the below two keys at the same time for 2 seconds and release when the lights flash quickly, then the control will be recovered.

4 keys cloning duplicator / 43392mhz garage door rf remote control

5. Notes:This copy of the remote control can not copy a computer code and rolling code , the device can only copy fixed code or learn codes.

 keypad access control for gate opener /automation 12v remote control 433mhz rf



Key features

· Prevents loss and replaces your old remote controls

· Self learning remote control

· Used in car alarms, home alarms, panic buttons, garage doors, rolling curtains and more

· Copies most radio frequency fixed code remote controls

· Learning face to face in second

Encoder IC compatibility list

· PT2240 / PT2242

· 2260 / 2262 / 2264

· EV1527 / FP527

· HT12D / HT12E

· HT600 / HT640 / HT680

· HT6010 / HT6012 / HT6013 / HT6014 / HT6207

· AX5026-1 / AX5026-2 / AX5026-3 / AX5026-4

· AX5326-3 / AX5326-4

· SMC918 / MC145026

NOTICE: Please check your existing remote control with our compatibility list before ordering.

Applications

· Wireless home security system

· Car anti-theft alarm system

· Car keyless entry system

· Car sunroof remote control

· Vehicle central locking system

· Wireless call system

· Home appliance / industrial automation

· Electronic garage door / gate opener

· Remote toy control

· Remote fan / lighting control

· Wireless motor-driven curtain

· Heating systems

· Wire elimination project
