HVAC wall exhaust valve stainless steel air disc valve

Product Overview

Description

 HVAC wall exhaust valve stainless steel air disc valve



Construction:



        • Panel, Cylinder and Disc: High quality stainless steel.





Description:.

        • Disc is fixed to the frame by threaded rod.



        • Air flow can be adjusted by regulating the cone up and down(+A or -A).



        • Foam gasket is sealed around the back of the frame to avoid the air leakage.



        • Disc valves are best suited to air distribution systems handling relatively low air flow rates within            small circular duct work. It is recomm-ened for air supplying of small space,exha-ust of greasy              and damp air in damp areas such as toilets, bathrooms and kitchens.



        • It can be mounted in the wall, ceiling or exposed to air ducts with mounting rings.

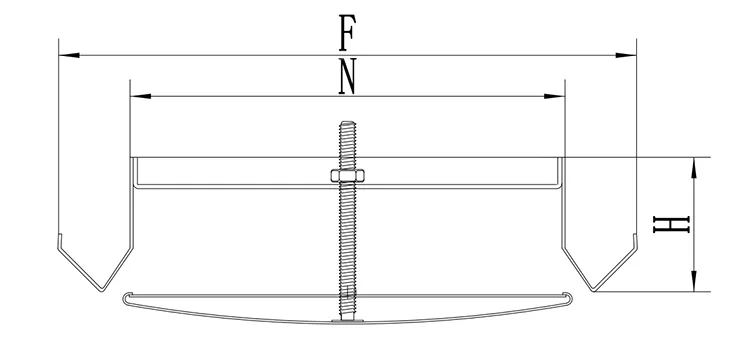

Standard Size:





Item Code	Neck Size (mm)	Face Size (mm)
DV-SR-80	80	160
DV-SR-100	100	180
DV-SR-120	120	200
DV-SR-150	150	230



All other sizes available upon request

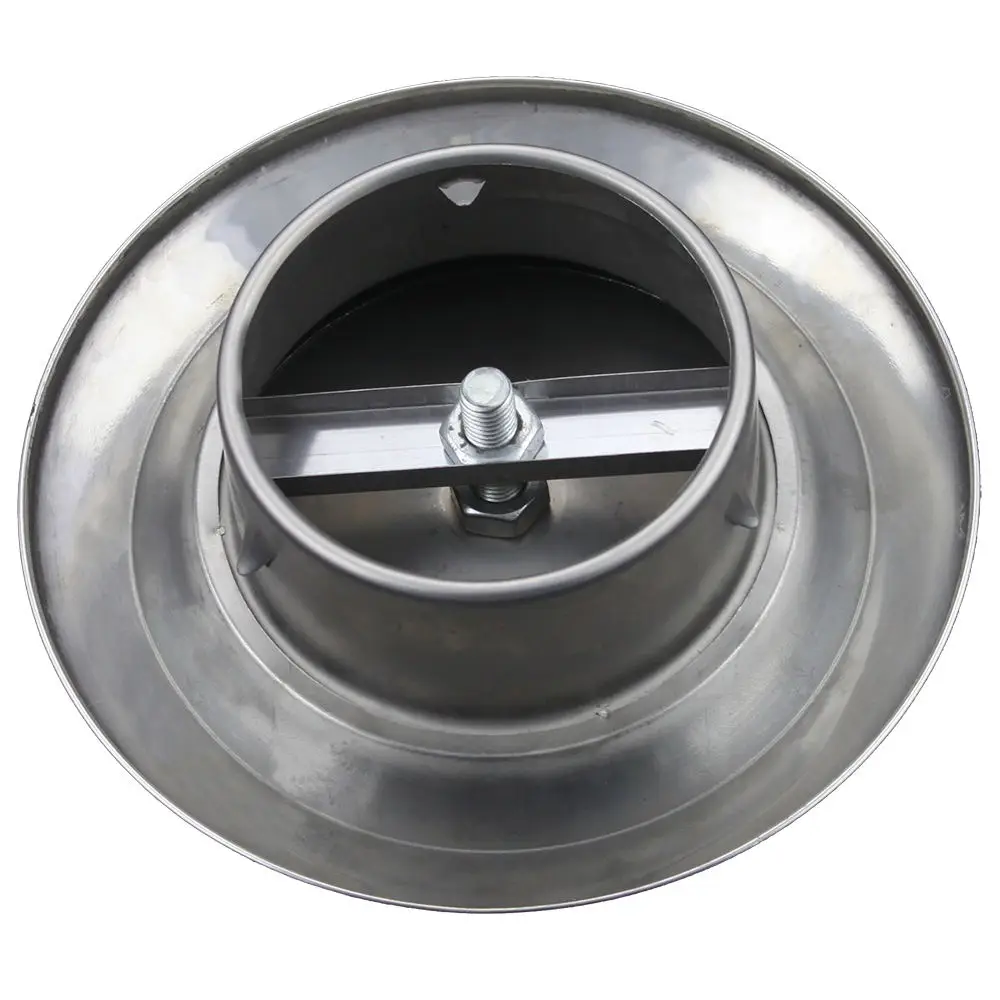

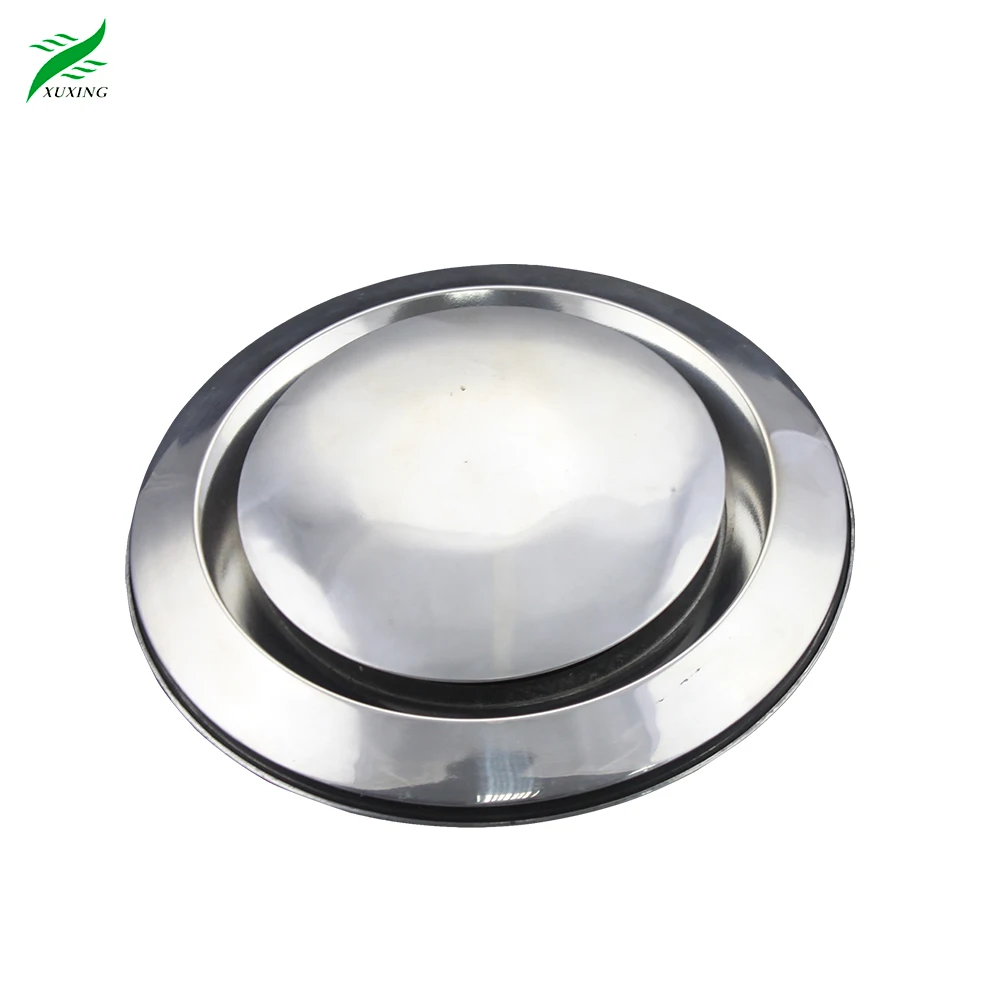

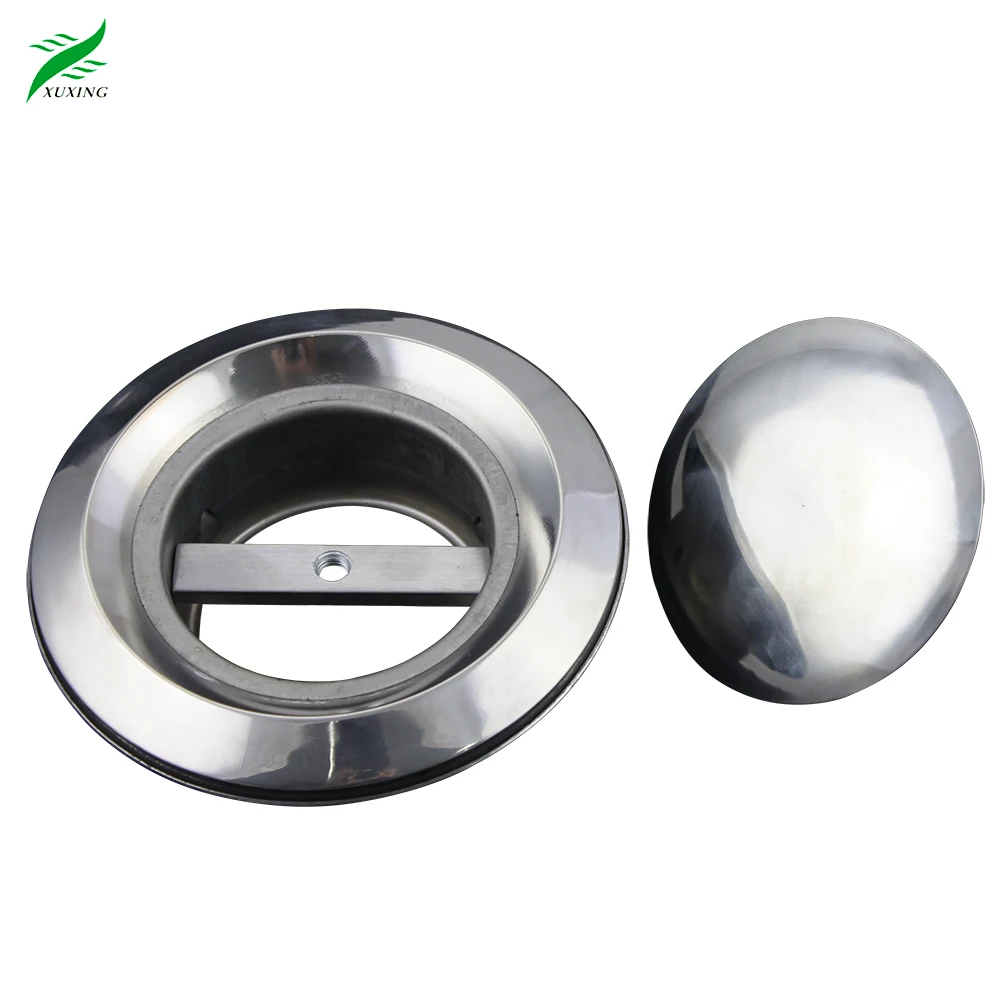

Detailed pictures __________________









Other diffuser / grilles __________________



More items, please click below picture









We care about all the details in the product process.

As aluminum has the soft character to cause the easy deformation, we focus on the safe packing in different transportation way.



Full container:  plastic corner protected + PVC bag + strong carton (pallet for option)

LCL:  plastic corner protected + PVC bag + special strong carton + pallet

By air / courier: plastic corner protected + PVC bag + carboard inserted in carton + special strong carton
