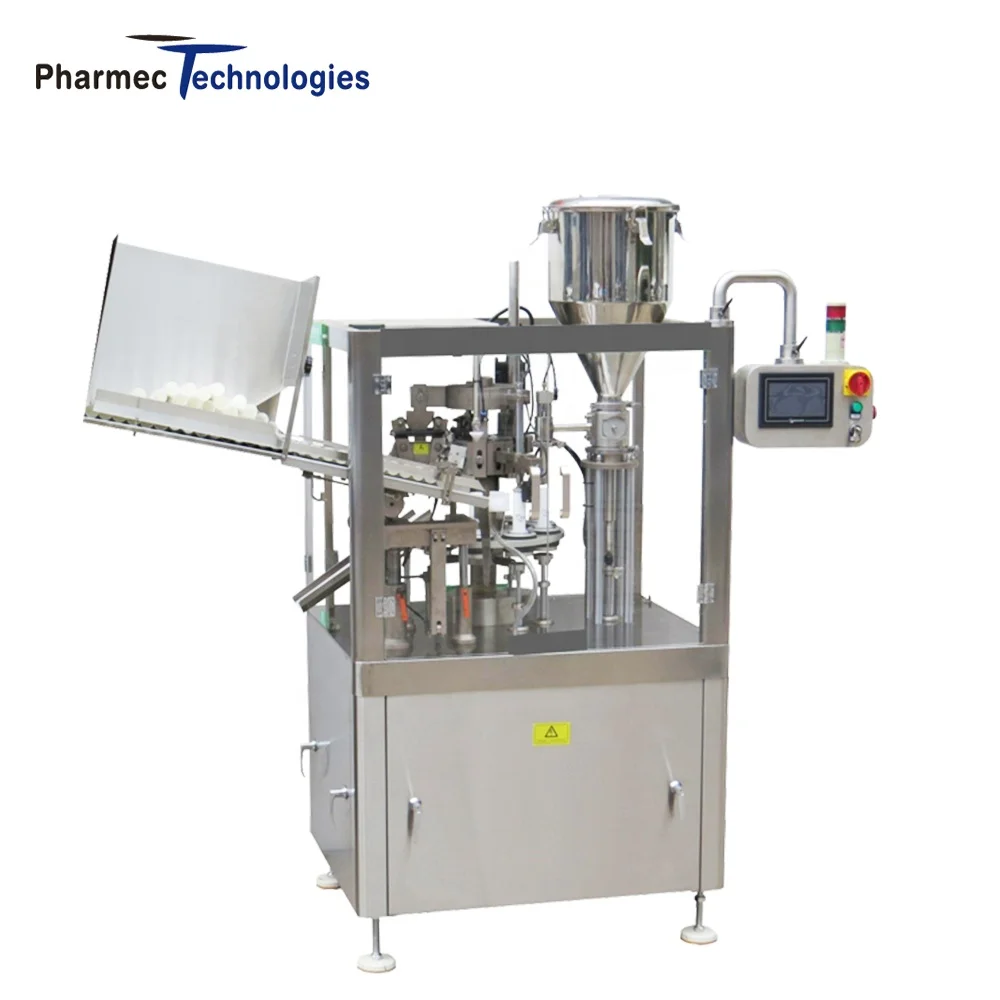

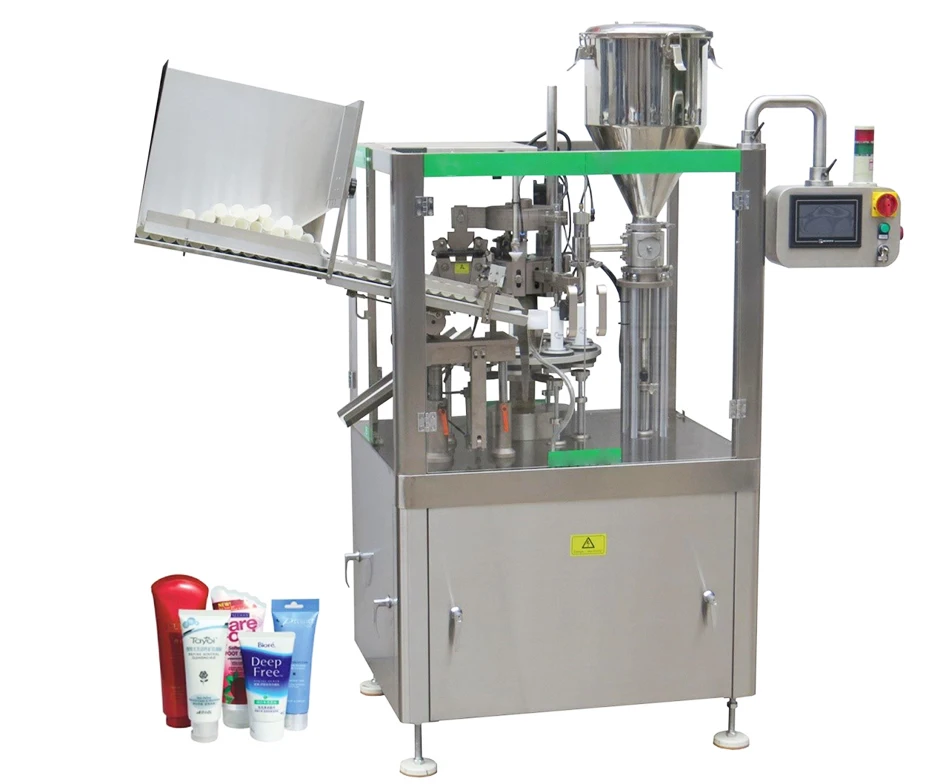

Automatic Aluminum Plastic Tube Filler Tube Cream Filling and Sealing Machine

Introduction

PT-80A-C high speed tube filling and sealing machine is for all plastic tubes, laminated tubes and metal tubes.

PT-60A-C low speed tube filling and sealing machine is for all plastic tubes, laminated tubes.

Features

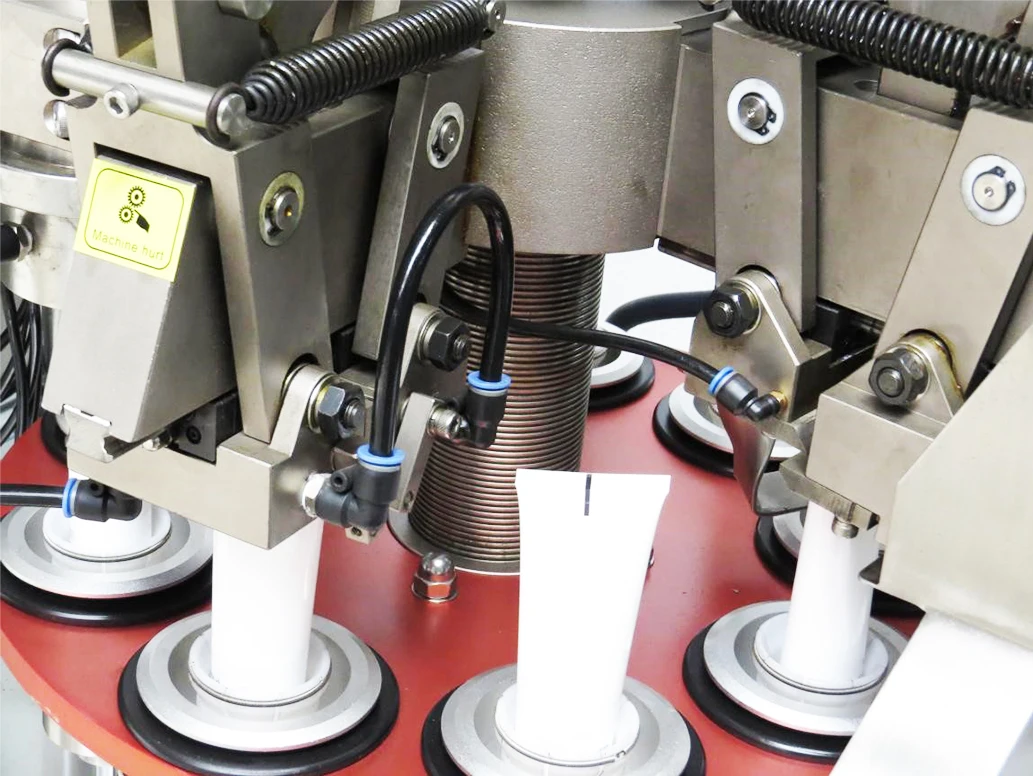

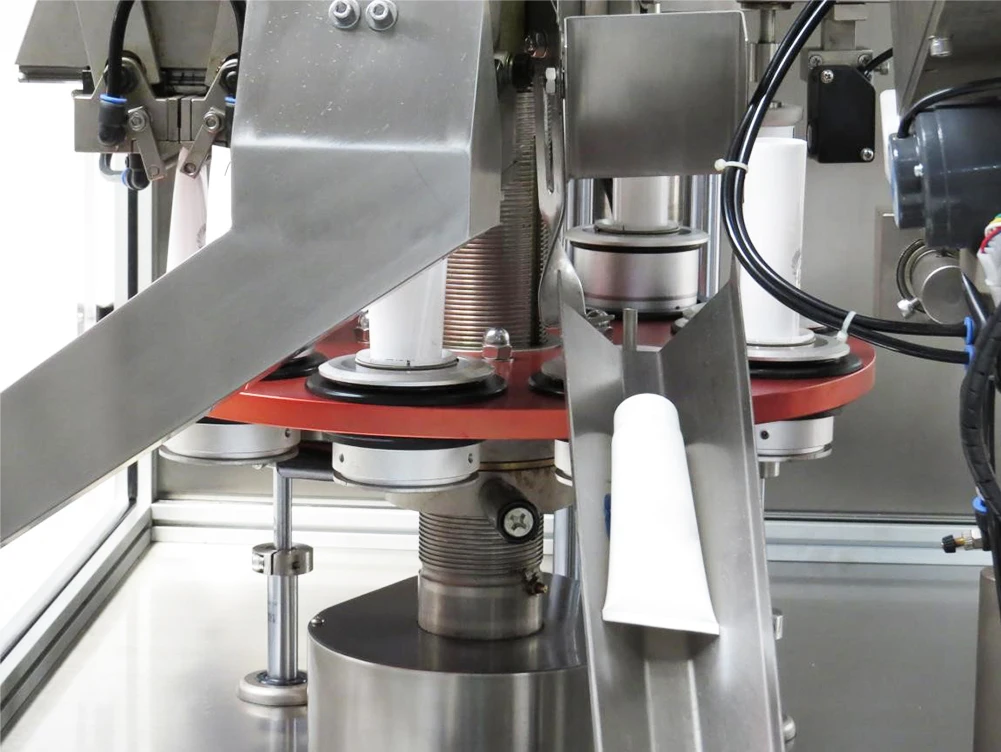

1. The tube is automatically pressed into the tube holder. The elastic tension type tube holder is adopted to guarantee the consistent sealing height. The automatic color mark adjusting systems by stepping driving tube holder is adopted for oval tubes or other special-shaped tubes. Adopt mechanical transmission mode filling system ensuring the stability of loading capacity.

2. The internal wall of tube adopts hot air sealing and the external wall of tube adopts cooling water circulative cooling, which can beautiful sealing effect. The fan is adopted to discharge the poisonous gas produced during the heating outside the room. After the sealing, the wind cooling system is adopted to prevent the heat from being conducted to the ointment.

3. Automatic completion of filling, sealing and batch No. printing in one machine. Provided such functions as automatic supply of a tube to a worktable of machine, automatic tube blowing (clearing), tube color mark automatic adjustment in a holder and automatic filling and sealing.

4. Speed shall be adjustable by inverter. The production capacity can be realized and control automatically. The code mechanical hand print the code automatically in the request position. Human-machine interface with direct display and control.

Technical Parameters
