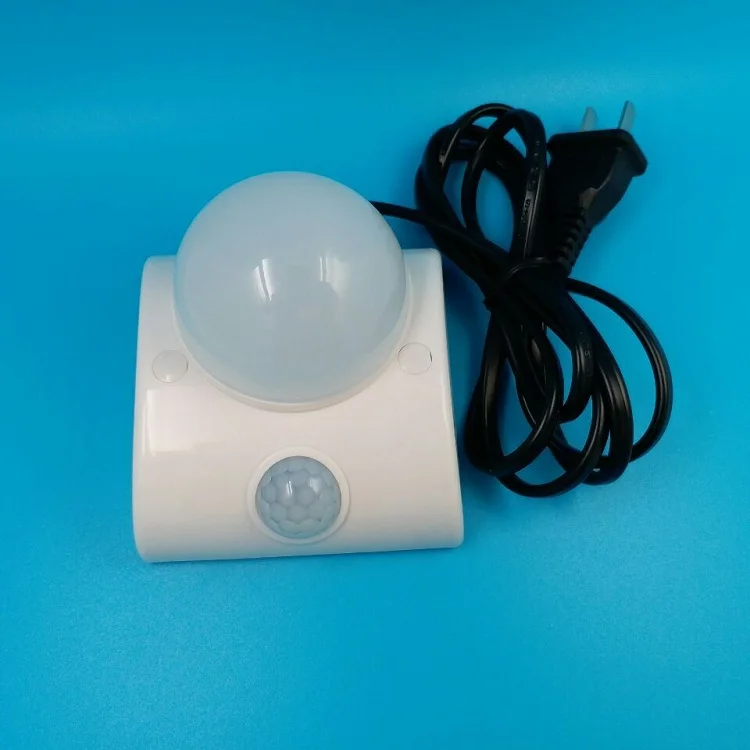

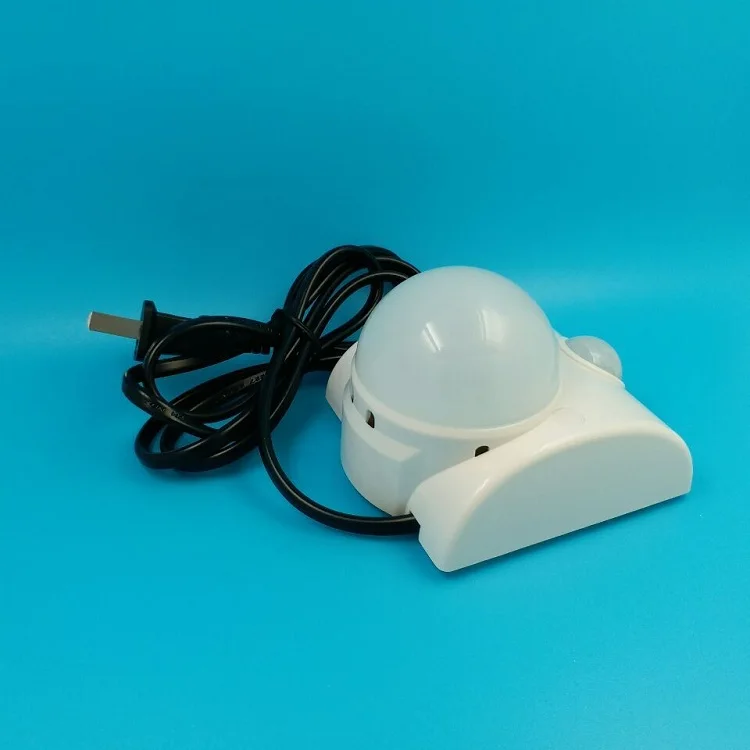

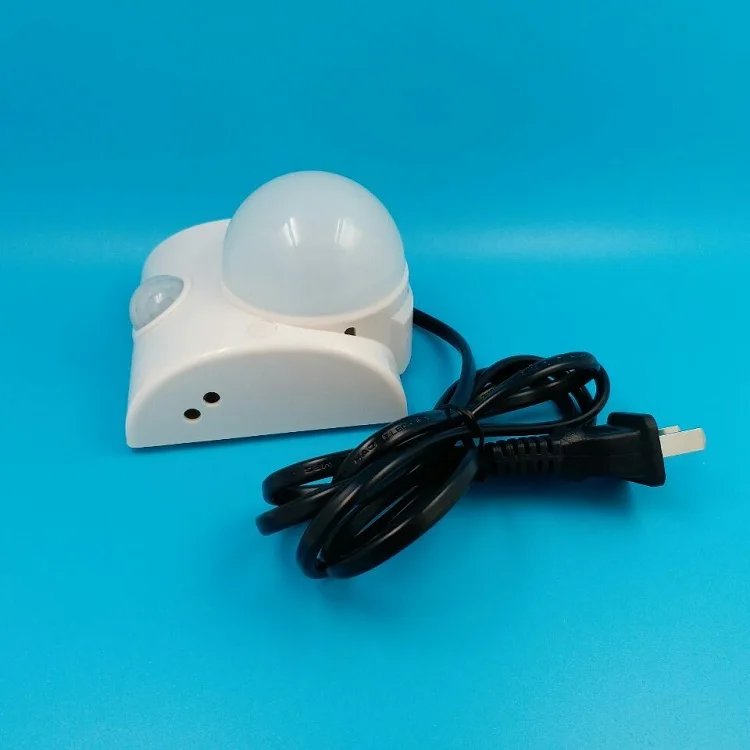

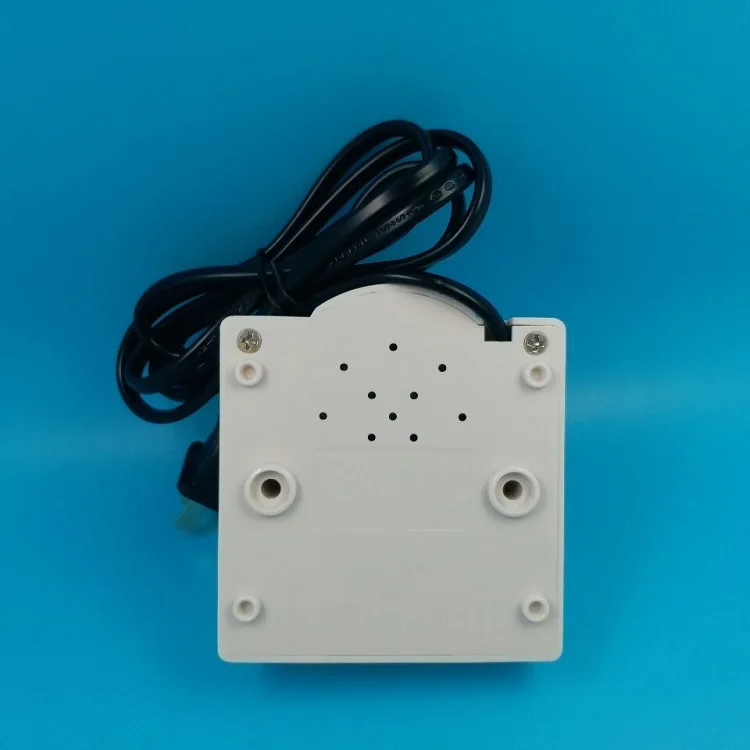

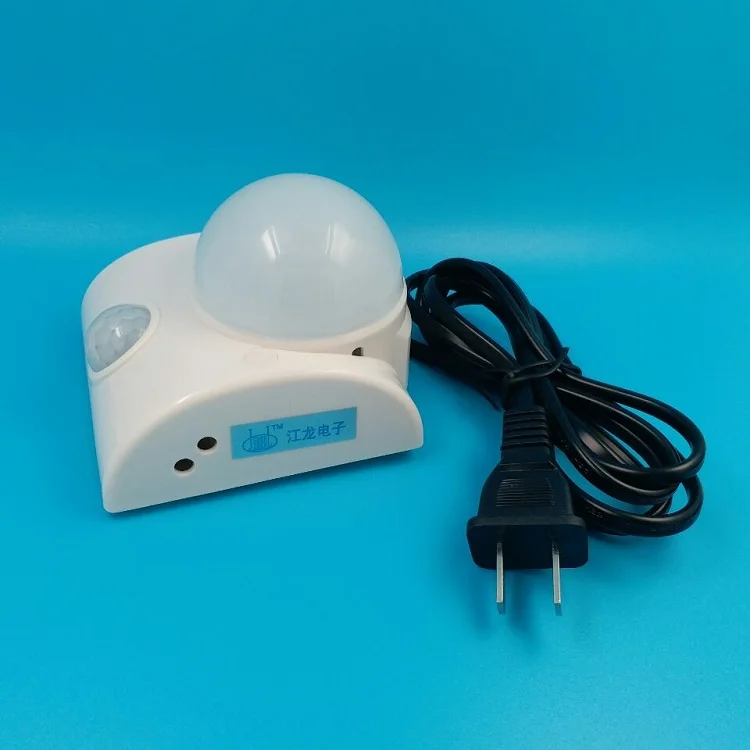

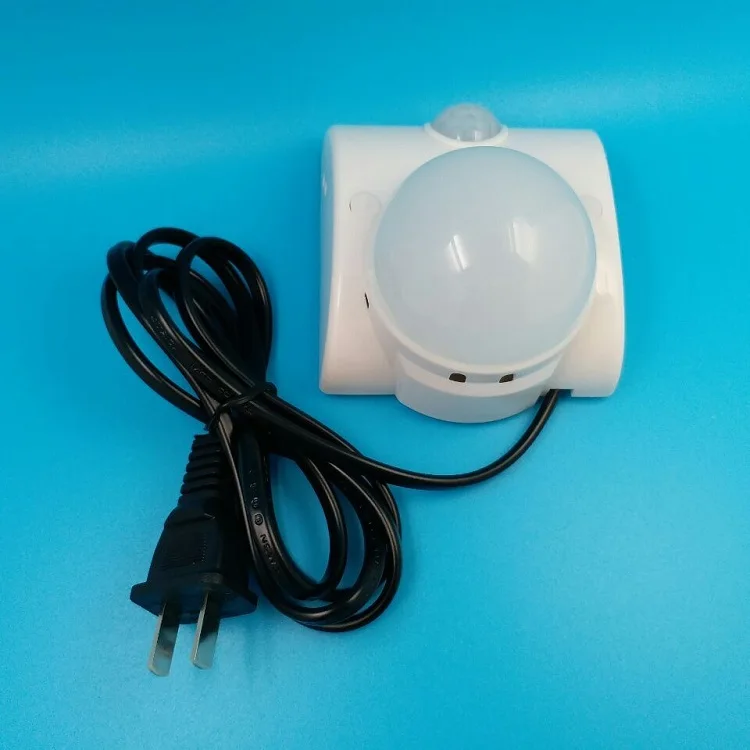

5W white light 170~250V Pir sensor motion lamp led ajustable delay human body ind uction bulb plug with power cord

Product Overview

Description



86 type PIR motion sensor lamp operating instruction

 Adjustable sensitivity and time(With power cord plug 1.5M)

Suitable for places

Corridor, toilet, basement, garage, and other places of automatic lighting.

Features:

1. The product uses the most advanced sensors and integrated circuits, when the pedestrian into the induction range automatically turn on the lights, leaving the automatic delay when the lights out.

2. Products using photosensitive control, with automatic metering function, only when the light is dark to work properly, (adjustable day also lights).

3. Strong anti-jamming capacity, more safe and reliable.

4. Delay time adjustable.

5. Sensitivity adjustable.

Specification:

1. Size: 86*86*65mm.

2. Working voltage:  AC170~250V)50/60HZ.

3. Power consumption Idling:≤0.1W.

4. Induction distance:110°, 5~8m.

5. Delay time adjustable:15~300second (default 20S).

6. Illumination adjustable:5LUX~5000LUX (default 5LUX).

7. Power:LED 5W, (default 5W).



 Attention:

1. To turn off power when installation, must be installed by professional.

2. This switch can work normally after 60 seconds when electricity, it is infrared sensor preheat time.

3. 86 standard size, can be directly supporting the use of 86 type box or direct installation of the wall can be.

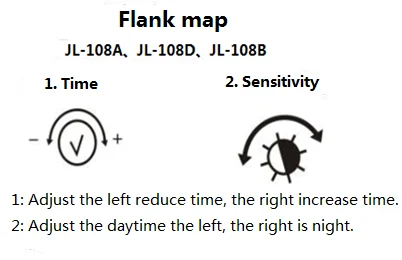

warning: Adjustable product at the time of debugging, please must use a Straight screwdriver gently adjust.



Sensing range:

Components have been doing rigorous testing and screening, before delivery we have been doing aging test, please be assured to use.
