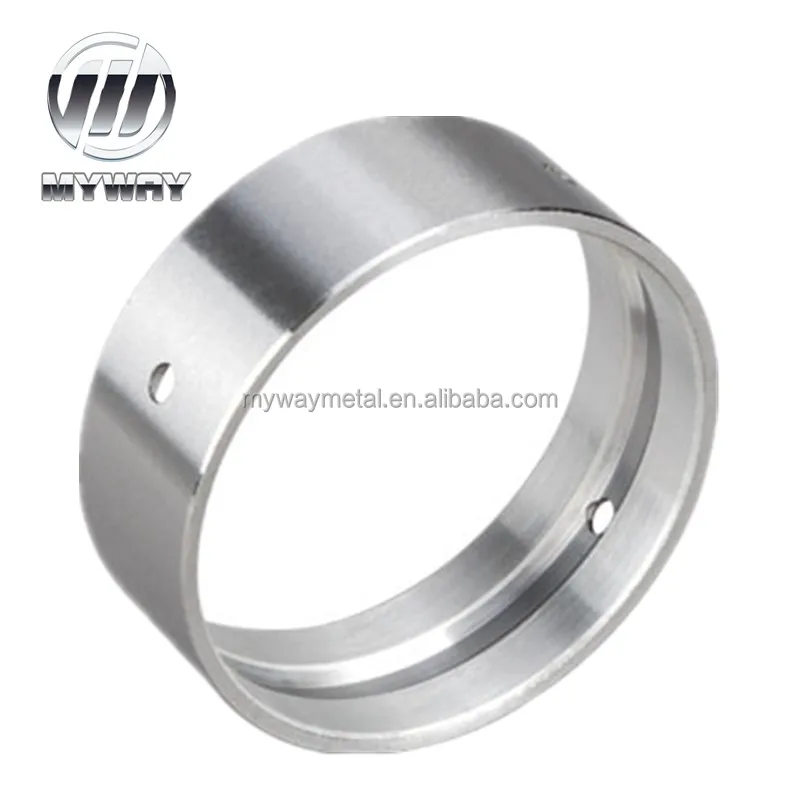

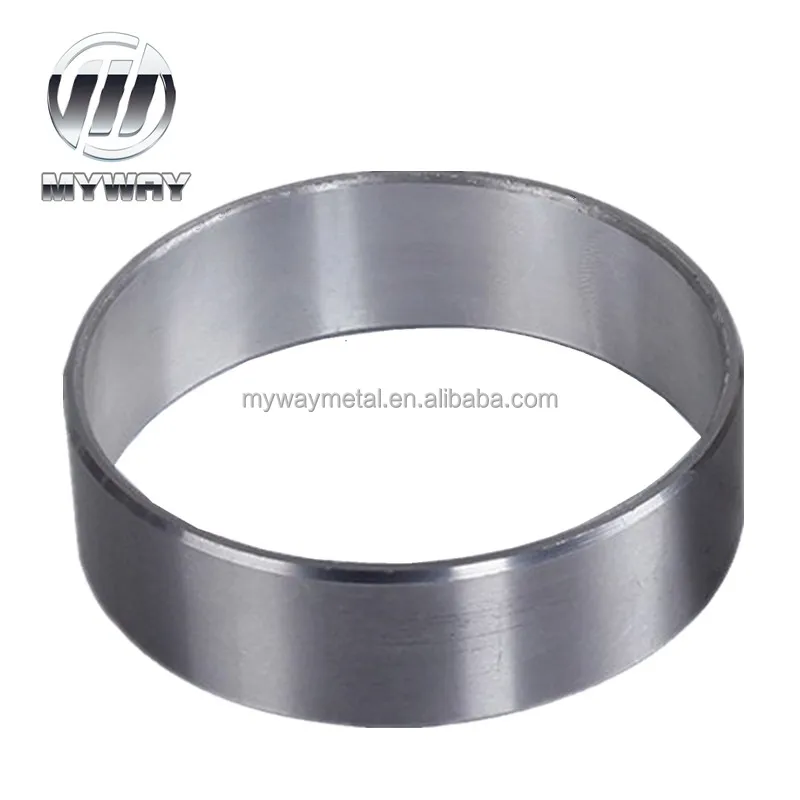

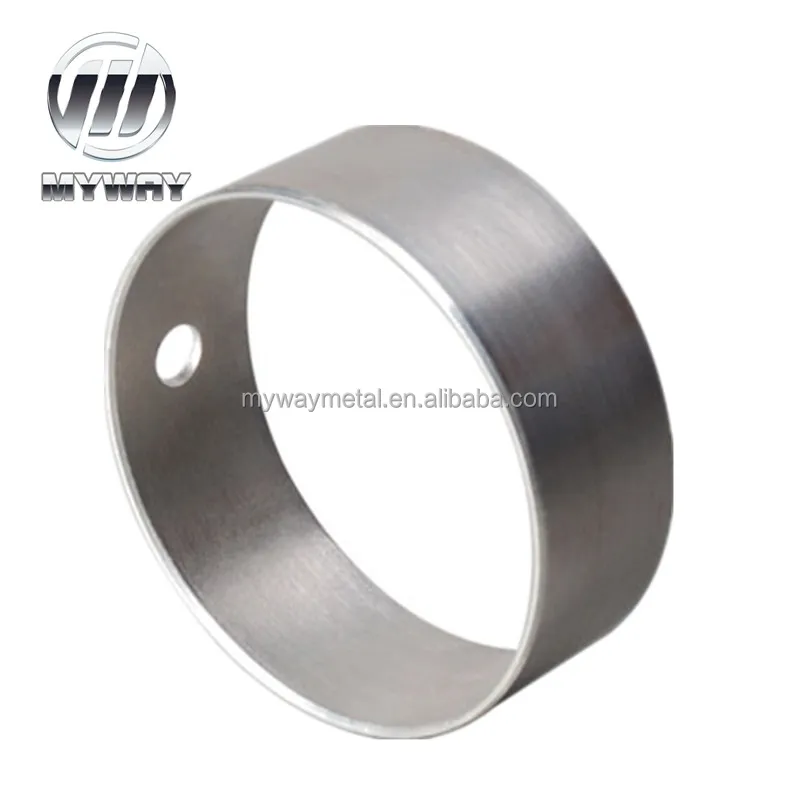

Производители, втулка из алюминиевого сплава, подшипник, вал двигателя, биметаллическая муфта JF800
- Category: >>>
- Supplier: Jiaxing Myway Metal Co. Ltd.
Share on (60712286553):
Product Overview
Description
PRODUCT PARAMETERS
Performance index | JF-800 | JF-720 | JF-700 | JF-20 | JF930 |
Max Load Capacity | 150 | 130 | 120 | 100 | 150 |
Dynamic load | |||||
Tensile Strength | 185 | 150 | 200 | 200 | 185 |
Oil lubrication | |||||
Max Sliding Speed | 5 | 10 | 10 | 25 | 5 |
Friction coefficient | 0.06-0.14 | 0.06-0.16 | 0.08-0.16 | 0.08-0.16 | 0.06-0.16 |
Oil lubrication | |||||
Max PV Value Limit(Grease lubrication) | 2.8 | 2.8 | 2.5 | _ | 0.8 |
Max PV Value Limit(Oil lubrication) | 20 | 10 | 8 | 6 | _ |
The JF bi-metal bushings adopts excellent mild steel as the backing, and then the bronze sintered or mock silver pressed at the surface. There are different types of bushings, engine bearings, thrust washers we are supplying, and among which bushing is the most commonly used type. The material most commonly adopted for the alloy layer for the bi-metal bushings is CuPb10Sn10,CuPb24Sn4, CuPb30, CuSn6Zn6Pb3, AISn20Cu and so on. For sake of the environmental protection which has drawn much attention internatiosally,our company developed another kind of material CuSn6.5P0.1 for the alloy layer and it has been widely used in the market.
JF Bimetal bearings are widely used in oil lubricating situations. Normally under low speed and oil lubricating situations
assemble with grease and work with adding oil periodically, such as suspension, steering ball joints, brake pedal points,
redirector, connecting rod, slide part of punch. construction and earth-moving equipment, ETC.Under middle speed work with oil,such as connecting rod, shaft and transportation parts of cut machine. Under high speed work within oil, such as gear box,fuel pump,engine,clutch,ETC.
assemble with grease and work with adding oil periodically, such as suspension, steering ball joints, brake pedal points,
redirector, connecting rod, slide part of punch. construction and earth-moving equipment, ETC.Under middle speed work with oil,such as connecting rod, shaft and transportation parts of cut machine. Under high speed work within oil, such as gear box,fuel pump,engine,clutch,ETC.
PRODUCT INFORMATION
CERTICATE

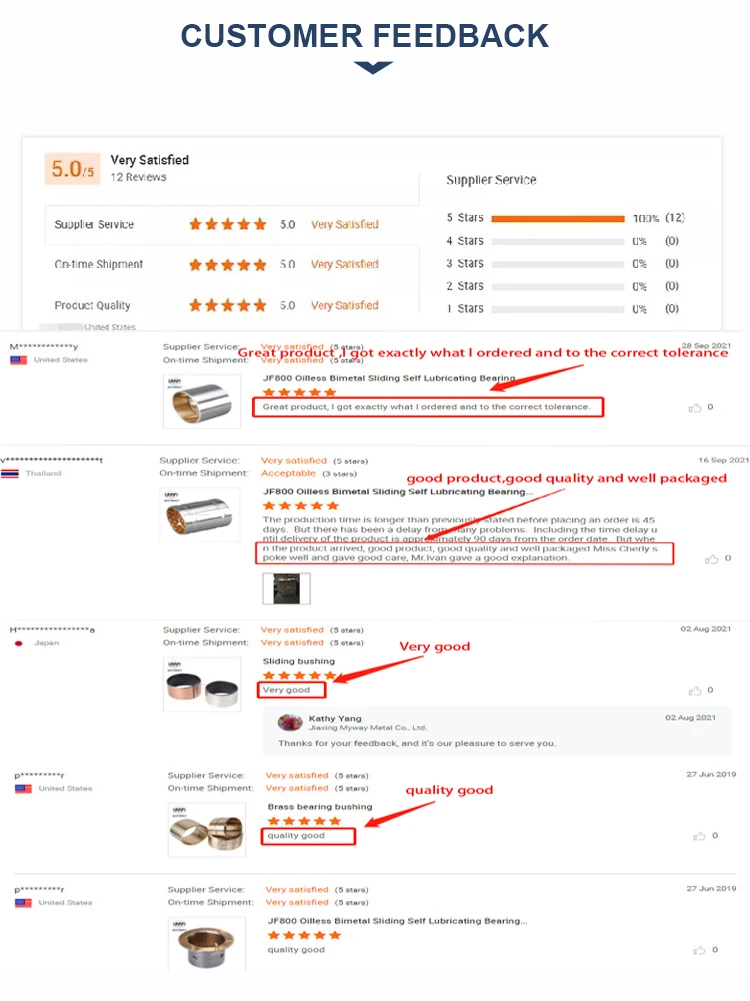

CUSTOMER FEEDBACK
HOT SELL PRODUCTS
SHOPPING&PAYMENT
FAQ
Q. Are you manufacturer or trade company ?
A: We are manufacturer.
Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q. What is the lead time?
A: Sample: 5-7 working days normally. Mass production time : 30 working days
Q. Do you have any MOQ limit?
A: We don't have MOQ, but if quantity large, prices will be lower.
Q. What's your payment term?
A: Usually we accept T/T, we also accept L/C, Paypal and Western Union, credit card or via ALIBABA.
Q. Do you offer guarantee for the products?
A: Yes, we offer one-year guarantee for the goods.
Q. Why do we choose your company?
A: Our company is a professional bearing manufacturer for over 20 years. We always insist quality first, and we have advantage in
quality control and price.
A: We are manufacturer.
Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q. What is the lead time?
A: Sample: 5-7 working days normally. Mass production time : 30 working days
Q. Do you have any MOQ limit?
A: We don't have MOQ, but if quantity large, prices will be lower.
Q. What's your payment term?
A: Usually we accept T/T, we also accept L/C, Paypal and Western Union, credit card or via ALIBABA.
Q. Do you offer guarantee for the products?
A: Yes, we offer one-year guarantee for the goods.
Q. Why do we choose your company?
A: Our company is a professional bearing manufacturer for over 20 years. We always insist quality first, and we have advantage in
quality control and price.
