Manufacturer Of Jaw Crusher For Gold Ore Iron Ore Quarry Equipment
Product Description
Jaw crusher Introduction
PE, PEX series jaw crusher is Large-scale tilting complex style, widely used in mining, smelting, construction, highway, railway, water conservancy and chemical industry and many other industries, dealing with large particle size, compressive strength of not more than the various ore 320Mpa and the rough rocks or broken pieces of work. PE series for the rough-breaking, PEX series used for the small and thin breaking.
Application
Limestone, gypsum, coal gangue, quartz sand, such low hardness materials, or granite, barite, iron ore, river pebbles, such high hardness materials
Main Features
(1). Simple structure, easy maintenance;
(2). High crushing ratio, even output granularity;
(3). High reliability, low investment;
(4). Low noise, less dust.

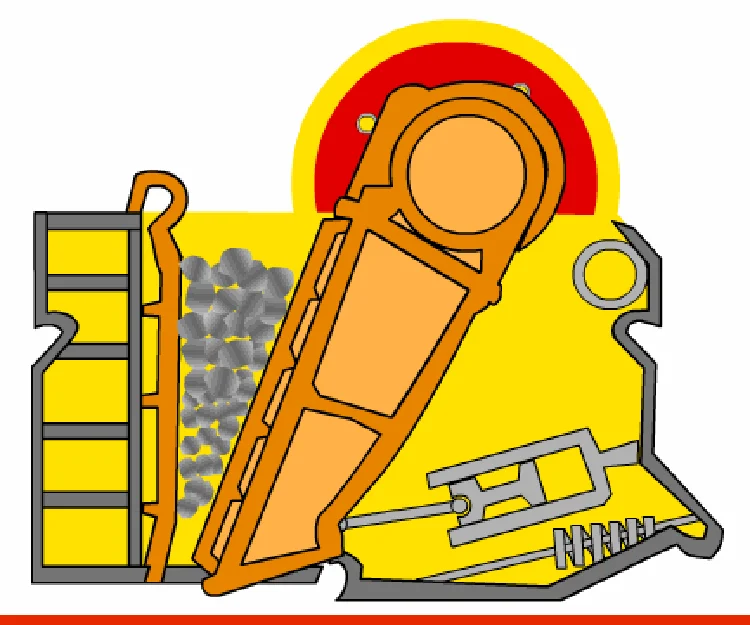

Working principle
The motor transmits through belt, drives the moving jaw to do periodic motion towards the fixed jaw by the eccentric shaft. The angle between toggle plate and moving jaw plate increases when mobile jaw moving. So the mobile jaw moves towards the fixed jaw. The stuff will be crushed in this process. The angle between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw moves leaves fixed jaw by pulling rod and spring, the final crushed stuff will be discharged from the outlet.
Technical Parameters
Model | Inlet Size(mm) | Max feeding size(mm) | Adjusting Range of Discharging outlet(mm) | Capacity(m³/h) | Power(kW) | Weight(t) |
PE-150×250 | 150×250 | 125 | 10~40 | 1~3 | 7.5 | 13 |
PE-250×400 | 250×400 | 210 | 20～60 | 3～13 | 15 | 2.8 |
PE-400×600 | 400×600 | 340 | 40～100 | 10～35 | 30 | 6.5 |
PE-500×750 | 500×750 | 425 | 50～100 | 25～60 | 55 | 10.6 |
PE-600×900 | 600×900 | 500 | 65～180 | 30～85 | 55～75 | 15.5 |
PE-750×1060 | 750×1060 | 630 | 80～180 | 72～150 | 90～110 | 28 |
PE-800×1060 | 800×1060 | 680 | 100～200 | 85～143 | 90～110 | 30 |
PE-870×1060 | 870×1060 | 750 | 170～270 | 145～235 | 90～110 | 30.5 |
PE-900×1060 | 900×1060 | 780 | 200～290 | 170～250 | 90～110 | 31 |
PE-900×1200 | 900×1200 | 780 | 95～255 | 100～240 | 110～132 | 49 |
PE-1000×1200 | 1000×1200 | 850 | 195～280 | 190～275 | 110～132 | 51 |
PE-1200×1500 | 1200×1500 | 1020 | 150～300 | 250～500 | 160 | 100.9 |
PEX-150×500 | 150×500 | 120 | 10～40 | 3～15 | 11 | 2.5 |
PEX-150×750 | 150×750 | 120 | 10～40 | 5～16 | 18.5 | 3.5 |
PEX-250×750 | 250×750 | 210 | 15～50 | 8～35 | 30 | 5.8 |
PEX-250×1000 | 250×1000 | 210 | 15～50 | 13～45 | 37 | 6.4 |
PEX-250×1200 | 250×1200 | 210 | 15～50 | 13～50 | 37 | 7.7 |
PEX-300×1300 | 300×1300 | 250 | 15～50 | 20～60 | 75 | 11 |
Why Choose Us
pre-sale services:
We offer you the profase plan, the technology process and the team design according to your special demands and the conditions of the job site.
sales services:
Send professional technicians to the workplace to guide the installation and adjustment, provide the training of the operation, meet the test together with you.
Service after sale:
Establish long-term friendship with you, we regularly receive your comments. In addition, we provide one-year warranty to ensure normal operation of your machine.

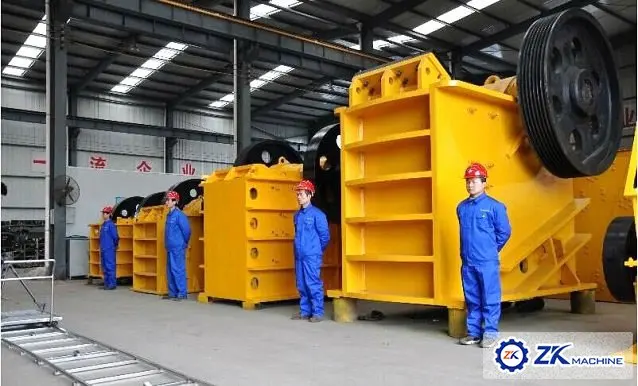

Company Information
Henan Zhengzhou Mining Machinery Co., Ltd. established in 1956 and located in Xingyang of Zhengzhou City of Henan Province, specially produces metallurgical machinery. It covers an area of more than 60000 m² and various building area of 35000 m². In the plant, there are workshops of cast iron, cast steel, forging, heavy machine tool processing, rivet welding and heat treatment etc. Its perfect and complete equipment, advanced detection means, strong technical force establish good foundation for the reliable production.
The main products of company include: ball mill, rotary kiln, vertical preheater, cooler, crusher, metallurgical oven, magnetic separator, flotation machine, classifier, feeder, bucket elevator, preheater, dust collector, elevator, drier, and other equipments relate to metallurgy, cement, lime, mineral processing, refractory, chemical industry. The products of Henan Zhengzhou Mining Machinery Co., Ltd have been sold to every province of China and exported to Russia, Korea, Vietnam, Malaysia, Nepal, Bangladesh, Mexico, Armenia, Africa, South America and other countries and regions.
