FHM Self Drive Mobile Drum Wood Chipper Shredder DW50

Product Overview

Description

FHM Self-Drive Mobile Drum Wood Chipper Shredder DW50



Changzhou Farmer Helper Machinery Co.,Ltd (FHM) is established in 2009,located in Benniu Industrial Park,Changzhou,Jiangsu,China.

Now FHM is a professional manufacturer of Agri&Forestry machines., which manufactures and offers a full range of tractor wood chipper, such as



wood chipper
wood chipper machine
wood chipper shredder
wood chipper machine shredder
jansen gts 1500 e drum wood chipper price
drum wood chipper
pto wood chipper
bx62r wood chipper
wood chipper blades
wood chipper malaysia
mobile wood chipper
diesel wood chipper
wc-8 wood chipper
chipper wood
wood chipper made in china

1.Product Description

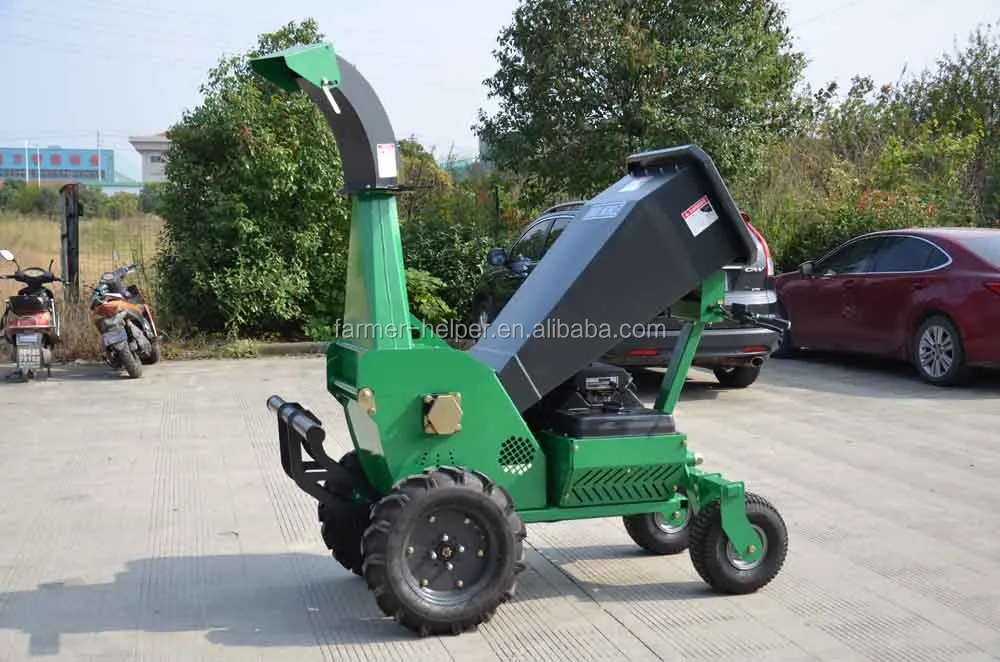

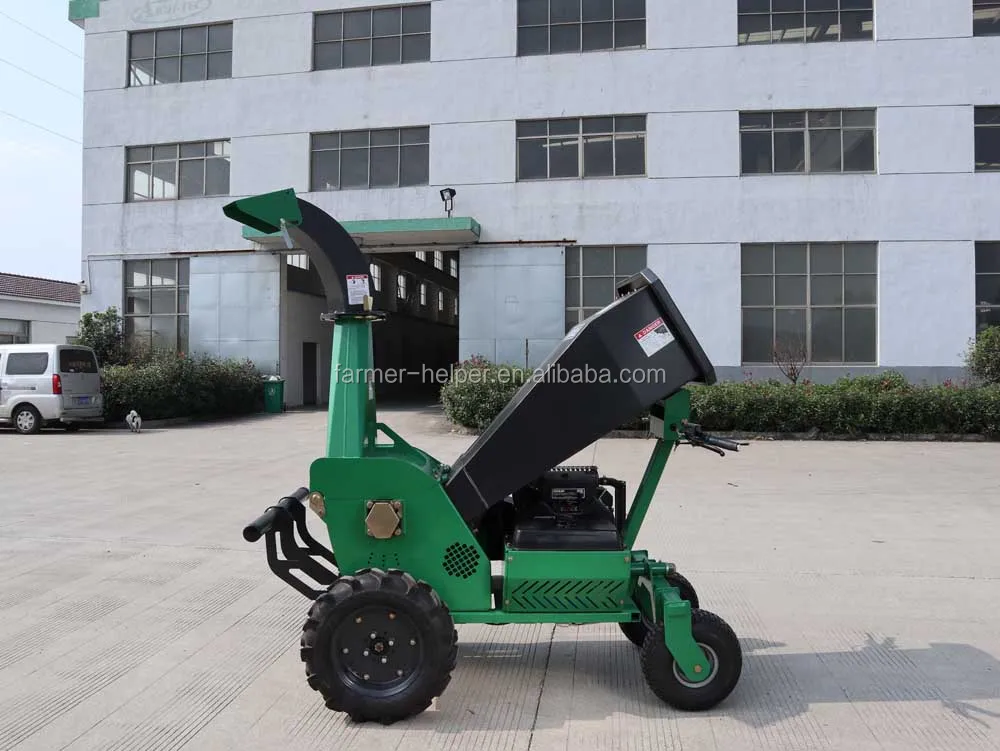

DW50 MOBILE is a Wood Chipper with a powerful 20.5HP engine for fast and professional wood processing up to 6”/15 cm in diameter.



Our DW50 Mobile is a powerful Wood Chipper Shredder for use when you don’t have tractors, ATV Quad or other utility vehicles. This unit allows you to drive 80 km after battery fully recharged. The total width of the machine is only 86 cm/ 34”, it allows you to drive through doorway easily.You can chip whenever and where ever you want with the push of a button.



Thanks to the electric self- drive and two-wheel drive feature, it allows you to comfortably drive the shredder around on your property. DW50 MOBILE equips with a hydraulic brake to allow a safe control of self-driving mechanism.



The chipping drum mechanism is designed with a heavy roller with 4 large knives. These knives pull the wood powerfully into the shredder and cut the material reliably against the counter knife.



Depending on the type of material you process, how hard, wet or dry, it handles most types up to 6” in diameter efficiently, again depending on the material, up to 3~5 m3/Hr.



The service friendly design of our DW50 Mobile wood chipper provides for easy maintenance. The knives are easily accessible and can be re-sharpen. Both the input and discharge funnels can be folded for access or storage.







Specifications in Metric
Model	DW30	DW50 MOBILE
Drive System	Direct drive,pto w/shearbolt	n/a
PTO Rated RPM	540	n/a
Power Needed	20-50hp Tractor	20.5 HP Twin- Cylinder Gasoline Engine

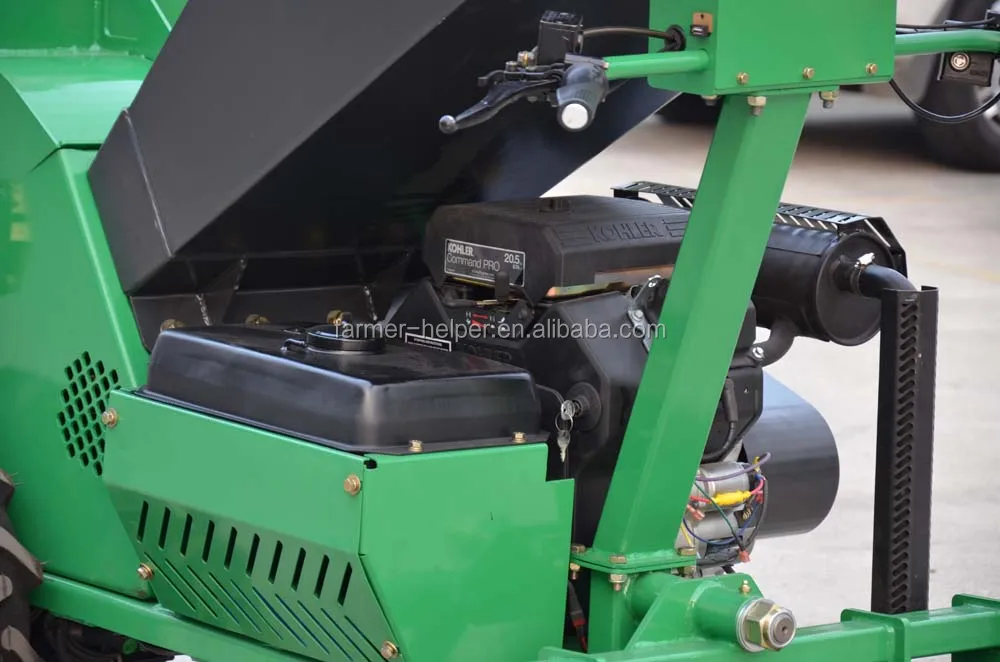

Engine	n/a	Kohler CH740 include Electric Start,674 CC
Oil Tank	n/a	15L
Self-drive	n/a	Yes
Drive Speed	n/a	-5 km/h ~ +5 km/h
Hydraulic Brake	n/a	Yes
Mile Range After Full Recharge	n/a	80 km
Recharge Voltage	n/a	200~240 AC
Max Chipping Diameter	15 cm	15 cm
Chipping House Opening	15cm * 23cm	50cm * 15 cm
Number of Rotor Knives	2	4
Number of Counter Knives	1	1
Knife Type	Hardened Tool Steel	Hardened Tool Steel
Feeding System	Self Feed	Self Feed
Machine Size	86*71W*155H cm	203L*86W*198H cm
Mounting System	3 Point Hitch	n/a
In Feed Height	112 cm	125 cm

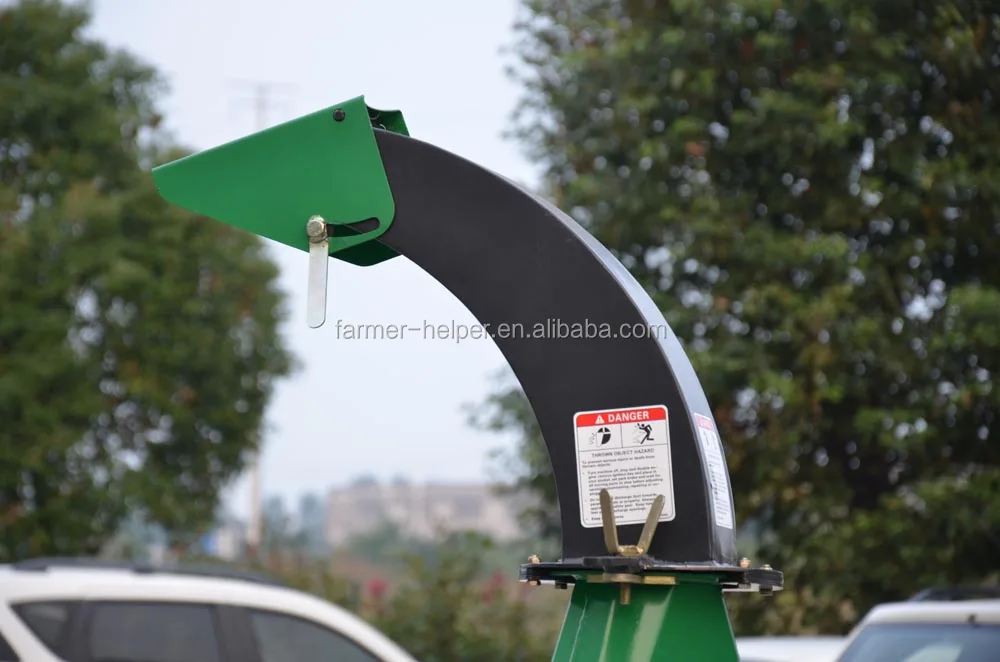

Adjustable Discharge	Yes, 360°	Yes, 360°
Hopper Discharge Height	155 cm	198 cm
Weight	283kgs	490 kgs













2.About us



Changzhou Farmer Helper Machinery Co.,Ltd (FHM)  is established in 2009,located in Benniu Industrial Park,Changzhou,Jiangsu,China.

With its strong technique power,complete set of manufacture equipments and experimental devices,advanced CAD R&D means, the company has complete production capaicty from cutting,profiling,welding,maching,paiting to packing.

FHM has aleady manufactured a full range of high quality implements for the small to medium-sized tractor owners across the world,Such as Front End loader, Backhoe, Mower, rotary tiller, Wood Chipper, Log Splitter, Post Hole Diggers. more than 50 serials and more than 150 models of various implements.



3.Factory show

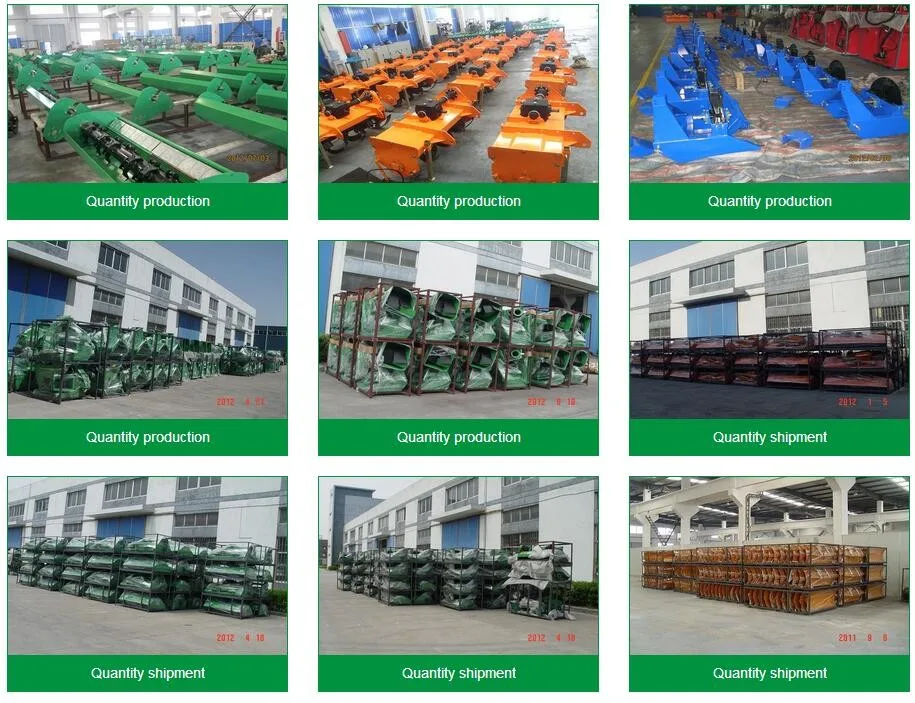

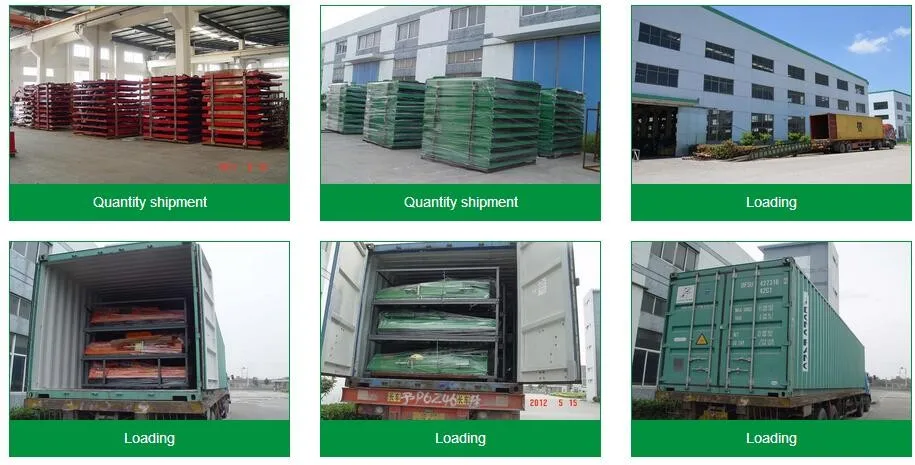

4.Quantity production and delivery



These following products are hot-sales and exported in large quantity to Europe and other countries. wood chipper price
wood chipper for sale by owner
mini wood chipper
wood pallets chipper
bx92r wood chipper
wood chipper machine in india
wood chipper for skid steer
electric wood chipper
kubota wood chipper
bx42s wood chipper for sale
3 point hitch wood chipper
industrial wood chipper
wood chipper spare parts
jinma wood chipper
wood chipper pto

5.CE certificate



All of our tractor mowers +15hp wood chipper
wood chipper used
wood chipper mulch machine for sale
used small wood chipper
6 inch wood chipper
wood chipper japan already got CE certificate and fully meet European market requirements.



6. Exhibition pictures







 7. Contact







 8.FAQ



1.Q: Full price list for these products

A:If you need the price list for these products, please notify the product model so that i can quote you accordingly.

Please understand we have a very wide product range, we don't usually offer full products price list.

2. Q: Main market

A:Western Europe and Australia.

3. Q: Export quantity

A:20-30 units of 40ft container per month.

4. Q: Business terms

A:Shipment time: 45days after your payment

Shipment: By sea

Loading port: Shanghai port, China

Destination port: ...To be advised

Payment: By bank transfer

Warranty: 1 year

5. RE: CE

A: Most of our products are certified by CE.

6.RE: Client for reference

A:GEO is our main dealer in Europe.

7.Q:Sample test

A:Now our agri machines are exported in large quantity.

If you need one sample for test, we advise you to get this sample from the domestic dealers.

If you want to get from us directly, usually we advise to order at least one pallet per product.

8.Q:Why choose FMH for cooperation?

A:FMH is professional Agri&Forestory machine manufacturer in China. Comparing with our competitors, we have much more advantages as follows:

1.More Professional Sales staffs to guarantee the better service:14 staffs

2. More agri machines for your choice:198types One-stop total solution.

3. More New products into your range to avoid price competion:every momth

4.Larger quantity production and shipment:20X40ft containers per month and go on increasing.

5.More advanced CNC processing equipments to guarantee the higher quality :2units of advanced laser cutting machines and more than 50units of CNC metal precessing machines

6.Better quality to guarantee better Credit.

7.Faster delivery time:only45days

8.More stick quality checking before shipment.

9.More reasonable after-sales service terms.

10.More famous brand: FMH;

11.Largest manufacturer of tractor mower;

12.Largest manufacturer of wood chipper;

9.Q:- Can we mix different models together?

A:You may mix different products or models in 1x20ft or 1x40ft container but in order to make the best use of container room, usually we advise to order a pallet of the same product.

10.Q:-How about our agri machines fit with other brand tractors?

A:-Our 3 point system and PTO are designed to international standards and will accept all class 1 - 3 point implements.

11.Q:- Can I put my brand name on your agri machines instead of your brand name?

A:- Yes. Many dealers sell our agrimachines with their own brand name. Some have design modifications to meet their unique needs.

12.Q:- How do I visit you and the factory?

A:- You are welcomed to visit us and our factory at your convenience.

You can fly to Shanghai air port and then come from Shanghai railway station to Changzhou city by Shanghai Nanjing high-speed railway, only one hour’ trip.

Also you can fly to Changzhou air port from Chinese other air ports.

We can pick you up at Changzhou Railway Station or Changzhou airport and bring you to our factory .

Let us know your schedule in details so we can arrange everything for you.

13.Q:- How can I become a dealer in my area?

A:- If you are qualified, you may apply for a dealership. We choose reliable partners for a long term business cooperation.

14.Q:- Can I get an exclusive right for your agri machines in some territories?

A:- Usually we do not grant the exclusive agent for all of our agri machines in one country market because one client could not sell all our machines.

But we could grant the exclusive agent for one or two of our products in one country according with the sales quantity
