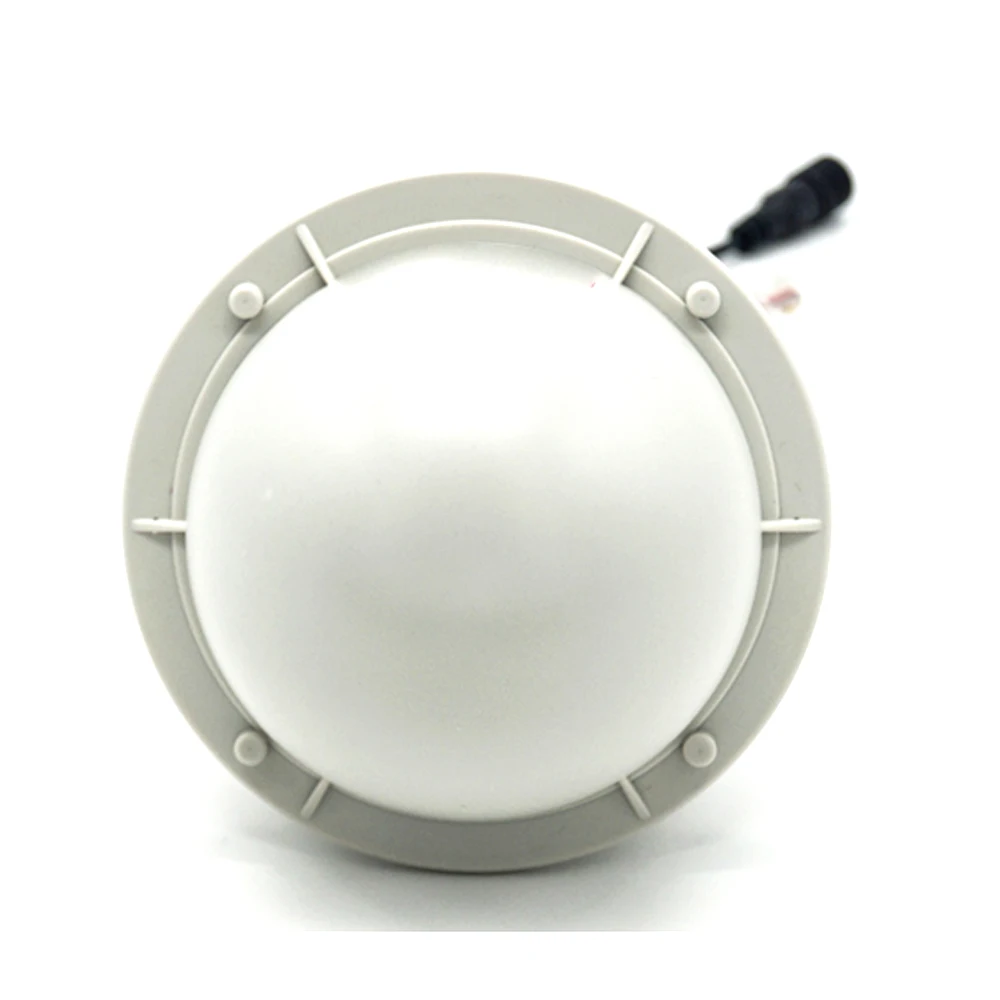

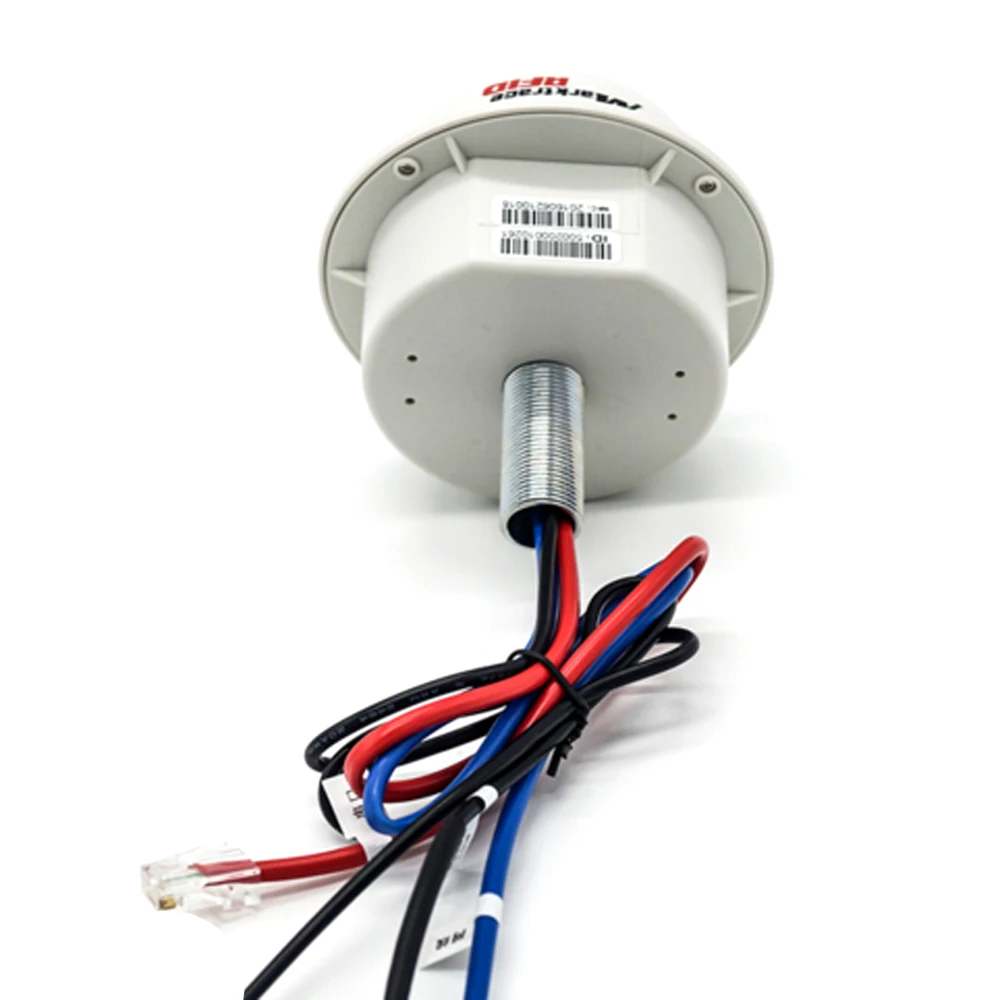

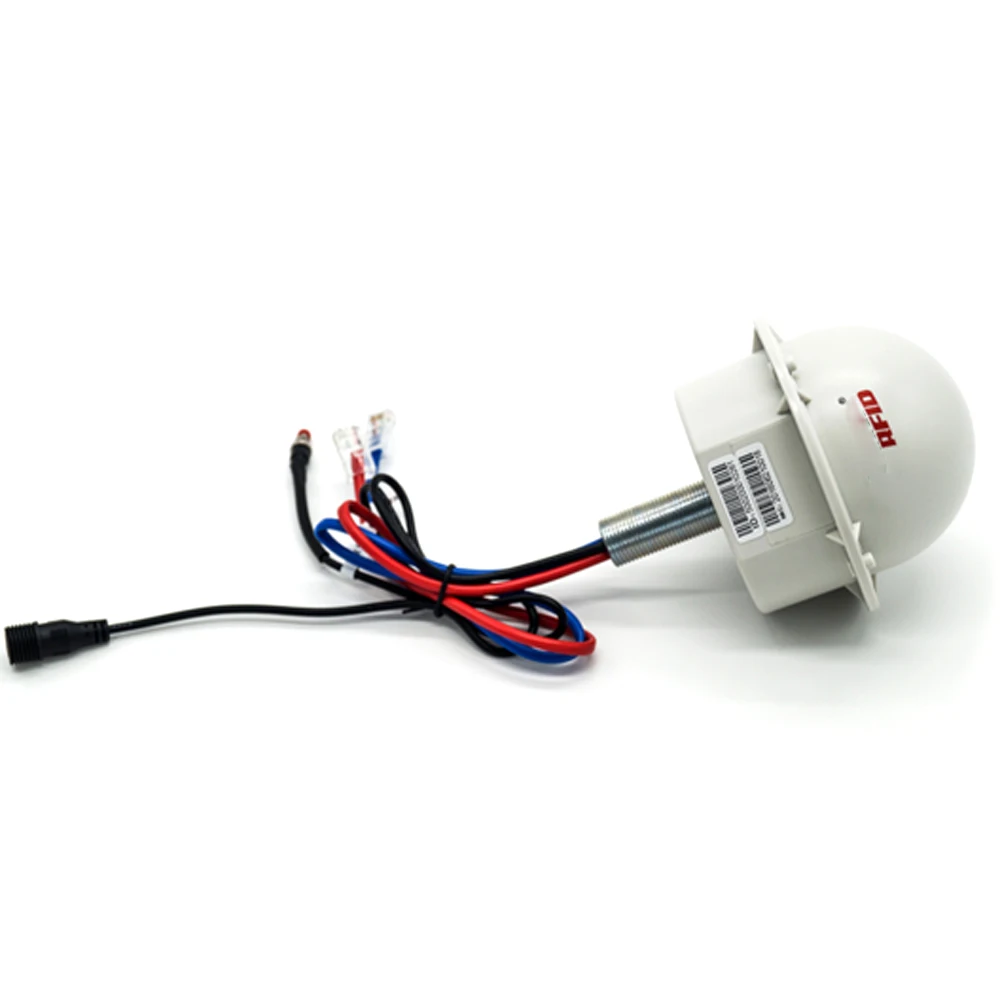

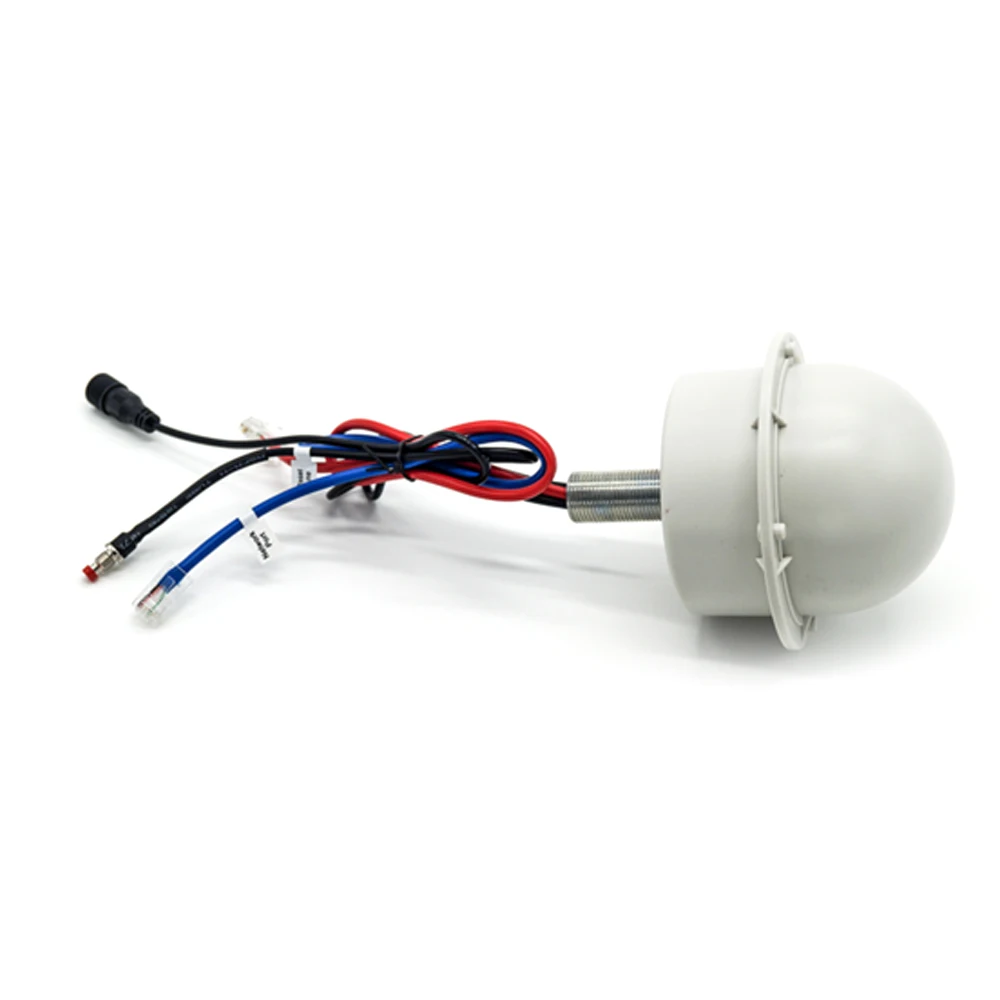

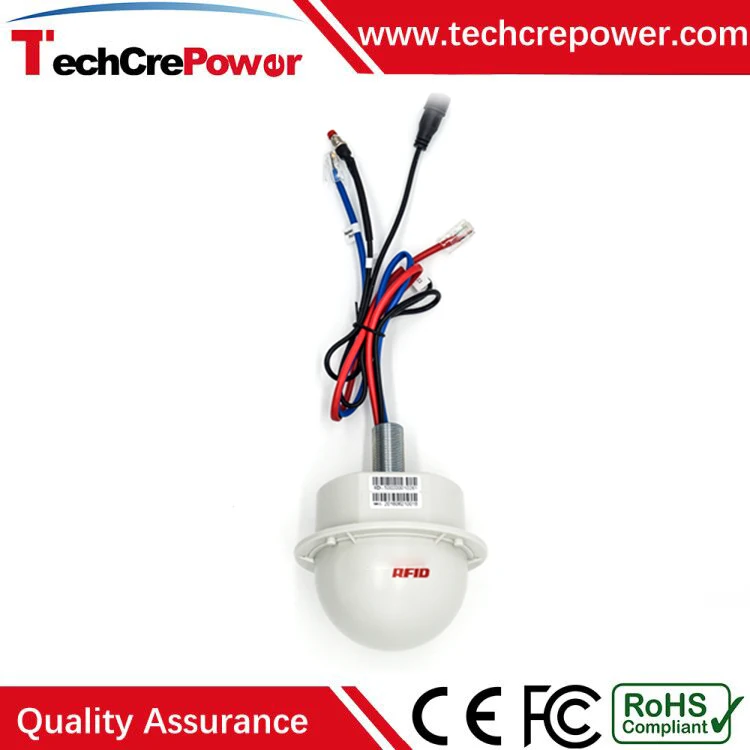

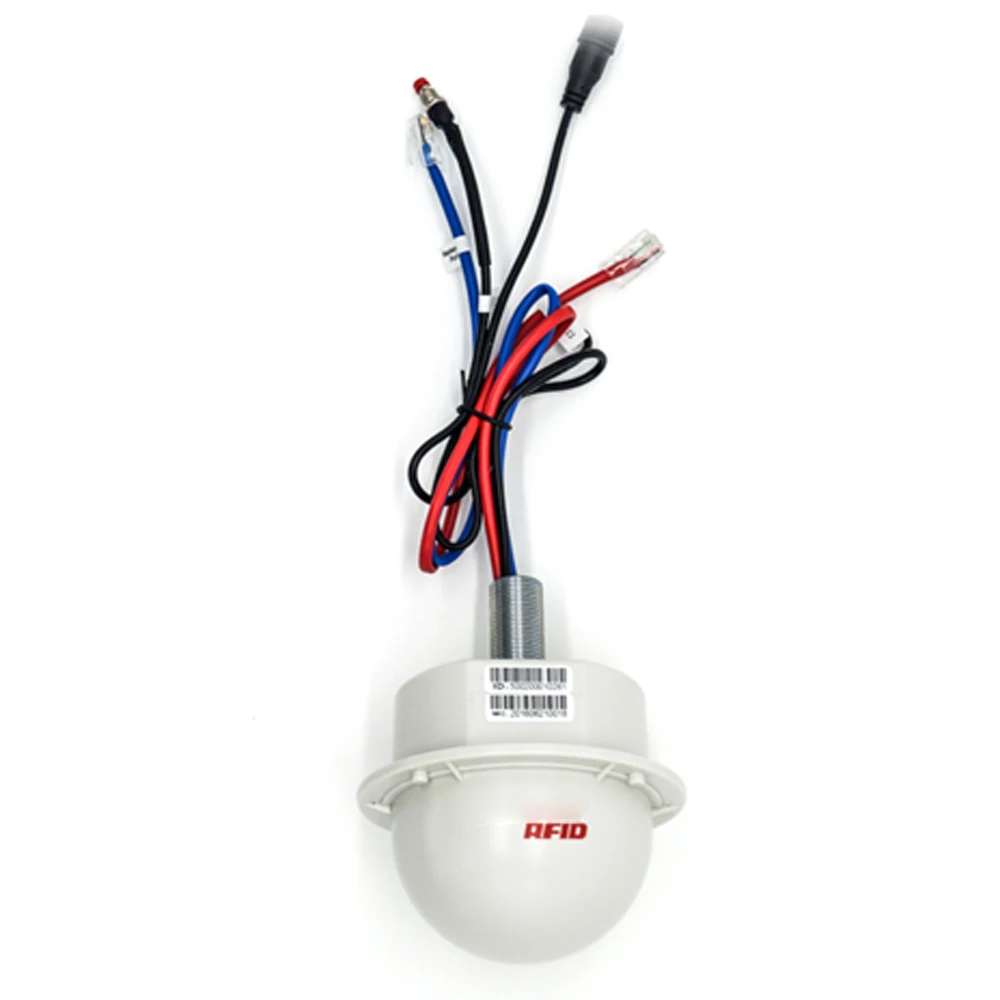

2.4Ghz long distance Omni directional Active RFID Reader for Asset Tracking System

Share on (60712363137):


Price:

Quantity:


Product Overview

Description


2.4Ghz long distance Omni-directional Active RFID Reader for Asset Tracking System



Technical Specifications:

Physical property
Material
ABS
Dimension
92*Φ110mm
Wieght
200g
Installation
Ceiling type
2.4G RF Property
Reading
Omni-directional
Signal Modulation Type
GFSK
Communication Speed
1Mbits/s
Working Frequency
2440MHz
Max. receive sensitivety
-90dbm
Antenna gain
2dbi, dual polarization
Communication
RS232
Baudrate: 115200bps
Ethernet (RJ45) 10/100
Self-adaption
Power Property
Working current
350mA
Working voltage
9V DC



About us:

Techcrepower is one very professional card products supplier since 2006, we had provided hundreds of millions of Smart card,  RFID contactless card, ABS key tag, NFC tag, Wristband tag, Disc tag … with various chips 125KHZ/13.56MHZ in China and worldwide.



Product Display


Related Products


Company Information


FAQ






1.What is your minimum order quantity?



Actually, we don't have strict rules on MOQ and welcome you to get samples for testing.



2.What is your payment term?



Bank T/T, Paypal, L/C, Western Union and MoneyGram.



3.What about the shipping way?



Generally, the package is delivered by Express DHL/Fedex/TNT/UPS. For big order, we recommend to ship by air or sea to save cost, but it might take longer time. Of course we could ship goods to your forwarder in China according to different customers requirements.



4.How long does it take?



Usually we need 2-8 days differently for preparing and another 3-7 days for delivery. If special products, may need more time.



5.What about the warranty?



We provide 1-2 years warranty from the date of delivery but lifetime technical support.
