100pcs/min High speed PLA coated paper cup vending machine in Europe(MB-C12H)
100pcs/min High speed PLA coated paper cup vending machine in Europe Technical data:
Paper Cup Size : 2-12 OZ (we have other models for bigger sizes of cups forming. ) Speed: 80-100pcs/min Paper cup top diameter: 45mm -104mm Paper cup bottom diameter: 35mm-75mm Paper cup height: 35mm-115mm Raw material : 170-350gsm Single & double PE paper General power: 11kw Electricity : 380V
Weight:3000kg Measurement: 2600mm×1300mm×1900mm
100pcs/min High speed PLA coated paper cup vending machine in Europe features:
1.Paper cup bottom sealing by Leister hot air system, import from Switzerland.
2.It is easy to make cups of different size by changing moulds.
3.Cup side sealing by ultrasonic.
4.Double PE coating paper cups for cold drink as well as hot drink.
5.With our unique original designed bottom knurling system, single shaft,Korea type, this ensures the low leaking ratio and high quality of paper cups.
6.Paper sucking system adopt the vacuum pump, big power and stable running. With unique single shaft design,the drive system is conducted by the stable
7.gear system,it would be more stable when machine running at a high speed.
8.With automatic lubricating system, it will automatic lubricating to every moving parts when machine runs.
9.Every cam will be harden to ensure it can run for a long long time.
10.Machine is designed with double turning plate
11.Equipped with automatic cup collecting stacking and counting system.
12. Bottom paper we have a special pre-feeding system, so the bottom paper feeding is “0” waste.
13.Adopt the SIEMENS PLC micro computer system and also equipped with SIEMENS touch screen for easy and visible operation.
14.The upgraded gear box for longer life span.
15.Optional quality checking system.
2 turning plates
bottom sealing by hot air system
100pcs/min High speed PLA coated paper cup vending machine in Europe working video,
please refer to the following online website link:
https://www.youtube.com/watch?v=K0WOythn3Tc

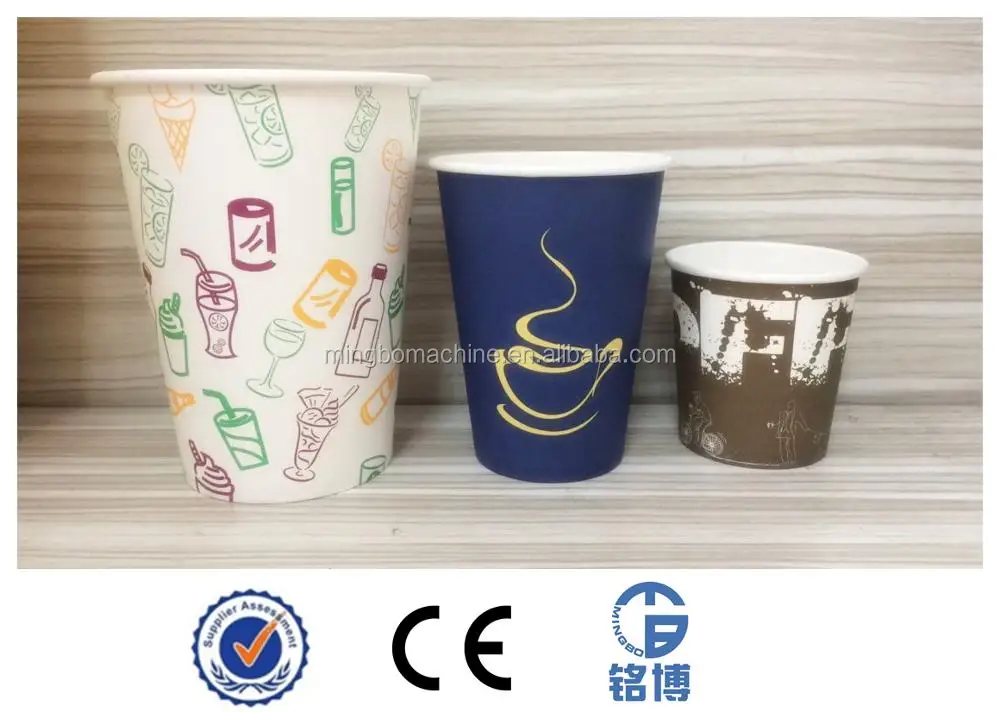

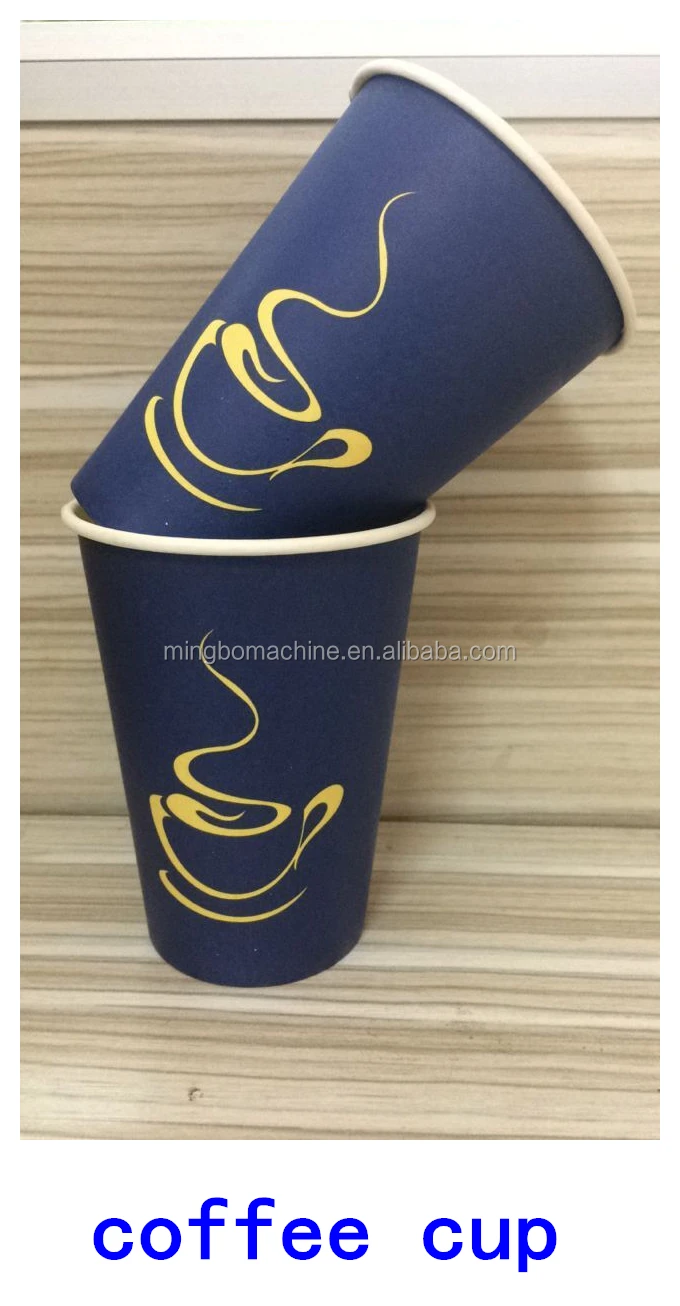

100pcs/min High speed PLA coated paper cup vending machine in Europe finished samples:
video link
More machine working video,please refer to the following online website link:
Mingbo machinery is one of the leading manufacturer of paper cup machine, paper bowl machine, paper plate machine die cutting machine and also the cup lid machine as well as the burger box machine. its high quality machinery leads customer to create more profit and trouble free.
FAQ
1. ARE YOU MANUFACTURE FACTORY OR TRADING COMPANY ?
we are one of the leading manufacturer of the paper cup machine die cutting machine, cup lid machine paper plate machine and also the burger box machine in China.
2. WHAT KIND OF CERTIFICATE DO YOU HAVE?
WE HAVE GOT THE CE, SGS, BV VERIFIED CERTIFICATE FOR OUR MACHINE AND FACTORY.
3. WHERE IS YOUR FACTORY LOCATION?
WE ARE LOCATE IN LINSIYANG INDUSTRIAL ZONE, FEIYUN STREET, RUIAN CITY, ZHEJIANG PROVINCE, CHINA. OUR NEAREST HIGH WAY EXIT IS FEIYUN, OUR NEAREST TRAIN STATION IS RUIAN STATION, OUR NEAREST AIRPORT IS WENZHOU AIRPORT.
4. WHAT ABOUT YOUR MACHINE DELIVER TIME ?
FOR NORMAL SPEED PAPER BOWL MACHINE 30 DAYS, FOR MEDIUM SPEED CUP MACHINE 45 DAYS.
