* Continuous Short Circuit Protection * Over Voltage Protection * Meet EISA 2007/DoE, EU ErP & CoC Version 5 * IEC60320-C14 Inlet, Class I power supply
Typical Model List
OUTPUT VOLTAGE
OUTPUT CURRENT
RIPPLE & NOISE (NOTE 2)
VOLTAGE ACCURACY (NOTE 1)
LINE REGULATION (NOTE 3)
LOAD REGULATION (NOTE 4)
MAX OUTPUT POWER
9.0-15.0V
6670mA
350mV
±5%
±1%
±5%
80.0W
15.1-48.0V
5960mA
350mV
±5%
±1%
±5%
90.0W
Specification
INPUT :
Voltage:
90~264Vac
Frequency :
47 to 63Hz
Input Current :
3.0A max.
Inrush Current :
Cold Start @25℃ 120A max. @240Vac
Leakage Current :
0.75mA max.
OUTPUT :
Hold-up Time :
10ms typ. @115Vac
Short Circuit Protection :
Continuous(Auto Recovery)
Over Voltage Protection :
Yes
Temperature Coefficient :
±0.05%/℃
GENERAL :
Hi-pot :
Input to output = 1.500VAC
Operating Temperature :
0 ~ 40℃
Storage Temperature :
-20 ~ 80℃
Humidity :
85% RH max. Non condensing
Cooling :
Natural Convection
Switching Frequency :
50KHz Typical MTBF ….MIL-HDBK-217F, GB, at 25℃/115VAC….50Khrs min.
Altitude :
5000m
SAFETY AND EMC :
Emission and lmmunity :
EN55022 Class B, FCC Part 15 Class B EN61000-6-3,EN61000-3-2,EN61000-3-3, EN55024
NOTE: 1. Voltage accuracy at 60% full load. 2. Add a 0.1uF ceramic capacitor and a 10uF E.L. capacitor to output for Ripple & Noise measurement @20MHz BW. 3. Line regulation is measured from 100V to 240Vac full load. 4. Load regulation is measured from 60% to 100% full load and from 60% to 20% full load (60% +/- 40% full load

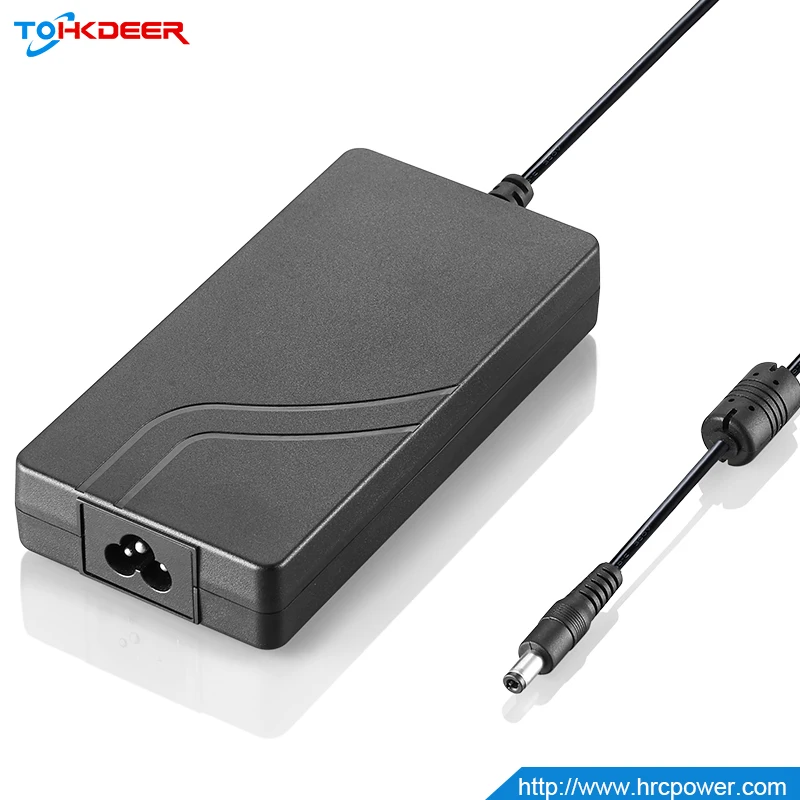

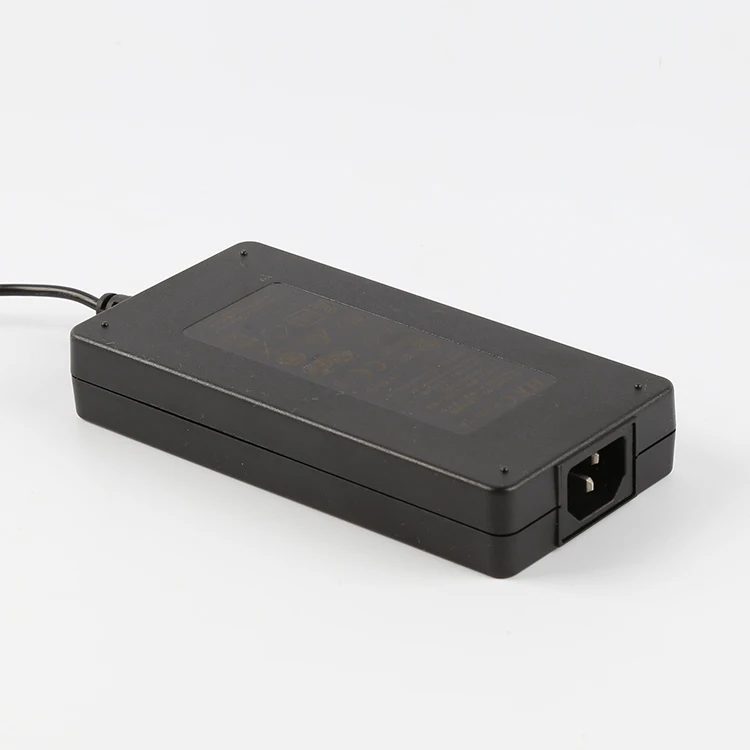

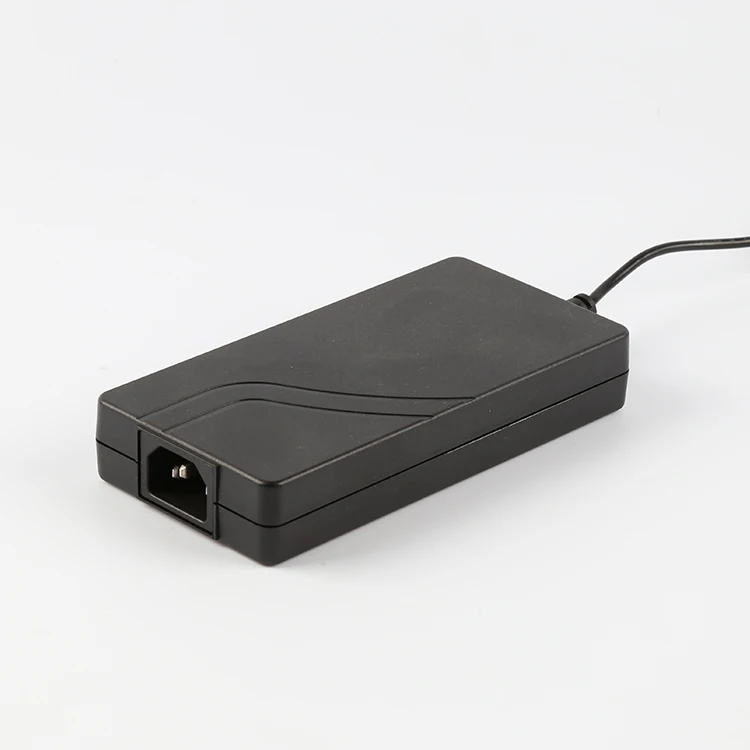

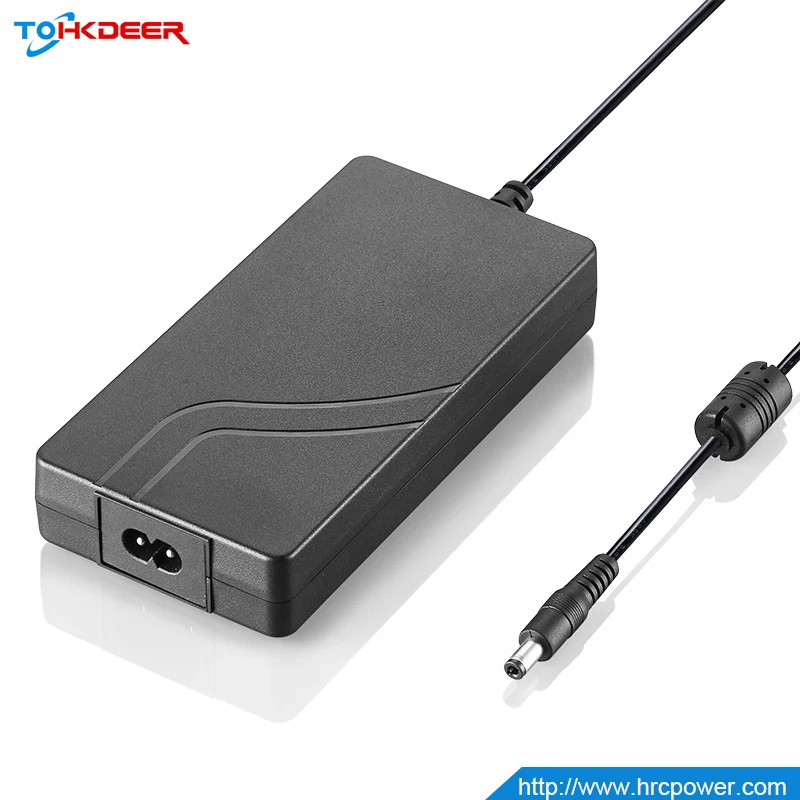

Detail Images
